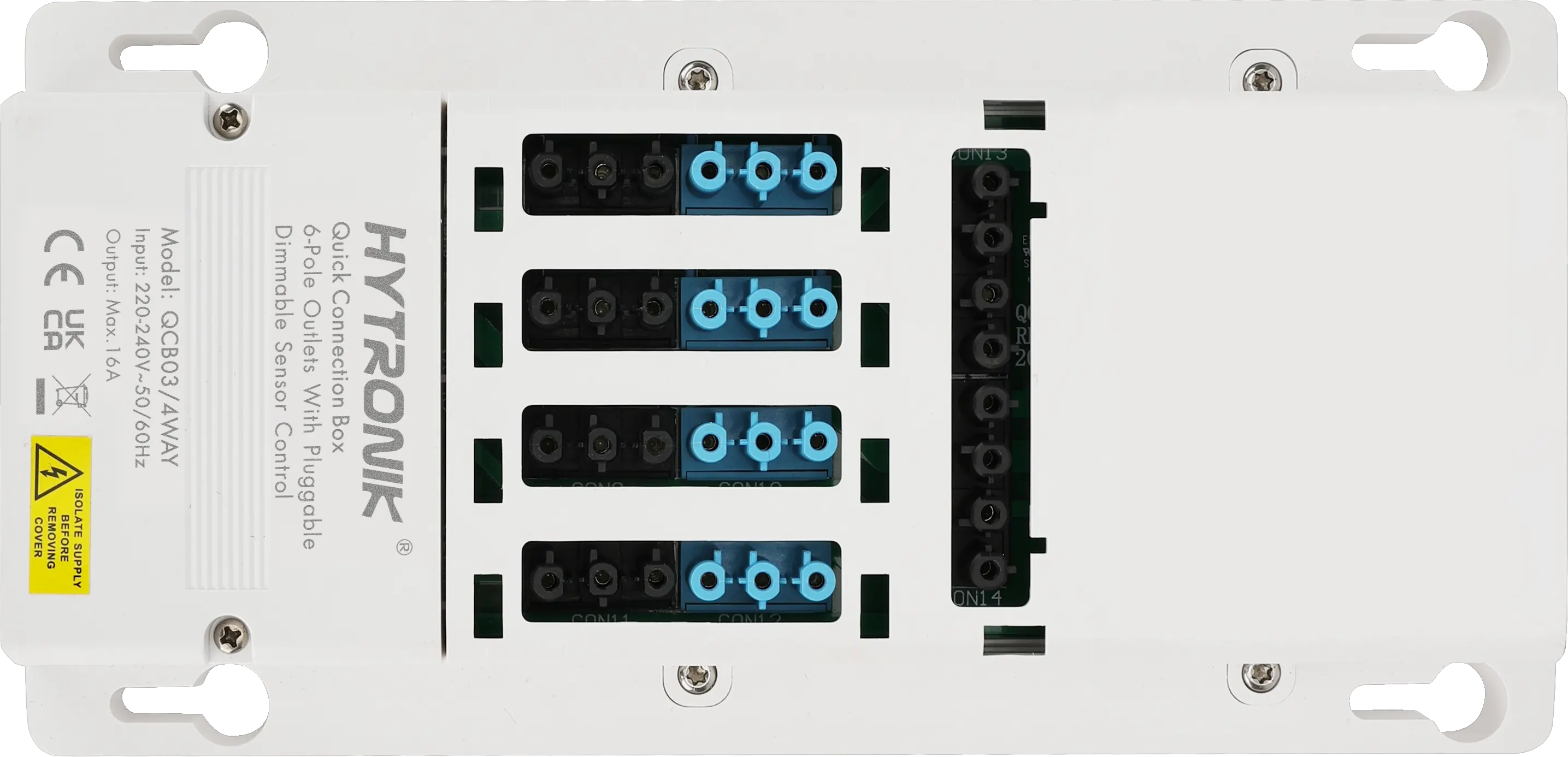

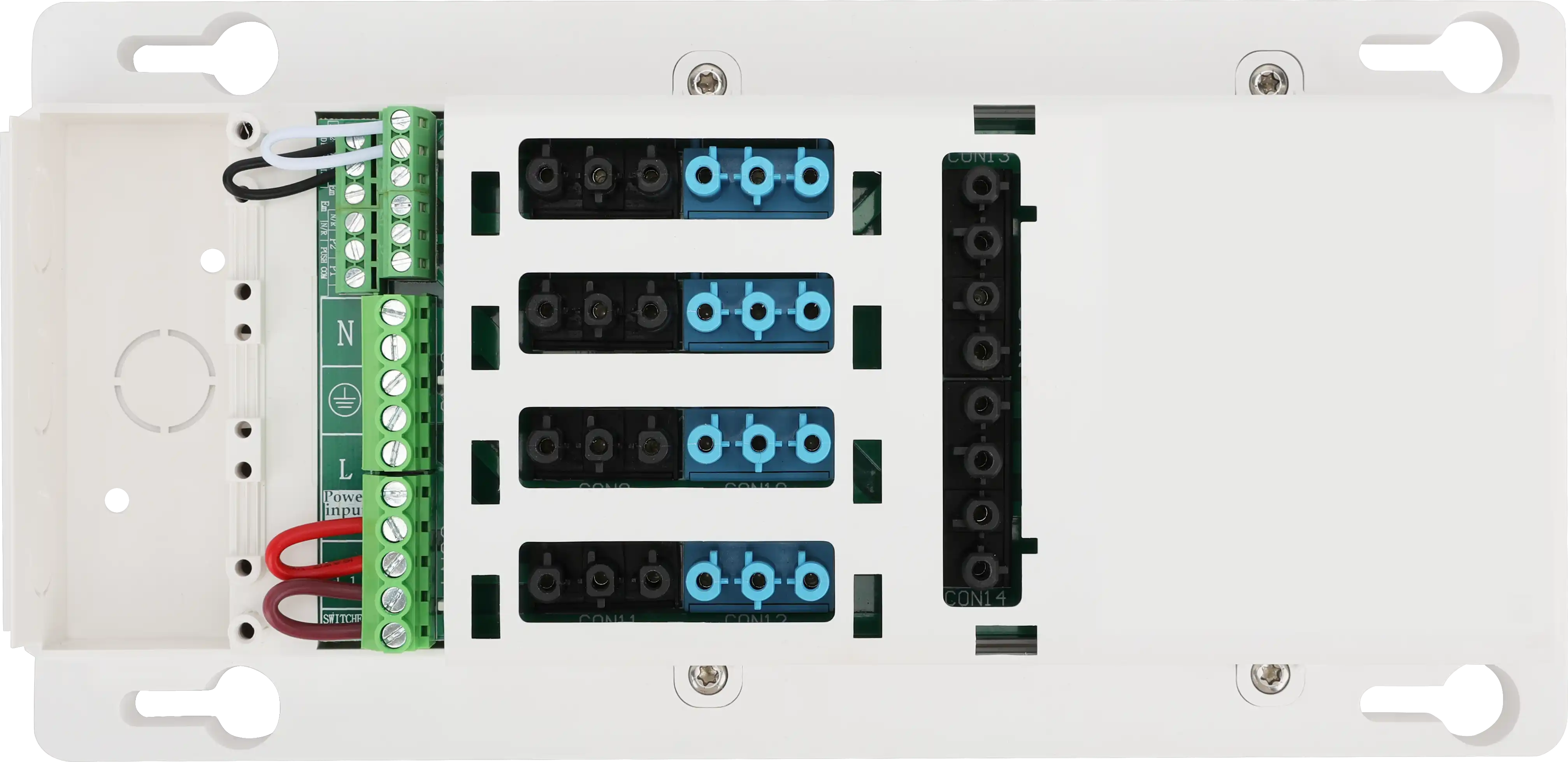

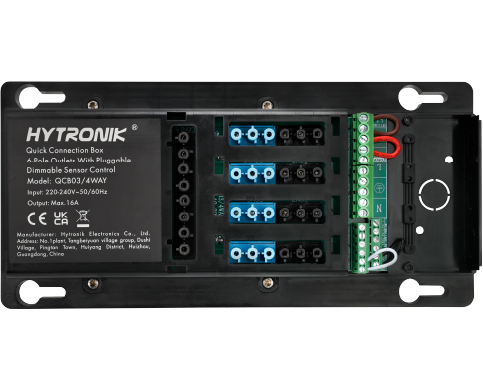

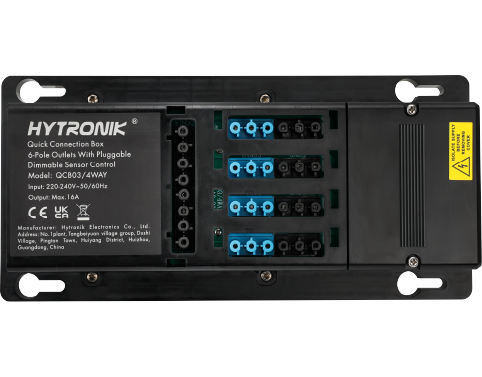

QCB03/4WAY
Quick Connection Box | Dimmable | GST Types 6-poles x 4 lum. + 1 sensor
BENEFITS
- Robust: 6-poles terminals with 2 selectable channels
- Clean: Reduce wiring labour hours and improve safety
- Efficient: Dimming control for 4 luminaires with 1 sensor
APPLICATIONS
- Remote ceiling wiring
- Classrooms
- Offices
Product information "QCB03/4WAY"
GST type 6-pole terminal base quick connection box for dimming application, with DALI or 0/1-10V output, 4 luminaire outlets and 1 sensor outlet. Freely switch between1-channel and 2-channel. Rating of system 16A, rating of each output 10A.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | DALI-2 |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50/60Hz |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product width: | 143.5000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
