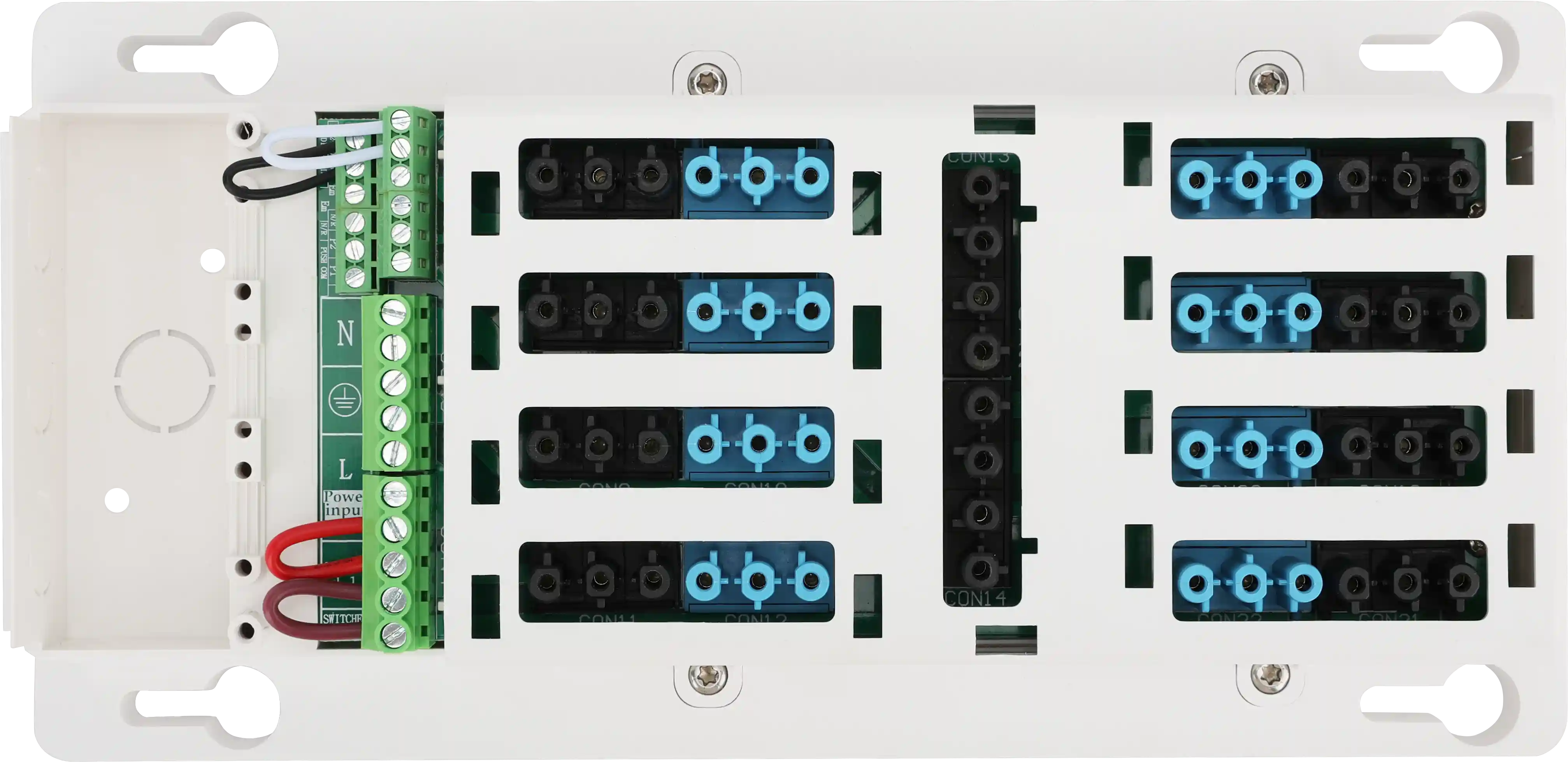

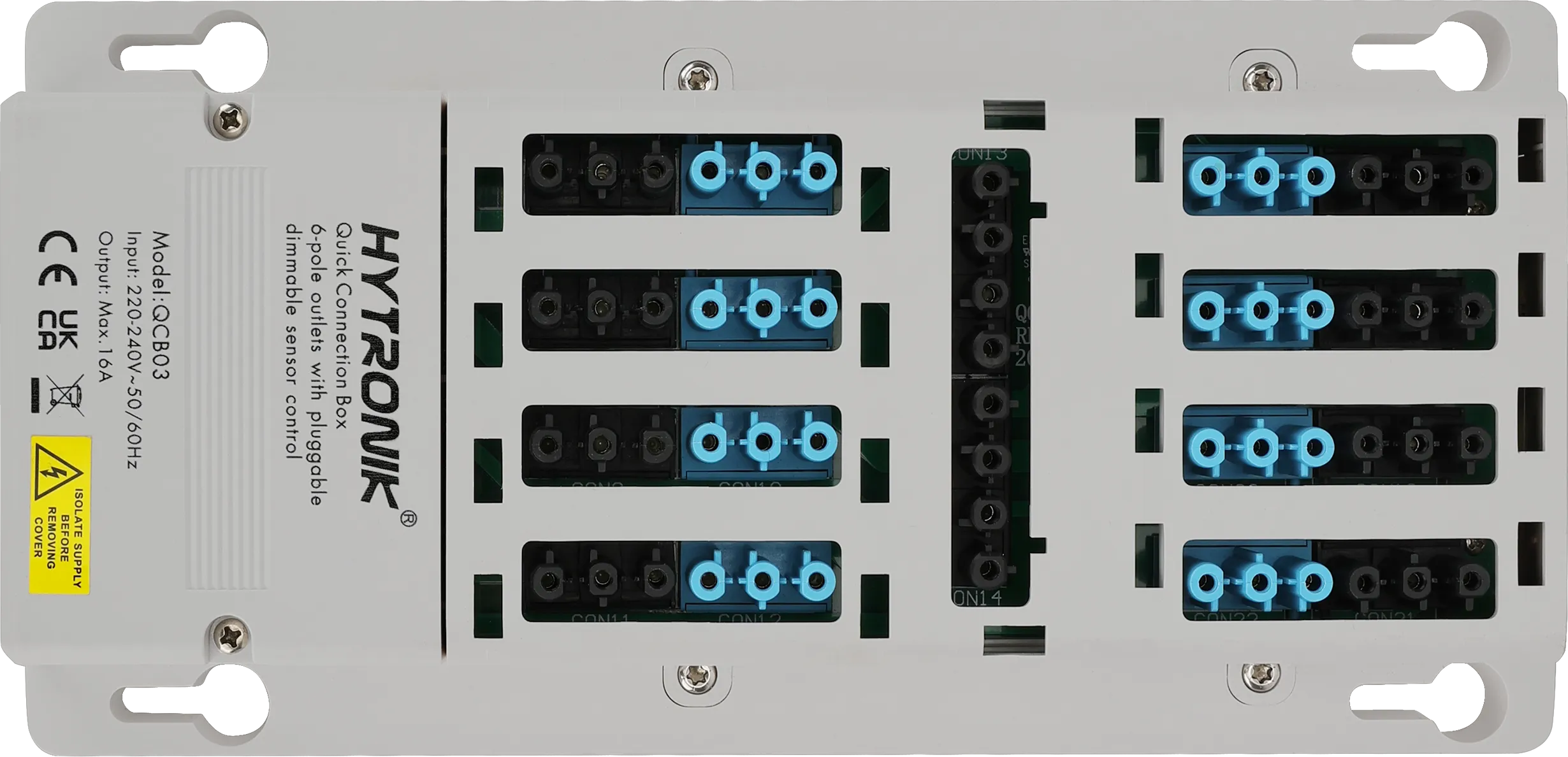

QCB03
Quick Connection Box | DALI/0/1-10V | GST Types 6-poles x 8 lum. + 1 sensor
BENEFITS
- Robust: 6-poles terminals with 2 individual channels
- Clean: Reduce wiring labour hours and improve safety
- Efficient: DALI/DALI-2 or 0/1-10V control for 8 luminaires with 1 sensor
APPLICATIONS
- Remote ceiling wiring
- Classrooms
- Offices
Product information "QCB03"
• Dimmable control applications (DALI/DALI-2 or 0/1-10V)

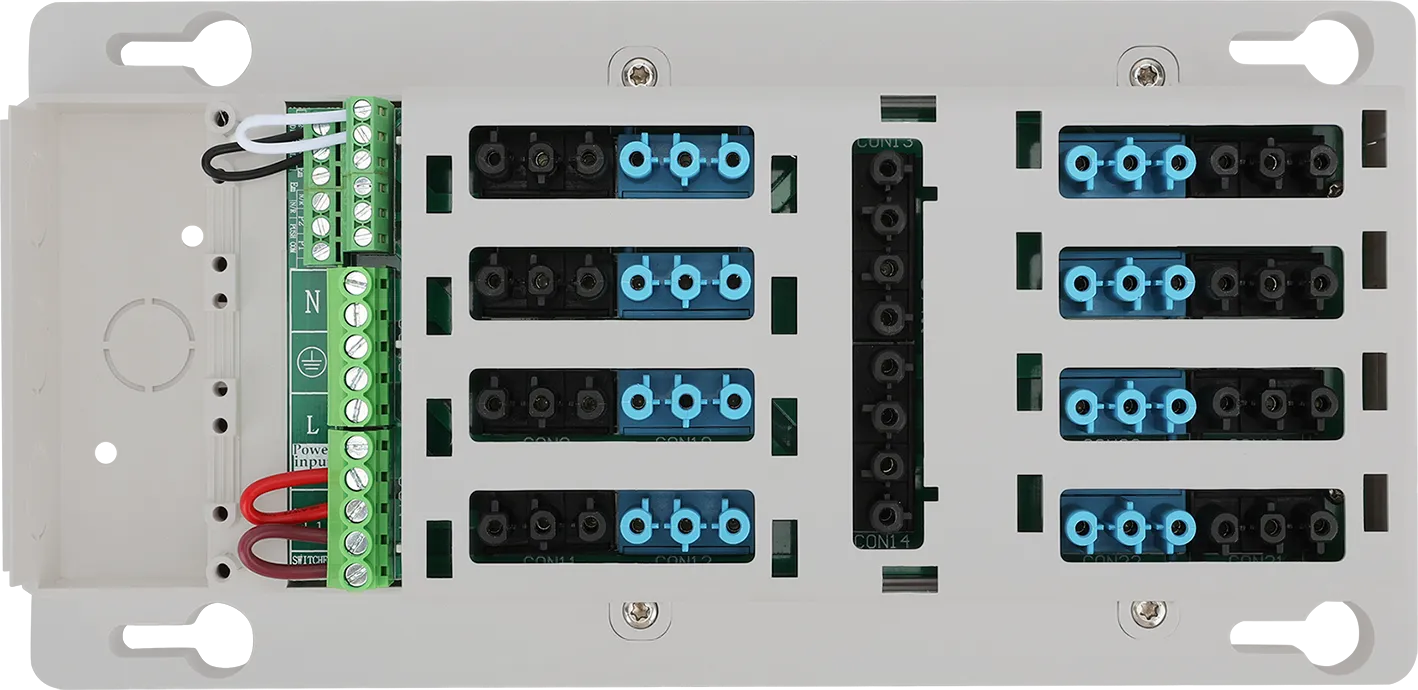

• 8 luminaire outlets + 1 extra sensor outlet for sensor connection
• Luminaire outlet: GST type 6-pole terminal base (L’ or L, N, E, Em, Dim+, Dim-)
• Sensor outlet: GST type 8-pole terminal base (L, N, E, L‘, P1, P2, Dim-, Dim+)
• Black housing and white housing available to choose from
• Freely switch between 1-channel (1 x 8) & 2-channel (2 x 4) control
• Tamper-proof structure design
• Expandable: easy extension to another QCB03 via plug’ n’ play
• Rating of system: Max 16A. Rating of each output: Max 10A
• Flame-retardant material for safety protection
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | 0/1-10V |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50/60Hz |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product weight: | 629.0000 g |
| Product width: | 143.5000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
