QCB01/ECO

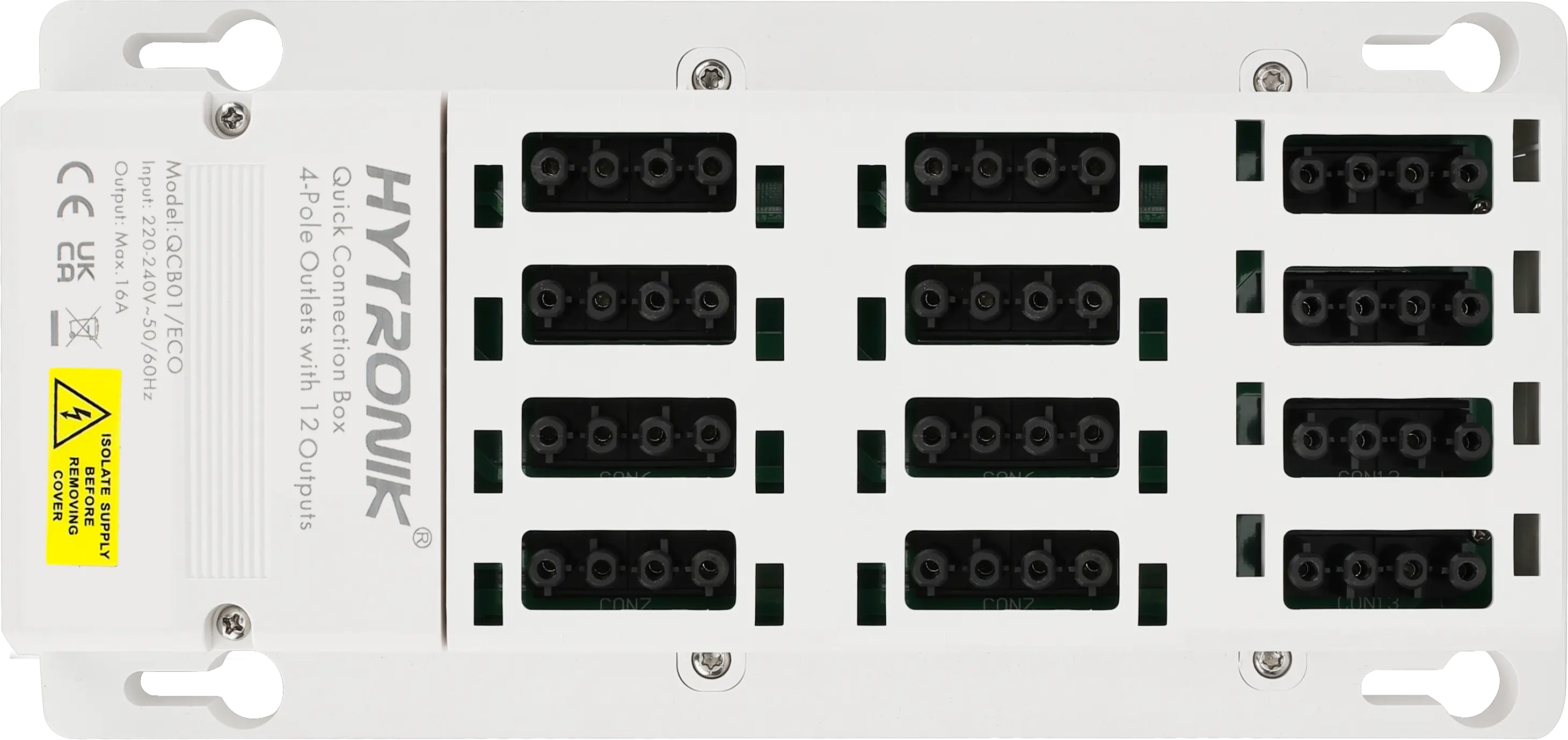

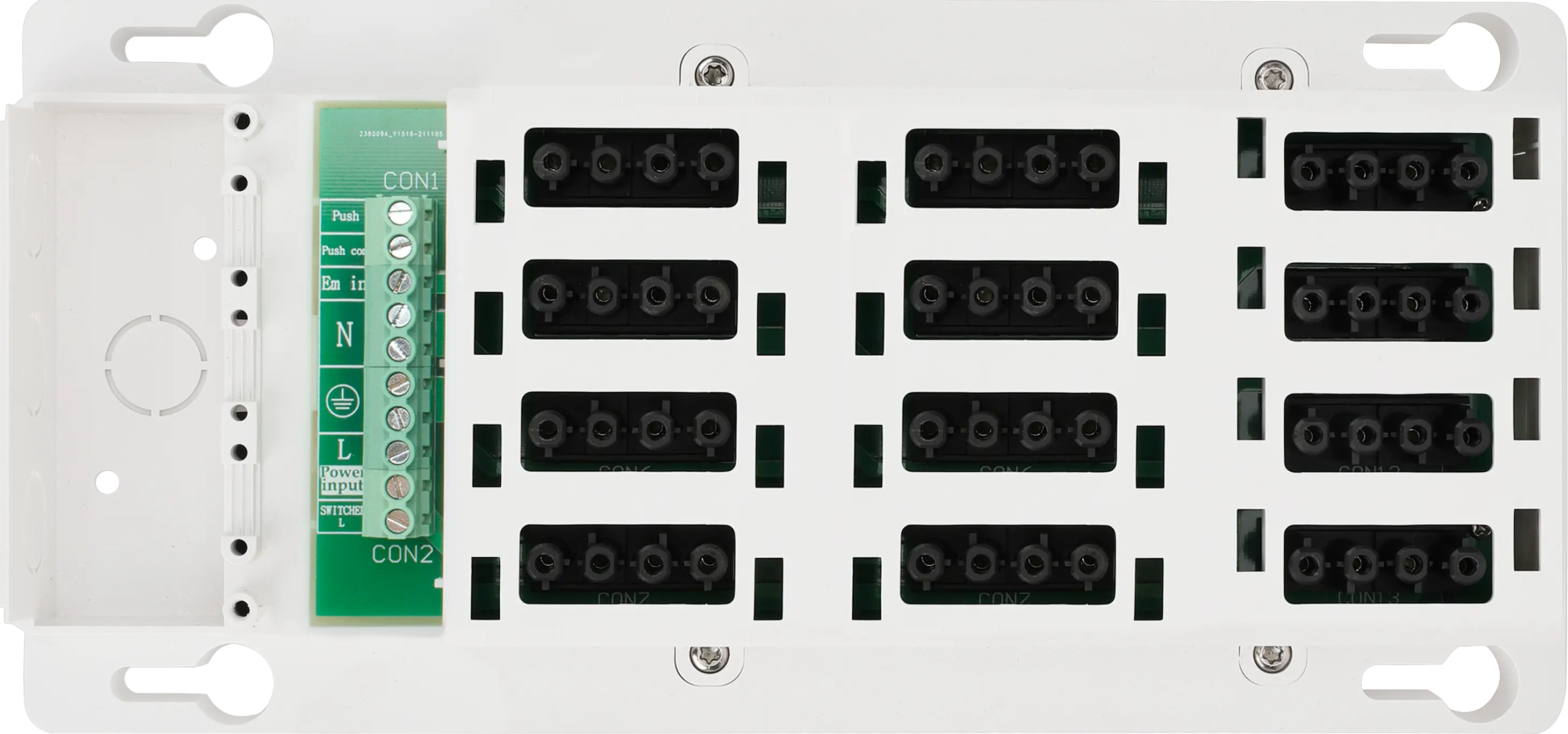

Quick Connection Box | ON/OFF | GST Types 4-poles x 12 lum.
BENEFITS
- Economic: 4-poles terminals with 12 x luminaire outlets
- Clean: Reduce wiring labour hours and improve safety
- Efficient: On/off control for 8 luminaires with 1 sensor
APPLICATIONS
- Remote ceiling wiring
- Classrooms
- Offices
Product information "QCB01/ECO"
• Non-dimmable control applications
• Economic design with 12 luminaire outlets
• Luminaire outlet: GST type 4-pole terminal base (L’, N, E, Em)
• Black housing and white housing available to choose from
• Tamper-proof structure design
• Expandable: easy extension to another QCB01/ECO via plug’ n’ play
• Rating of system: Max 16A. Rating of each output: Max 10A
• Flame-retardant material for safety protection
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Single-Circuit Connection Boxes |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product weight: | 569.0000 g |
| Product width: | 143.5000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Datasheets
Product datasheet: qcb01-eco.pdf
Installation Manual
User manual: installation-manual-qcb01-eco.pdf
