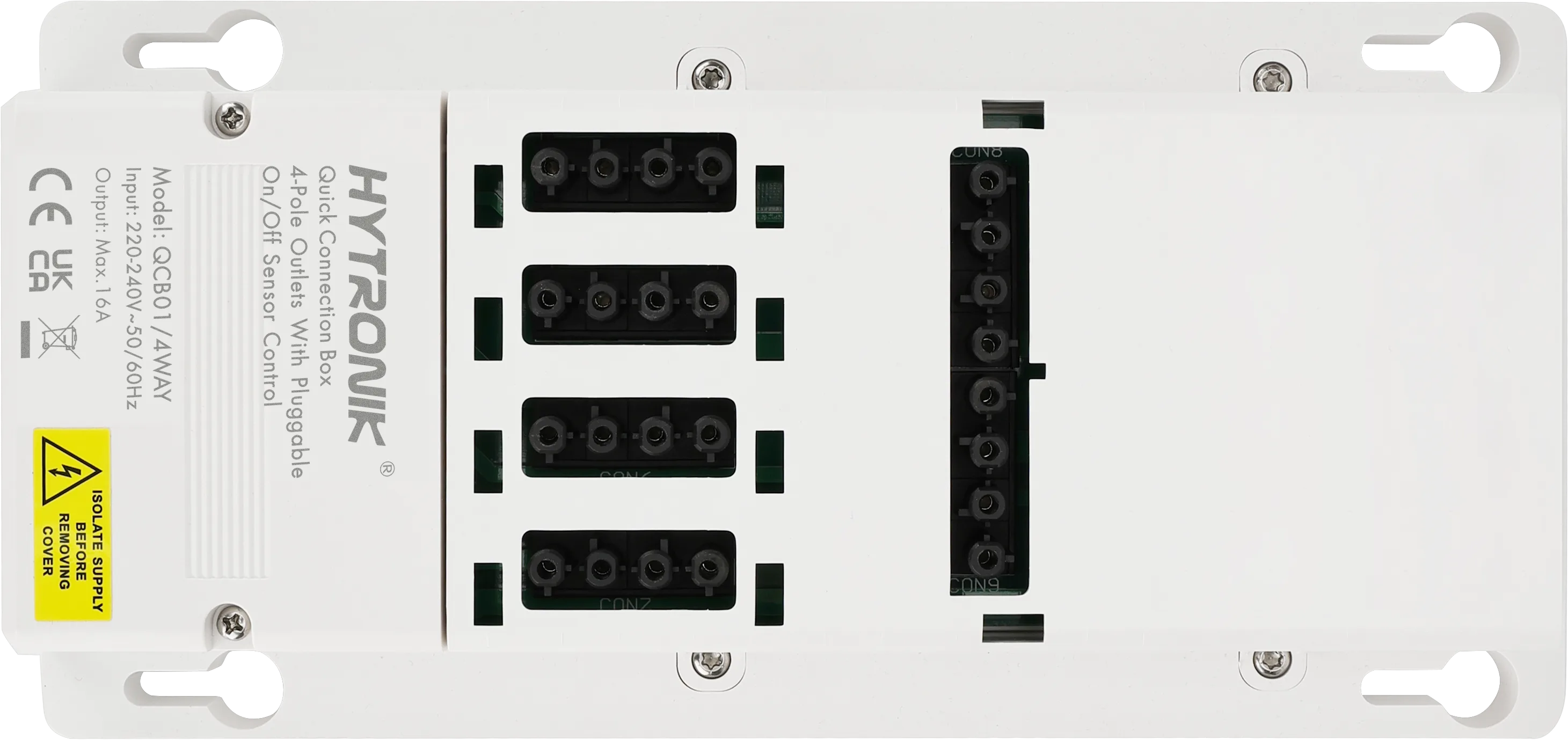

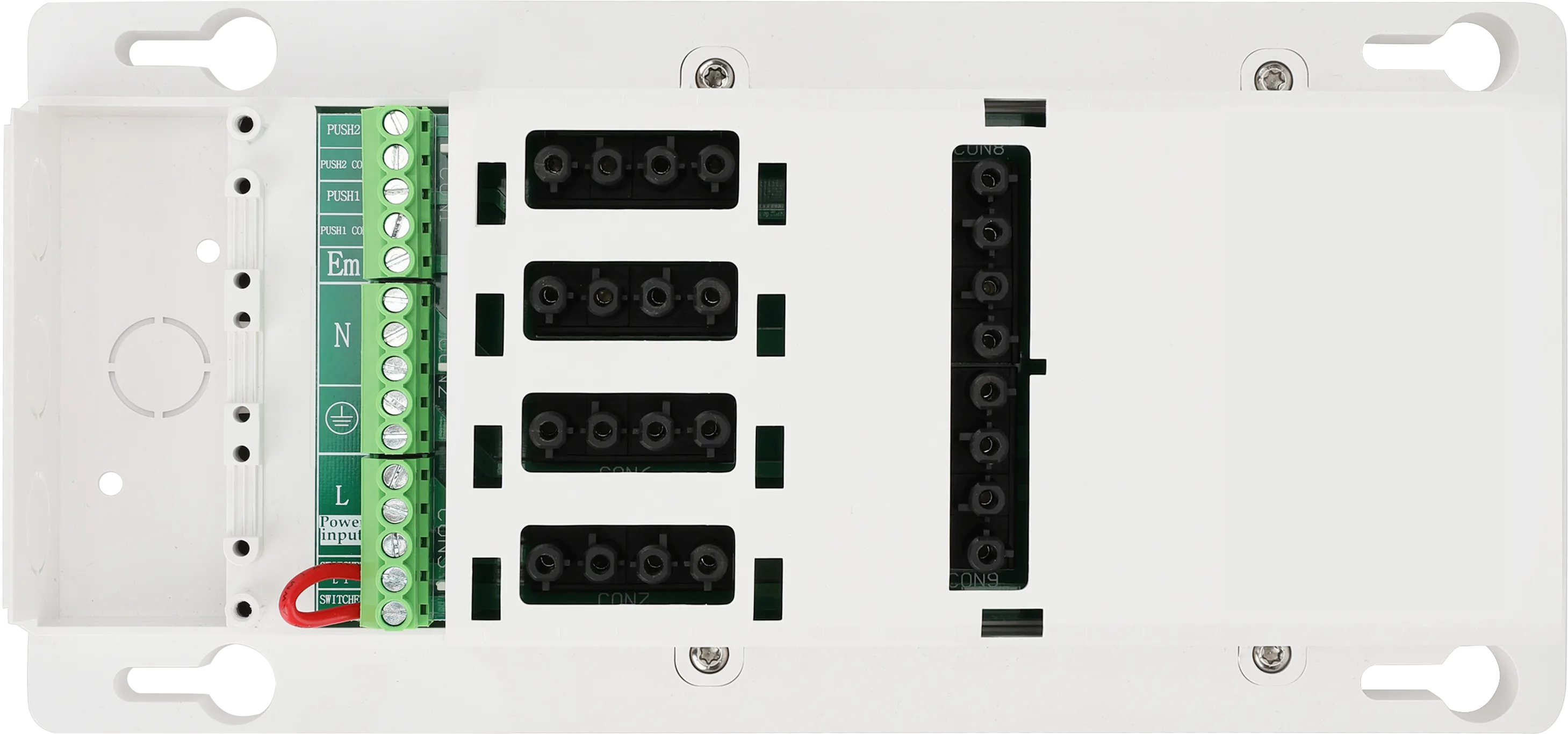

QCB01/4WAY
Quick Connection Box | ON/OFF | GST Types 4-poles x 4 lum. + 1 sensor
BENEFITS
- Robust: 4-poles terminals with 2 selectable channels
- Clean: Reduce wiring labour hours and improve safety
- Efficient: On/off control for 4 luminaires with 1 sensor
APPLICATIONS
- Remote ceiling wiring
- Classrooms
- Offices
Product information "QCB01/4WAY"
• Non-dimmable control applications
• 4 luminaire outlets + 1 extra sensor outlet for sensor connection
• Luminaire outlet: GST type 4-pole terminal base (L’, E, N, Em)

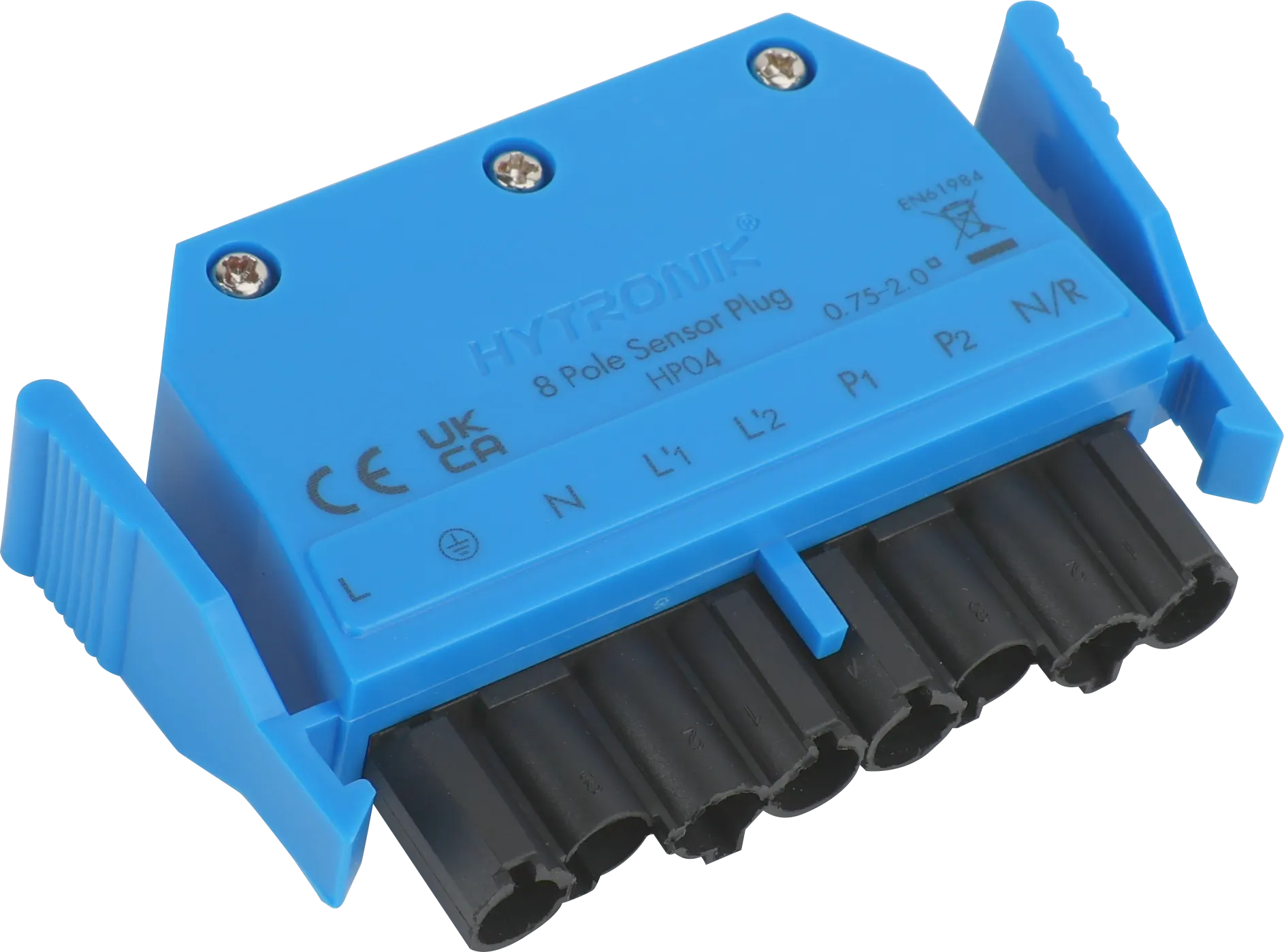

• Sensor outlet: GST type 8-pole terminal base (L, E, N, L1’, L2’, P1, P2)
• Black housing and white housing available to choose from
• Freely switch between 1-channel (1 x 4) & 2-channel (2 x 2) control
• Tamper-proof structure design
• Rating of system: Max 16A. Rating of each output: Max 10A
• Flame-retardant material for safety protection
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220-240VAC 50/60Hz |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product width: | 143.5000 mm |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Tri-level (Corridor function): | No |
| Zhaga: | No |
Login

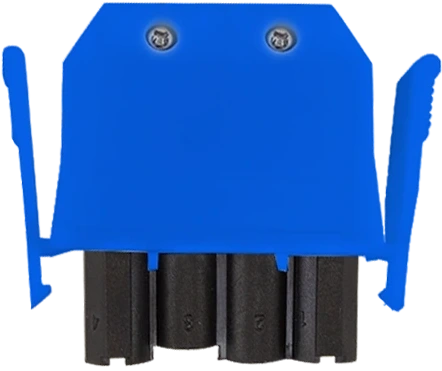

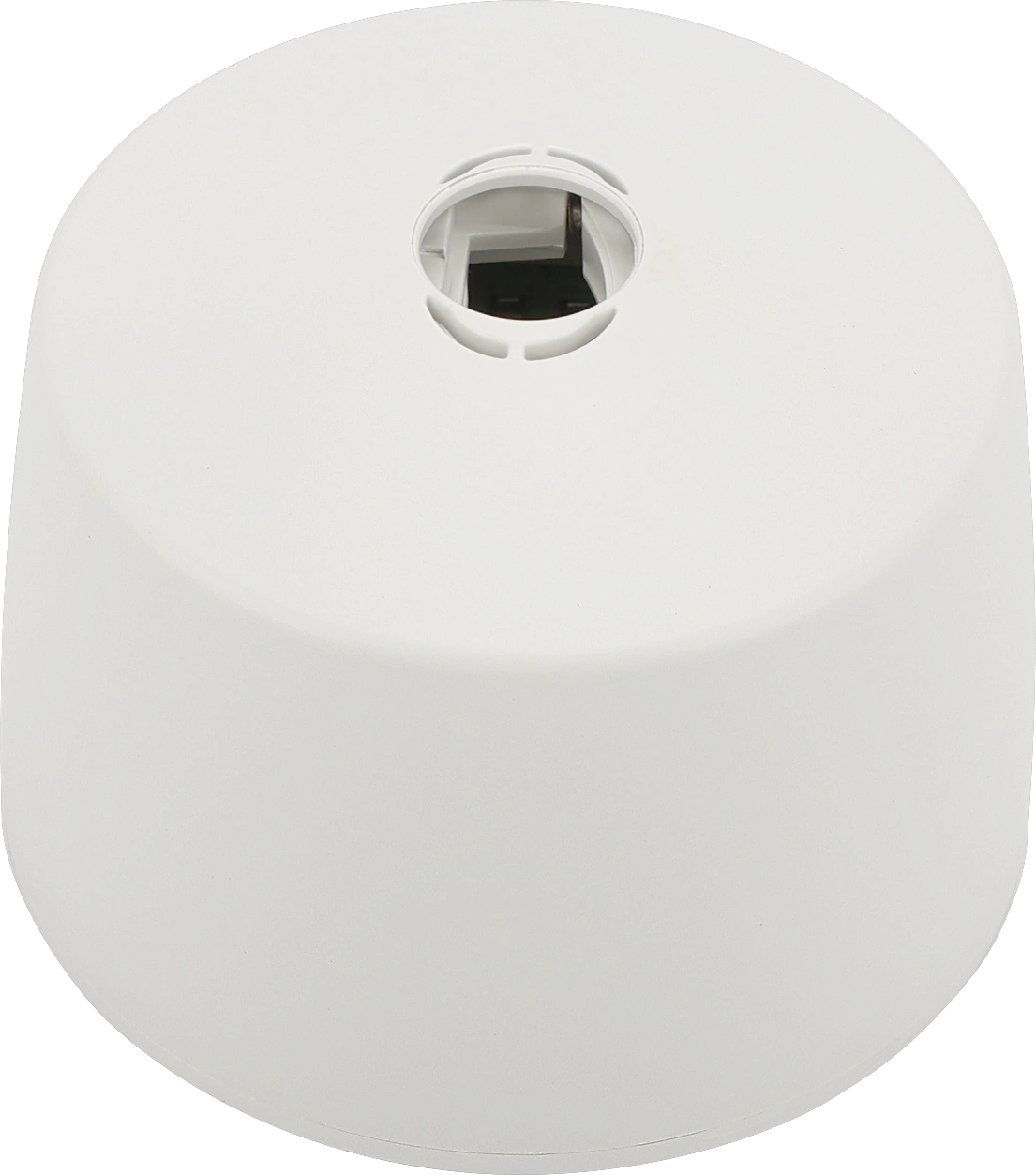

Compatible products (for full functionality)
