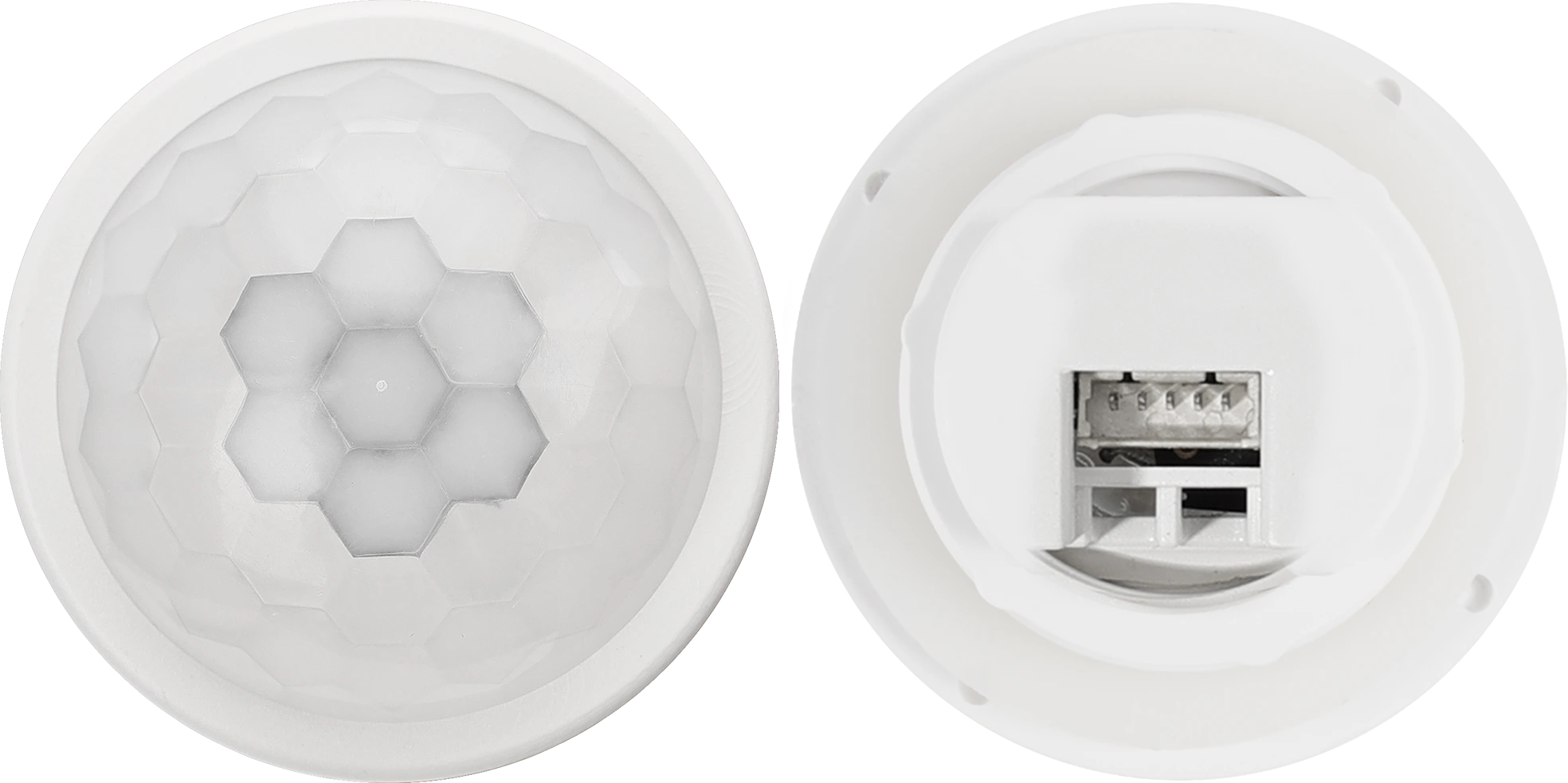

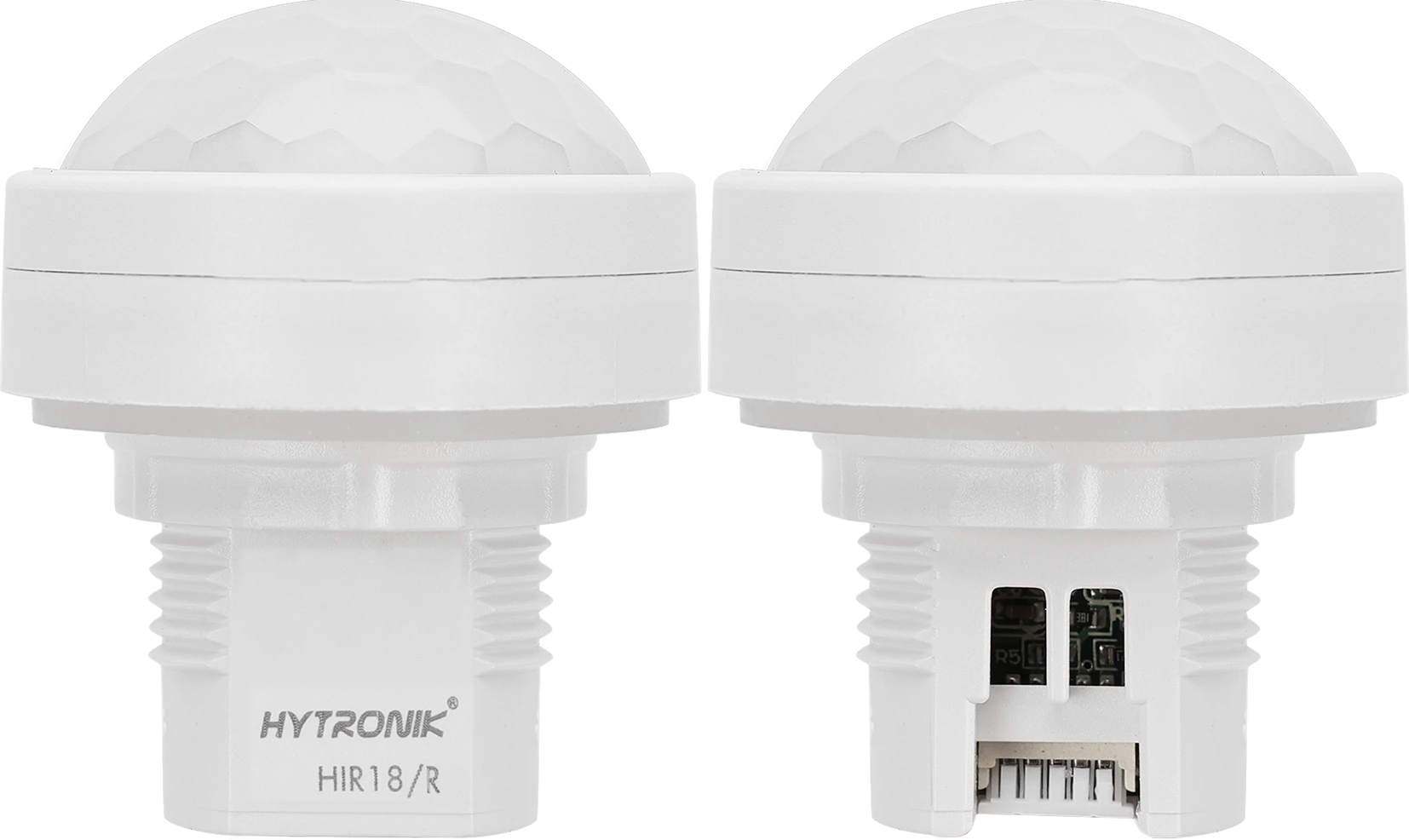

HIR18/R
PIR Midbay | ON/OFF | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: On/Off control
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Conduit thread: M 22x1.5mm
- Production/ Industry
- Warehouse/ Logistic
Product information "HIR18/R"
This PIR sensor offers on/off control and features a photodiode (PD) along with active lux switching capabilities. It is designed with a conduit thread of M22 * 1.5mm for installation. Suitable for installations up to 8m high with a Ø = 12m for human detection range, sensor settings can be adjusted via the handset HRC-12.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 14x12 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 22.2300 mm |
| Operating Voltage: | 5 VDC |
| Product height: | 43.4000 mm |
| Product length: | 36.7000 mm |
| Product width: | 36.7000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
