HBTD8200PWM
Bluetooth RGBW Dimmer | Full Color | Screw Mounting
CARACTERÍSTICAS
- Compact: 4-channel RGBW Bluetooth dimmer designed for LED strips
- Versatile: 3 Color Dimensions - RGBW + xyY + DUV
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh

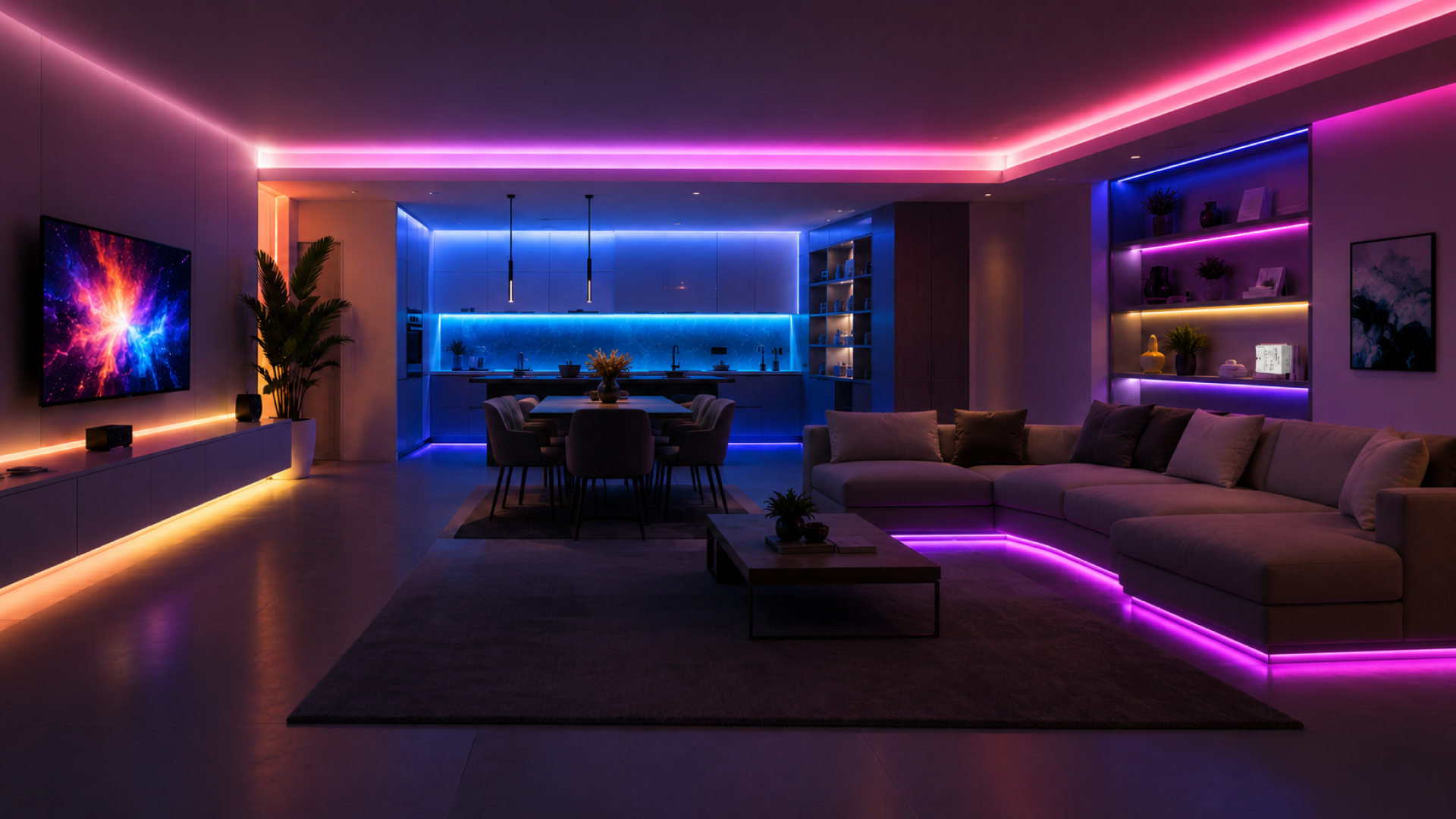

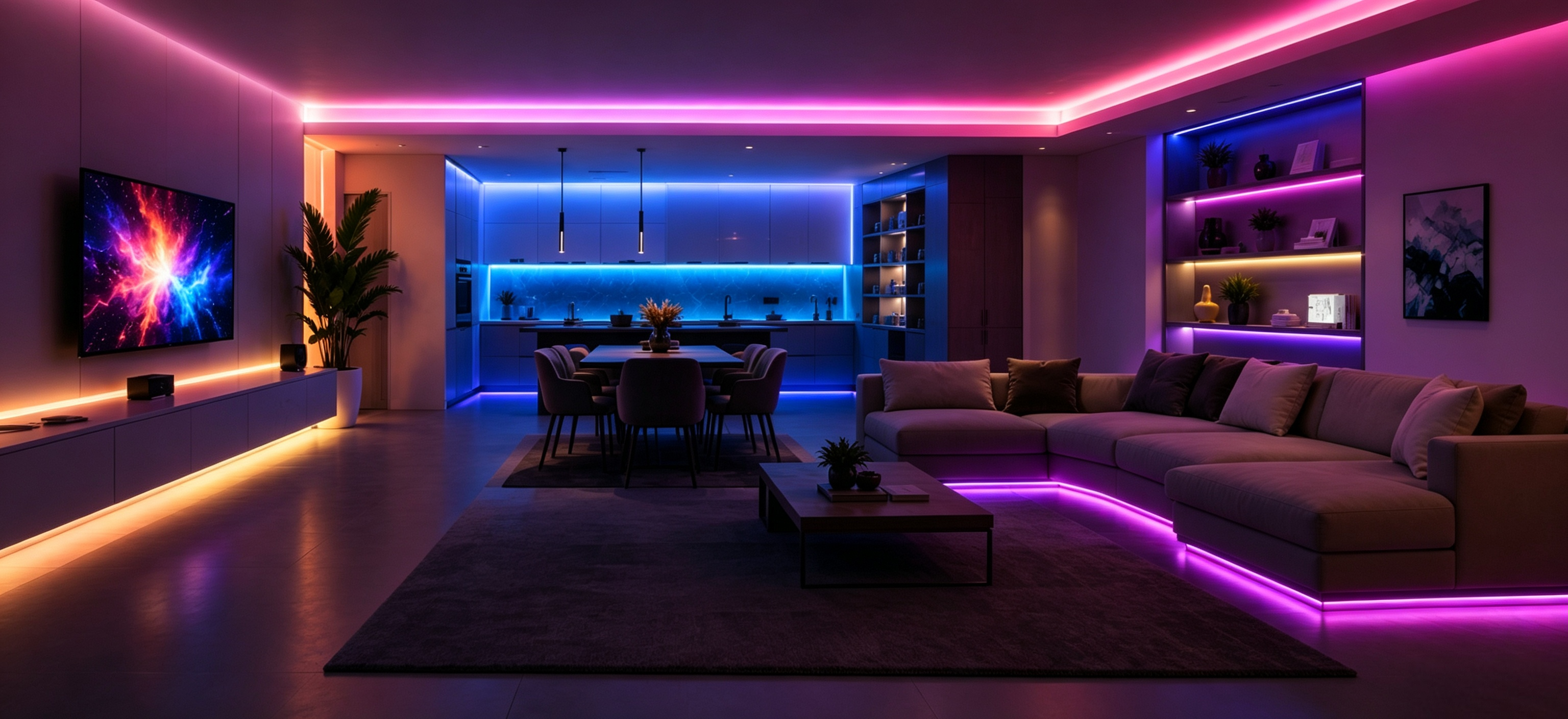

APLICACIONES
- Supermarket/Shop
- Entertainment Venues (hotel, bar)
- Lounge
Información sobre el producto "HBTD8200PWM"

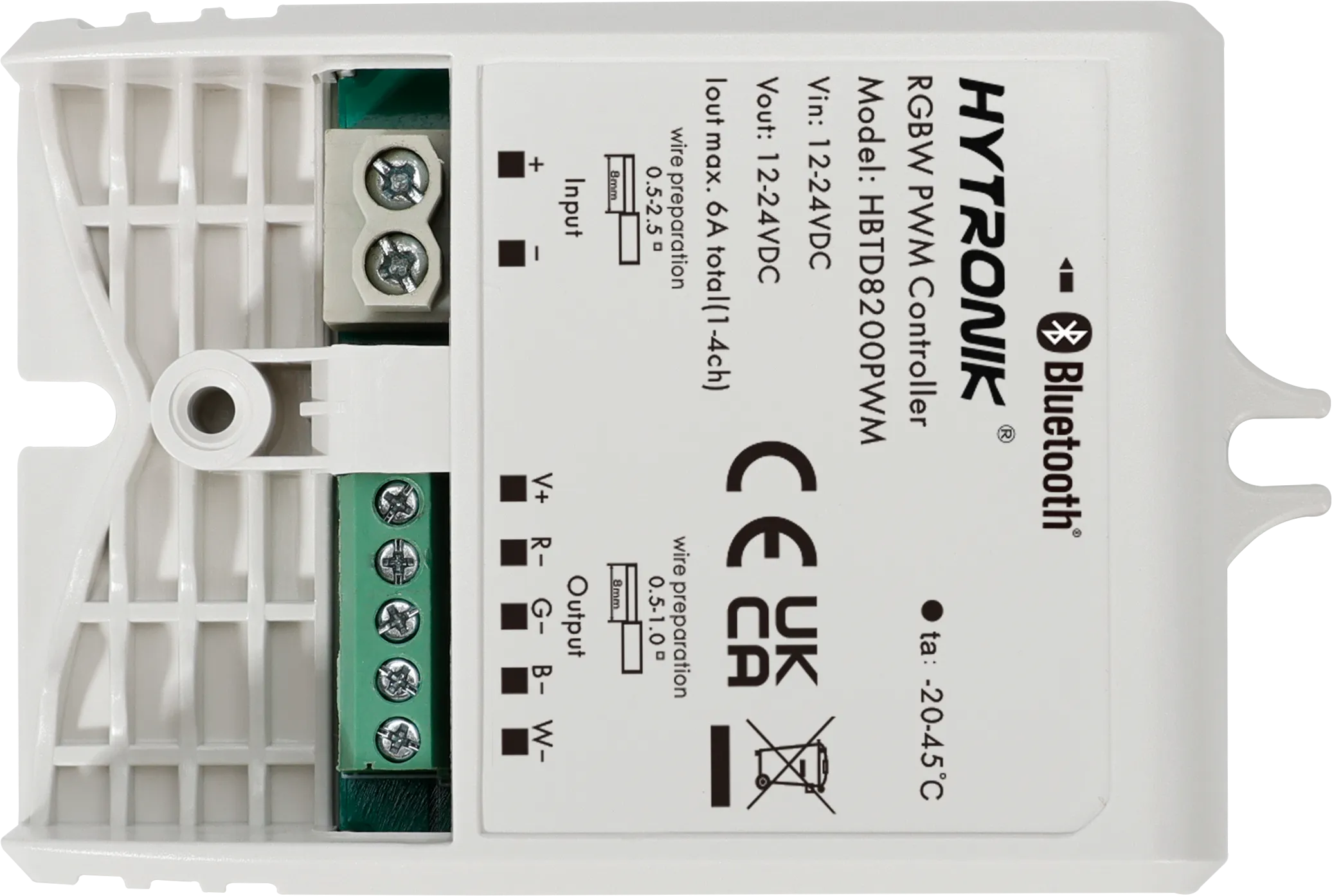

HBTD8200PWM is a compact and versatile 4-channel RGBW Bluetooth dimmer designed for constant voltage lighting systems. Supporting 12–24V DC input, it delivers smooth PWM dimming and full-spectrum color control. Ideal for retrofit and wireless upgrade projects, it works with 12/24V drivers to divide the load into four MOSFET-controlled outputs for RGBW control, enhancing ambient lighting effects. Compatible with the Koolmesh app, suitable for RGBW and tunable white applications.
| Alcance del Bluetooth: | 10-30m |
|---|---|
| Altura del producto: | 22.0000 mm |
| Anchura del producto: | 53.0000 mm |
| Eficiencia: | 90 % |
| Frecuencia Bluetooth: | 2.4 GHz - 2.483 GHz |
| Human Centric Lightning (HCL): | Sí |
| Humedad máx: | 90 % |
| Humedad mín: | 10 % |
| Longitud del producto: | 80.2000 mm |
| Max. Temperatura de almacenaje: | 70 °C |
| Potencia de transmisión de Bluetooth: | 10 dBm |
| Protección IP: | IP20 |
| Puesta en marcha: | App y Web (Bluetooth) |
| Sistema Bluetooth: | Koolmesh |
| Temperatura ambiente máx.: | 50 °C |
| Temperatura ambiente mín.: | -20 °C |
| Temperatura min. de almacenamiento: | -40 °C |
| Zhaga: | No |
Fichas técnicas
Ficha técnica del producto: hbtd8200pwm.pdf
