HBTD54/N

Bluetooth DALI Dimmer | 6 Wires 3 Circuits | Integrated 80 mA PSU

CARACTERÍSTICAS

Compact: Enabling plug-in DALI-to-Bluetooth conversion for tracks
Smart: Providing Bluetooth dimming, tunable white, and multi-circuit control
Flexible: Allowing wireless setup and parameter adjustment via app

APLICACIONES

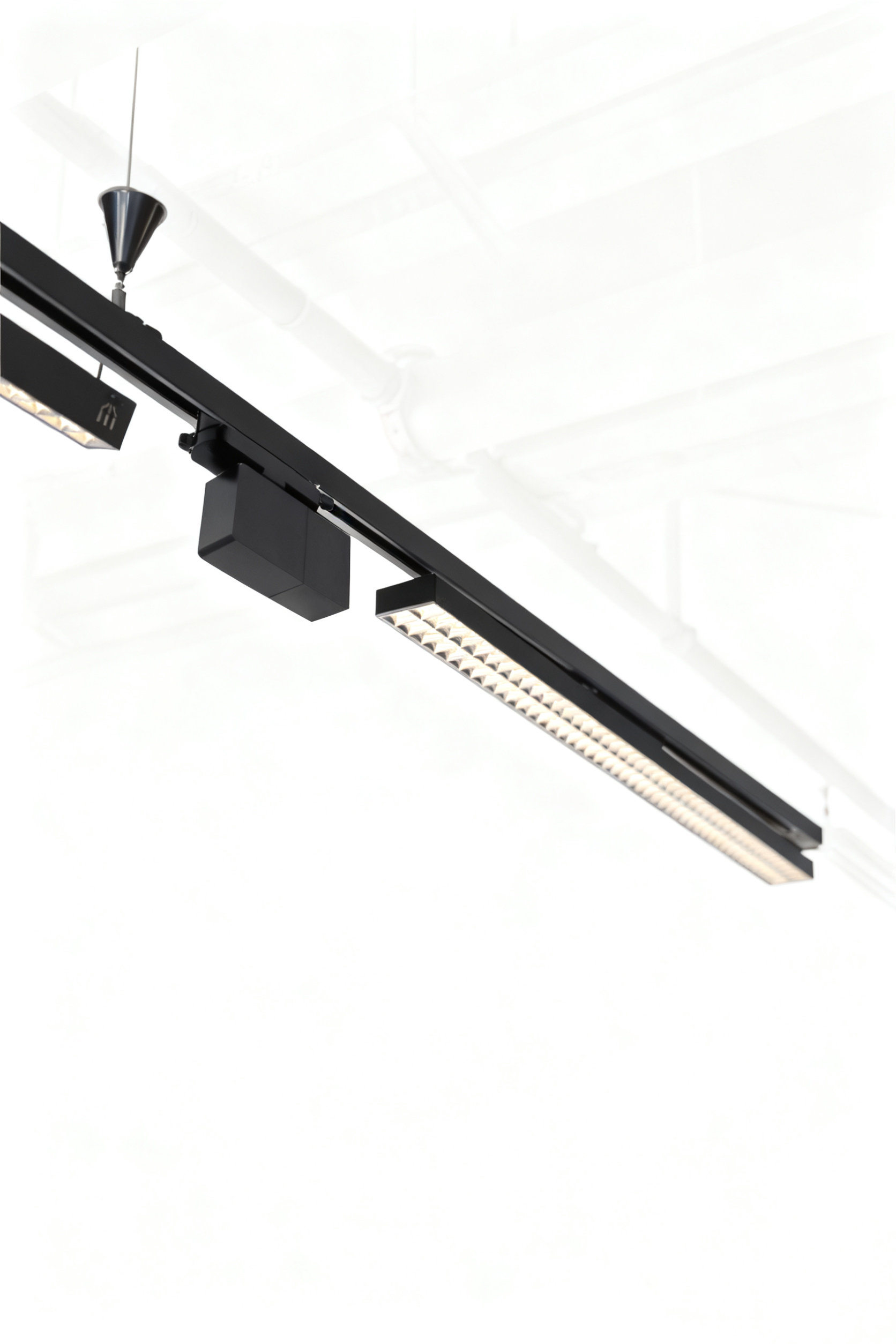

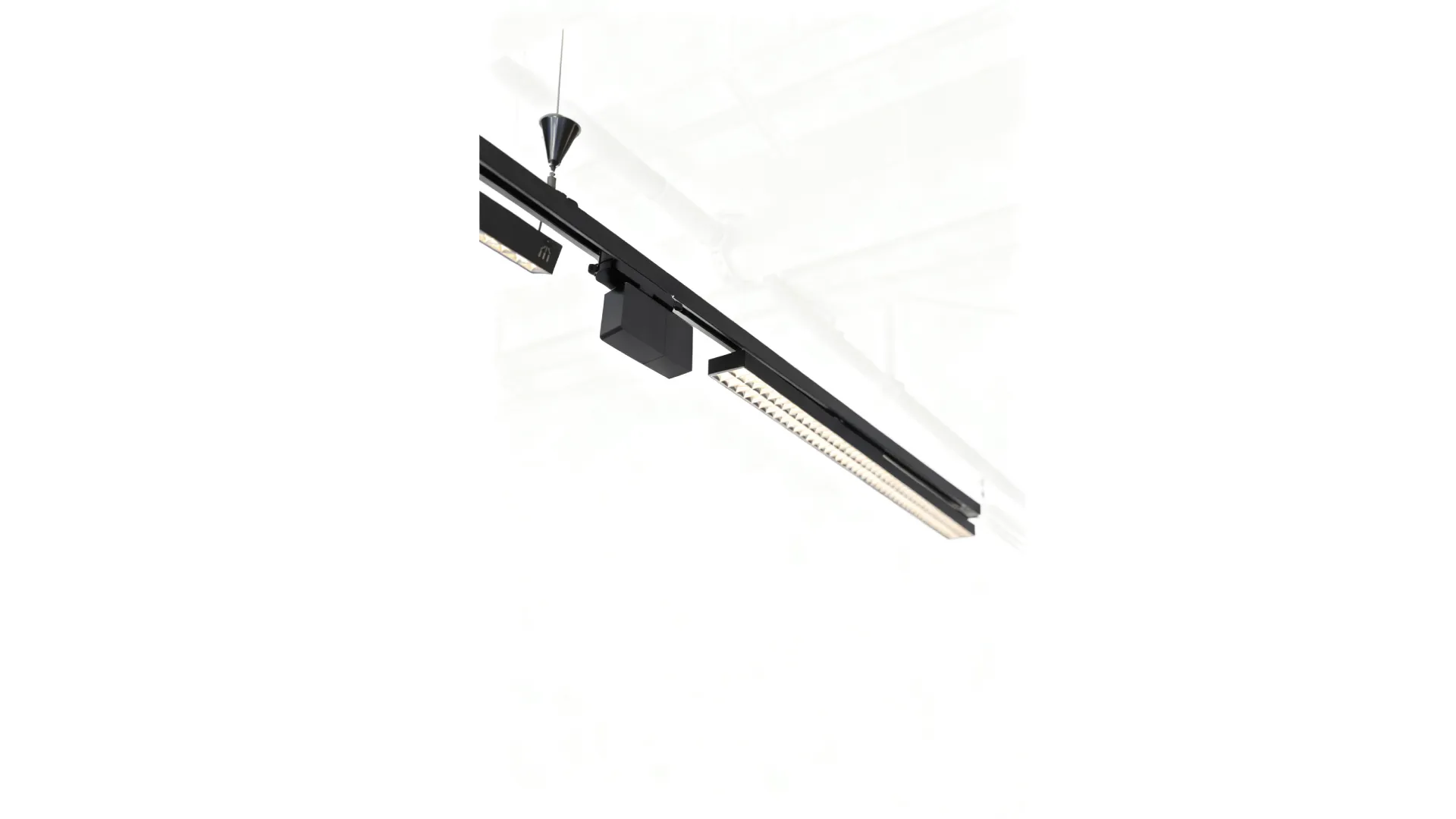

Designed for Global, and Powergear track systems
Offices, Retail stores, Warehouse
Museums, Galleries

Información sobre el producto "HBTD54/N"

HBTD54/N is a track dimmer that converts DALI signals into Bluetooth control, designed for track lighting systems to enable Bluetooth dimming and tunable white control for smart lighting upgrades. It supports independent or grouped control for up to three circuits and installs easily with simple plug-in insertion into the track without extra wiring. With Bluetooth Mesh technology, it allows wireless communication between luminaires, and all parameters can be conveniently configured via the Koolmesh app, making installation fast and flexible for commercial and residential track lighting applications.

Alcance del Bluetooth:	10-30m
Altura del producto:	116.6000 mm
Anchura del producto:	31.0000 mm
Entrada de pulsador:	2
Frecuencia Bluetooth:	2.4 GHz - 2.483 GHz
Human Centric Lightning (HCL):	Sí
Humedad máx:	90 %
Humedad mín:	20 %
Interfaz de regulación:	DALI-2
Longitud del producto:	138.4000 mm
Max. Temperatura de almacenaje:	60 °C
Plataforma Bluetooth:	Nordic nRF52832
Potencia de transmisión de Bluetooth:	4 dBm
Protección IP:	IP20
Puesta en marcha:	App y Web (Bluetooth)
Sistema Bluetooth:	Koolmesh
Temperatura ambiente máx.:	45 °C
Temperatura ambiente mín.:	-20 °C
Temperatura min. de almacenamiento:	-20 °C
Tipo de aplicación:	Controlador para track light
Tri-nivel (Función pasillo):	No
Voltaje de operación:	220-240 VAC 50/60 Hz
Zhaga:	No
