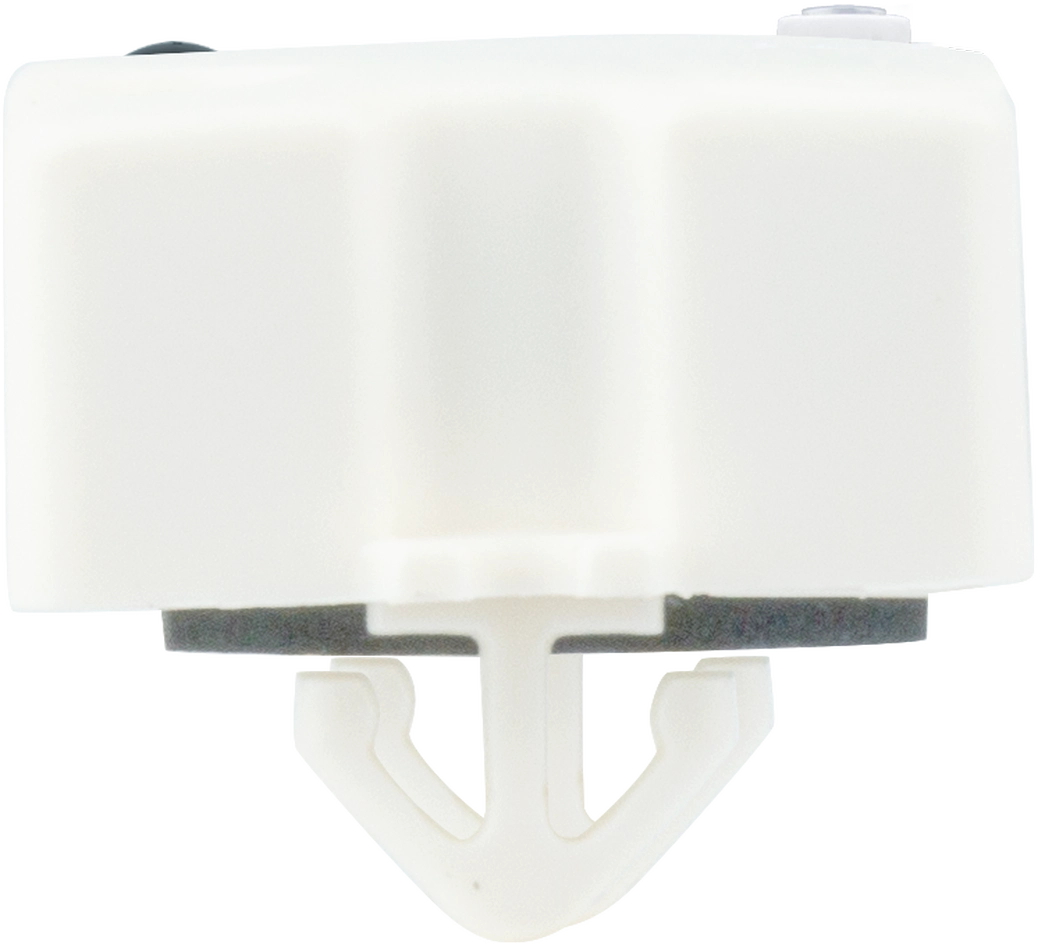

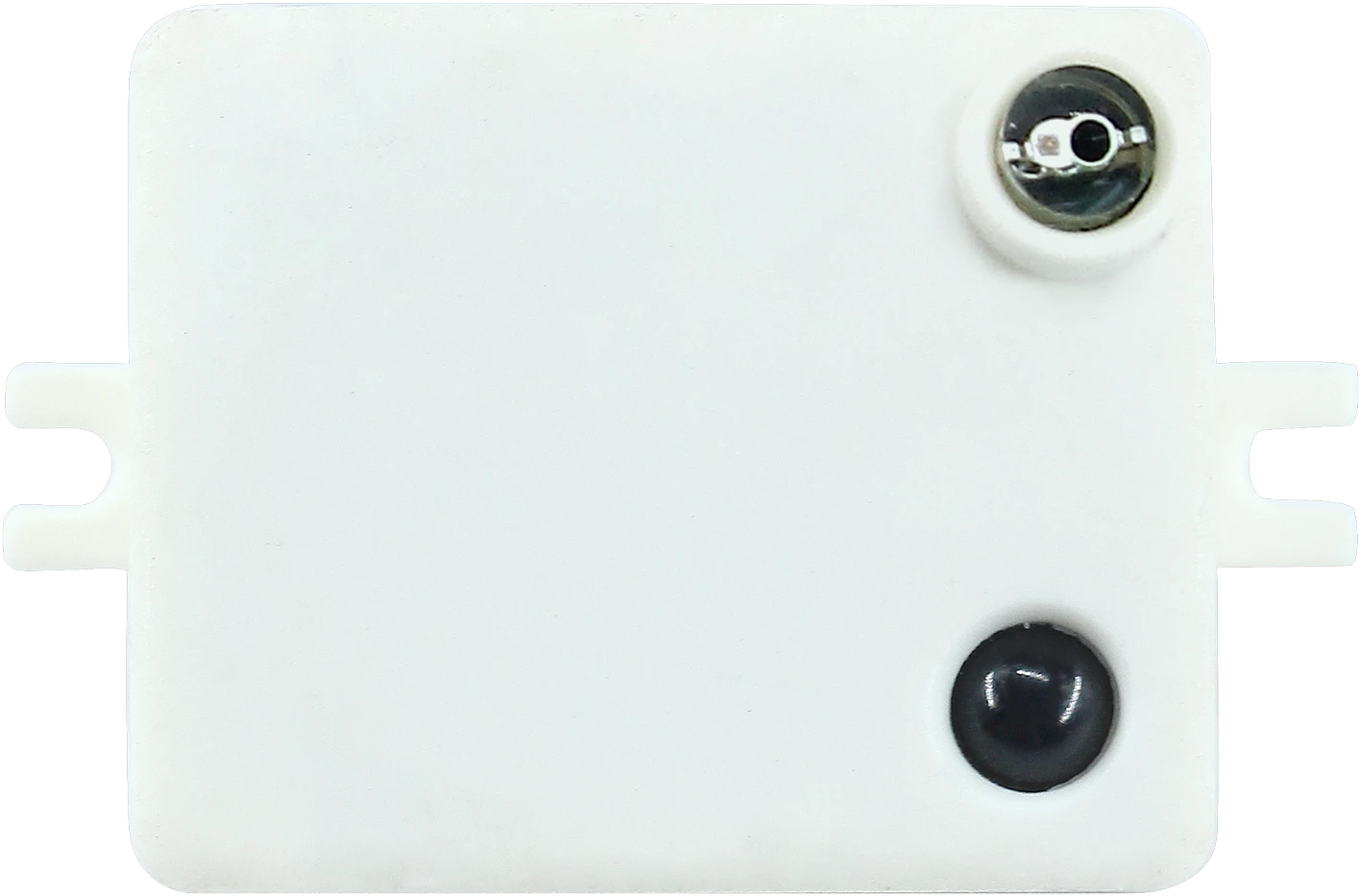

SAM5/I
HF Lowdbay | Photocell Advance | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control based upon occupancy
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS

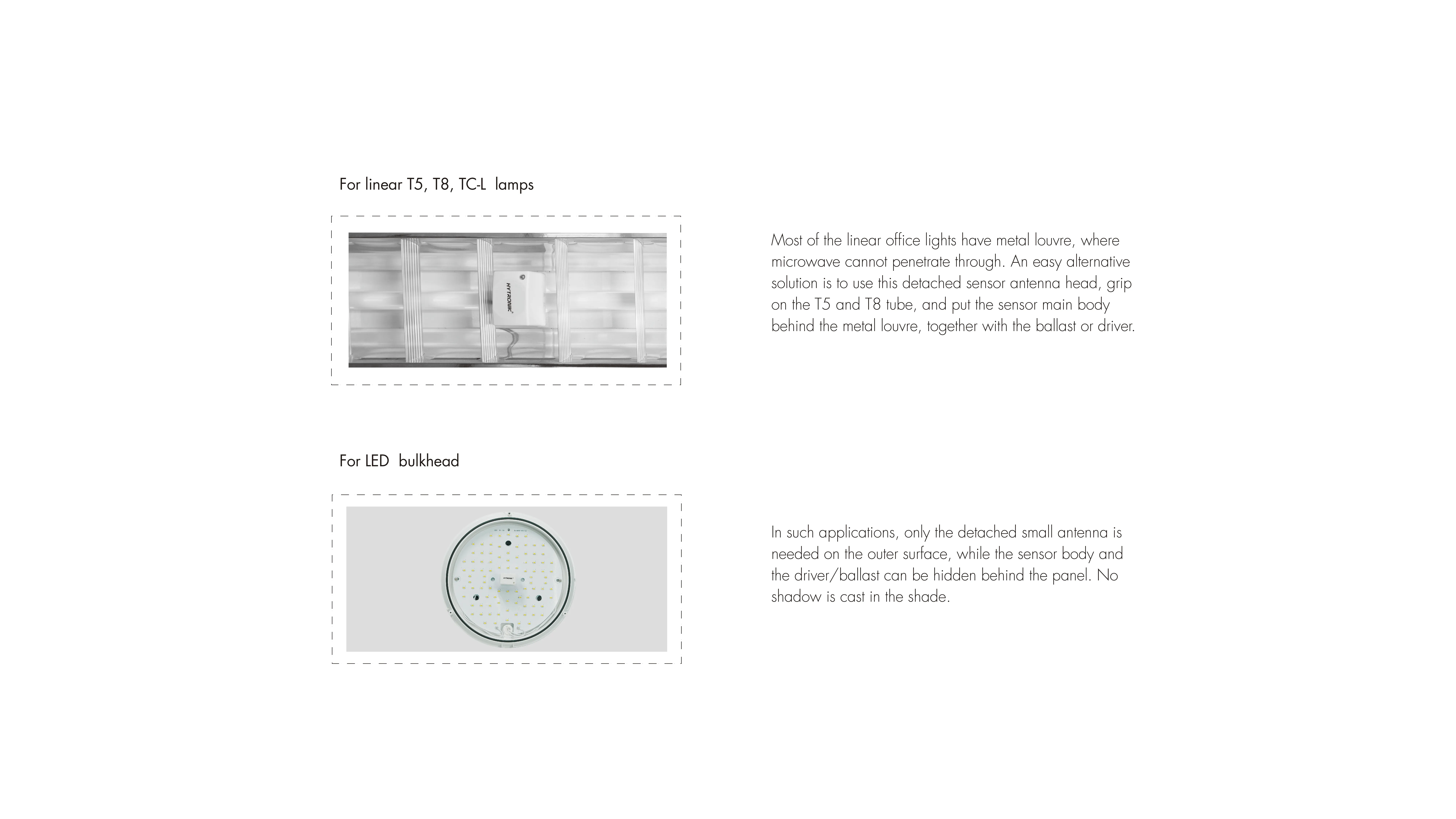

- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM5/I"

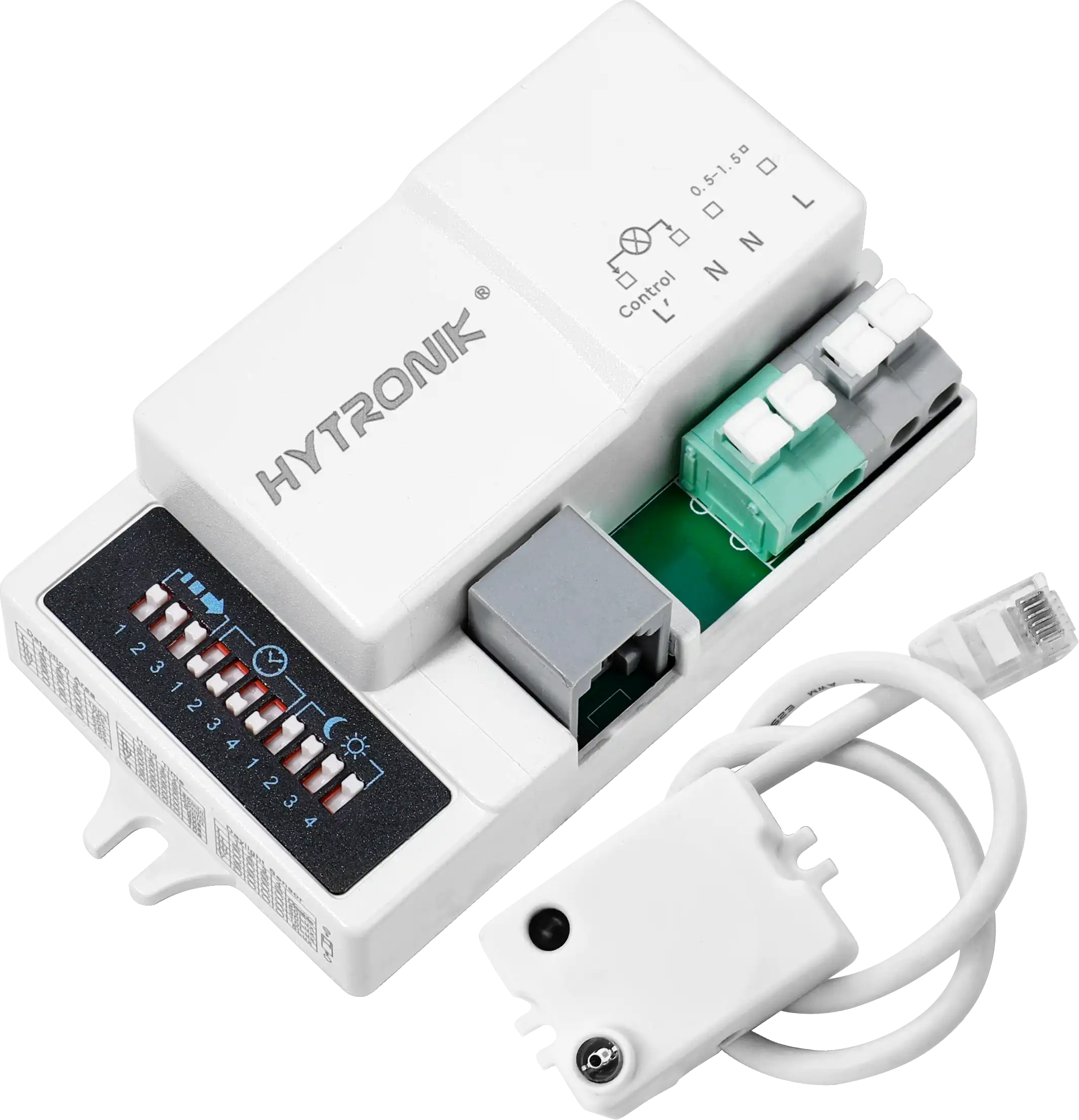

SAM5/I is a HF sensor head and compatible with the Daylight Harvest. It can work with the linear shaped control base HC009S-KD/I. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 5 VDC |
| Product height: | 15.5000 mm |
| Product length: | 34.7000 mm |
| Product weight: | 21.0000 g |
| Product width: | 25.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam5-i.pdf
