HC009S-KD/I+SAM5/I
HF Lowdbay | ON/OFF Control | Photocell Advance
BENEFITS

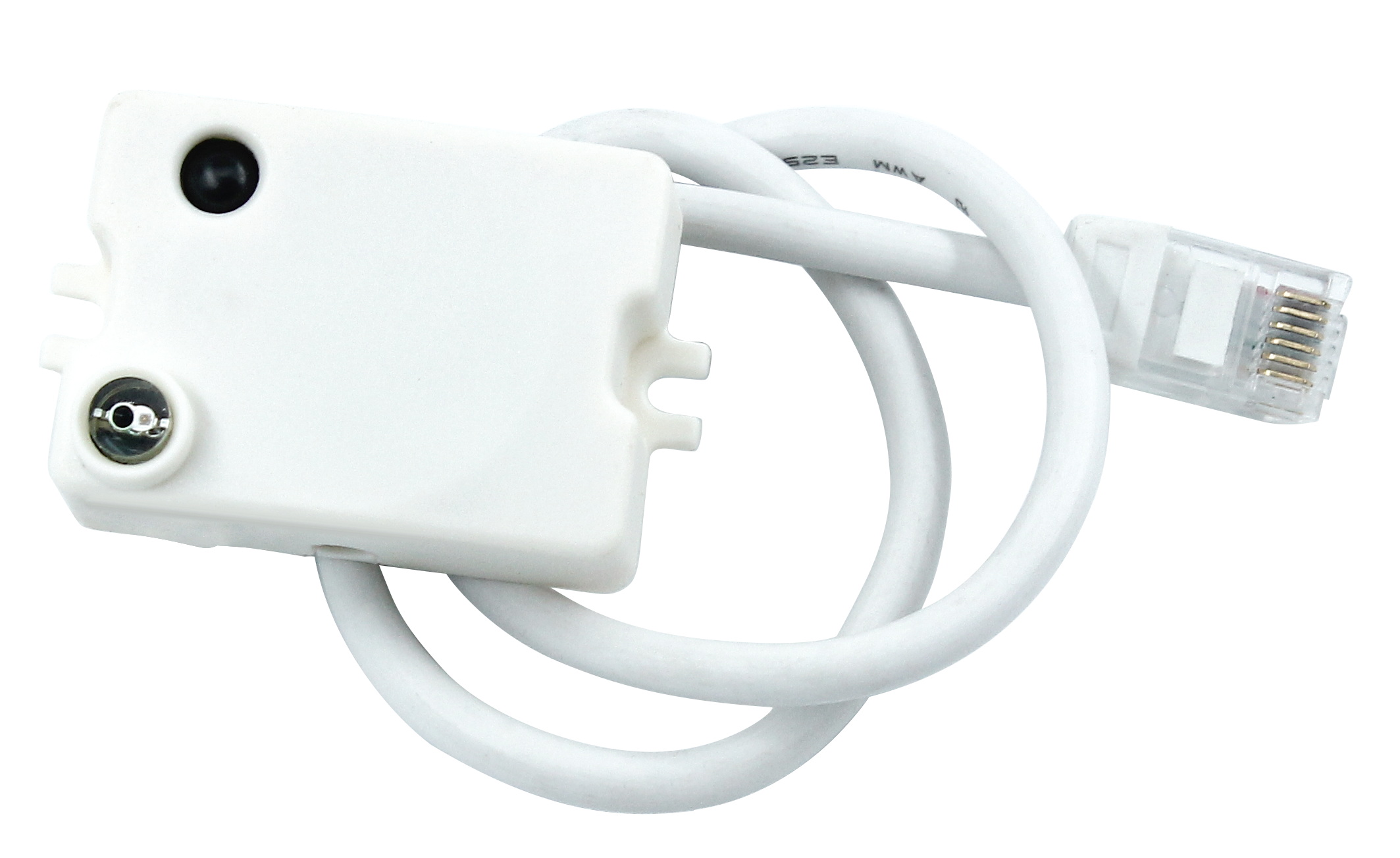

- Plug&play: Detached Version with Photocell Advance
- Autonomous: On/Off occupancy control for up to 800W
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch
APPLICATIONS

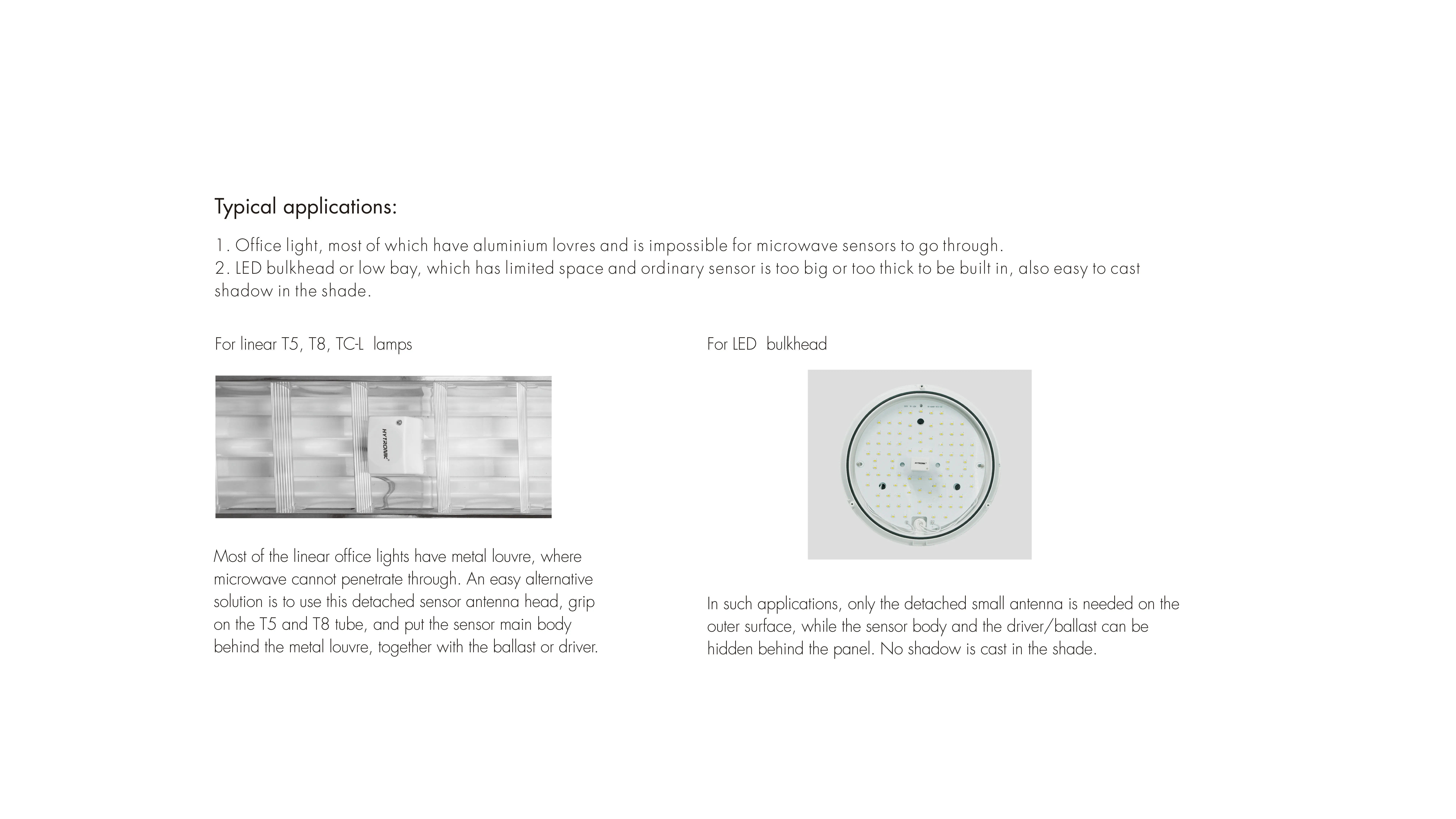

- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC009S-KD/I+SAM5/I"

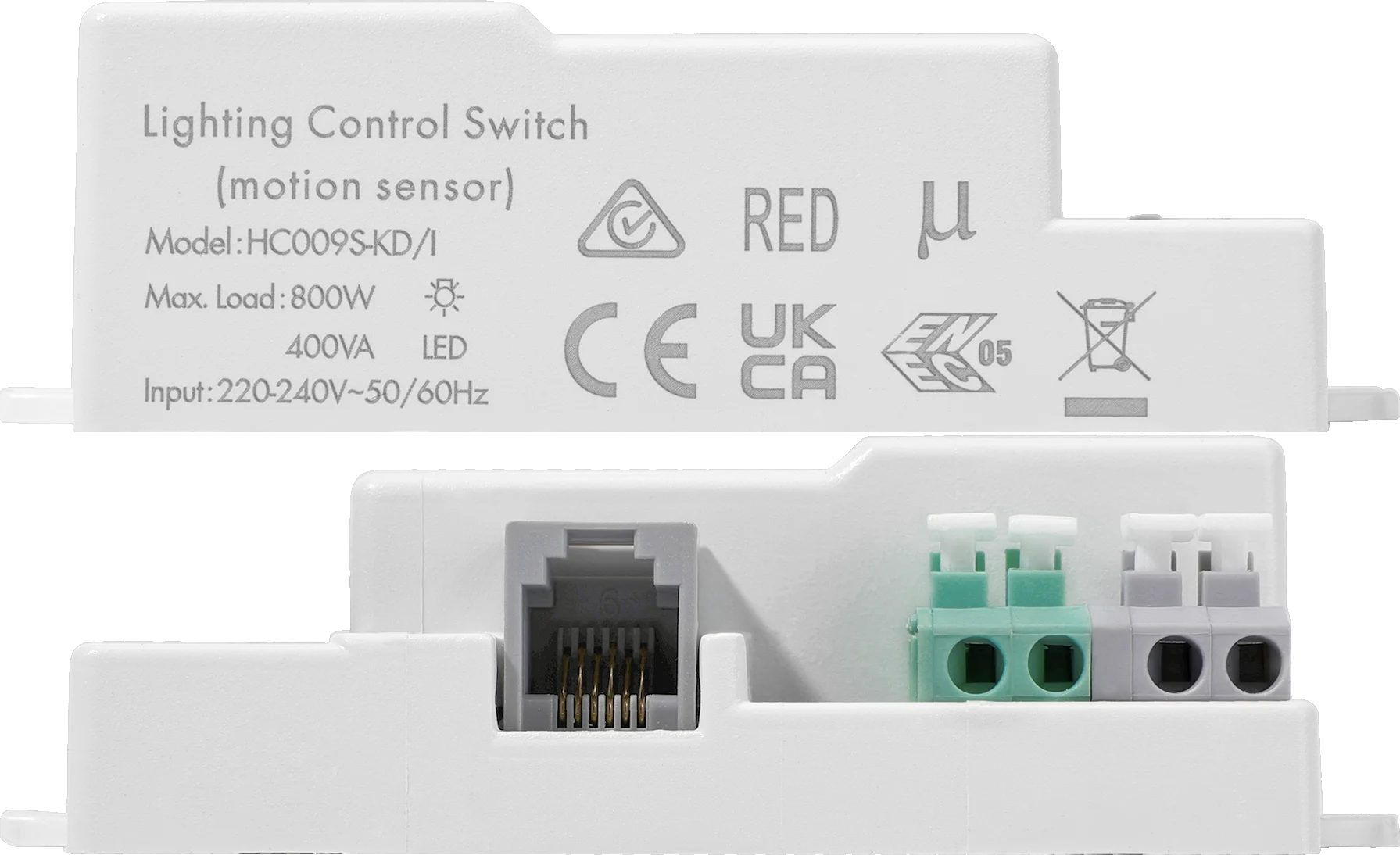

HC009S-KD/I is an On/Off control base, supporting up to 400VA capacitive or 800W resistive loads. It features microwave (HF) detection for motion sensing and includes Photocell Advance™ for daylight sensing, ensuring efficient and adaptive lighting control.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |

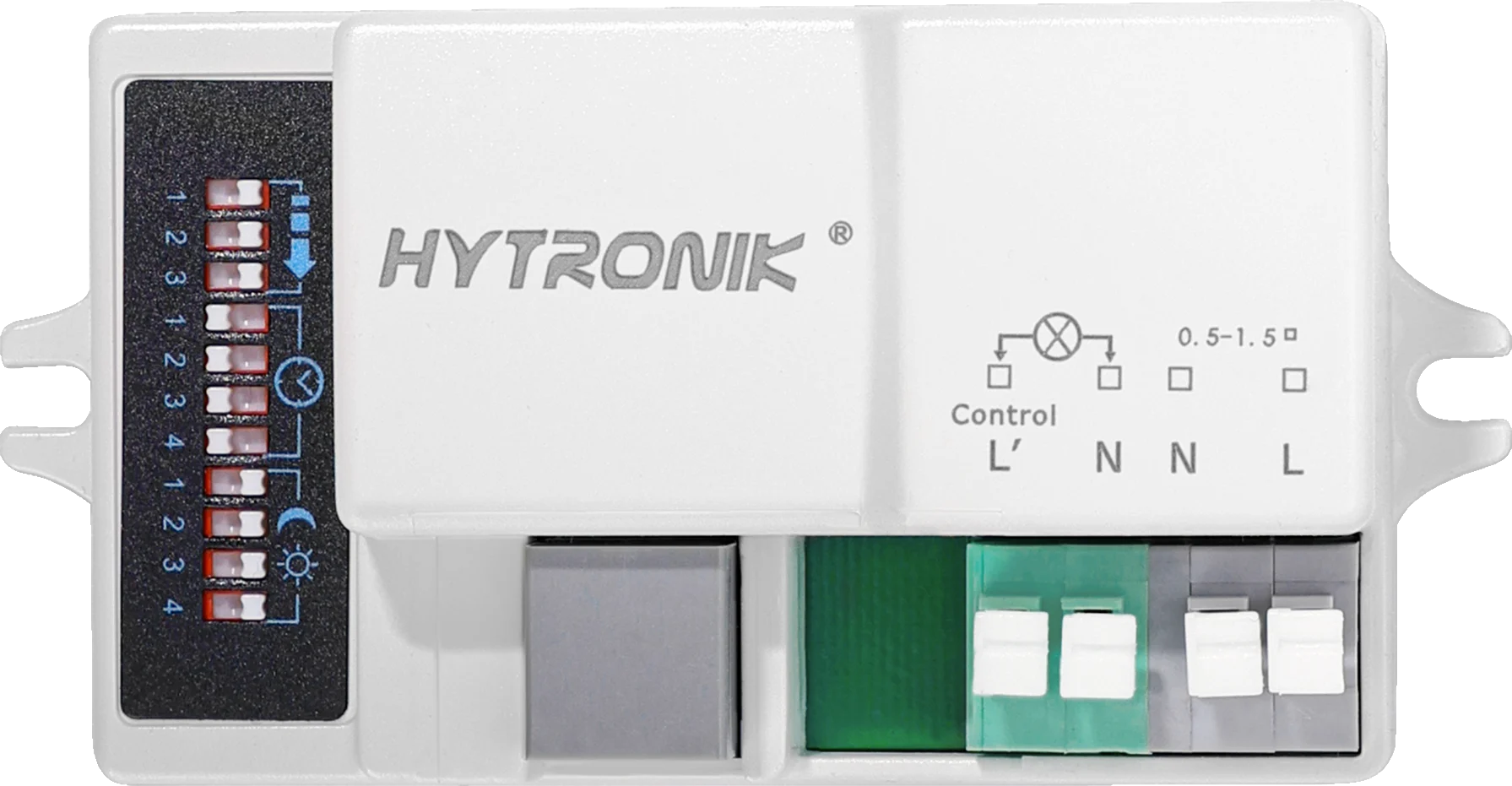

| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 9x6 |
| Dimming (Output) Interface: | Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 27.5000 mm |
| Product length: | 95.0000 mm |
| Product width: | 48.0000 mm |
| Push Button Input: | |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
