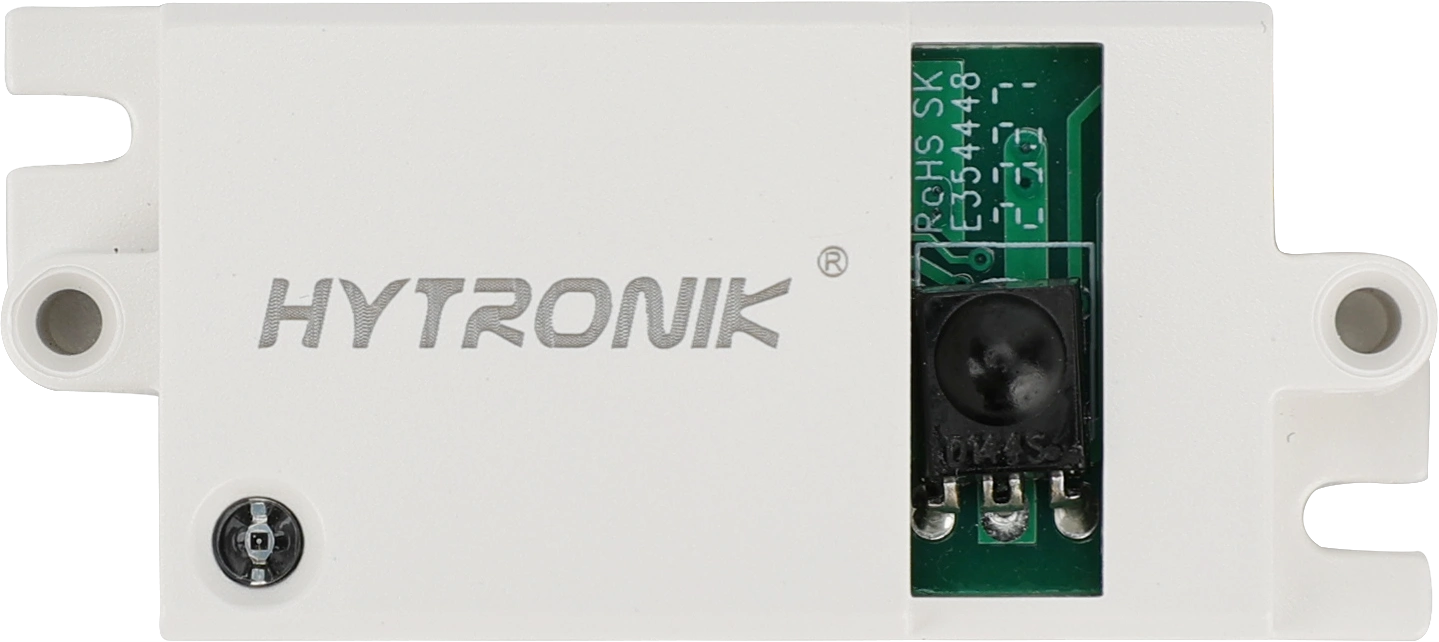

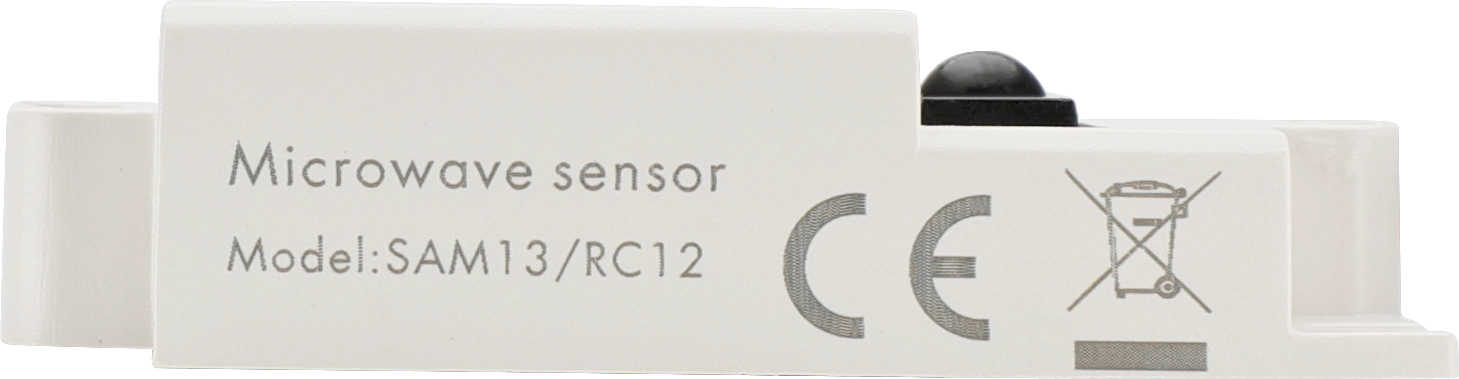

SAM13/RC12
HF Lowdbay | ON/OFF | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robust HF antenna design against wireless interference
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM13/RC12"
SAM13/RC12 is a HF sensor head. It can work with the linear shaped control base such as HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 12x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 5 VDC |
| Product height: | 12.5000 mm |
| Product length: | 50.5000 mm |
| Product width: | 22.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
