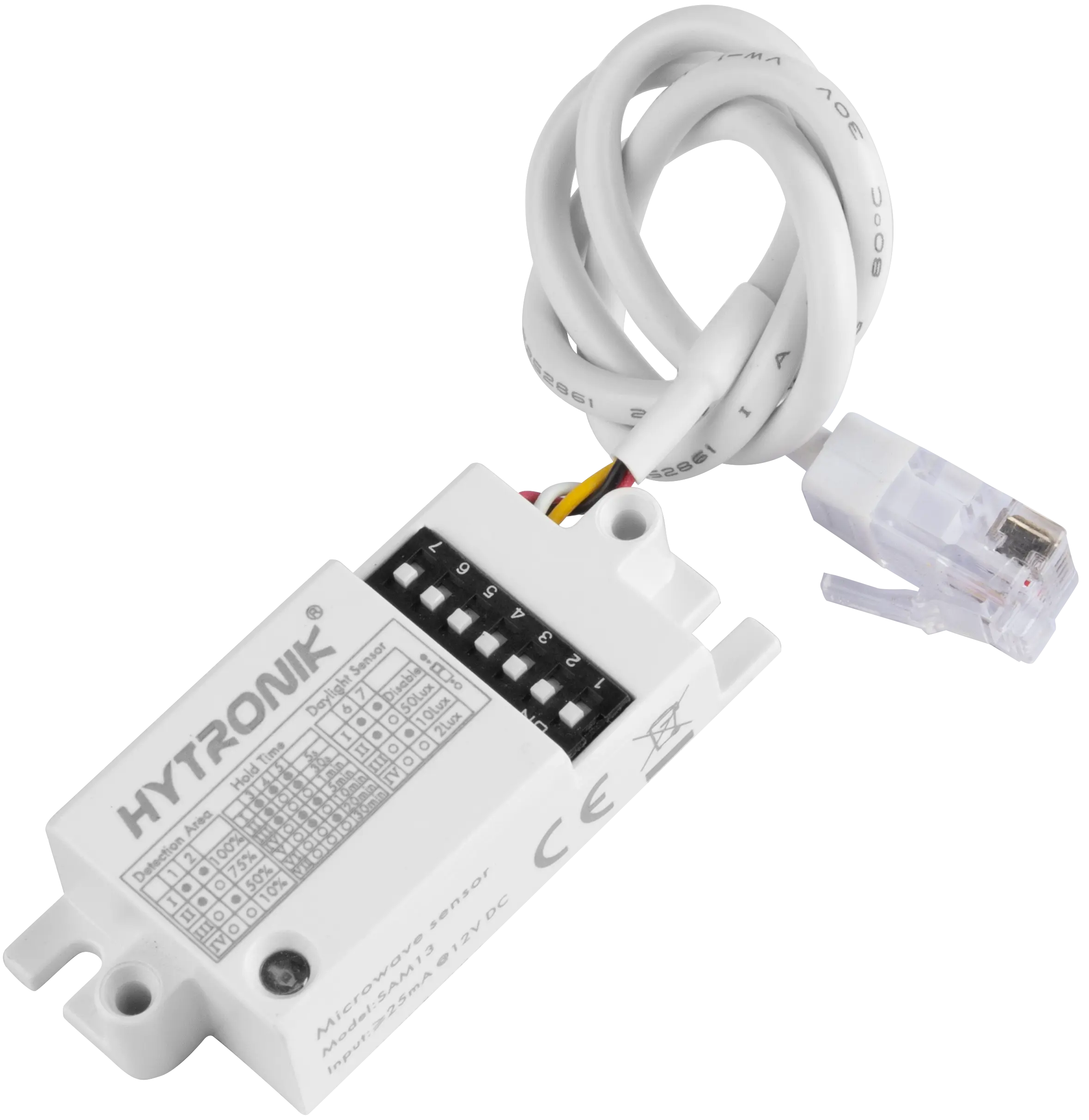

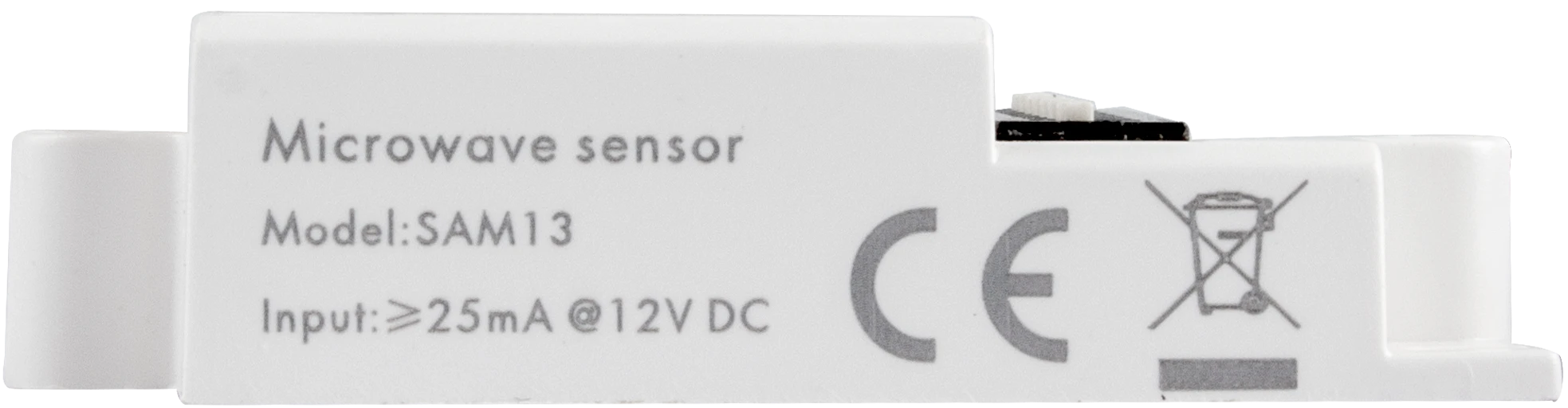

SAM13
HF Lowdbay | ON/OFF | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Innovative: Robust HF antenna design against wireless interference

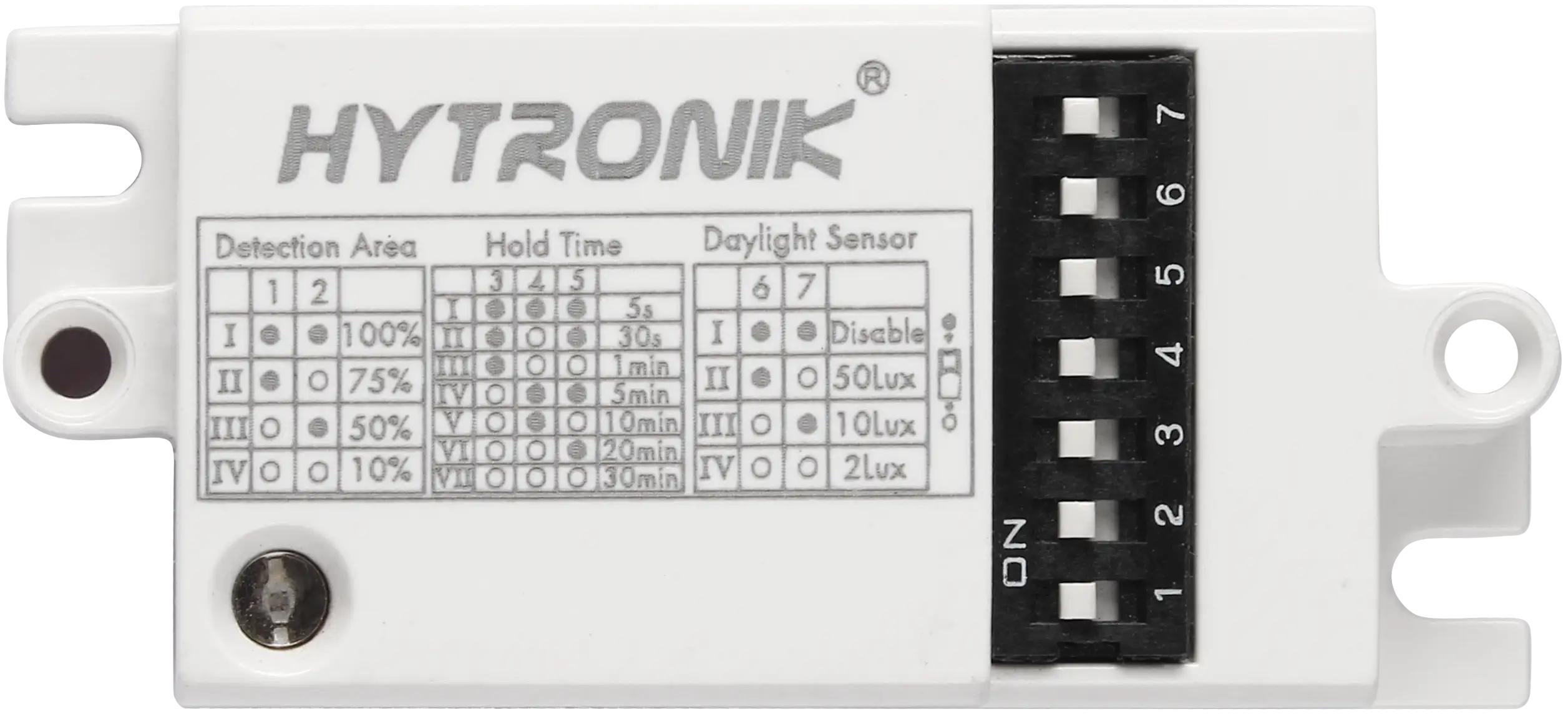

- Easy: Sensor setting via DIP-switches
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM13"

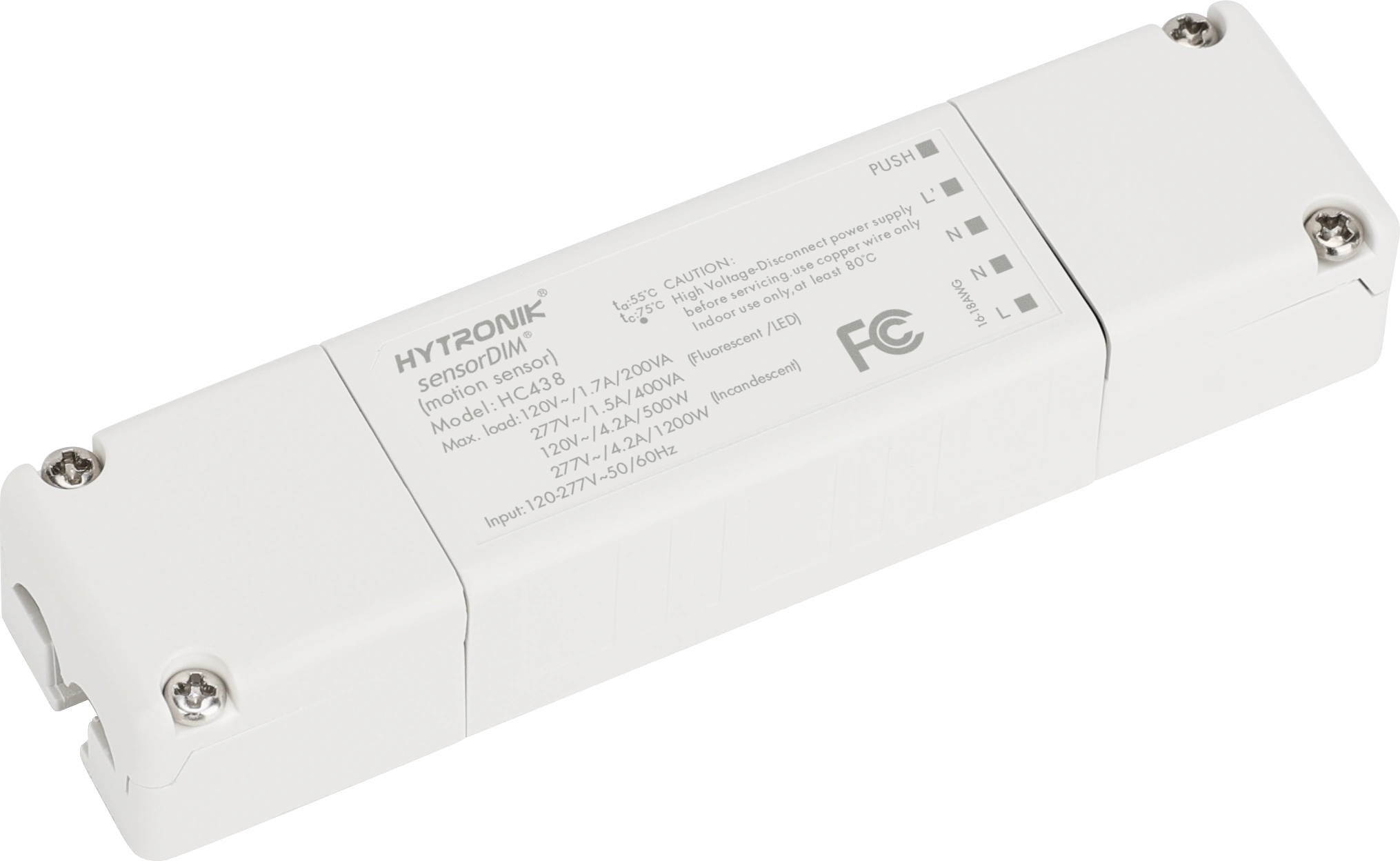

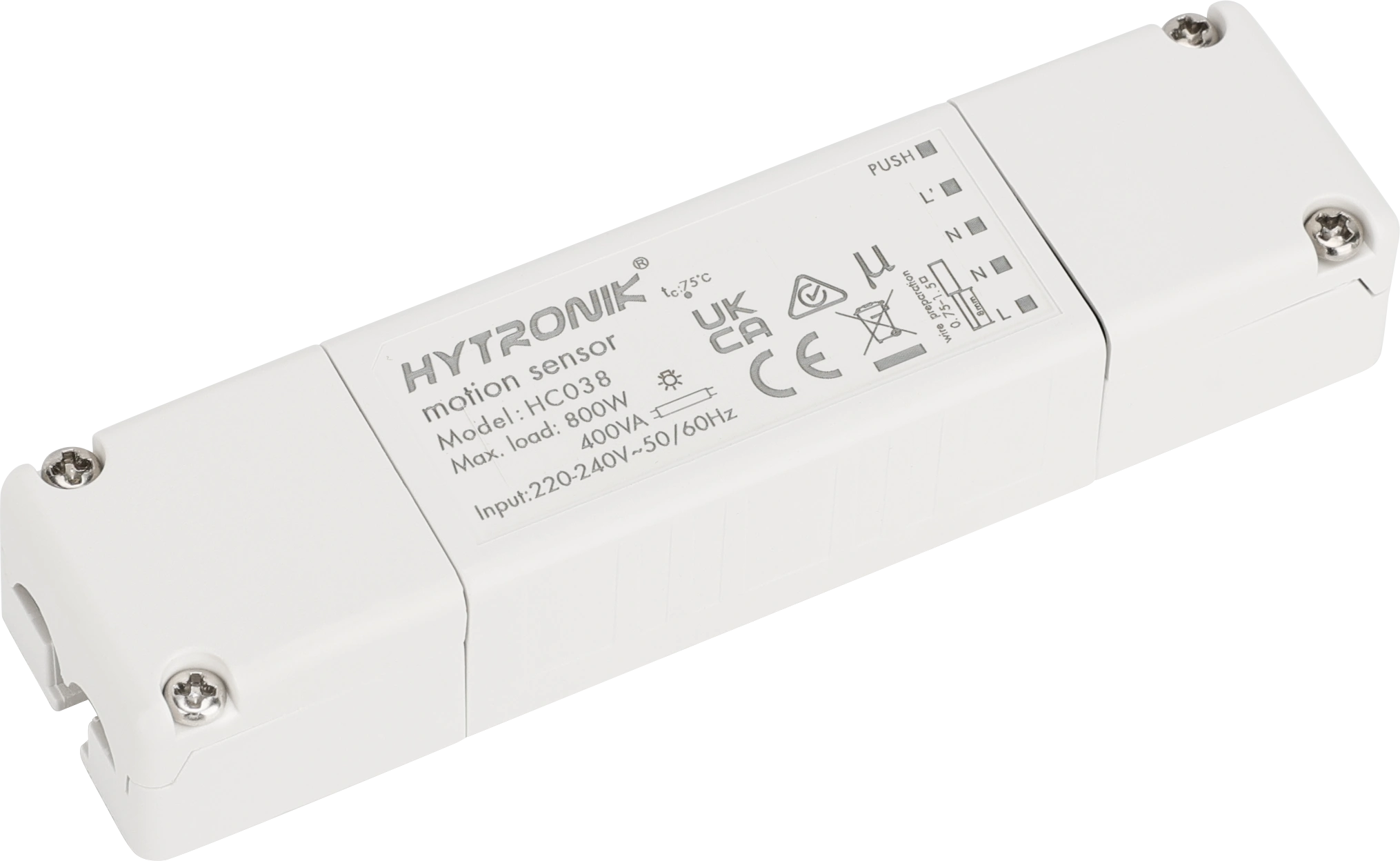

SAM13 is a HF sensor head and compatible with the On/Off Contro. It can work with the linear shaped control base HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DIP-switch |
| Connector Type: | Standard 2 cables |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Mounting Height: | Low-bay |
| Mounting hole: | 2.5000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 12.5000 mm |
| Product length: | 50.5000 mm |
| Product weight: | 15.0000 g |
| Product width: | 22.5000 mm |
| Sensitivity: | 10% /50% / 75% / 100% |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam13.pdf
