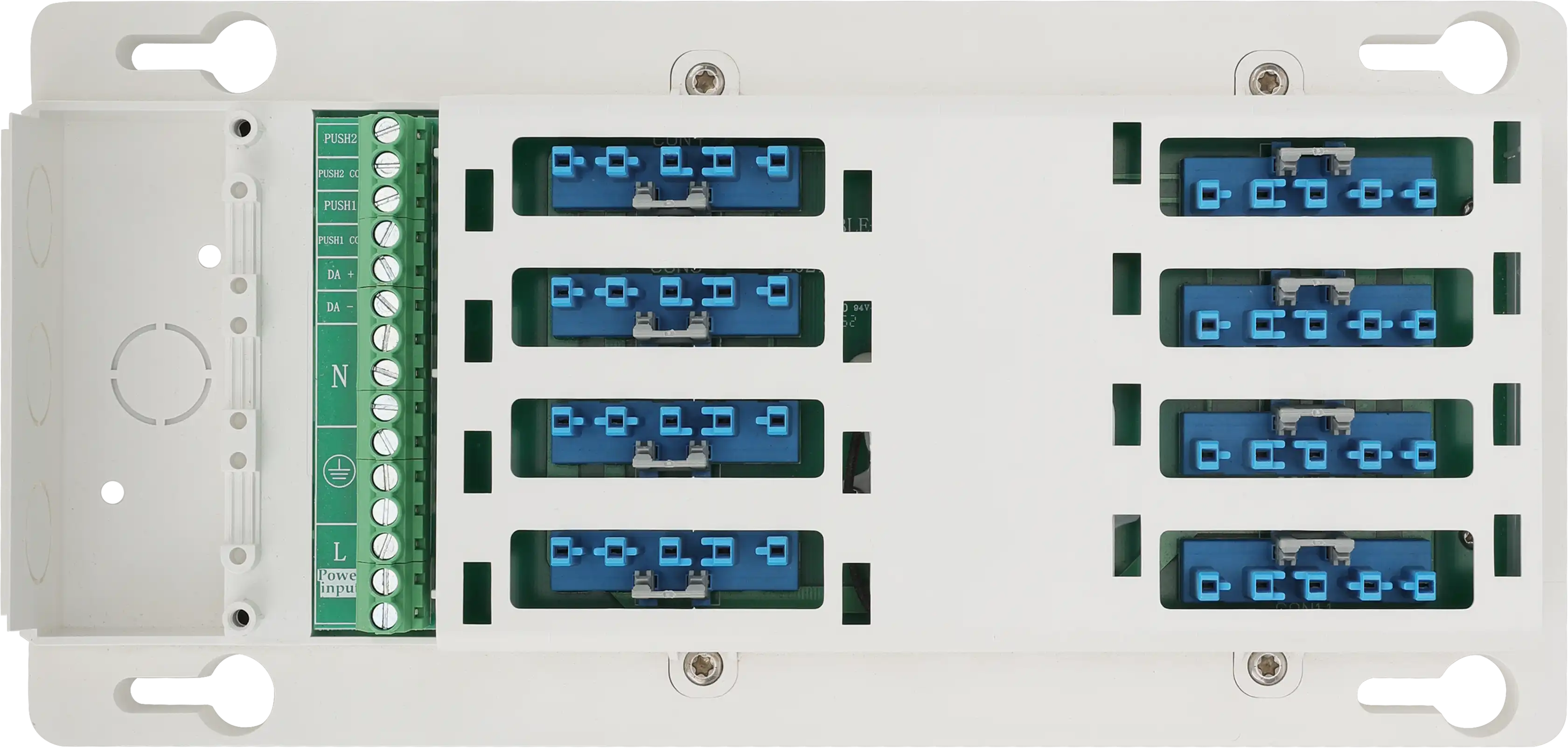

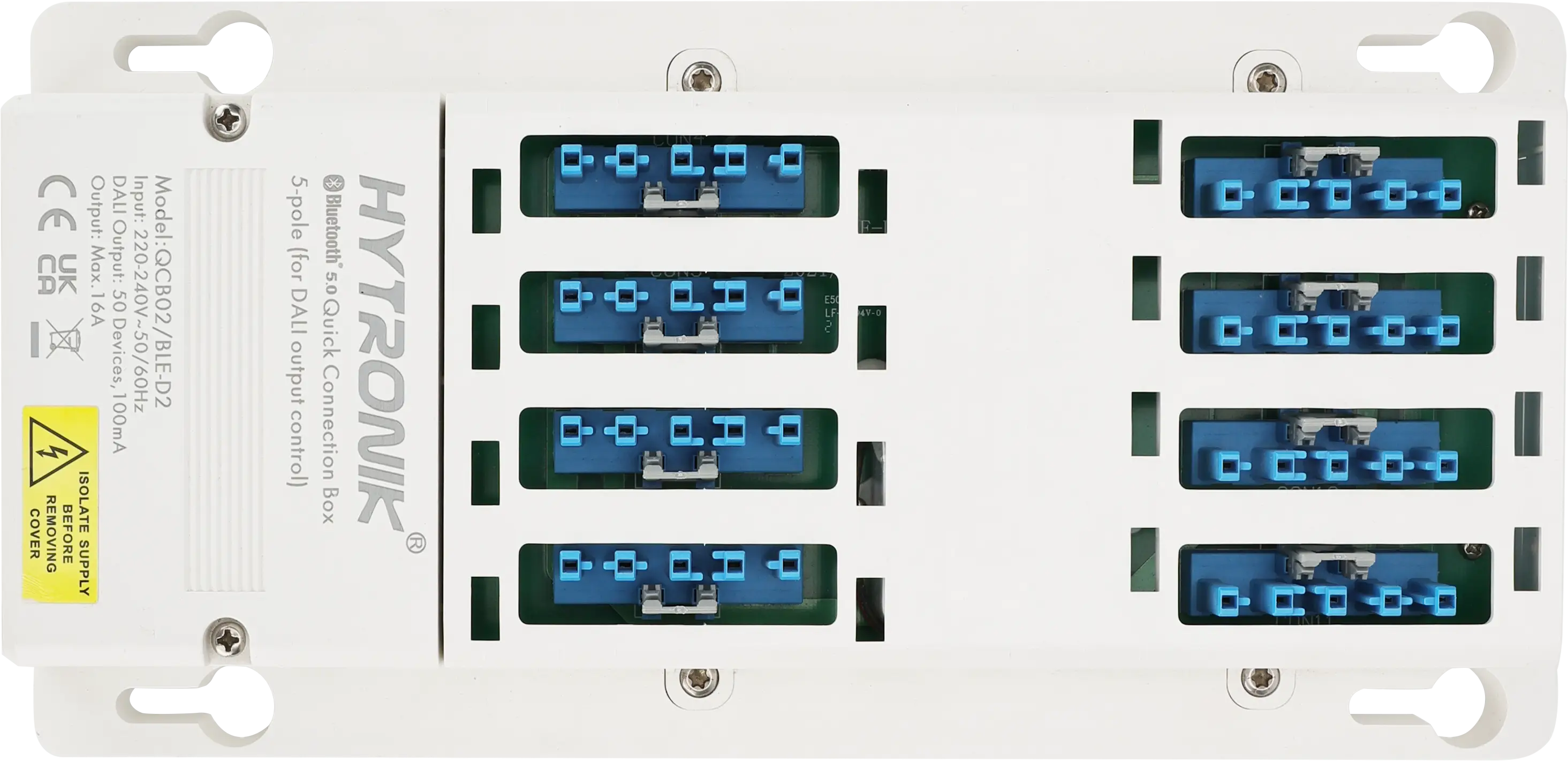

QCB02/BLE-D2
Quick Connection Box | DALI/DALI2 | GST Types 5-poles x 8 lum. + 1 sensor
BENEFITS
- Robust: 5-poles terminals with 8 x luminaire outlets
- Clean: Reduce wiring labour hours and improve safety
- Flexible: Built-in Bluetooth 5.0 control module
APPLICATIONS
- Remote wireless control via Koolmesh
- Classrooms
- Offices
Product information "QCB02/BLE-D2"
• Dimmable control applications - DALI/DALI-2
• Intelligent control with Bluetooth 5.0 SIG mesh module built in
• 4 types of built-in Bluetooth 5.0 control module to select from
• Luminaire outlet: Wago 5-pole terminal base (L’, N, E, Dim+, Dim-)
• Black housing and white housing available to choose from
• Tamper-proof structure design
• Expandable: easy extension to another QCB02/BLE wirelessly
• Rating of system: Max. 100mA DALI/DALI-2 power supply
• Flame-retardant material for safety protection
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Category - Modular Wiring Systems: | Single-Circuit Connection Boxes |
| DALI Bus Current Consumption: | 100.0000 mA |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product Status: | Discontinued / Obsolete |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product weight: | 610.0000 g |
| Product width: | 143.5000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: qcb02-ble-d2.pdf
