HIR32/R
IR Controller | ON/OFF Sensor families | Handheld
BENEFITS
- Compact: Remote control features a universally appealing design
- Simple: ON/OFF Sensor configuration via remote controller
- User-Friendly: The remote control is intuitive and requires minimal training
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Offices, Classrooms
- Common spaces, Corridors

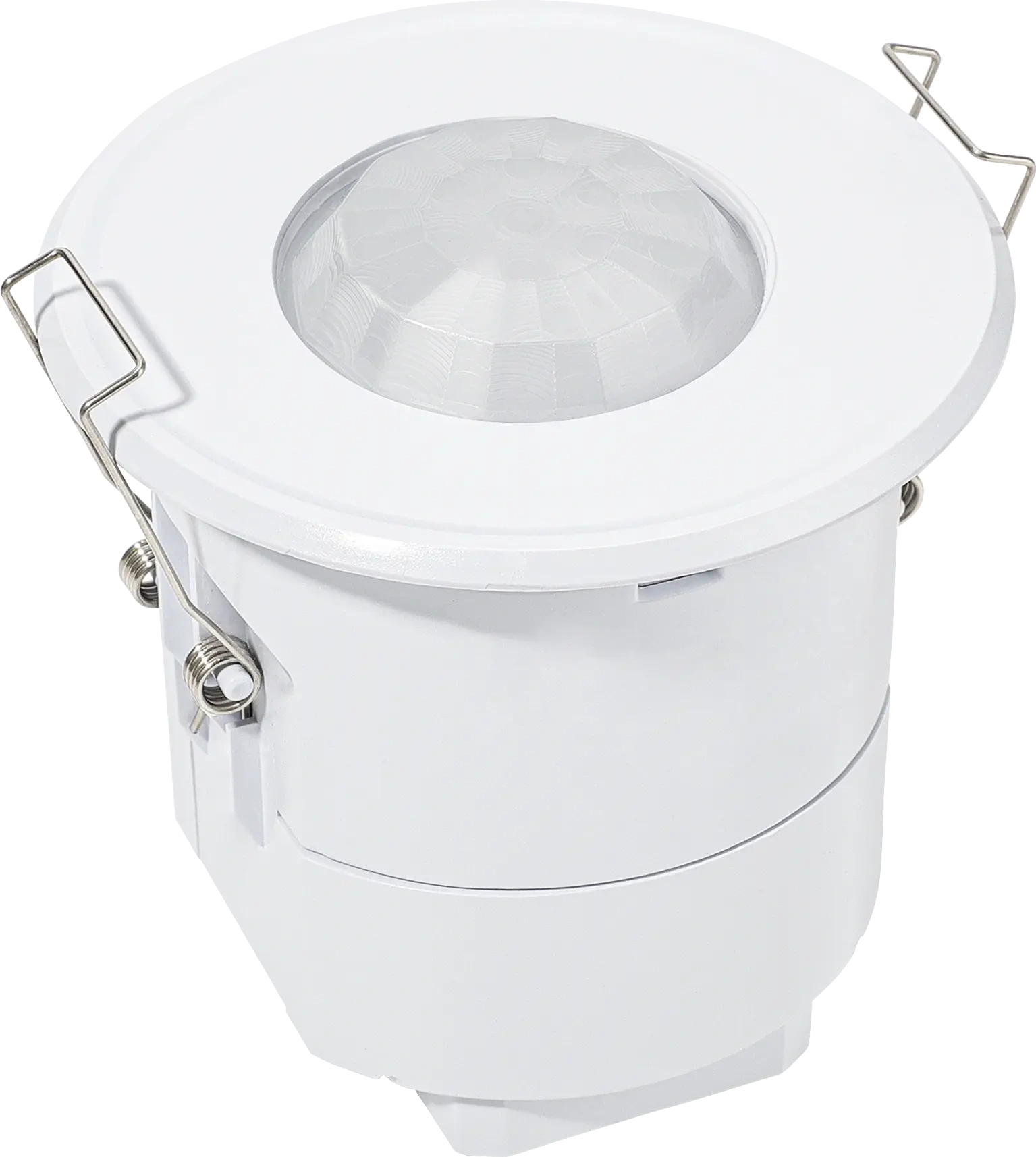

Product information "HIR32/R"
HIR32/R is designed with a low profile for aesthetically demanding architectural projects whilst retaining the functionality expected of the latest lighting controls. Control to the light fixtures is provided via self-powered DALI communication (up to 40 drivers). Set-up of the sensor is carried out using a remote control handset with program memory allowing one-key commissioning where common settings are used for multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| DALI max. current channel 1: | 50 mA |
| DALI max. current channel 2: | 30 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 10x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 77.6000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | 3 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
