Active / Make to Stock
HIR32

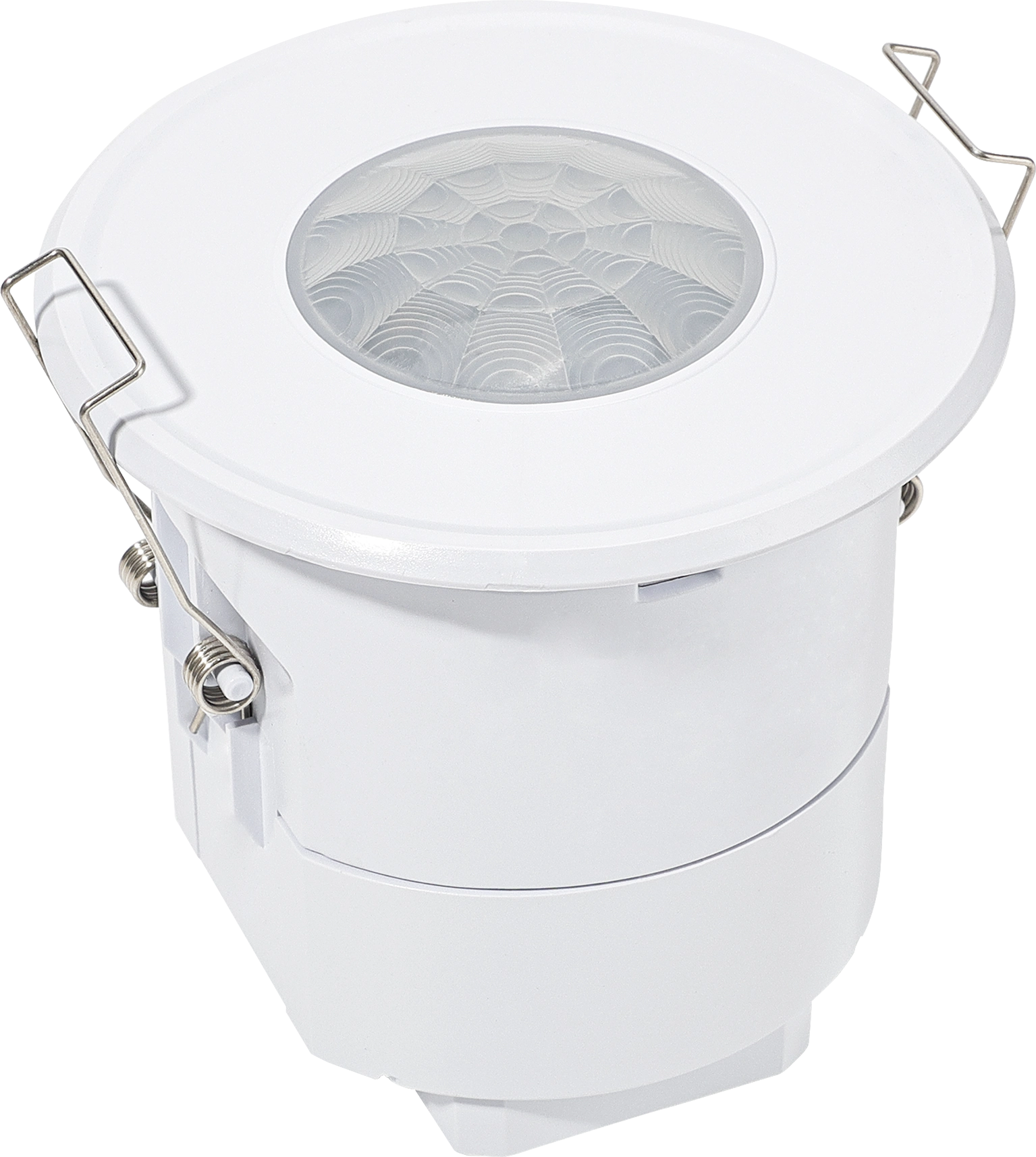

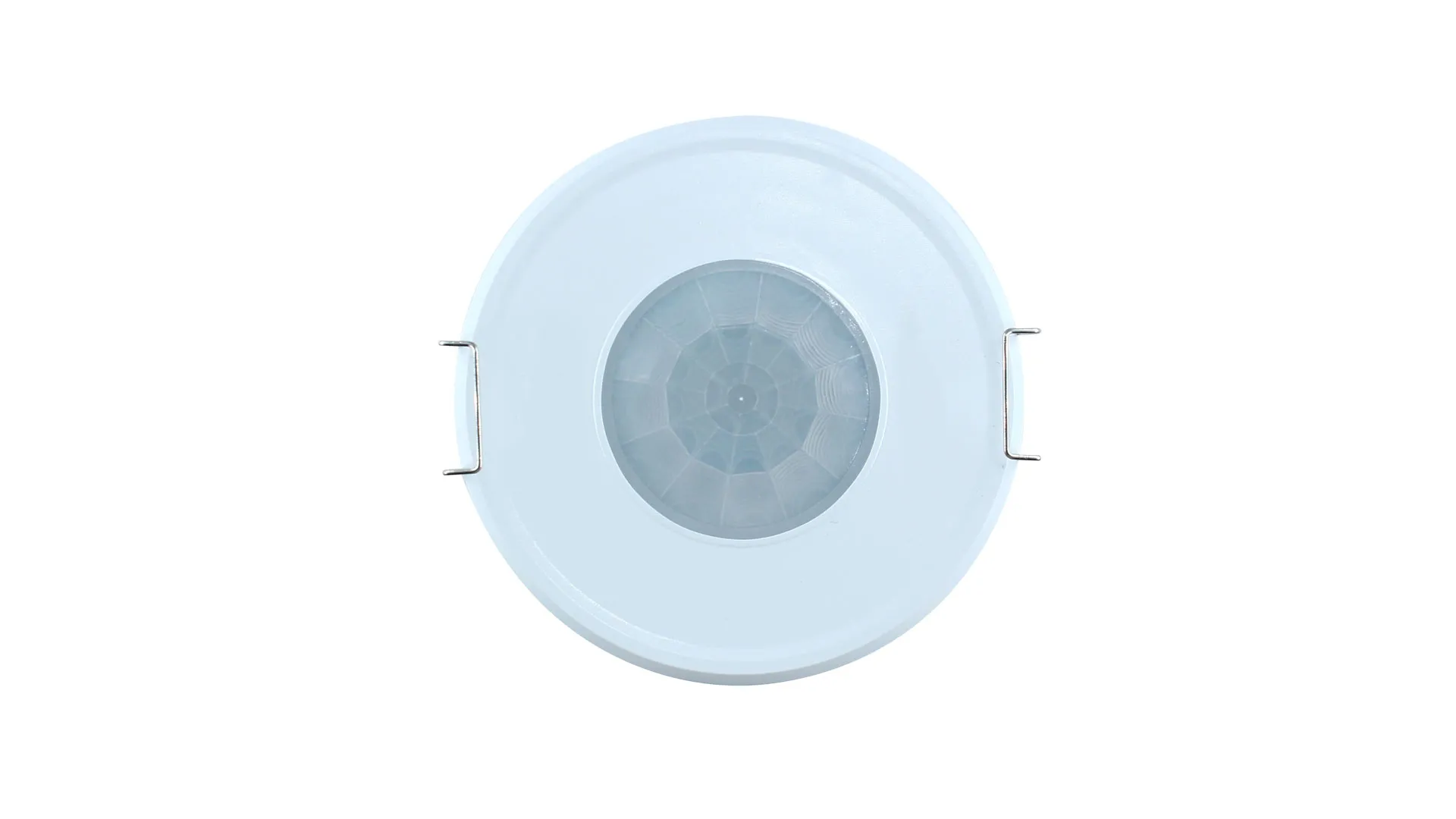

Dual-Channel PIR Lowbay | Integrated 80mA PSU | IR Controller
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Integrated: Built-in 80mA DALI power supply simplifies installation
- User-Friendly: One-key commissioning with IR controller

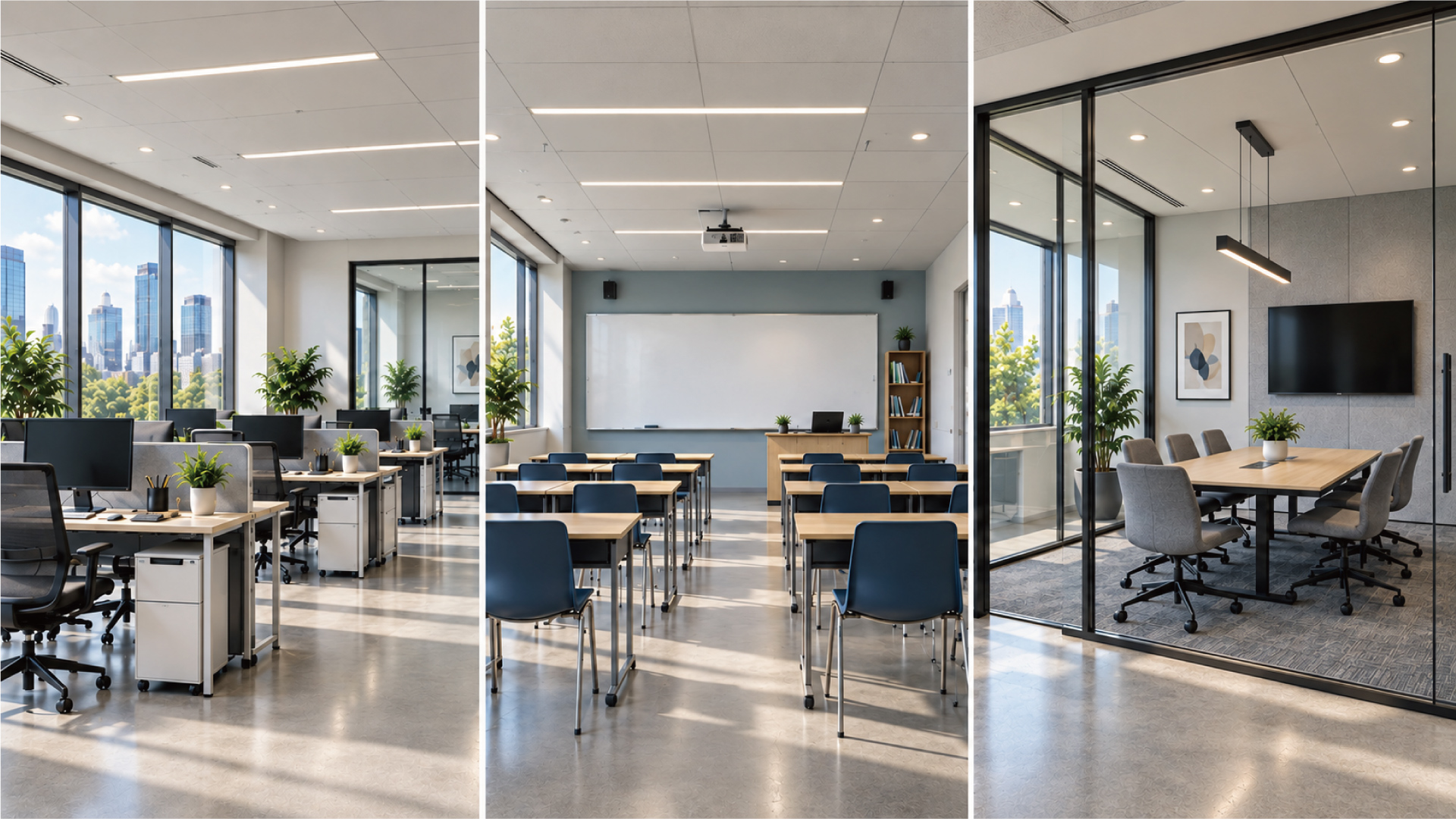

APPLICATIONS
- Standard Indoor Spaces / Max. 6 m · Ø 9 m
- Offices · Education · Public Buildings
- Workspaces · Classrooms · Meeting Rooms
Product information "HIR32"
HIR32 is a dual channel PIR motion sensor designed for commercial indoor DALI lighting applications, providing greater connection capacity and simpler system installation. It features two DALI broadcast channels with a built-in 80mA DALI power supply, supporting up to 50mA on Channel 1 and 30mA on Channel 2, eliminating the need for an additional DALI power supply. Configuration and commissioning can be completed quickly via remote control, while common settings can be applied to multiple sensors at the touch of a button to improve deployment efficiency.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| DALI Bus Current Consumption: | 2.0000 mA |
| DALI max. current channel 1: | 50 mA |
| DALI max. current channel 2: | 30 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 9x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 79.2000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 87.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 3 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir32.pdf
Installation Manual
User manual: installation-manual-hir32.pdf
