HIR28DCVFC/R
PIR Lowbay | Remote controller 48VDC ON/OFF | Ceiling mounting
BENEFITS
- Flexible: Designed for ceiling or surface mounting
- Independent: On/off occupancy control 12-48VDC powered

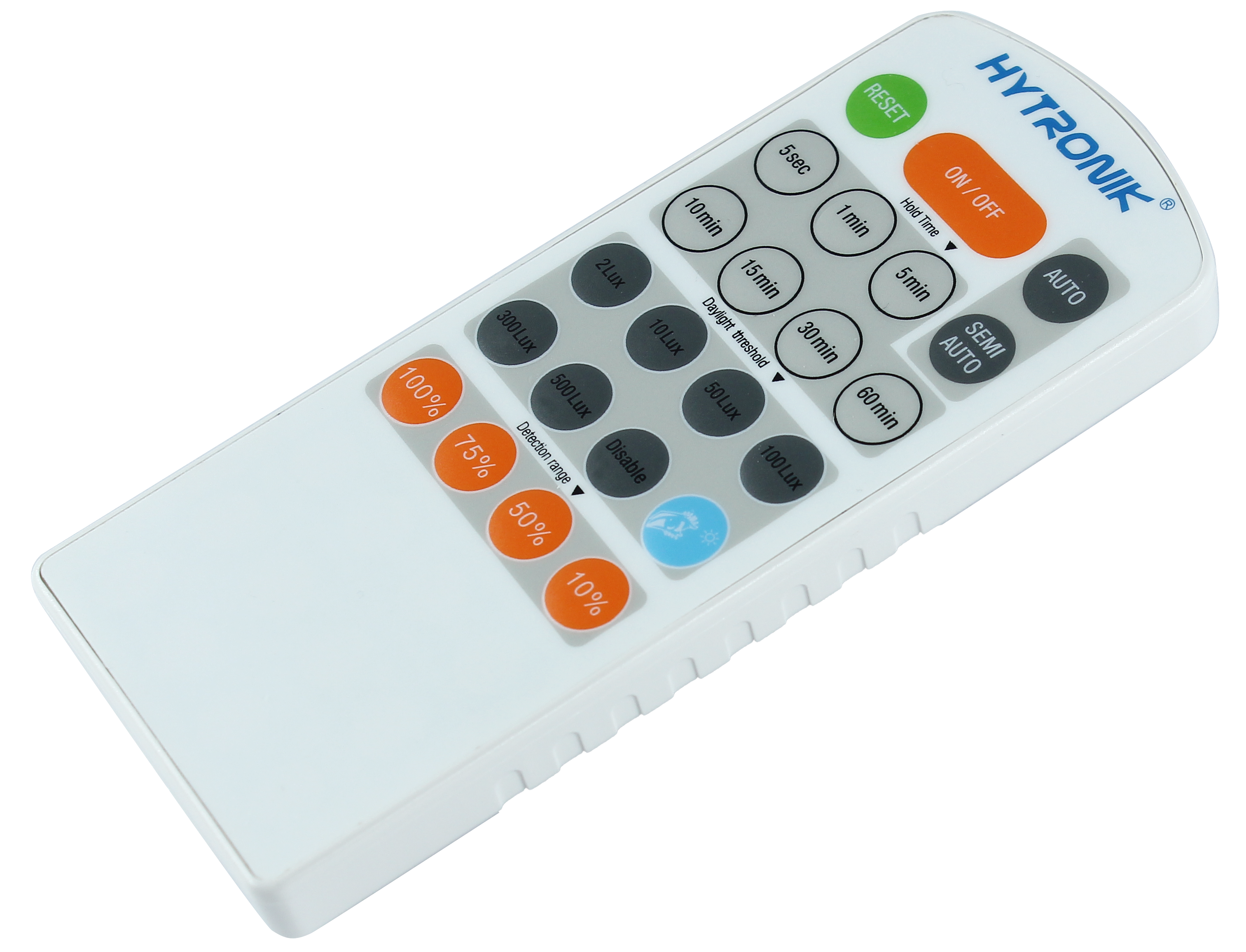

- User-Friendly: One-key commissioning with IR controller
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Offices, Classrooms
- Common spaces, Corridors

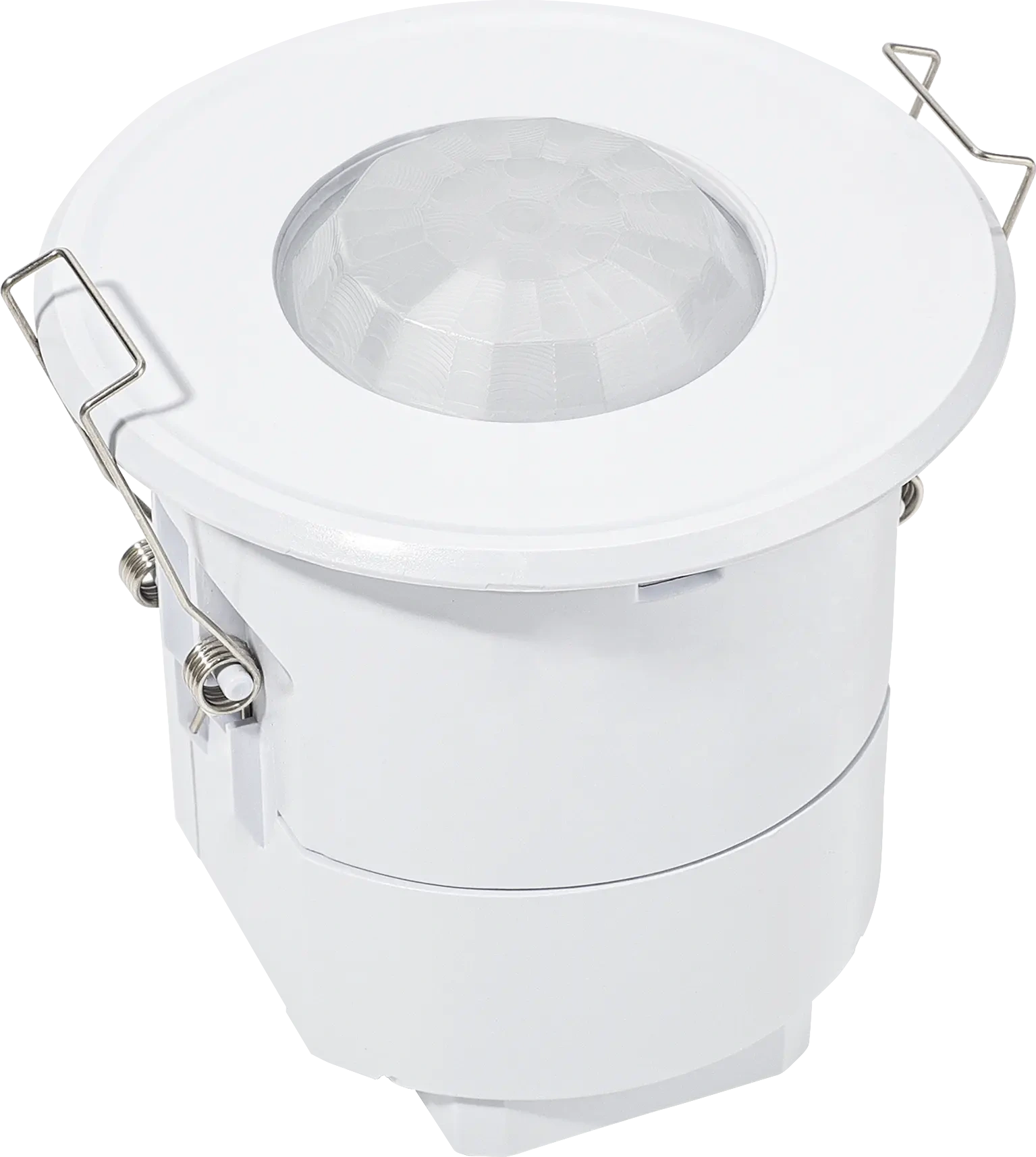

Product information "HIR28DCVFC/R"
It is a PIR standalone motion sensor designed for aesthetically demanding architectural projects. It features On/Off control with a voltage-free NO relay output, suitable for simple occupancy control or semi-automatic absence detection. Ideal for various indoor environments, it ensures high-quality performance while maintaining architectural integrity.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Dimming (Output) Interface: | Volt-free Contact (VFC) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 12-48VDC |
| Output Voltage: | 24VDC≤5A 250VAC≤5A |
| Product height: | 77.6000 mm |
| Product width: | 78.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
