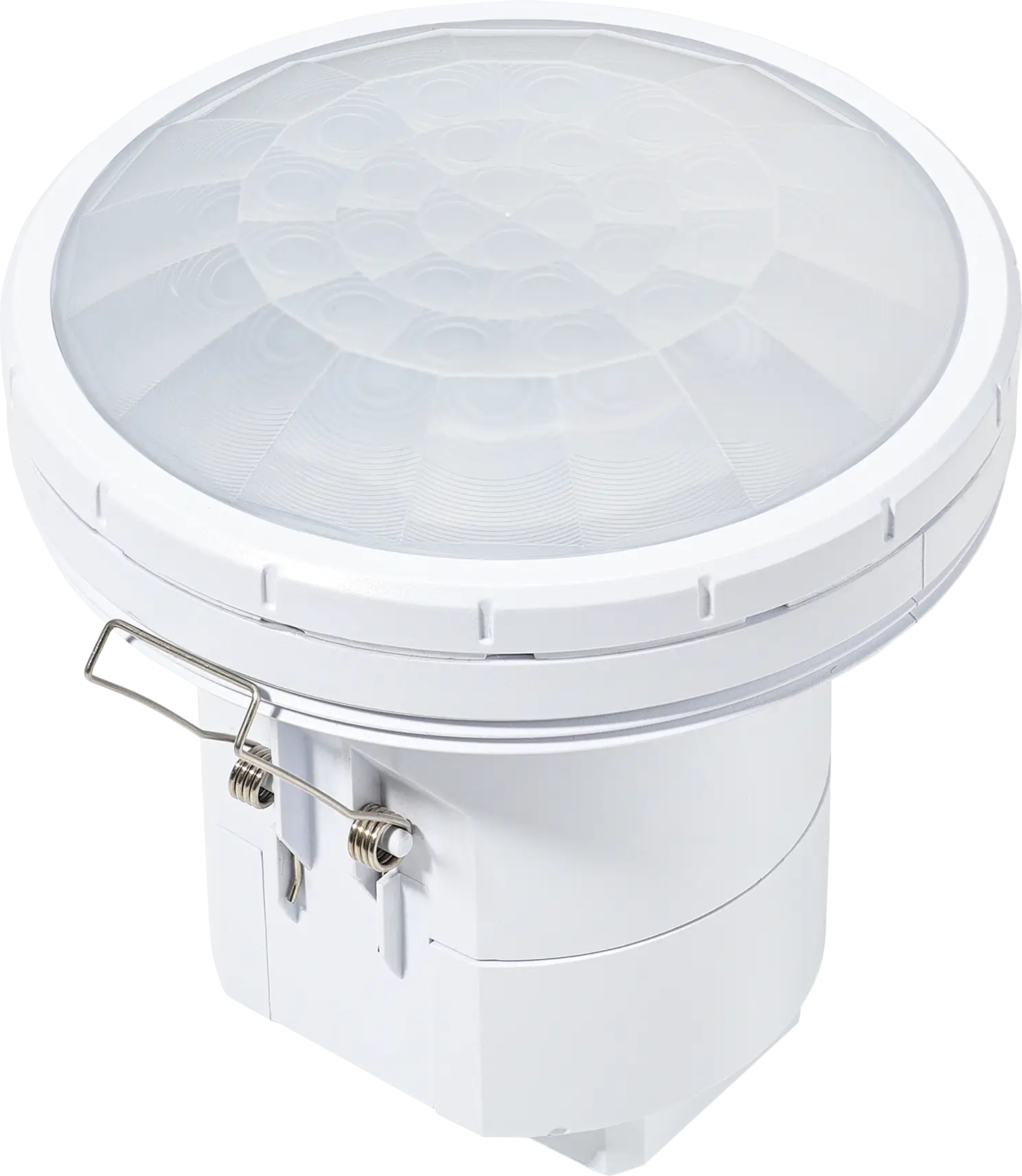

HIR28/UH
PIR Ultra-Highbay | ON/OFF and IR Controller | Ceiling mounting
BENEFITS
- Simplified installation: Same product dimensions in this product range
- Autonomous: On/off occupancy control for up to 800W
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Standalone installation for ceiling up to 20m
- Warehouse/Logistic
- production
Product information "HIR28/UH"
It is a low-profile sensor designed for aesthetically demanding architectural projects. It offers high-quality, simple On/Off occupancy control or semi-automatic absence detection. An intelligent photocell prevents light switching when natural daylight is available. Setup is easy with a remote control handset, allowing one-key commissioning for multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 28×21 |
| Dimming (Output) Interface: | Relay On/Off |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Ultra high-bay |
| Maximum Mounting Height: | 21.0000 m |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 97.0000 mm |
| Product length: | 79.0000 mm |
| Product width: | 79.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
