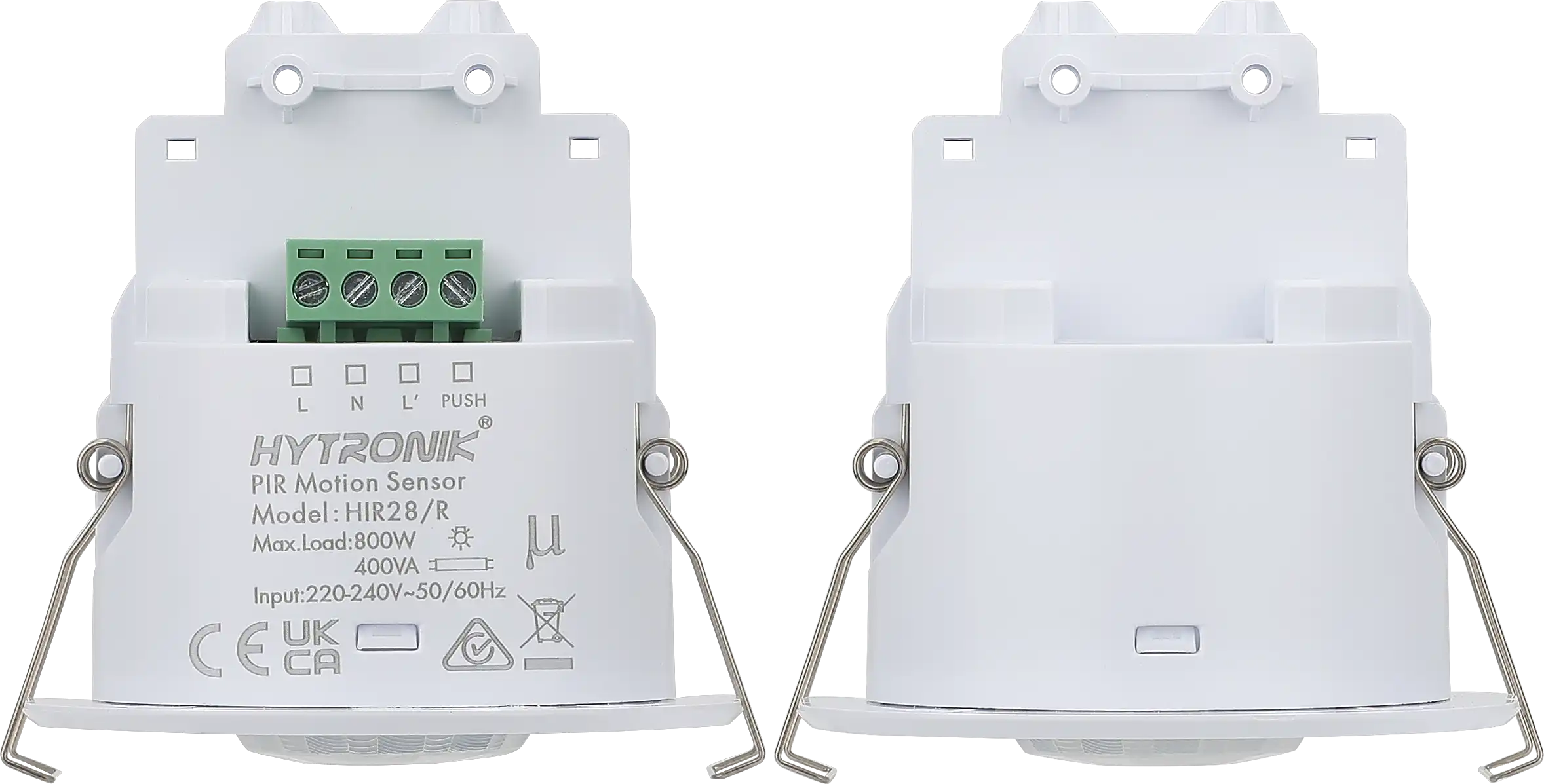

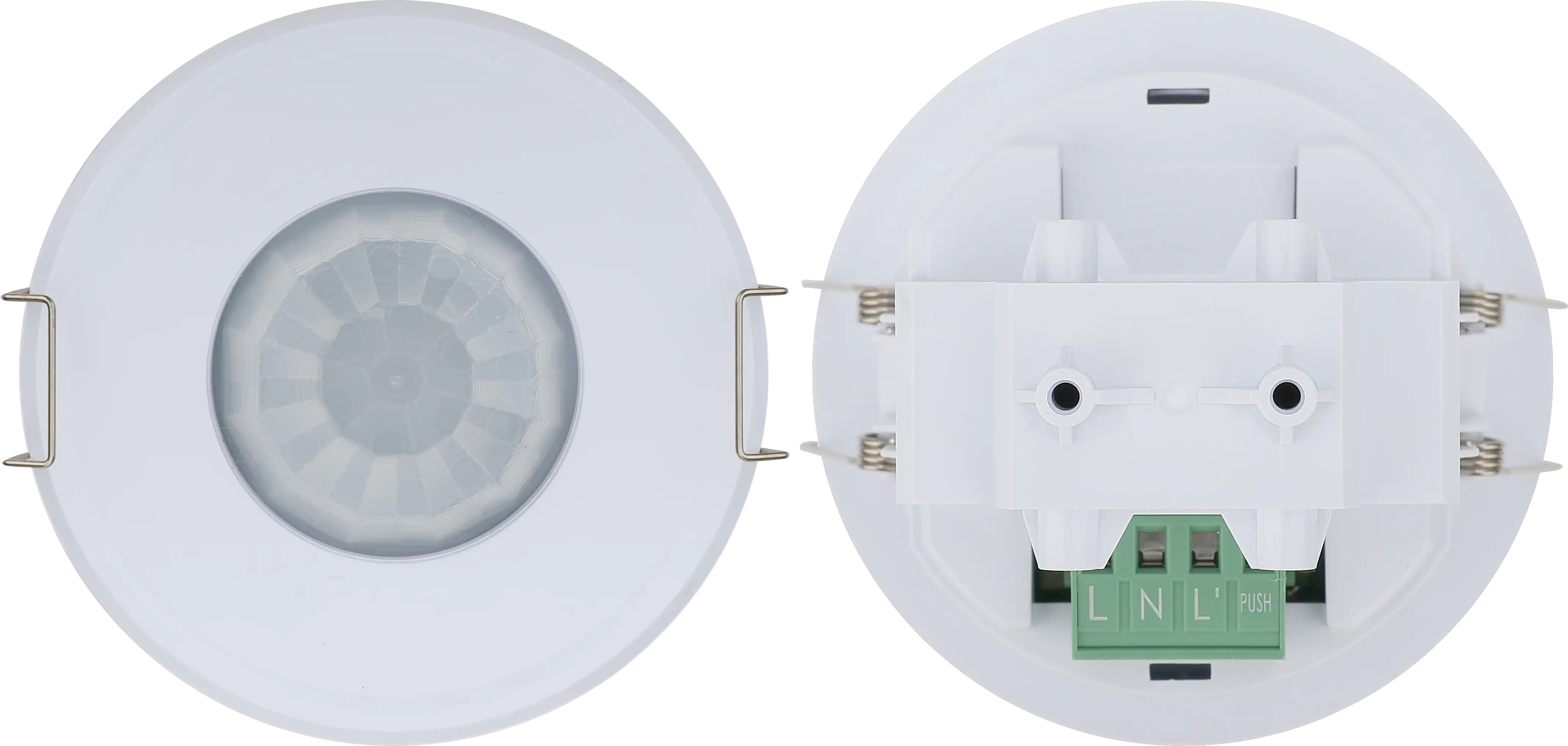

HIR28/R
PIR Midbay | Remote controller and ON/OFF | Ceiling mounting
BENEFITS
- Compact: Enabling independent lighting control
- Independent: On/off occupancy control for up to 800W
- User-Friendly: One-key commissioning with IR controller
APPLICATIONS
- Ceiling or surface mounting (with accessory)

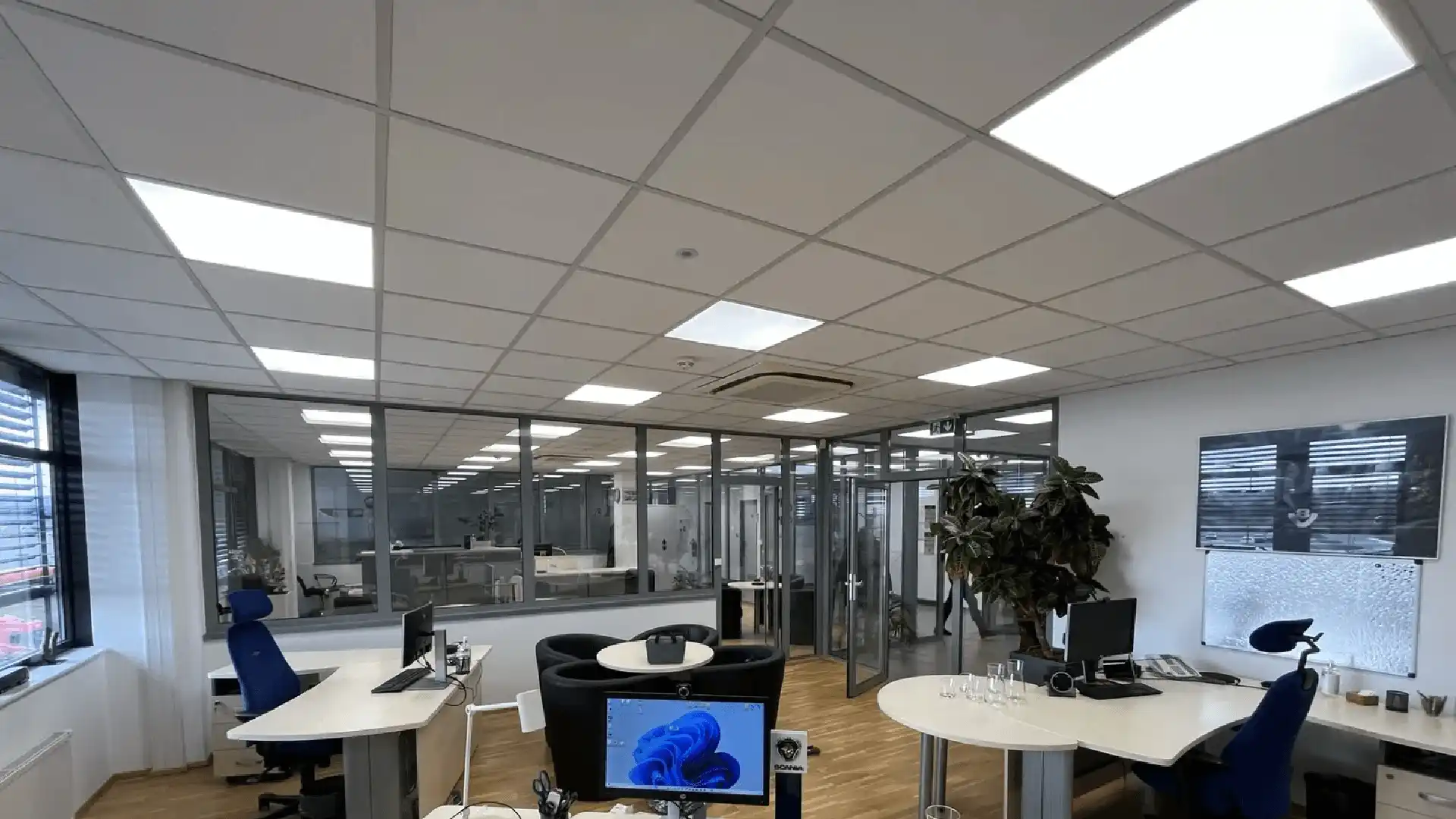

- Offices & Classrooms

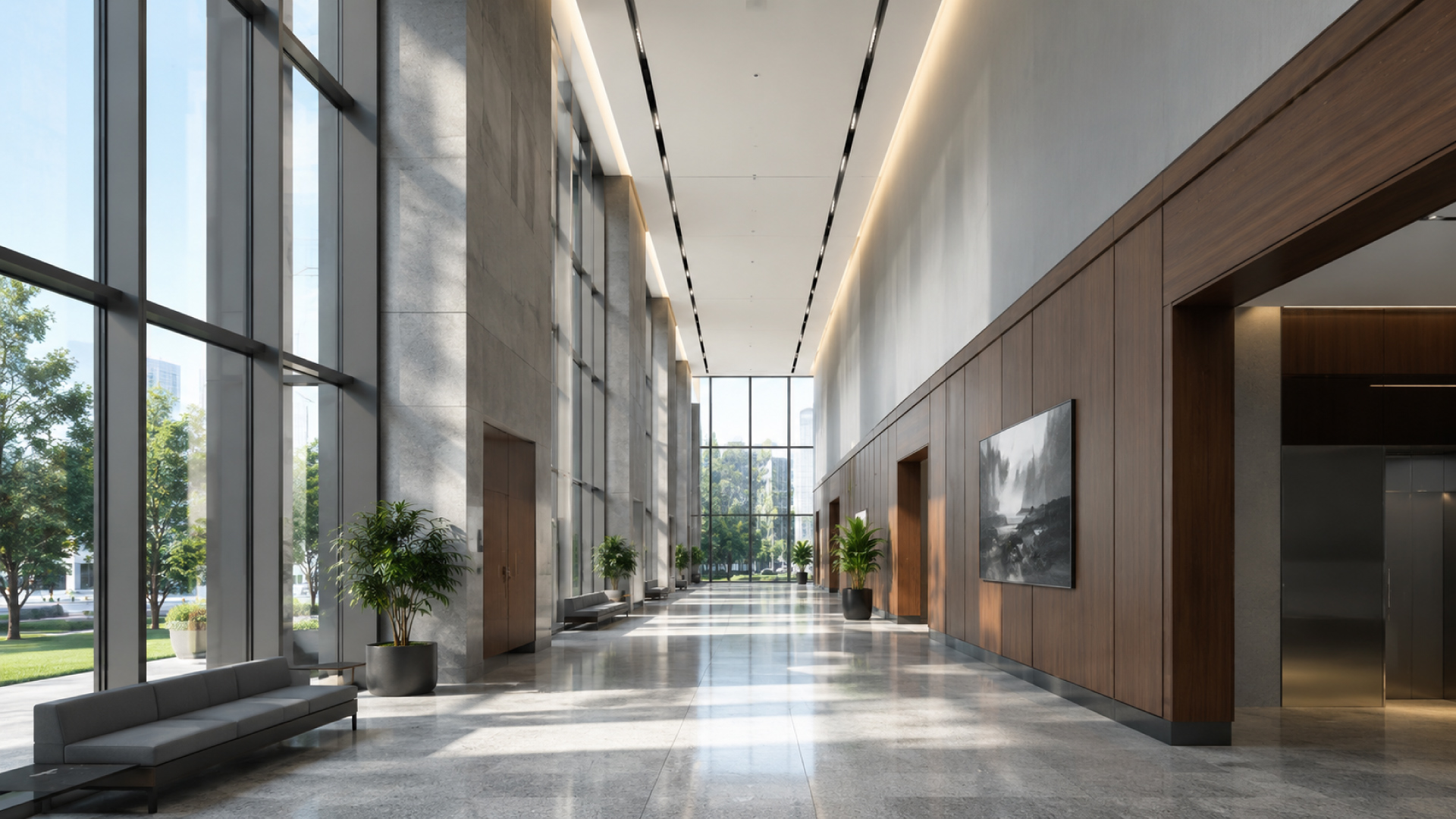

- Common Spaces & Corridors
Product information "HIR28/R"
HIR28/R is a PIR reinforced Midbay motion sensor with a typical mounting height of 6 m,designed for independent lighting control with relay ON/OFF output. It is suitable for retrofit and small-scale applications where simple, reliable switching control is required. The sensor provides occupancy-based switching and optional absence detection, while an integrated photocell prevents unnecessary light activation when sufficient natural daylight is available. Configuration and commissioning are handled via a handheld remote control, enabling quick setup and one-key commissioning for multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | Relay On/Off |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 120A@160μs |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 125.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
