Active / Make to Stock
HIR28/2CH
PIR Lowbay | Dual-channel ON/OFF | Remote Commissioning
BENEFITS
- Versatile: NO relay and NO/NC voltage-free contact for flexible load control
- Flexible: Independent dual-channel ON/OFF control for different loads.
- User-Friendly: One-key commissioning with IR controller
APPLICATIONS

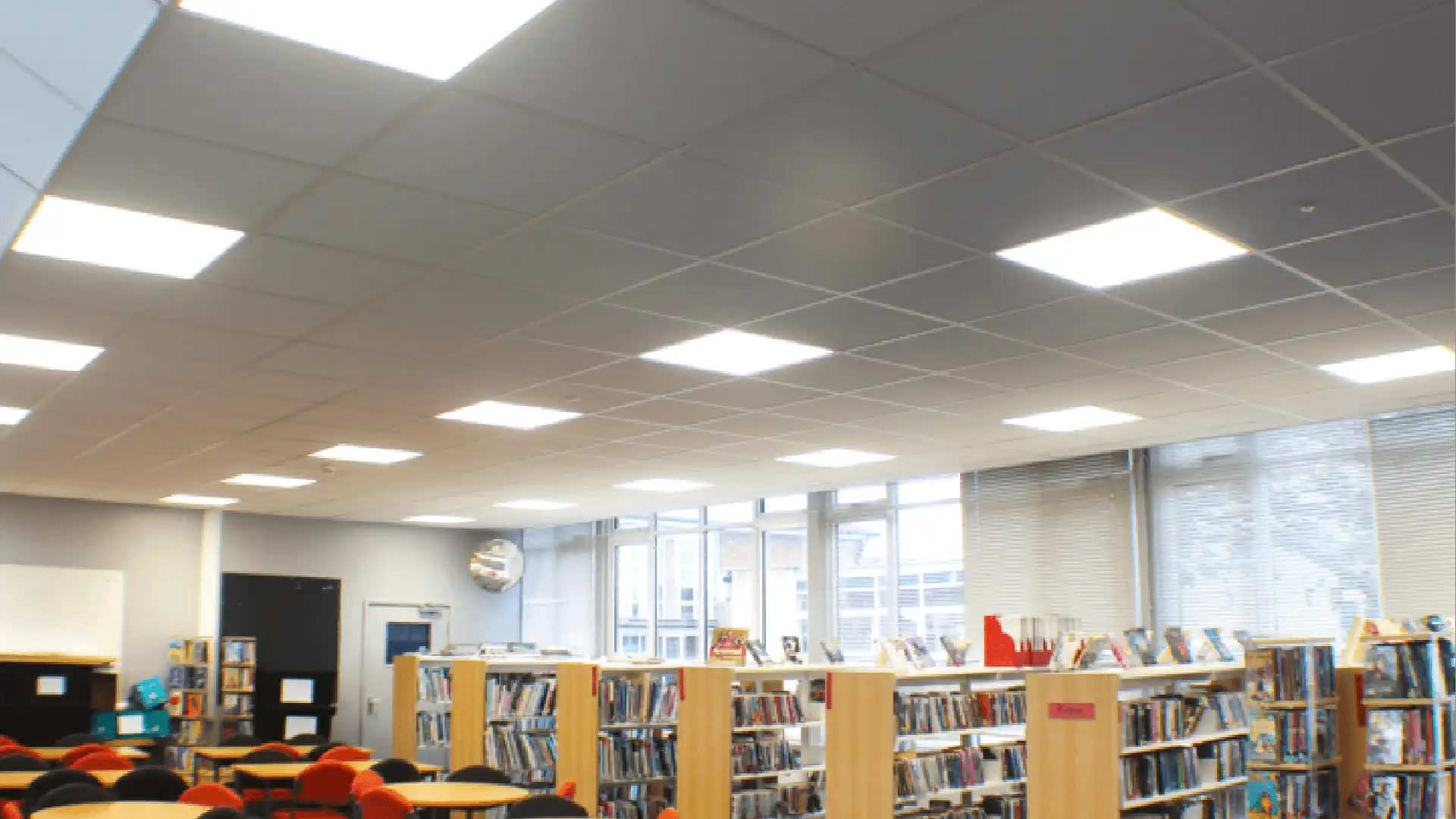

- Standard Indoor Spaces / Max. 6 m · Ø 9 m

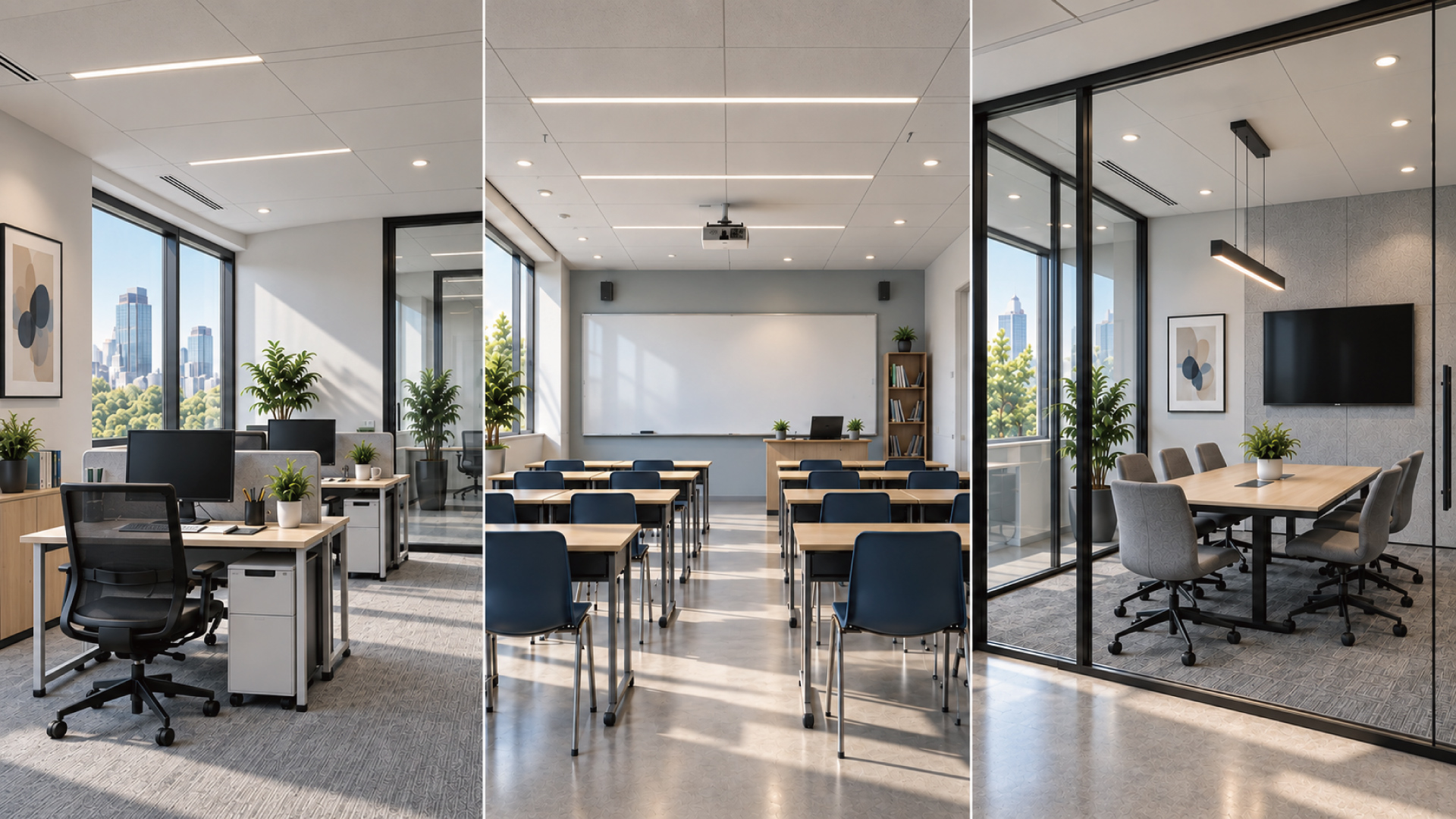

- Offices · Education · Public Buildings
- Workspaces · Classrooms · Meeting Rooms
Product information "HIR28/2CH"

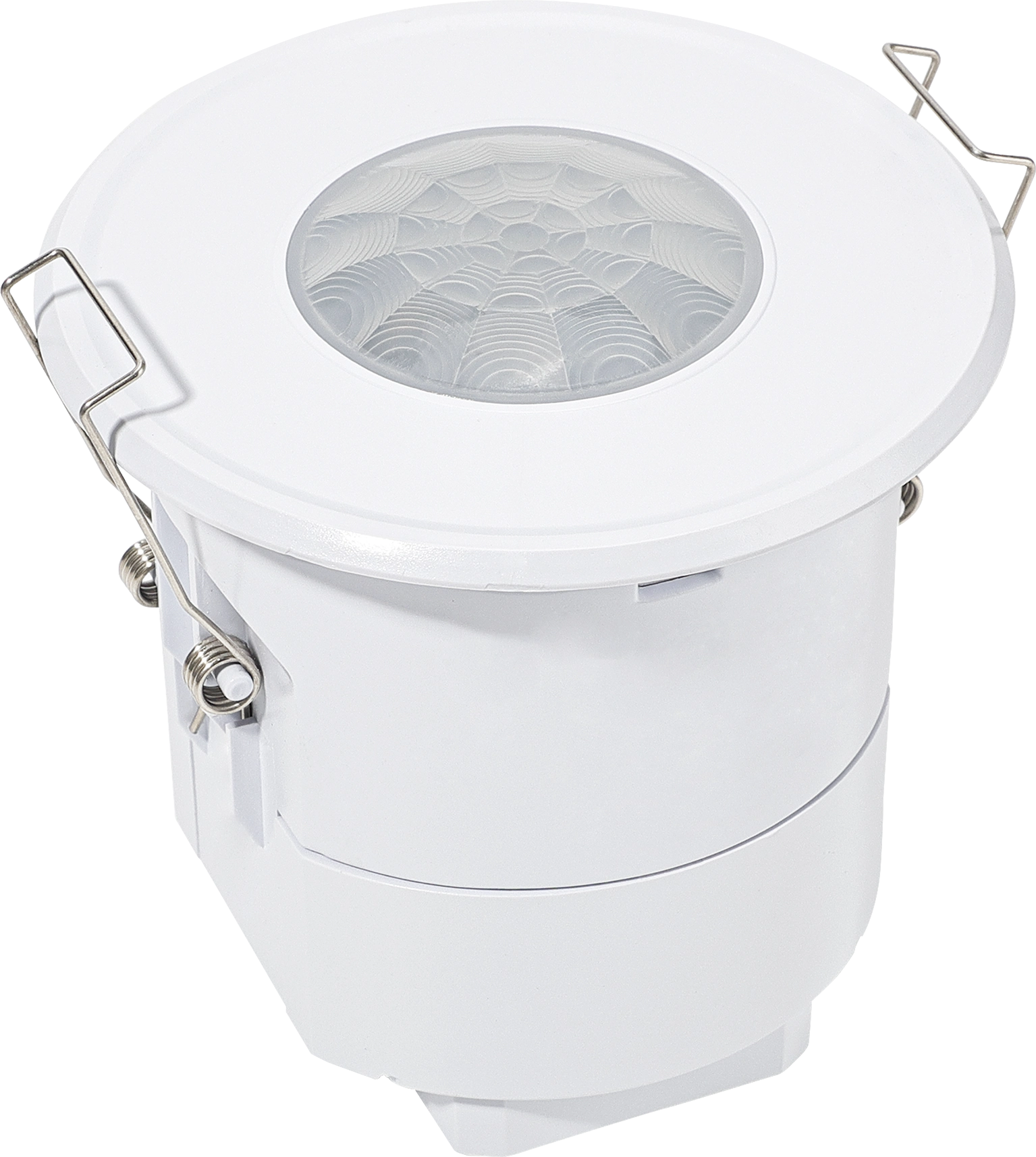

HIR28/2CH is a ceiling-mounted PIR motion sensor with a standard low-bay lens and a typical mounting height of 2.5 m, designed for dual-channel ON/OFF lighting control. It features two ganged relay outputs: one voltage-free contact with NO/NC terminals and one normally open (NO) relay, providing flexible switching options for different loads. All parameters can be configured via a handheld remote control, enabling fast setup and one-key commissioning of multiple sensors.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 9x6 |
| Dimming (Output) Interface: | Relay On/Off, Volt-free Contact (VFC) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Max withstandable in-rush current: | 80A@160μs |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 79.2000 mm |
| Product length: | 78.0000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir28-2ch.pdf
