Active / Make to Stock
HIR27/UH
PIR Ultra Highbay | DALI-2 Certified | Remote Commissioning
BENEFITS

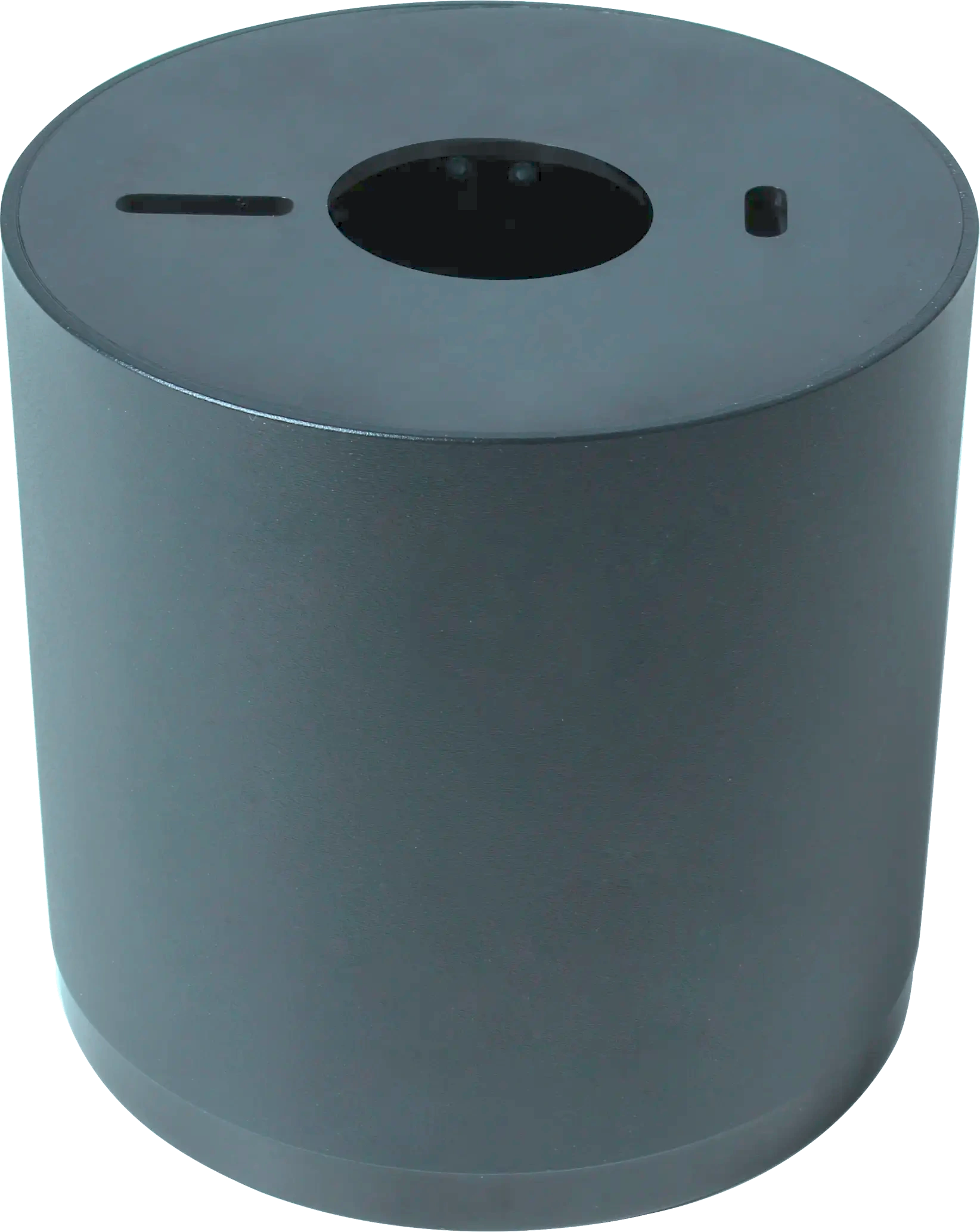

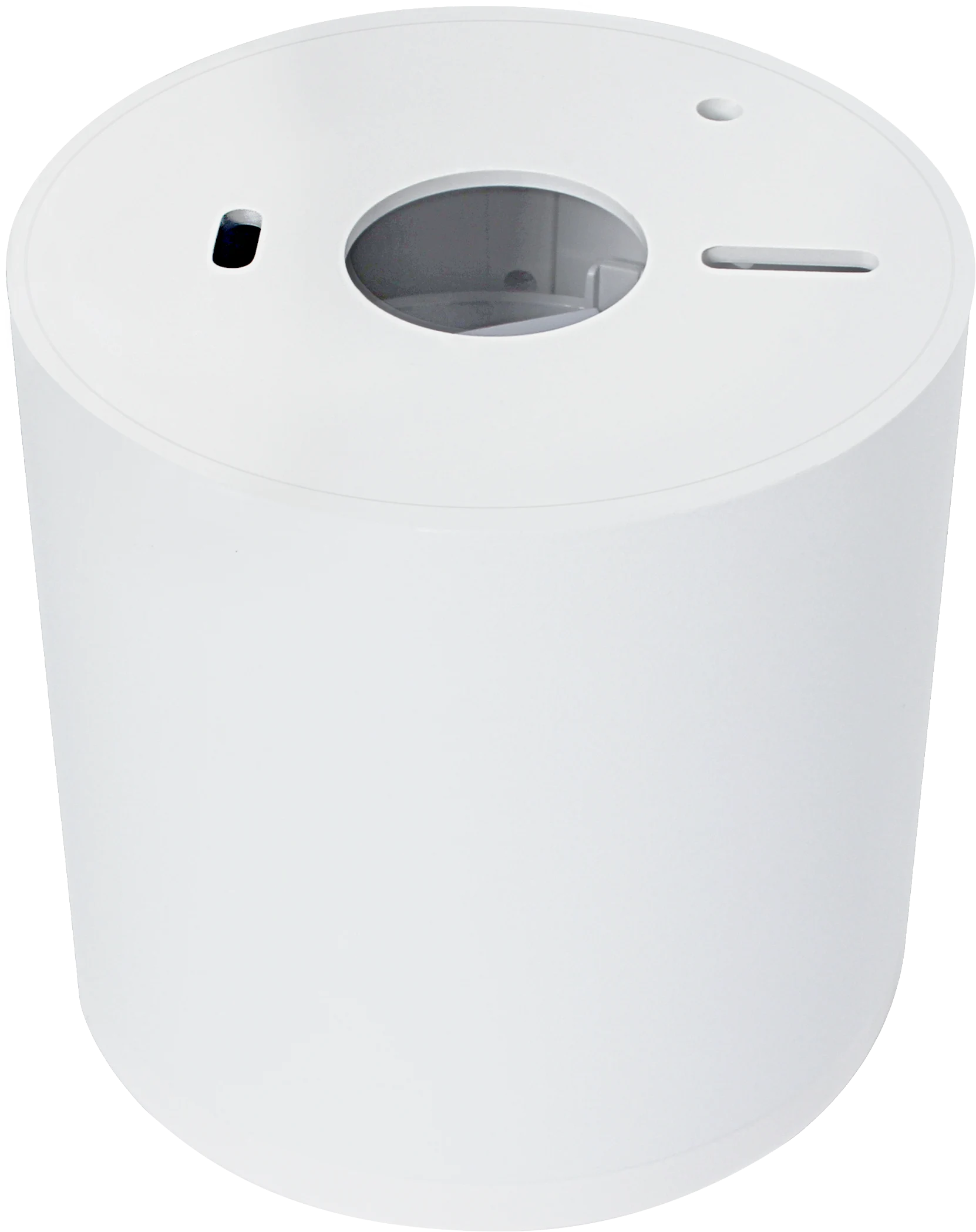

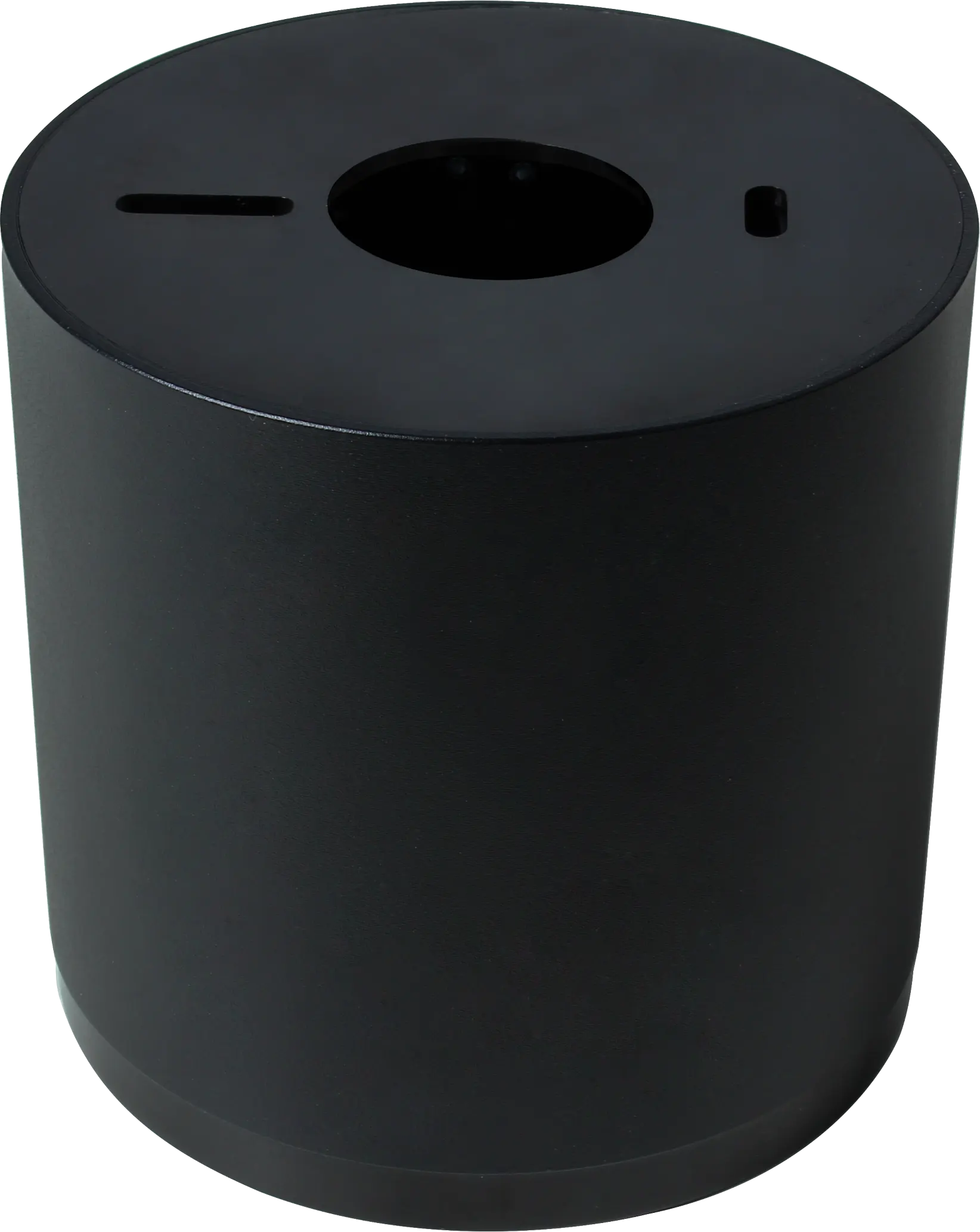

- Flexible: Optional Surface Mount Boxes
- Integrated: Built in 64mA DALI PSU Simplifies System Installation
- Efficient: One Key Commissioning with IR Controller
APPLICATIONS

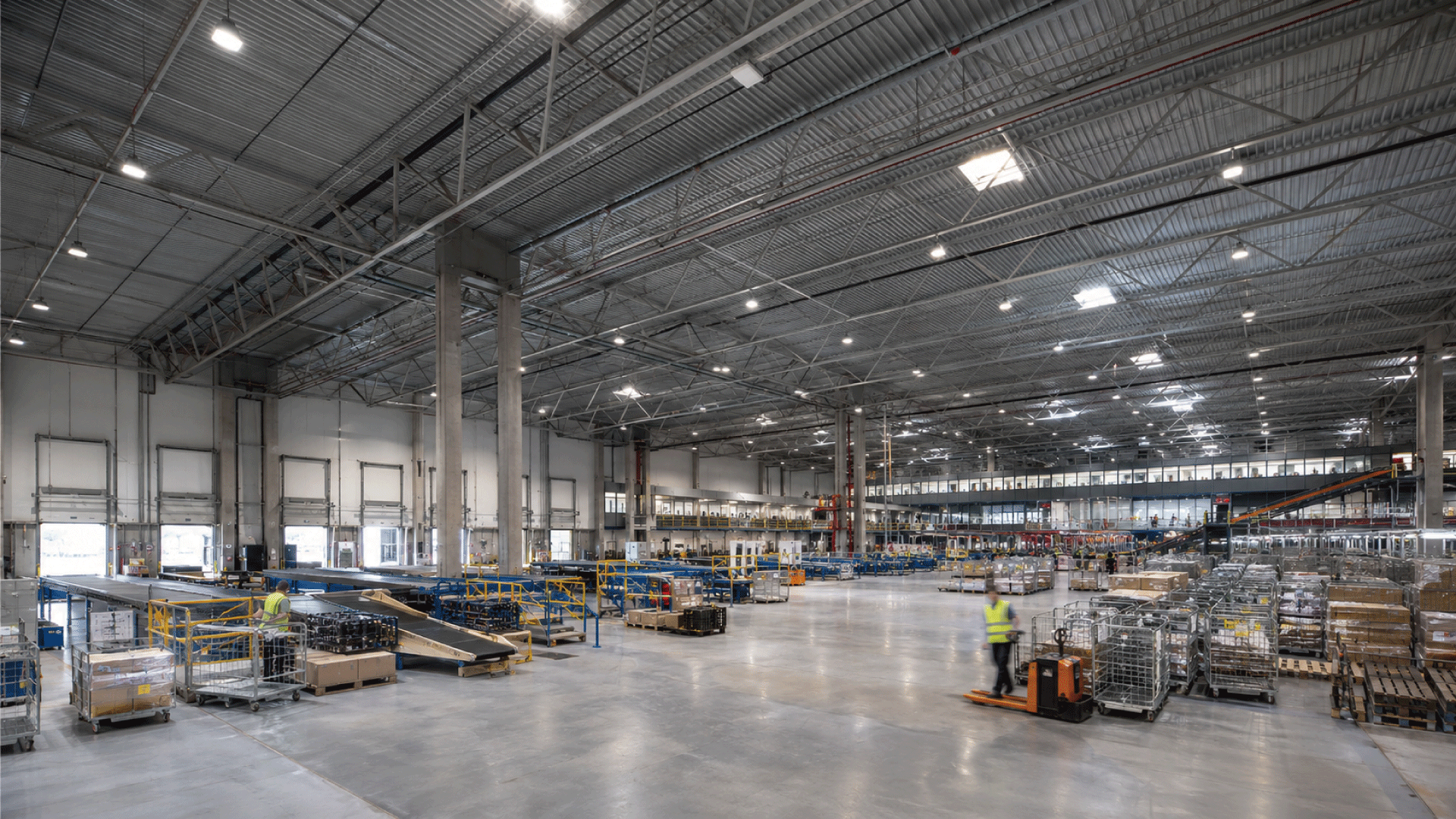

- Ultra Highbay Spaces / Max. 21 m · Ø 28 m

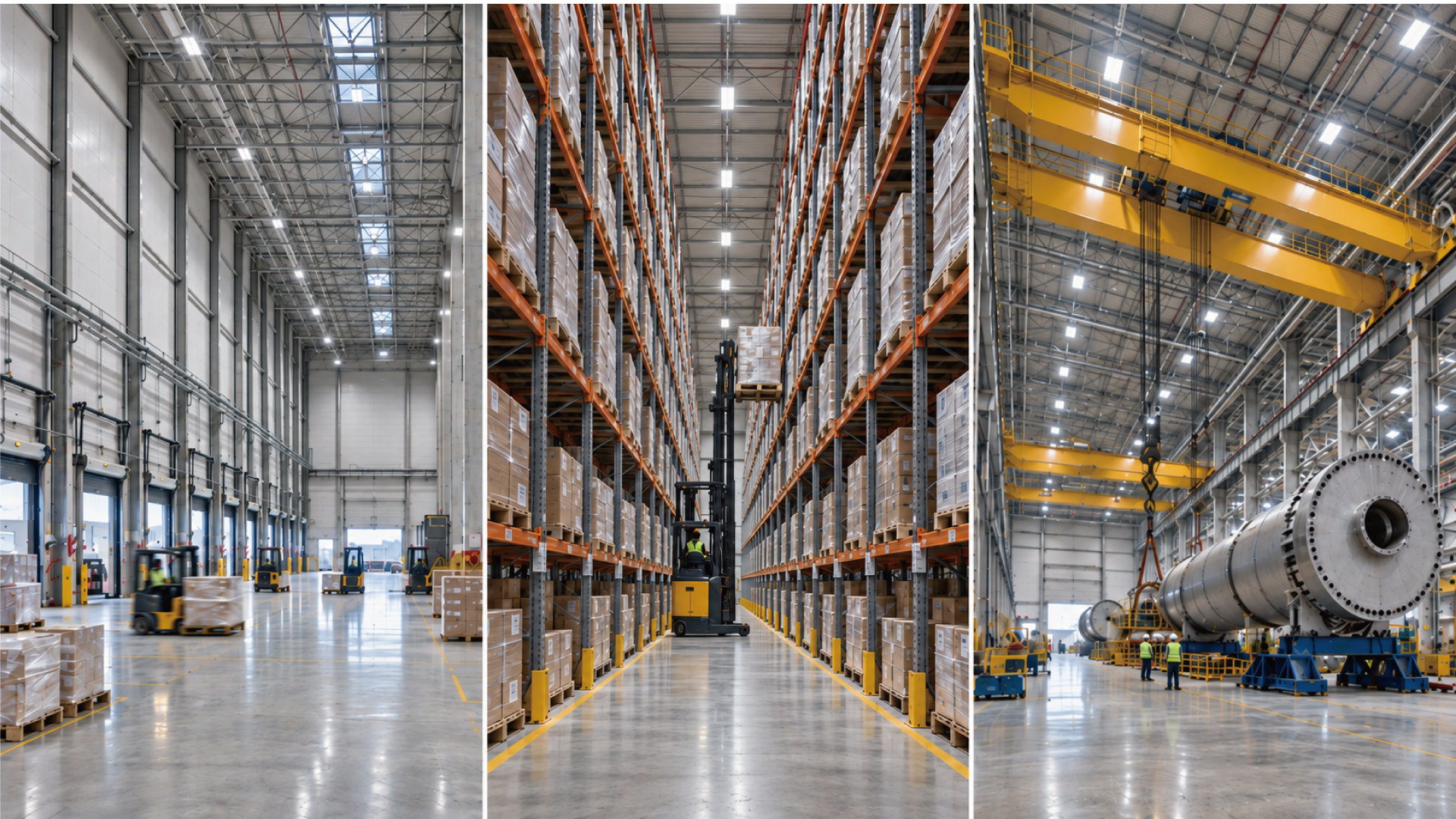

- Logistics · Warehousing · Industrial Facilities
- Distribution Halls · High-rack Aisles · Large Industrial
Product information "HIR27/UH"

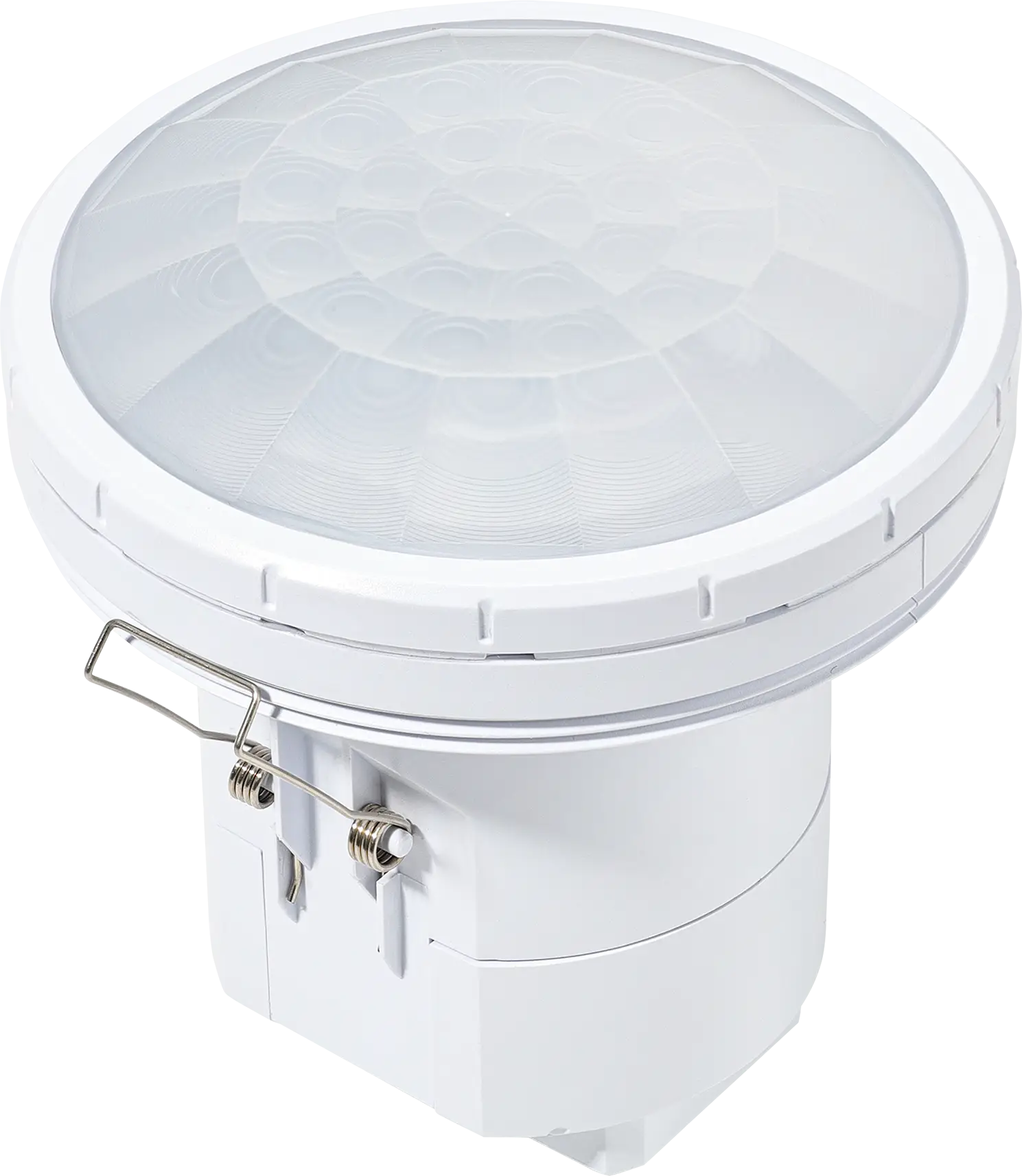

HIR27/UH is a ceiling-mounted DALI-2 broadcast PIR motion sensor with an ultra high-bay lens and a typical mounting height of 15 m. A built-in 64mA DALI power supply eliminates the need for an external DALI PSU, reducing system components and simplifying installation. Daylight Harvest adjusts artificial lighting according to available natural light, helping reduce unnecessary energy use while maintaining the required light level. All parameters can be configured via a handheld remote control, enabling fast setup and one-key commissioning of multiple sensors.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Ultra high-bay |
| Maximum Mounting Height: | 21.0000 m |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 101.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir27-uh.pdf
