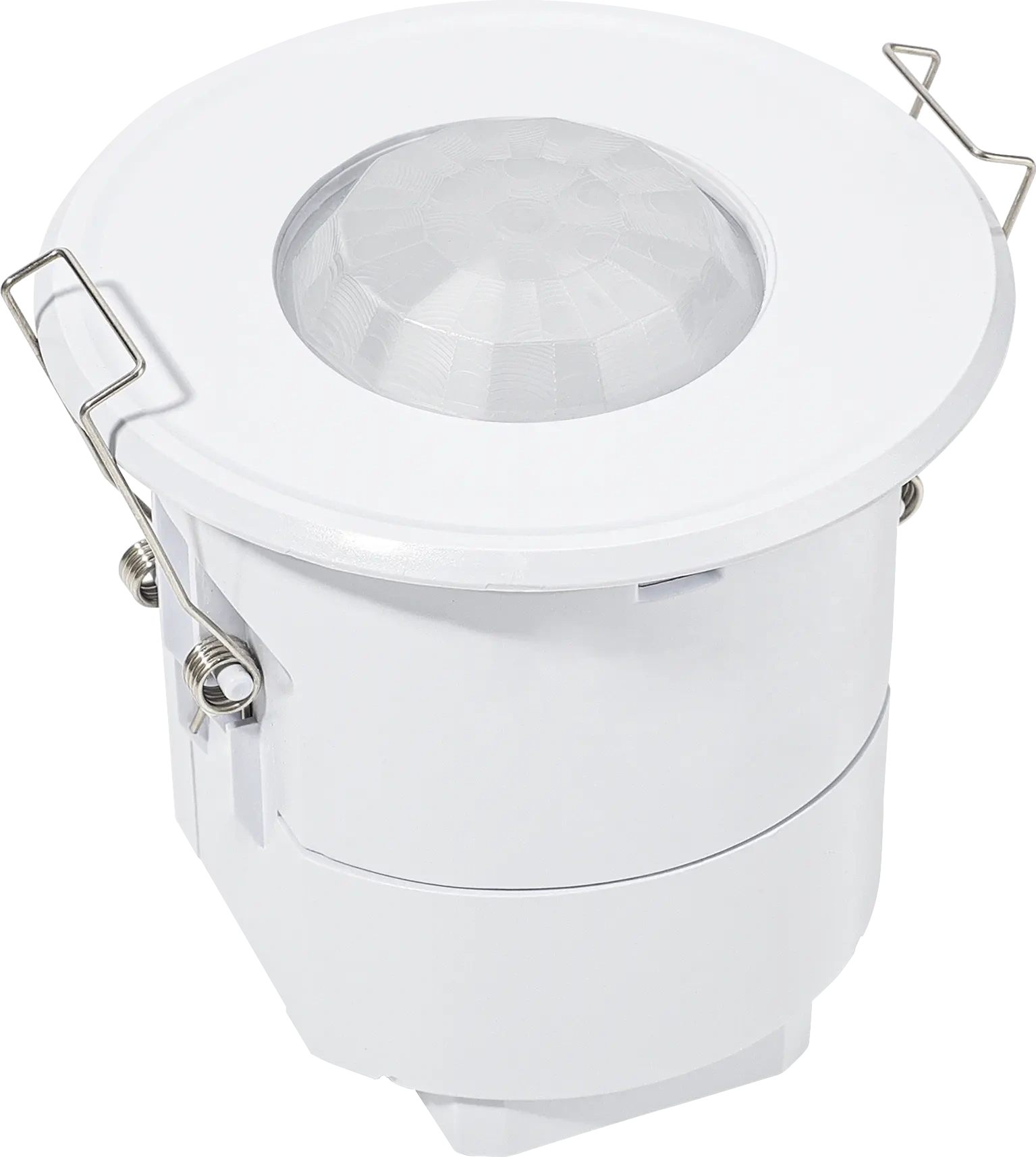

HIR27/R
PIR Reinforced Width Lowbay | DALI-2 Certified | Remote Commissioning
BENEFITS
- Flexible: Optional Blind Inserts and Surface Mount Boxes
- Integrated: Built in 64mA DALI PSU Simplifies System Installation
- Efficient: One Key Commissioning with IR Controller
APPLICATIONS
- Extended Low-bay Spaces / Max. 6 m · Ø 10 m

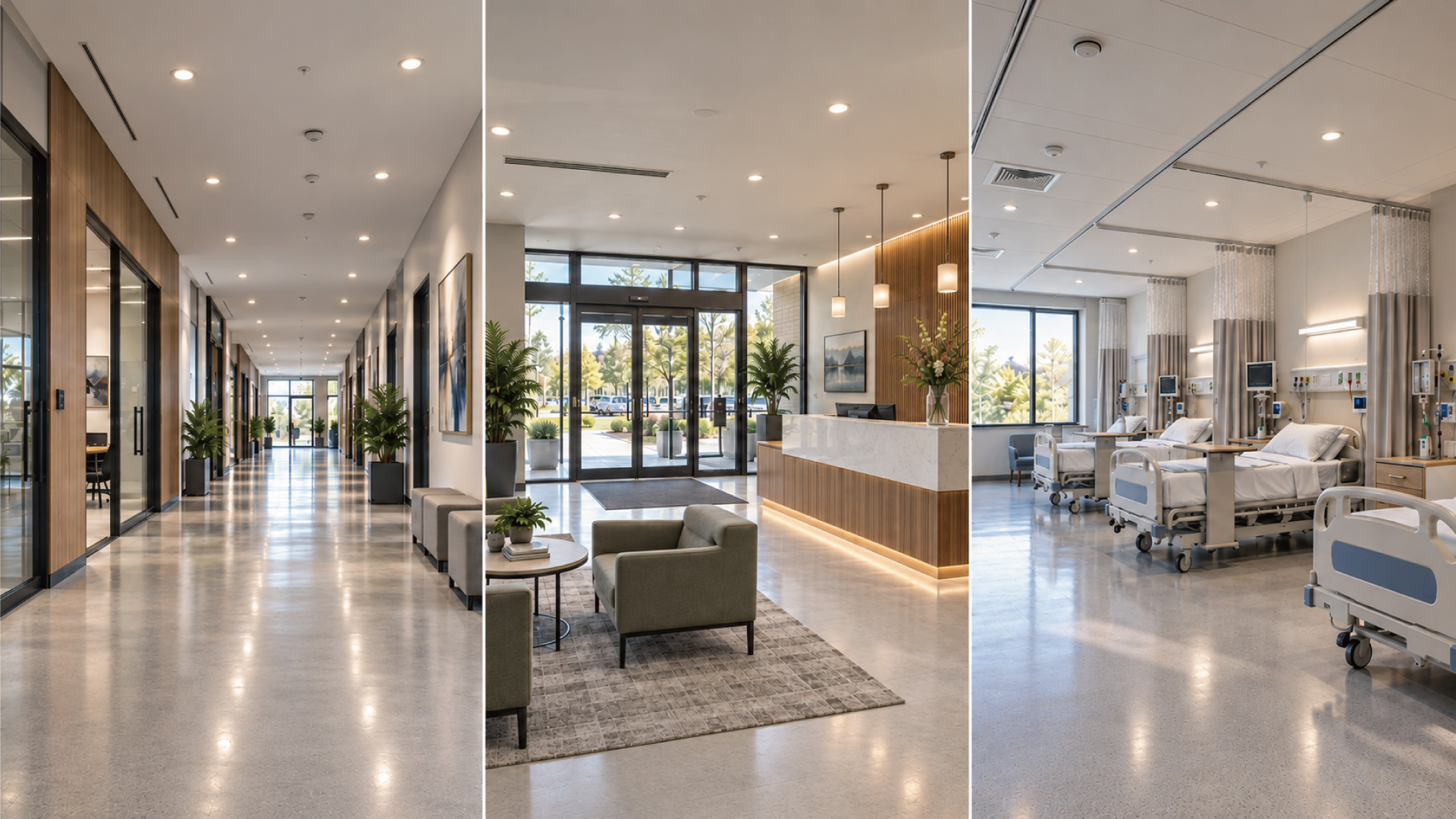

- Retail · Public Buildings · Healthcare

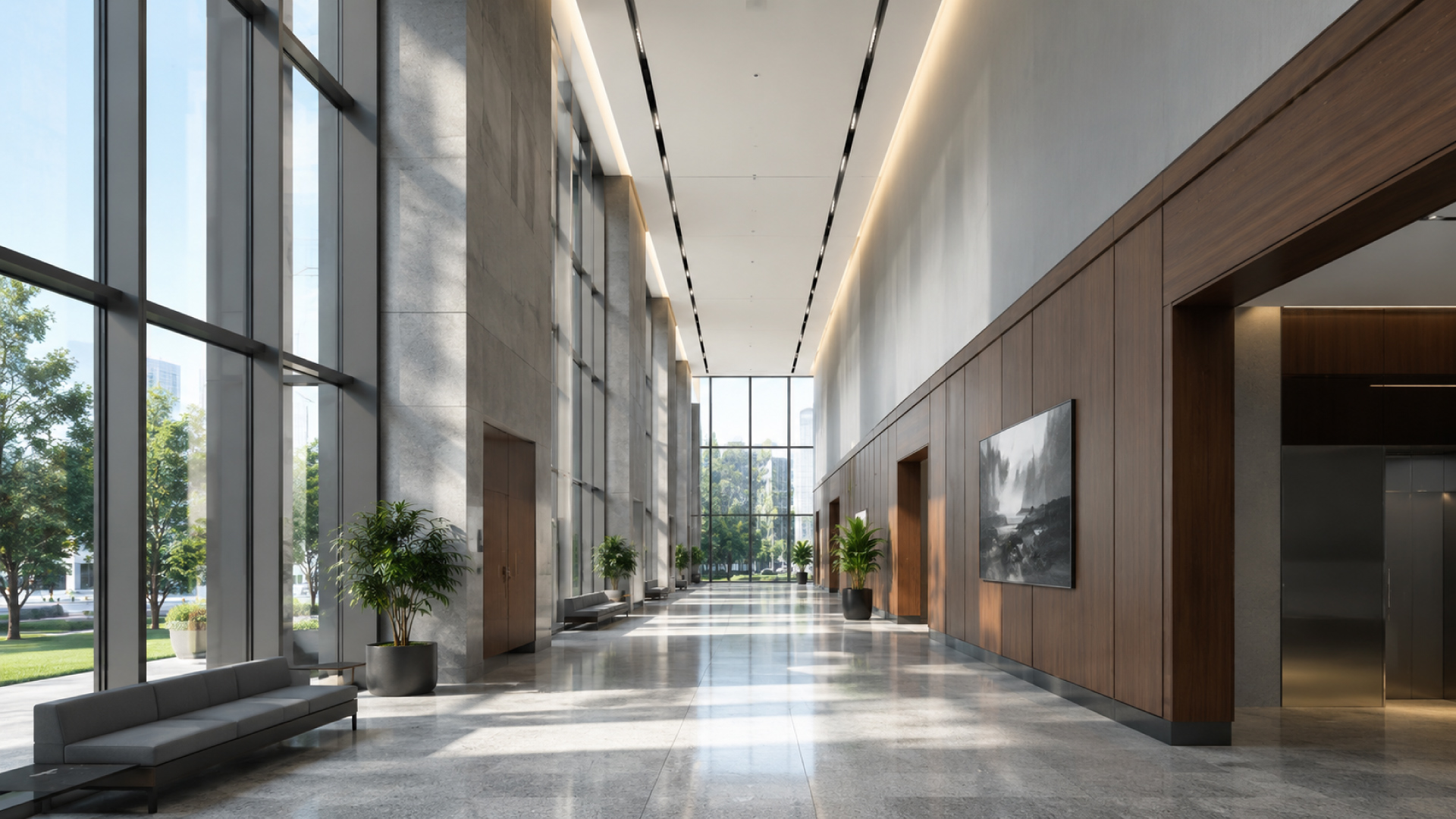

- Lobbies · Corridors · Hospital Areas
Product information "HIR27/R"
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir27-r.pdf
Installation Manual
User manual: installation-manual-hir27-r.pdf
