HIR27/H
DALI-2 PIR Highbay | Integrated 64 mA PSU | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Integrated: Built-in DALI power supply reduces external power
- User-Friendly: One-key commissioning with IR controller
APPLICATIONS
- Ceiling or surface mounting (with accessory)

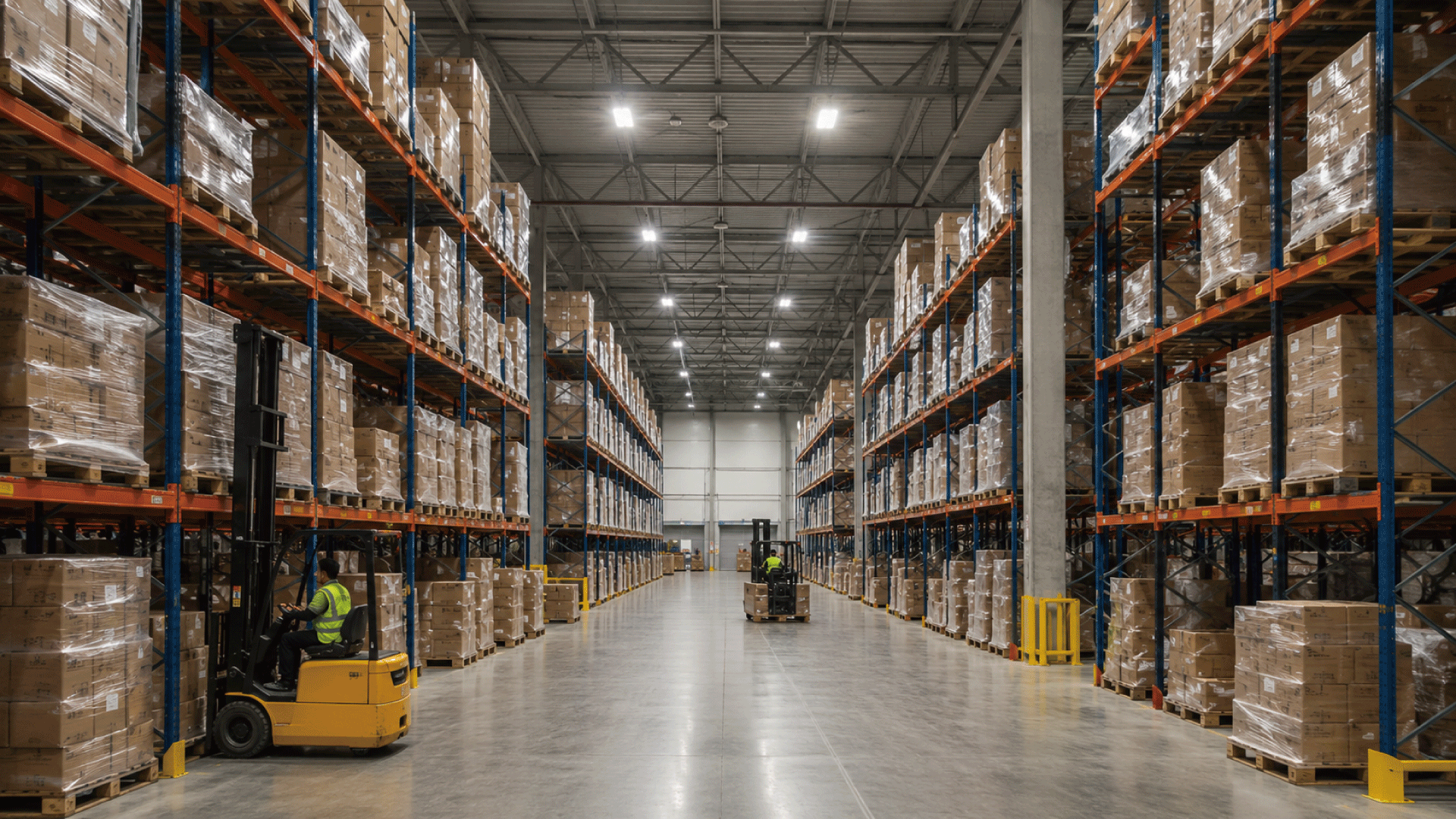

- Warehouse
- Logistics
Product information "HIR27/H"

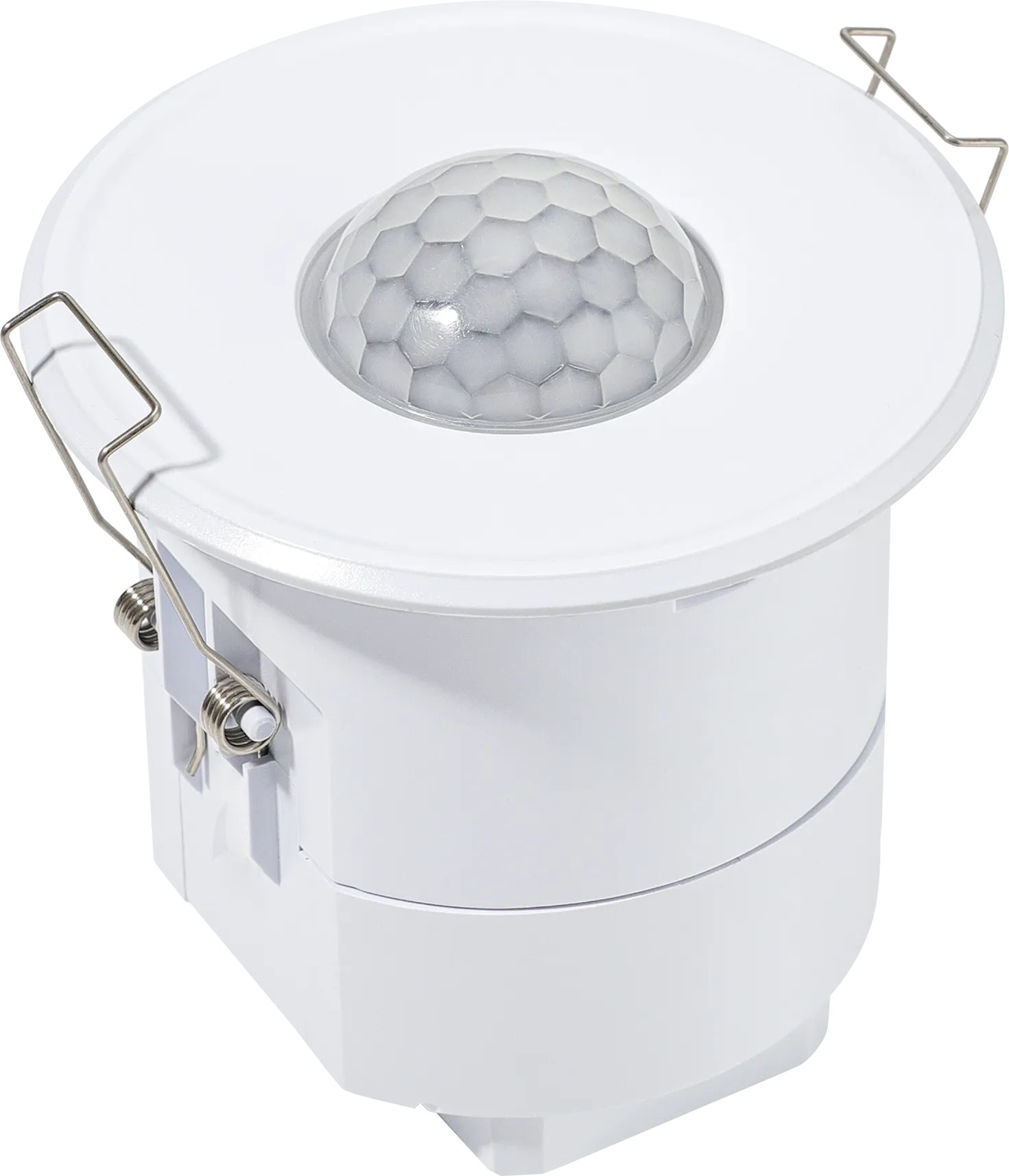

HIR27/H is a stand-alone DALI-2 broadcast PIR sensor with a built-in 64 mA DALI PSU. It is a high-bay motion sensor with a typical mounting height of 12 m. This design reduces the need for external power supplies, simplifies installation, and improves overall system stability. It supports Daylight Harvesting to enable efficient and energy-saving lighting management. All parameters can be configured via a handheld remote control, allowing fast setup and one-key commissioning of multiple devices.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 84.5000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
