Active / Make to Stock
HIR27
PIR Lowbay | DALI-2 Certified | Remote Commissioning
BENEFITS
- Flexible: Optional Blind Inserts and Surface Mount Boxes
- Integrated: Built in 64mA DALI PSU Simplifies System Installation
- Efficient: One Key Commissioning with IR Controller
APPLICATIONS
- Standard Indoor Spaces / Max. 6 m · Ø 9 m

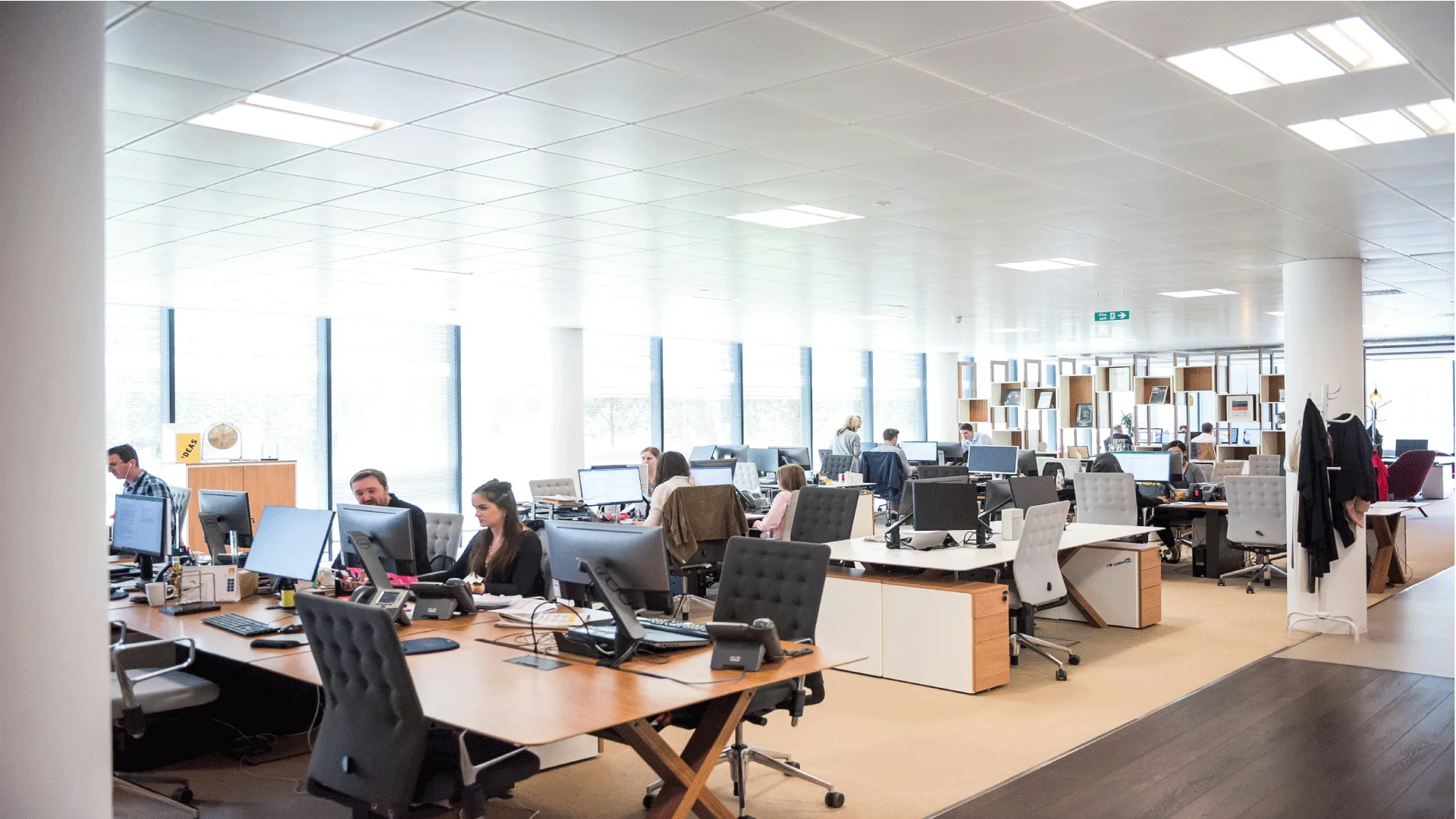

- Offices · Education · Public Buildings

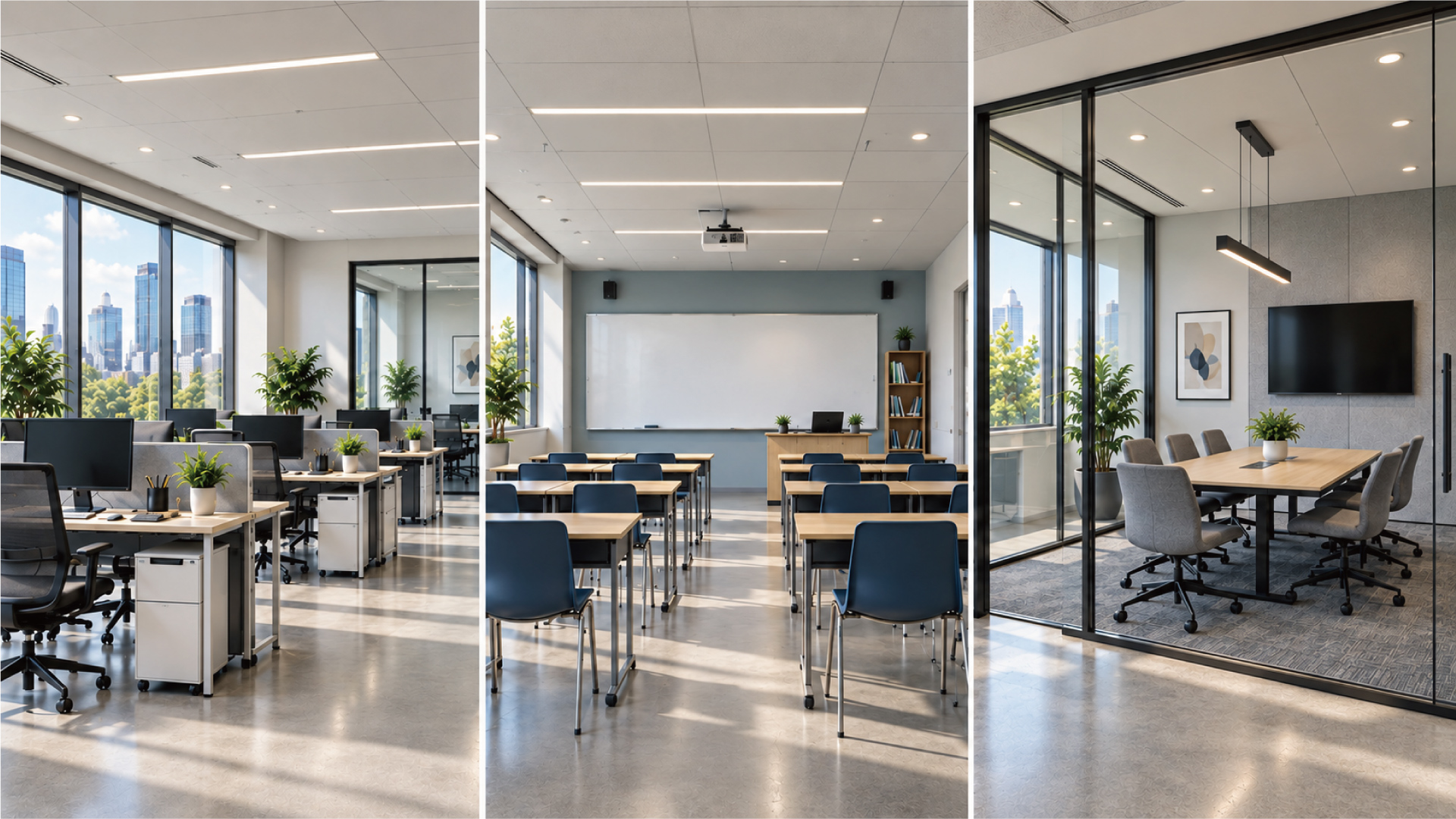

- Workspaces · Classrooms · Meeting Rooms
Product information "HIR27"

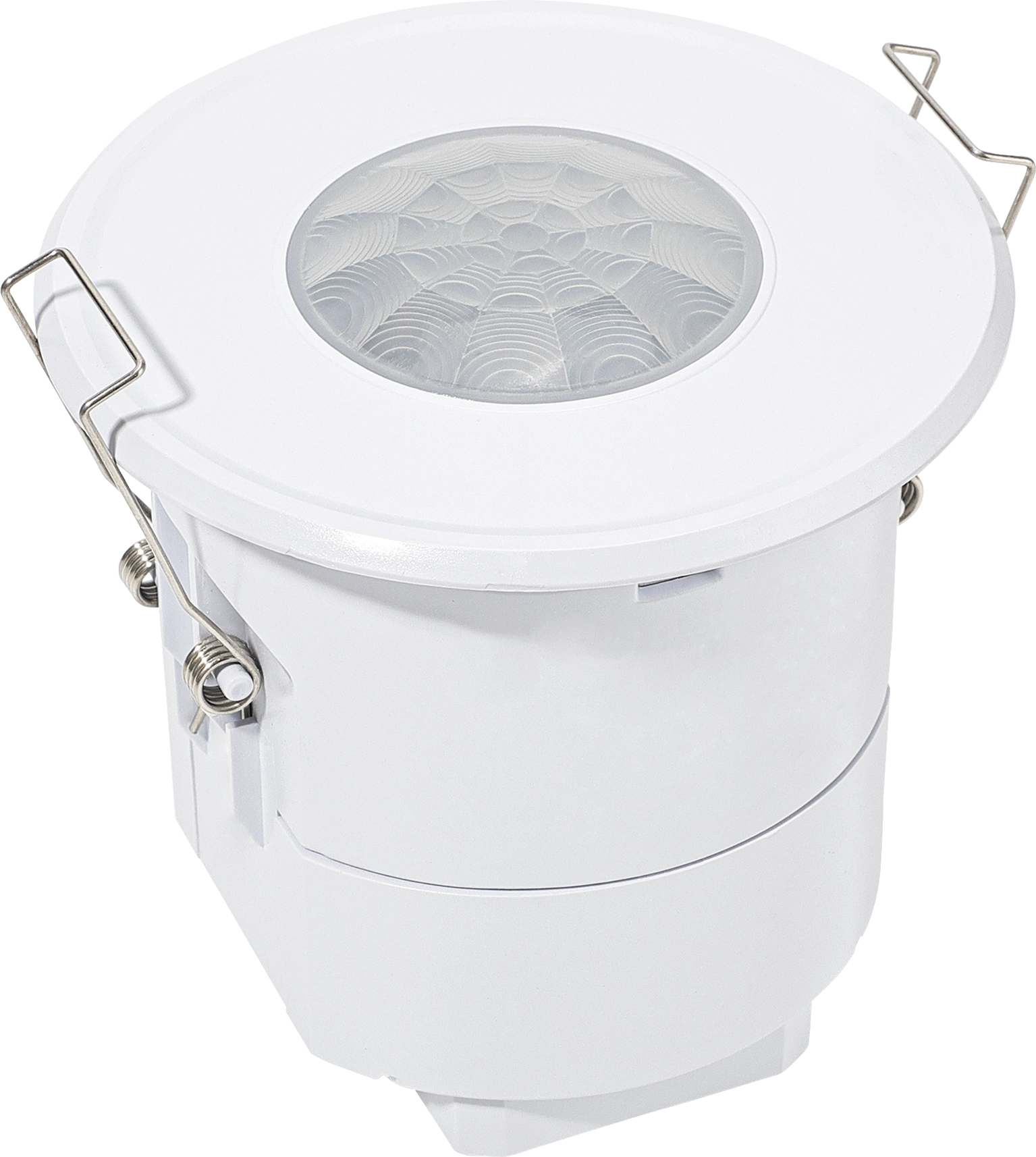

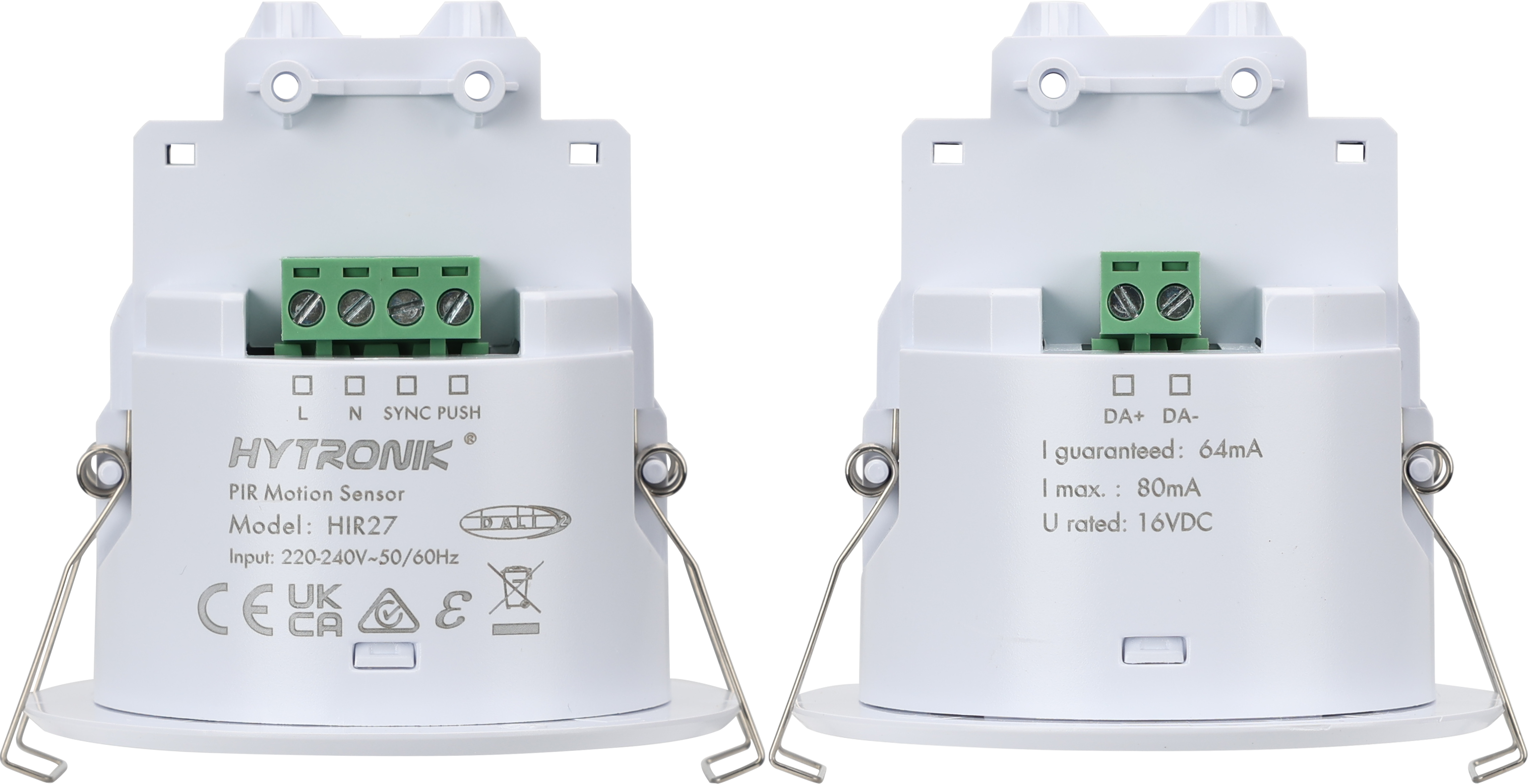

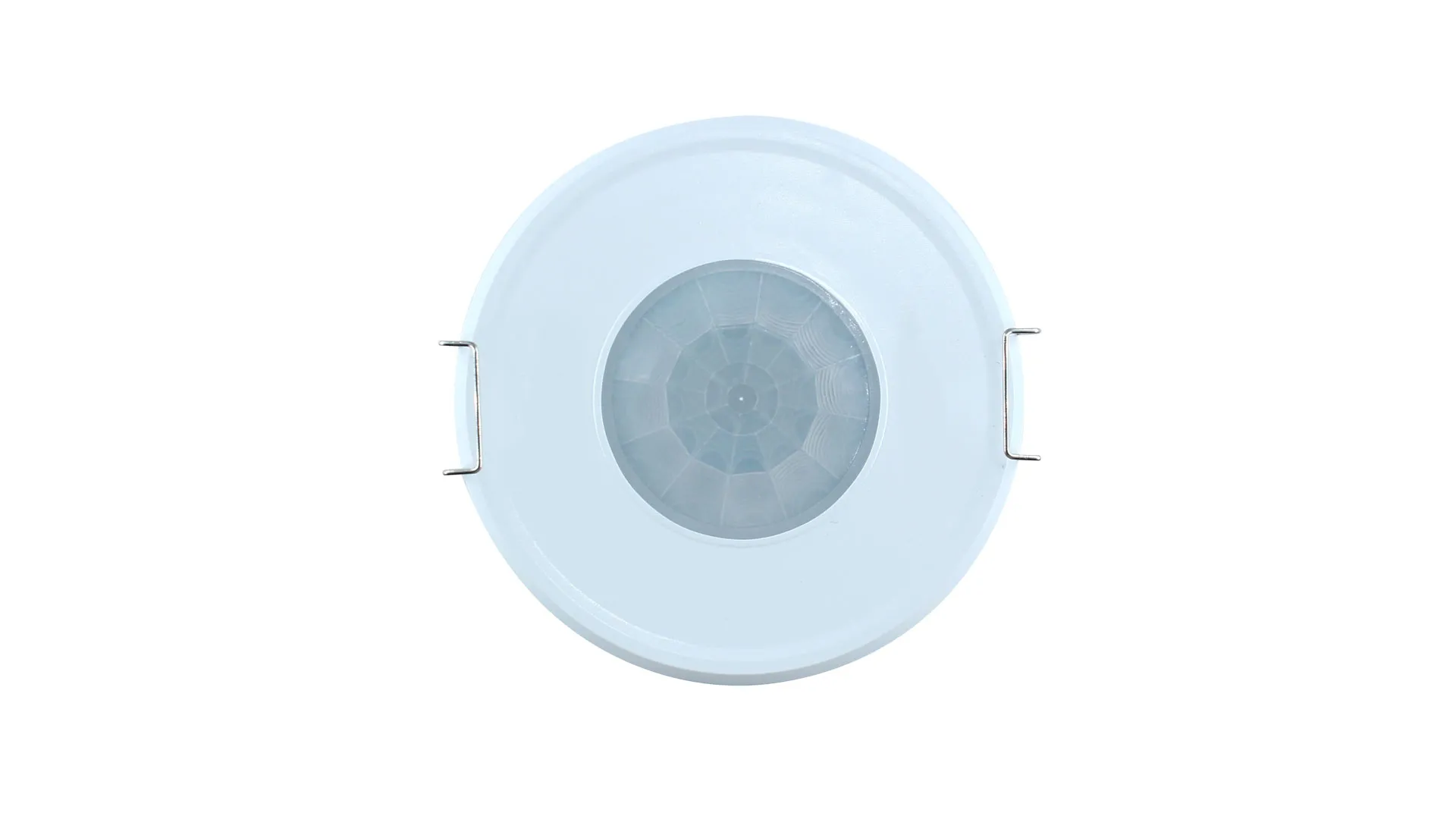

HIR27 is a ceiling-mounted DALI-2 broadcast PIR motion sensor with a standard low-bay lens and a typical mounting height of 2.5 m. A built-in 64mA DALI power supply eliminates the need for an external DALI PSU, reducing system components and simplifying installation. Daylight Harvest adjusts artificial lighting according to available natural light, helping reduce unnecessary energy use while maintaining the required light level. All parameters can be configured via a handheld remote control, enabling fast setup and one-key commissioning of multiple sensors.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 9x6 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product Status: | Active / Make to Stock |
| Product height: | 79.2000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 1 |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir27.pdf
Installation Manual
User manual: installation-manual-hir27.pdf
