Active / Make to Stock

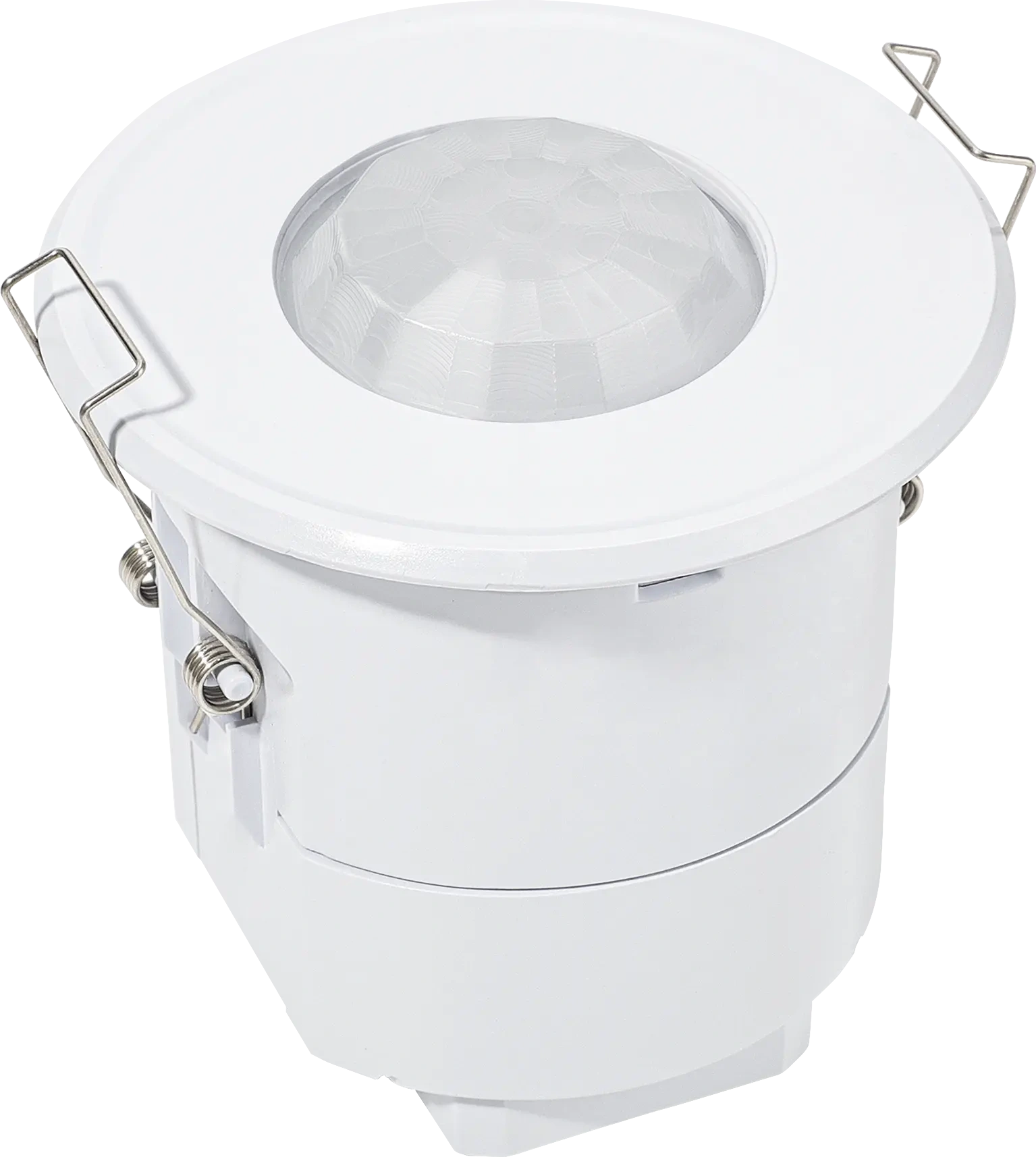

HIR23/D2/R
PIR Lowbay | DALI-2 Input Device | Ceiling Mounting
BENEFITS
- Standard: DALI-2 input device for standardized system integration
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Flexible: DALI-2 compatibility for easy system integration

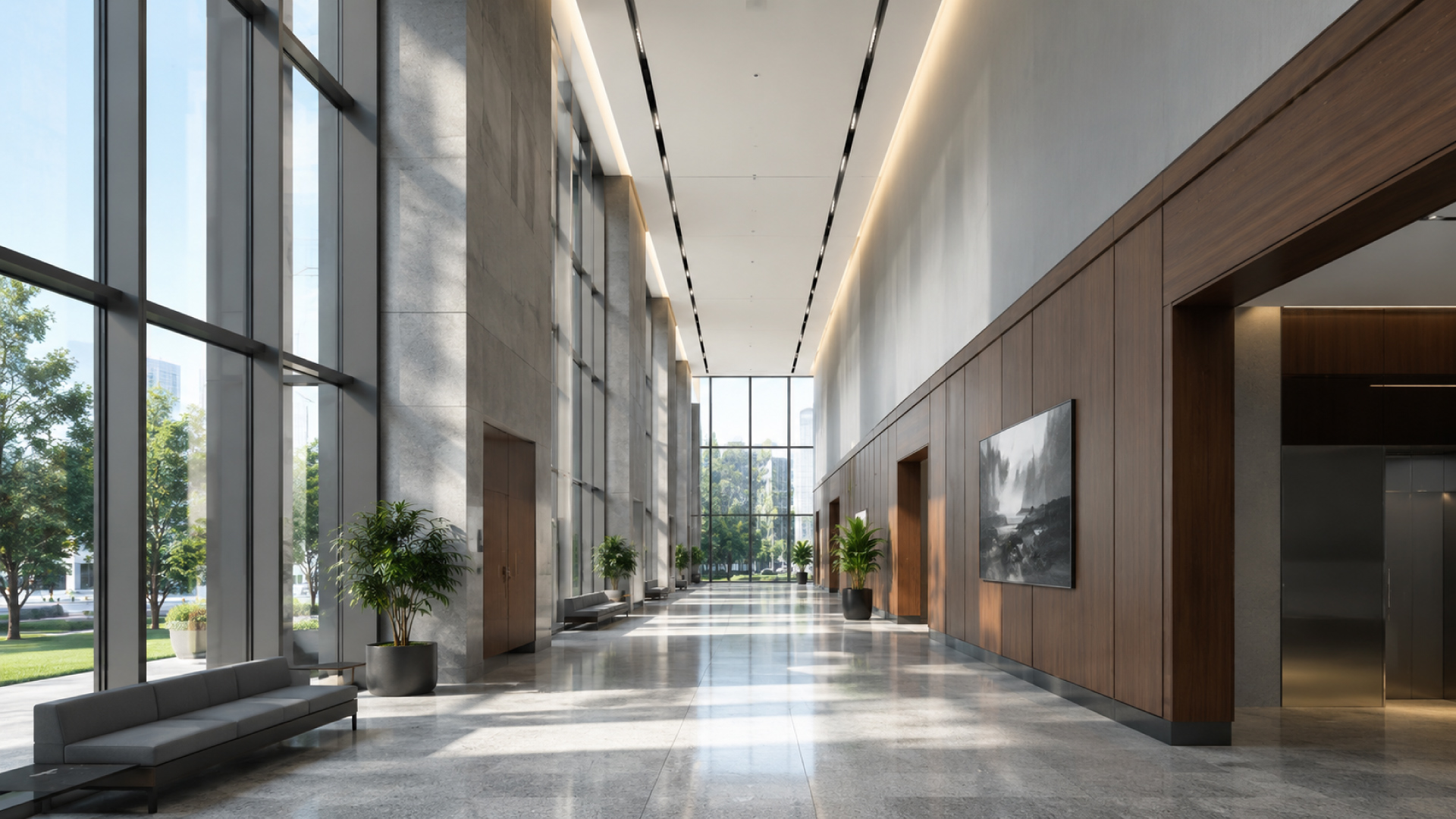

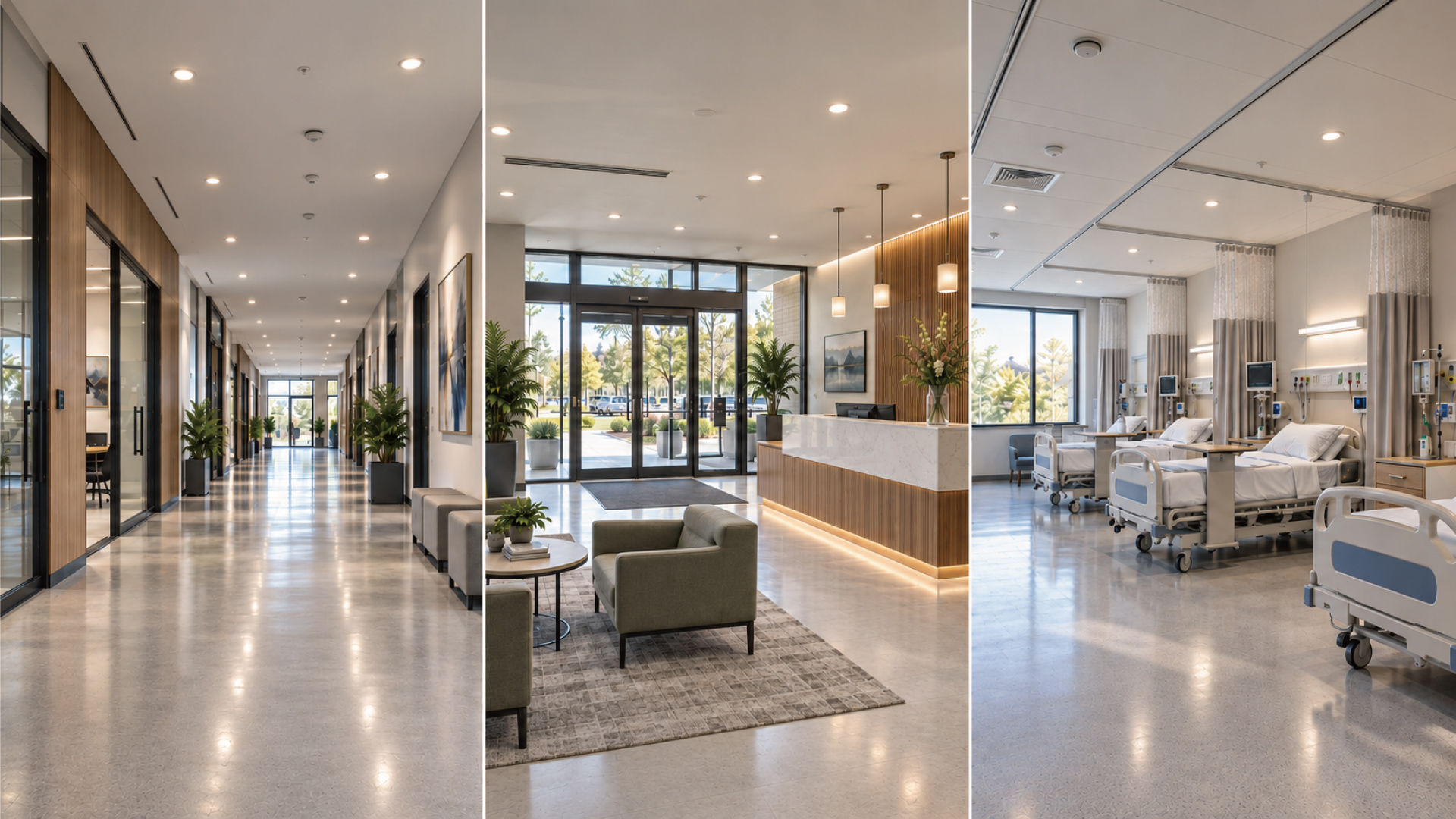

APPLICATIONS
- Extended Low-bay Spaces / Max. 6 m · Ø 10 m
- Retail · Public Buildings · Healthcare
- Lobbies · Corridors · Hospital Areas
Product information "HIR23/D2/R"
HIR23/D2/R is a stand-alone PIR and daylight sensor certified as a DALI-2 input device, designed for reinforced width Lowbay applications with a typical mounting height of 6 m. It is intended to work with DALI-2 application controllers or masters, providing reliable occupancy and daylight sensing signals for DALI-2 lighting control systems. The sensor is suitable for typical indoor applications such as offices, classrooms, healthcare facilities, and other commercial environments.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| IP Rate (facial part): | IP54 |
| Installation Type: | Stand-alone |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Product Status: | Active / Make to Stock |
| Product height: | 81.6000 mm |
| Product length: | 78.0000 mm |
| Product weight: | 130.0000 g |
| Product width: | 78.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 5 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir23-d2-r.pdf
Installation Manual
User manual: installation-manual-hir23-d2-r.pdf
