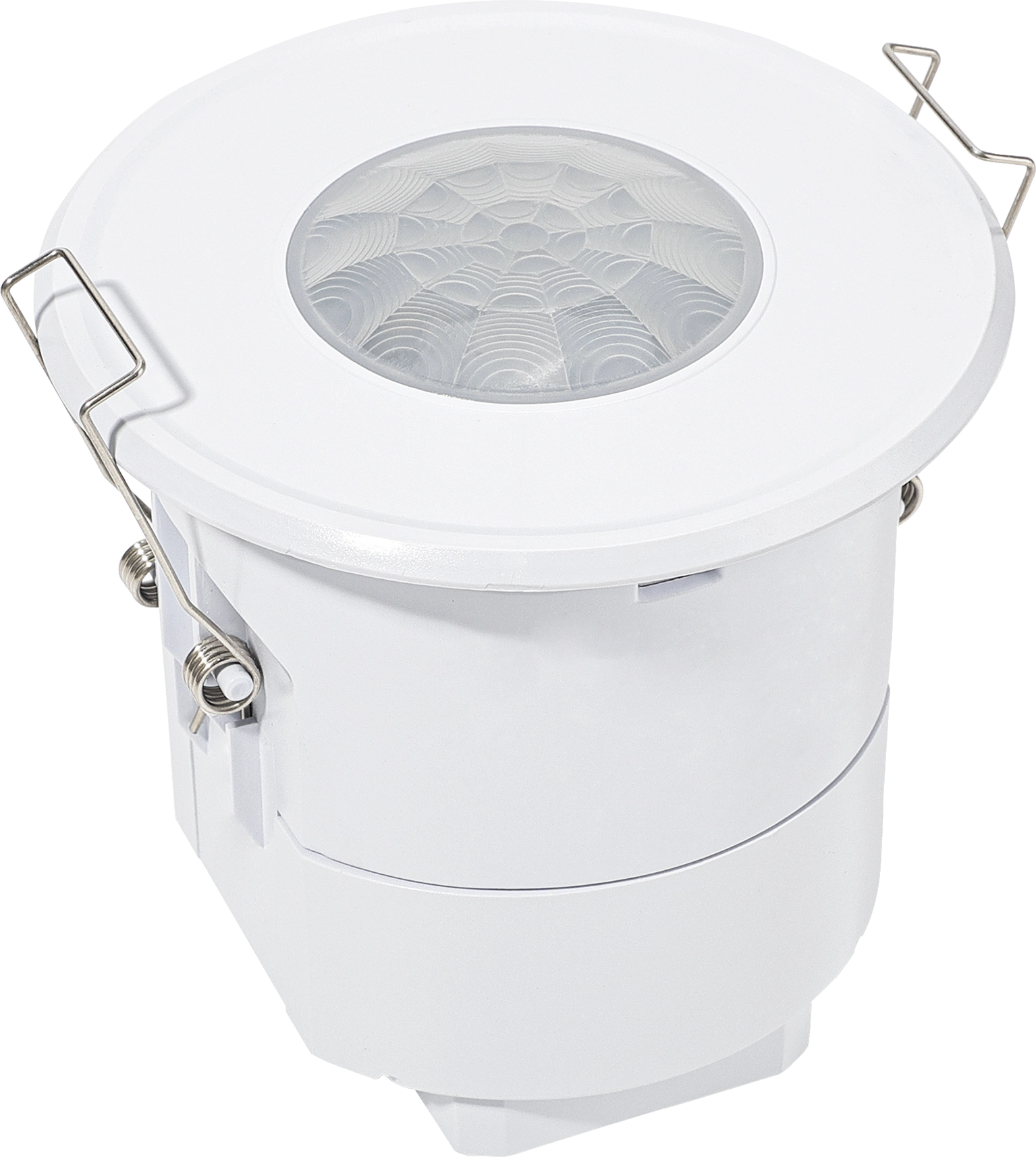

HIR23/D2
PIR Lowbay | DALI-2 certified input device | Ceiling mounting
BENEFITS
- Flexible: Designed for ceiling or surface mounting
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: DALI-2 protocol certified
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)

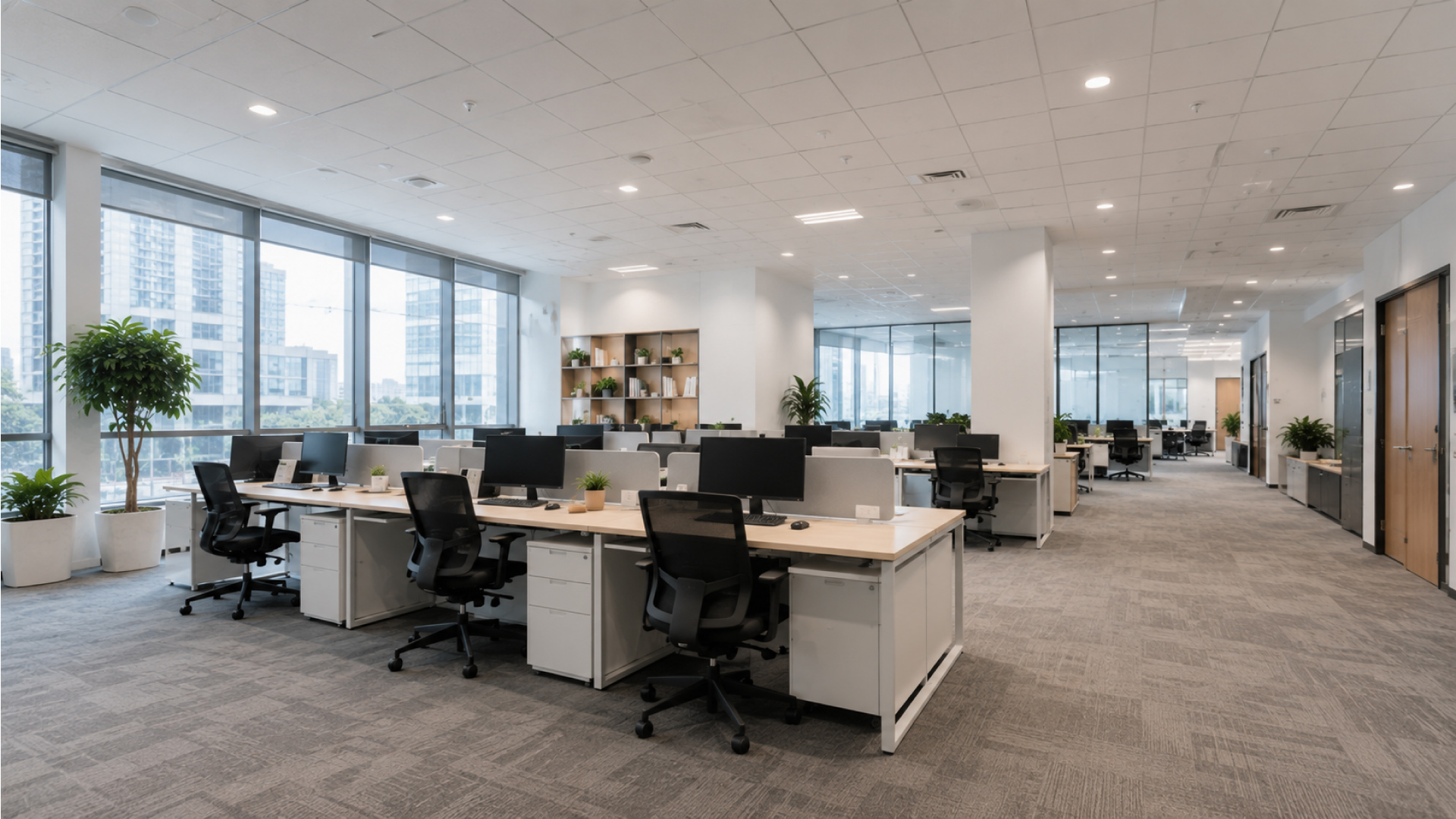

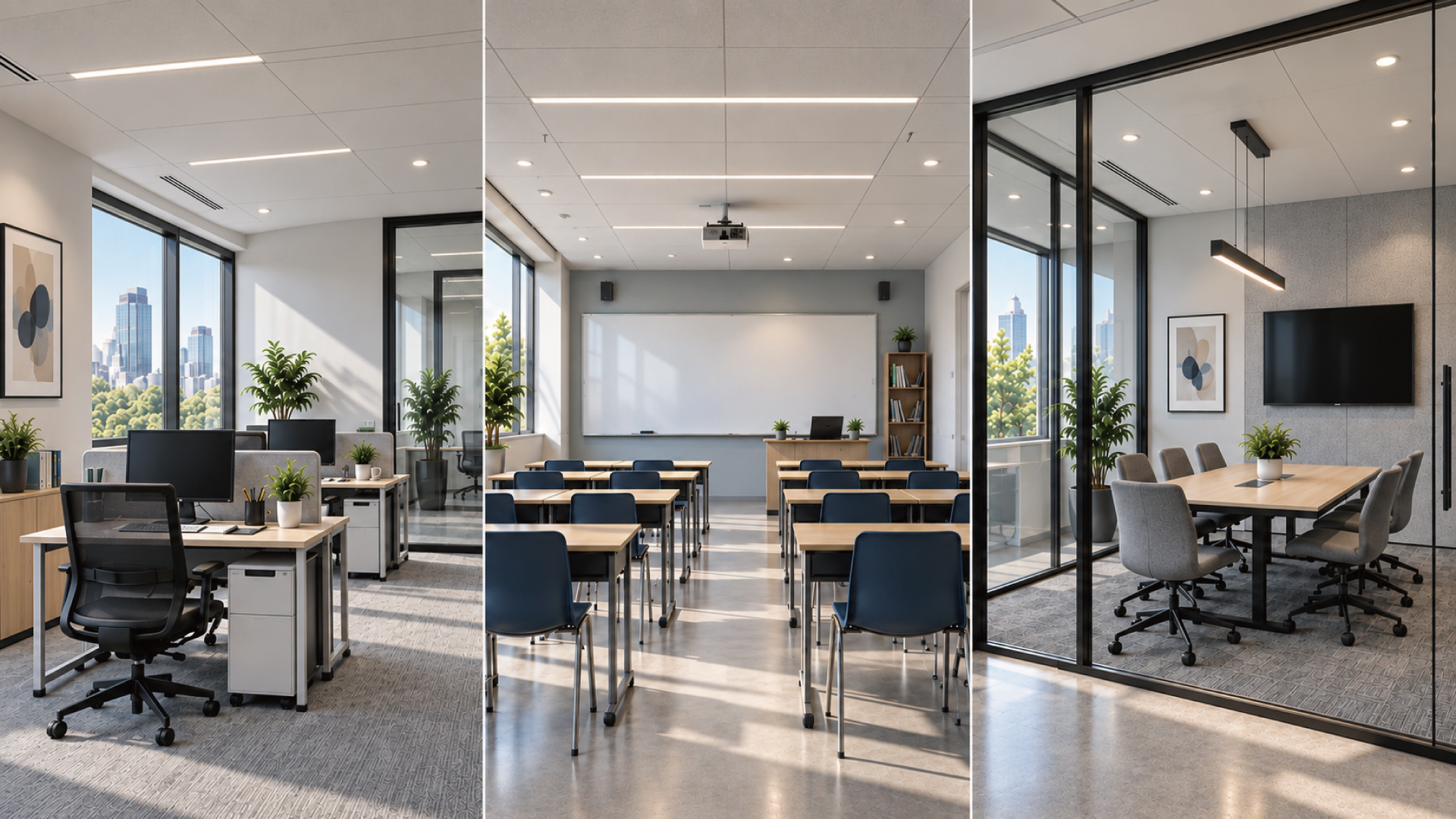

- Offices, Classrooms
- Stairwells, Corridors
Product information "HIR23/D2"
HIR23/D2 stand-alone PIR & daylight sensors have been certified as DALI-2 input device with main purpose to incorporate into DALI-2 application controller/master. It is ideal for typical indoor applications such as office, classroom, healthcare and other commercial areas.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 9x6 |
| Dimming (Output) Interface: | DALI-2 |
| Features: | D4i |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 9,5-22,5 VDC |
| Product height: | 73.2000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | |
| Required DALI Current: | 12.0000 mA |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 5 s |
| Zhaga: | No |
