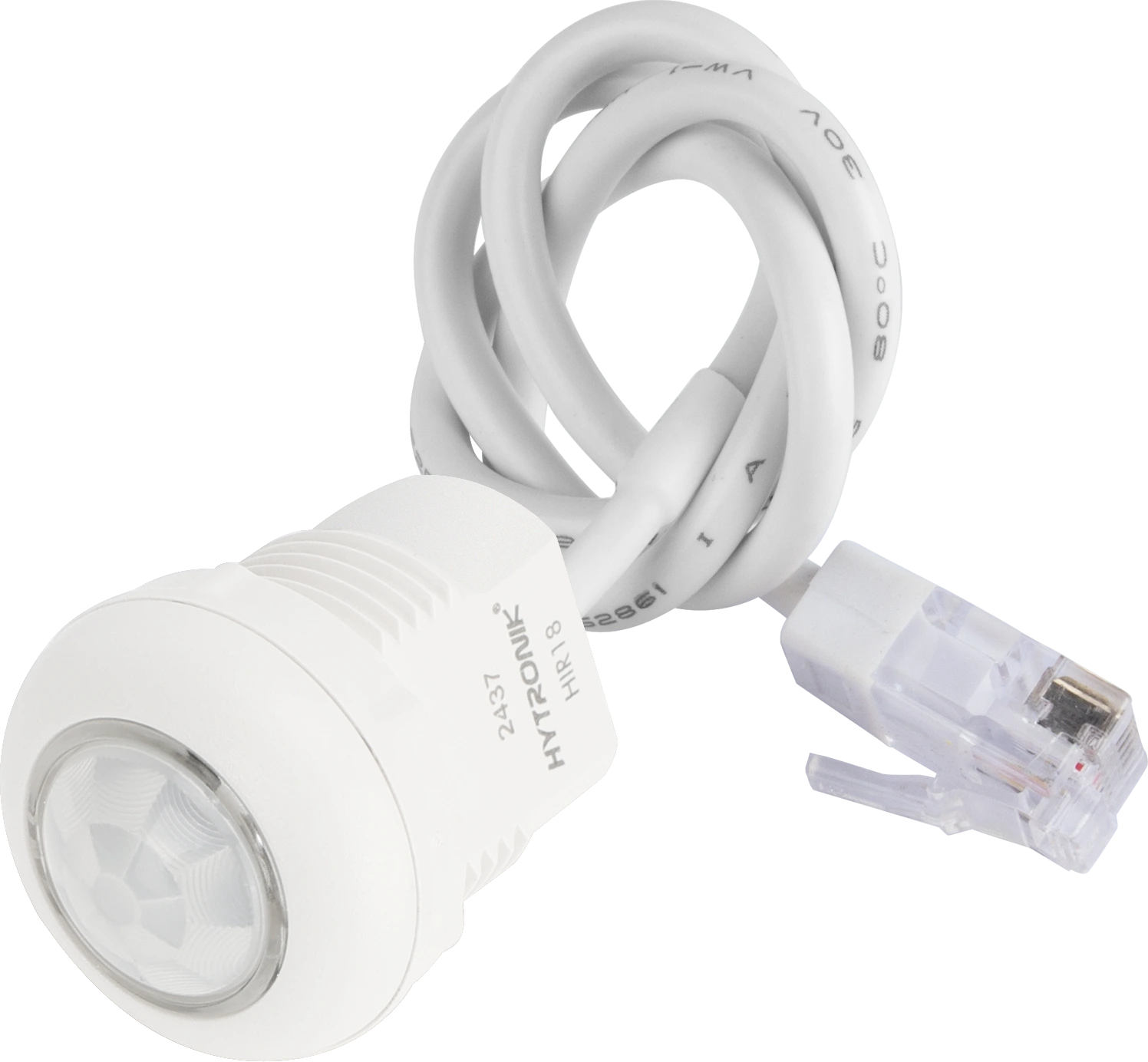

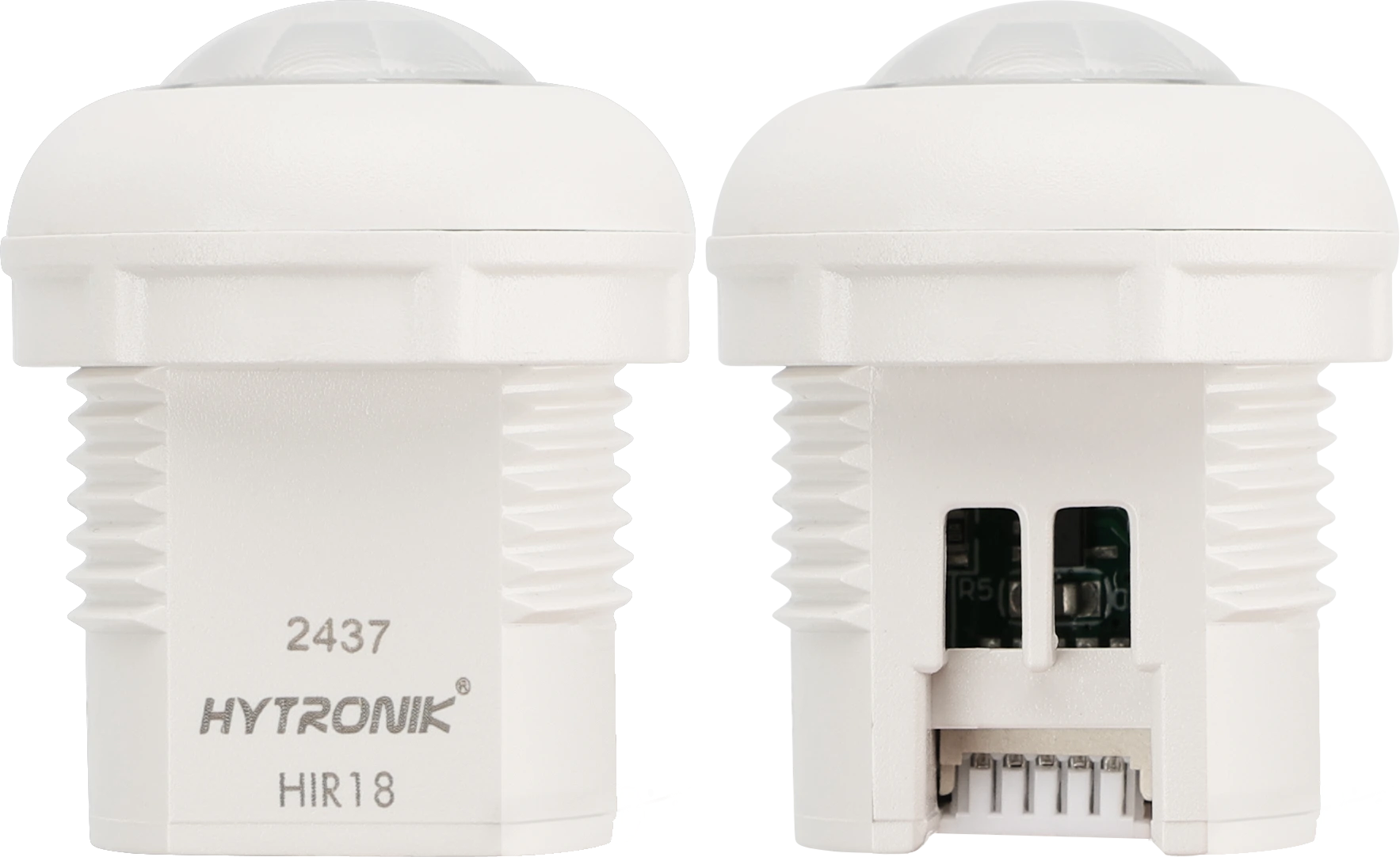

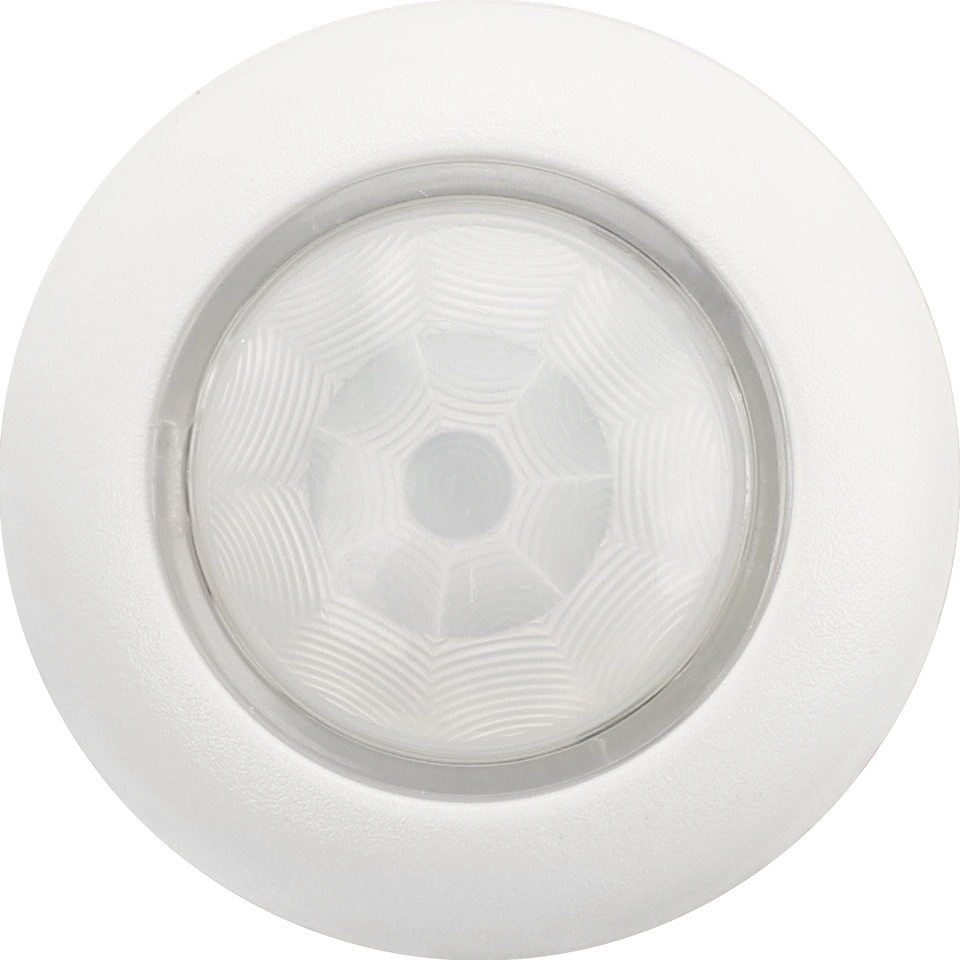

HIR18
PIR Lowbay | ON/OFF | RJ12 connector to control body
BENEFITS
- Compact: Standard circular Plug&Play sensor design
- Simple: On/Off control
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS

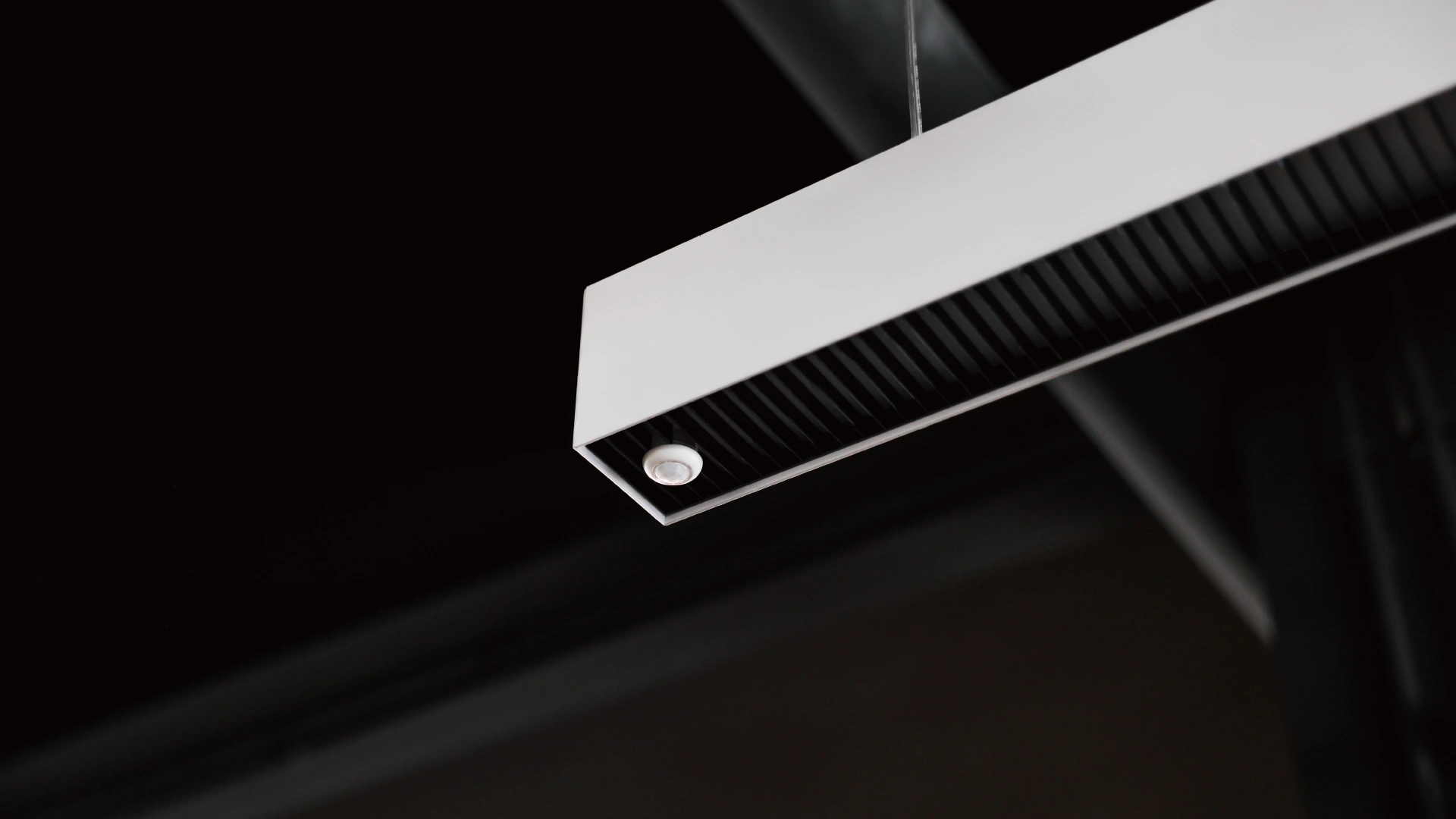

- Master luminaire with sensor
- Offices
- Classrooms
Product information "HIR18"
HIR18 is a PIR sensor head and compatible with the On/Off Control It can work with the linear shaped control base such as HC038 and HC438. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 22.2300 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 31.8000 mm |
| Product length: | 26.0000 mm |
| Product weight: | 17.0000 g |
| Product width: | 26.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir18.pdf
