HIM98-A-L2
HF+PIR Highbay | Bluetooth 0/1-10V | Surface mount+Horzontal lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Simple: Tri-level control & Daylight harvest
- Easy configuration: Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS
- Standalone installation for ceiling up to 15m
- Warehouse
- Production
Product information "HIM98-A-L2"

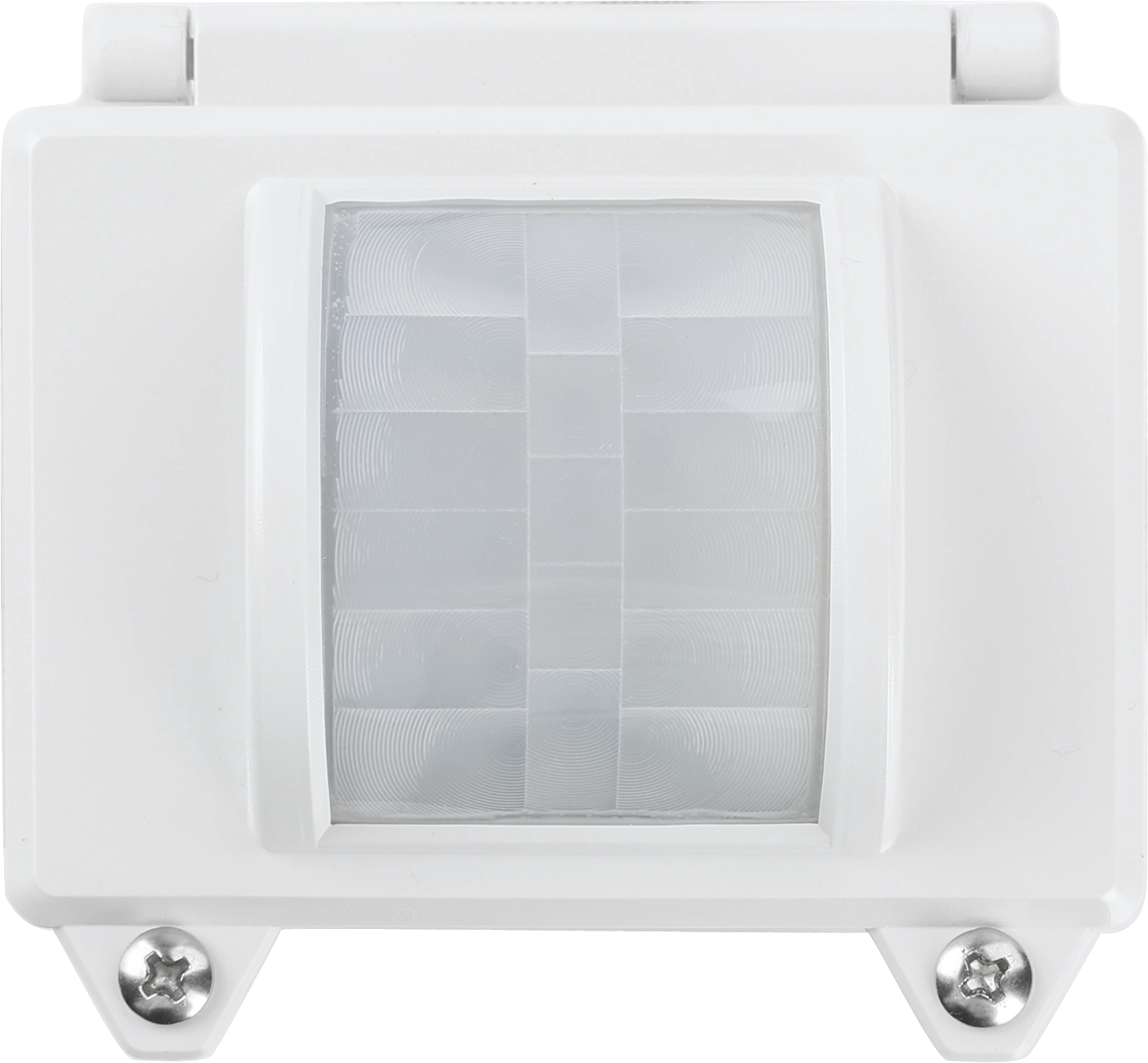

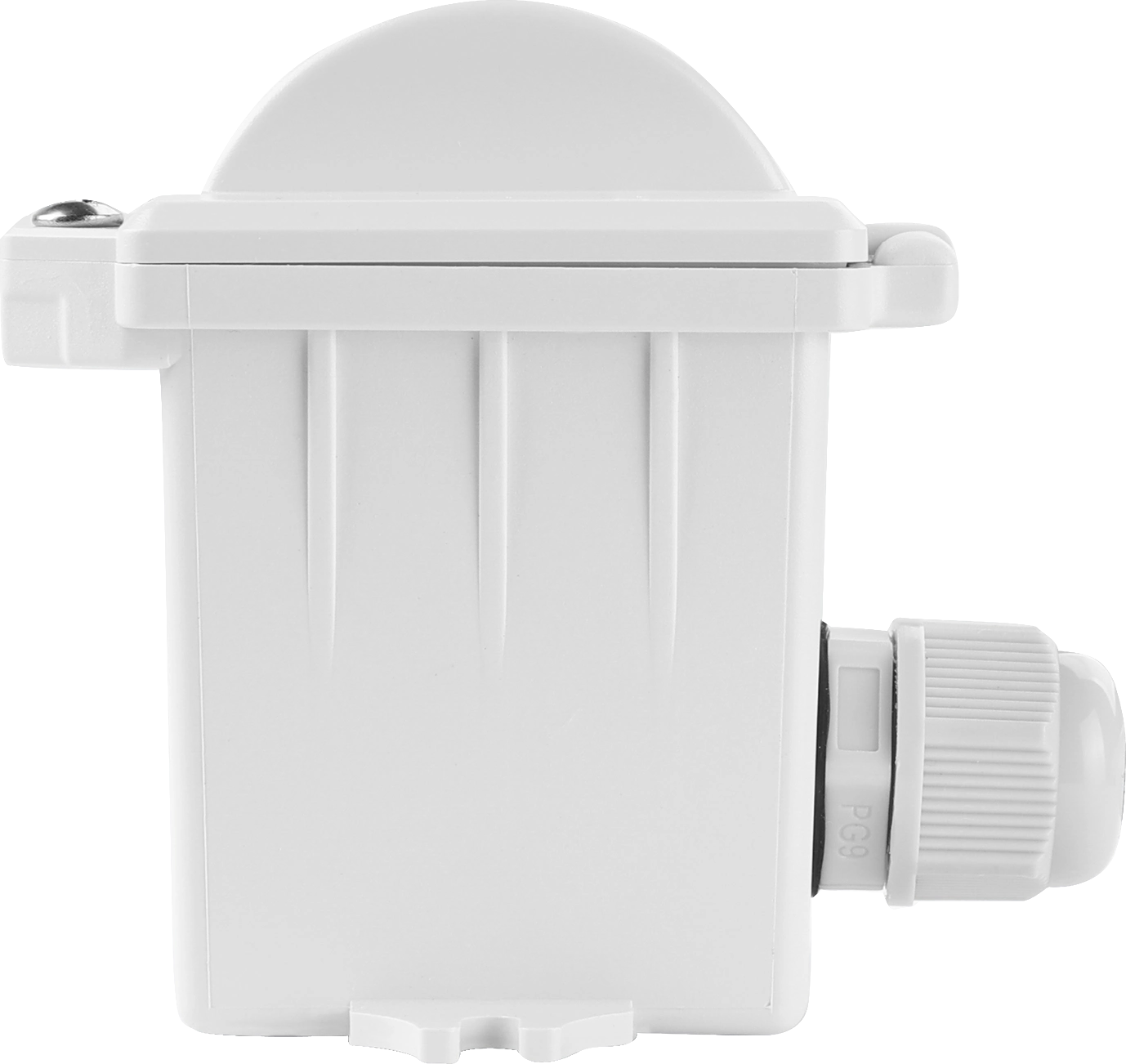

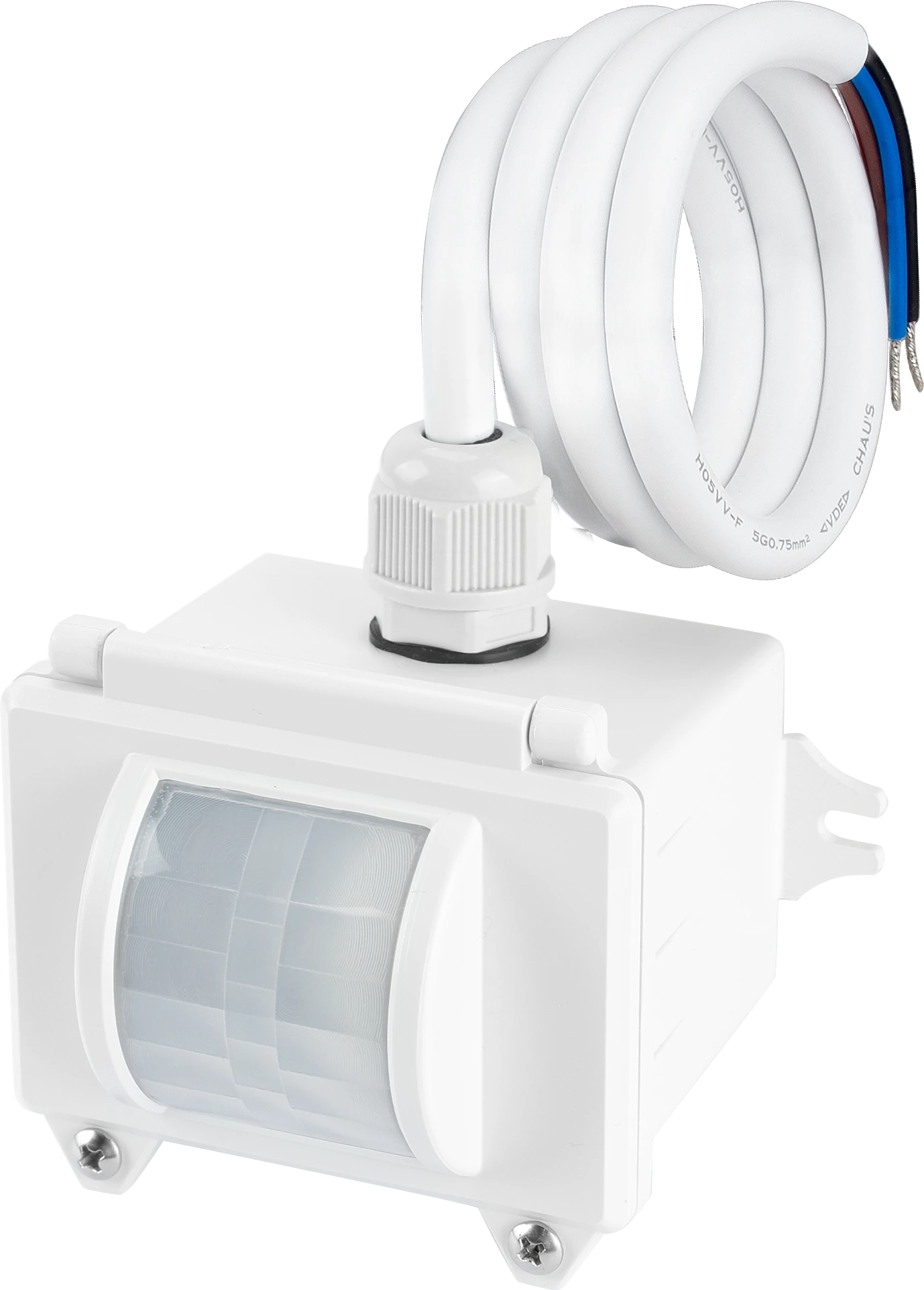

HIM98 is a Bluetooth 0/1-10V high-bay Dual-sense (Microwave + PIR) motion sensor, with capability of up to 15m installation height. It is designed with robust IP65 structure, and offers 3 different installation methods and 3 different lens options.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 24x15 |
| Dimming (Output) Interface: | 0/1-10V |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.1000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 73.5000 mm |
| Product length: | 91.5000 mm |
| Product width: | 81.5000 mm |
| Push Button Input: | |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
