HIM34-A-L1
HF+PIR Highbay | DALI + Daylight harvest | Surface mount+Circular lenses
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- Versatile: Independent DALI + Daylight harvest
- User-Friendly: With one-key commissioning via IR controller/Rotary Switch
APPLICATIONS
- Standalone installation for ceiling up to 20m
- Warehouse
- Production
Product information "HIM34-A-L1"

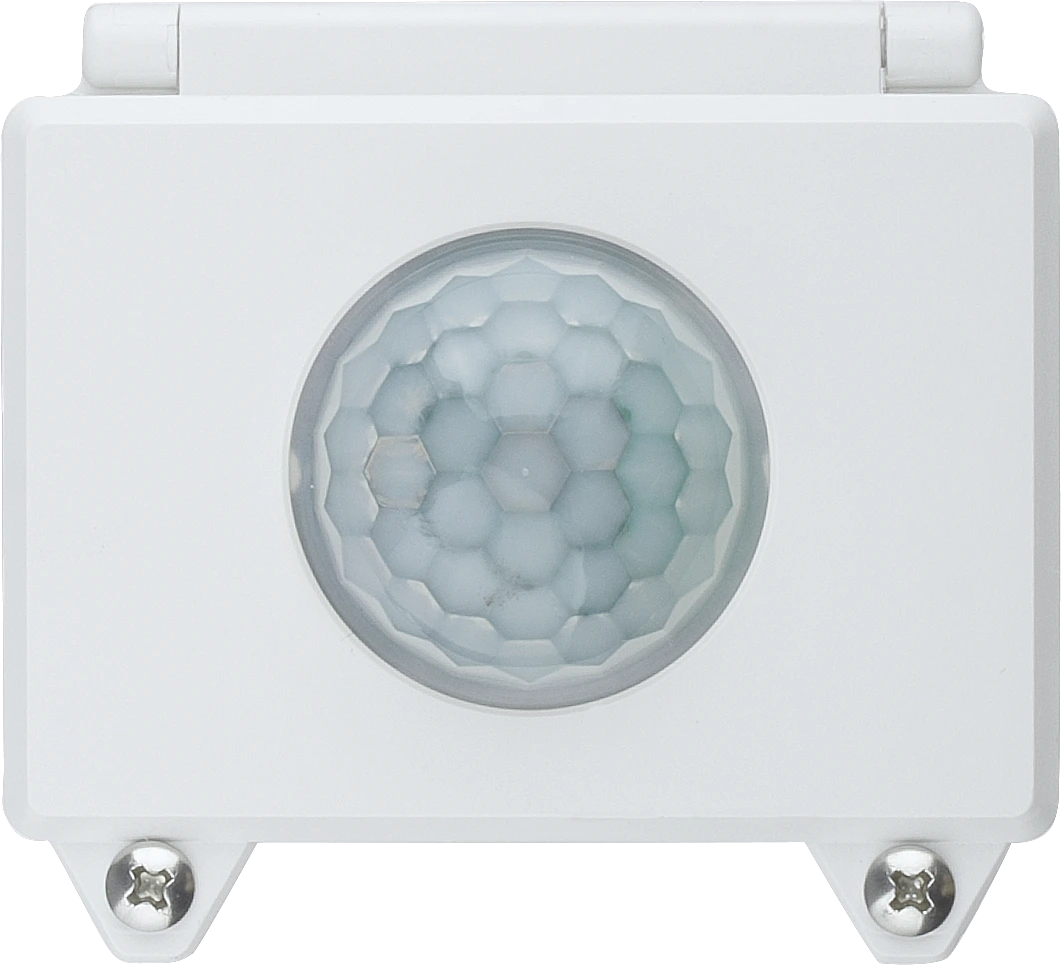

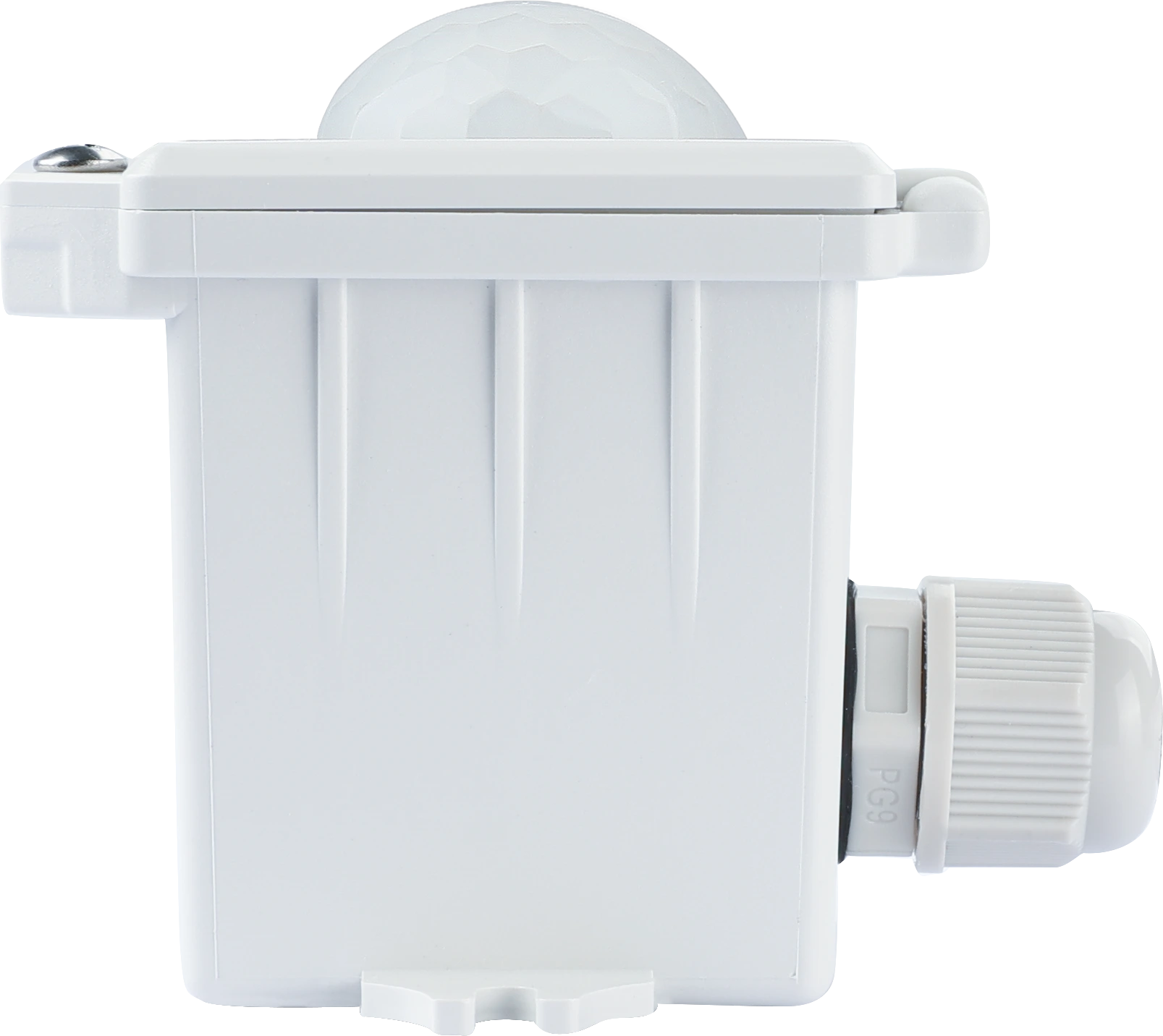

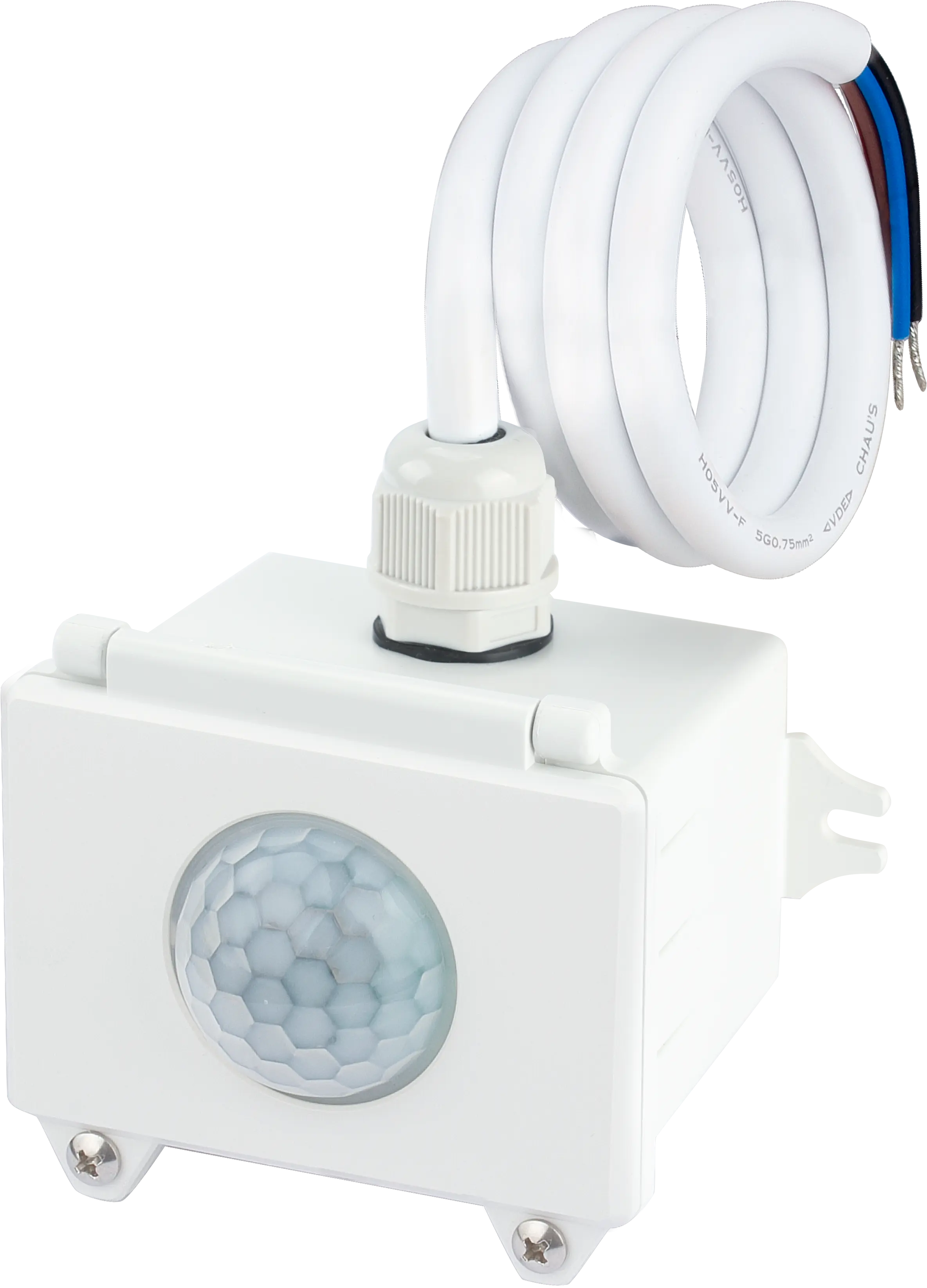

HIM34 is an IP65-rated Dual-sense™ motion sensor that combines Microwave and PIR detection for independent DALI systems. It supports installation heights up to 15m and includes daylight harvesting functionality. Sensor settings are adjustable using the HRC-11 remote controller and a rotary switch.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 40.0000 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Dual-Sense (MW+PIR), Microwave (MW), Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 24x15 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 4.1000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 69.2000 mm |
| Product length: | 91.5000 mm |
| Product weight: | 215.0000 g |
| Product width: | 83.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him34-a-l1.pdf
