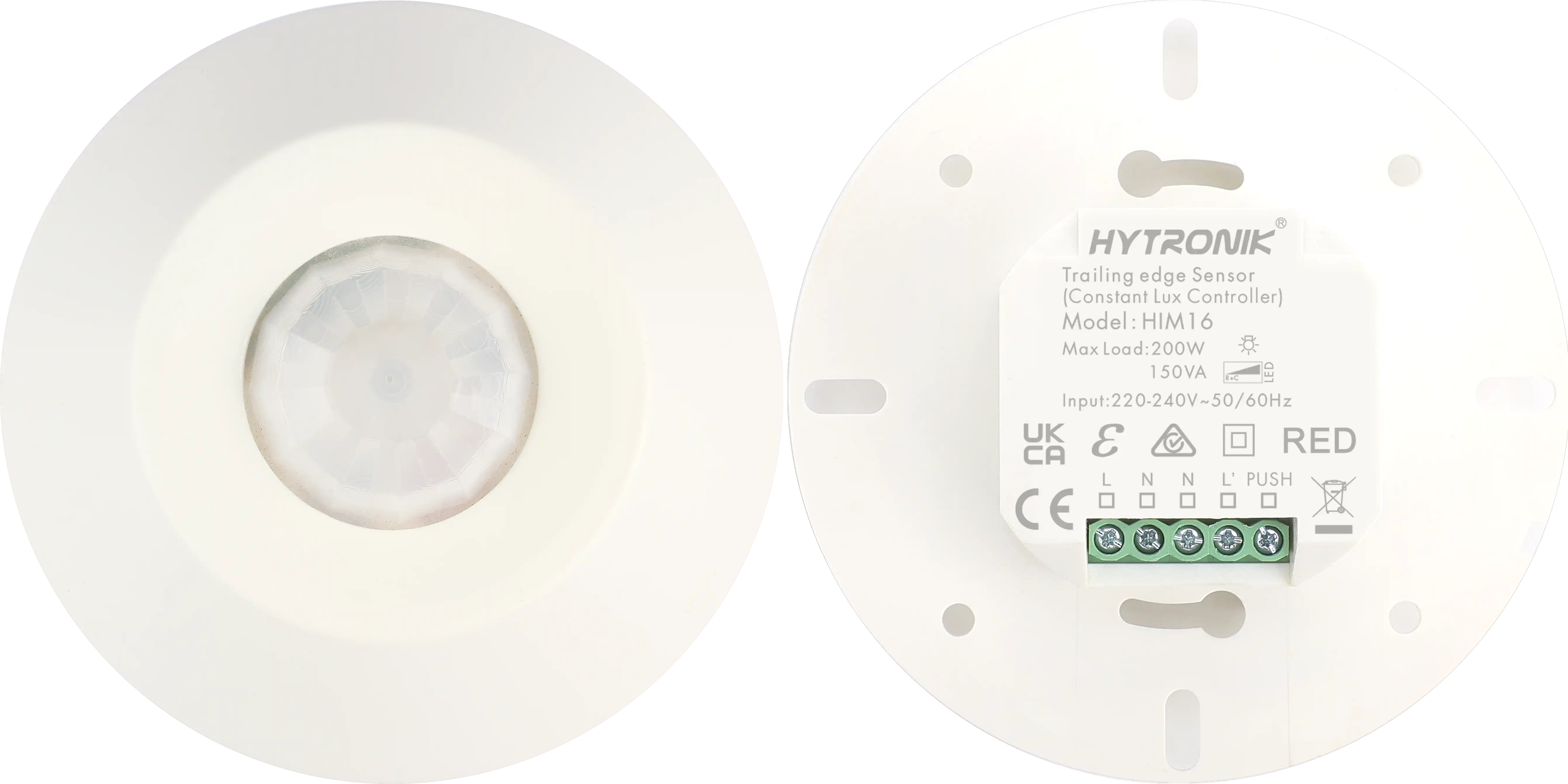

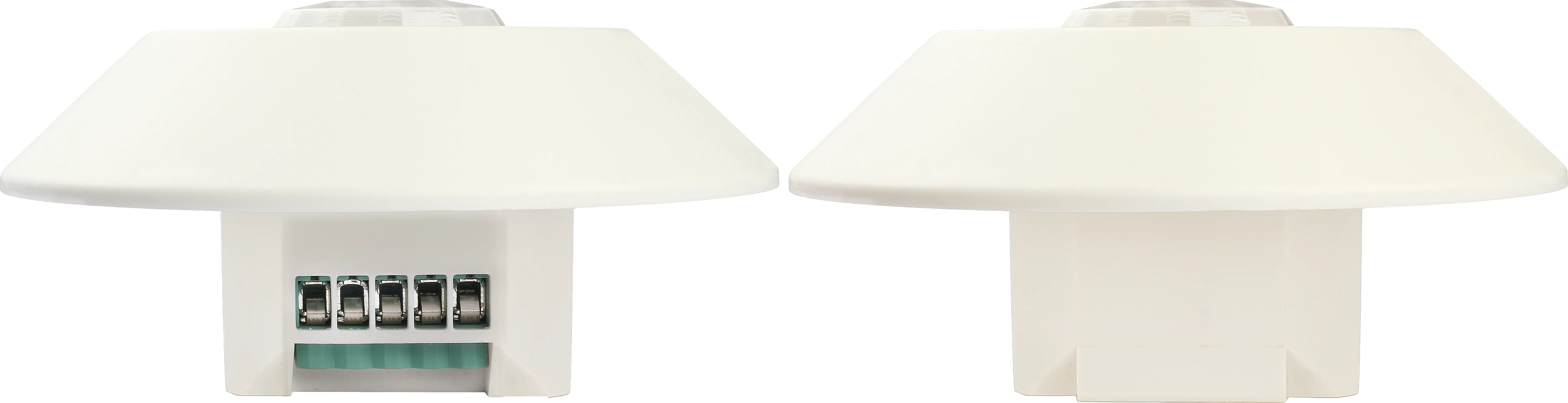

HIM16
PIR + HF Lowbay | Trailing edge + Dayligh harvest | Remote Controller
BENEFITS
- Compact: Standard rectangular sdand alone sensor design
- Simple: trailing edge sensor with daylight harvest
- User-Friendly: With one-key commissioning with Remote Control
APPLICATIONS
- Classrooms with blackboards and student zones
- Classrooms
- Offices with two zones
Product information "HIM16"
HIM16 is a standalone dual sense motion sensor equipped with both HF and PIR technologies. It operates as a trailing edge sensor and includes daylight harvesting capabilities. This sensor is designed to optimize energy efficiency by adjusting lighting levels based on occupancy and available natural light, making it suitable for various indoor environments.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection range (DxH): | 12x6 |
| Dimming (Output) Interface: | Trailing edge (Phase control) |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 38.6000 mm |
| Operating Voltage: | 120-277 VAC |
| Product height: | 55.2000 mm |
| Product length: | 109.0000 mm |
| Product width: | 109.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
