HIM15
PIR + HF Lowbay | Tri-level | Remote Controller
BENEFITS
- Compact: Standard rectangular sdand alone sensor design
- Simple: Tri-level Control for lndependent DALI
- User-Friendly: With one-key commissioning with Remote Control
APPLICATIONS
- Standalone installation for ceiling up to 6m
- Classrooms with blackboards and student zones
- Offices with two zones
Product information "HIM15"

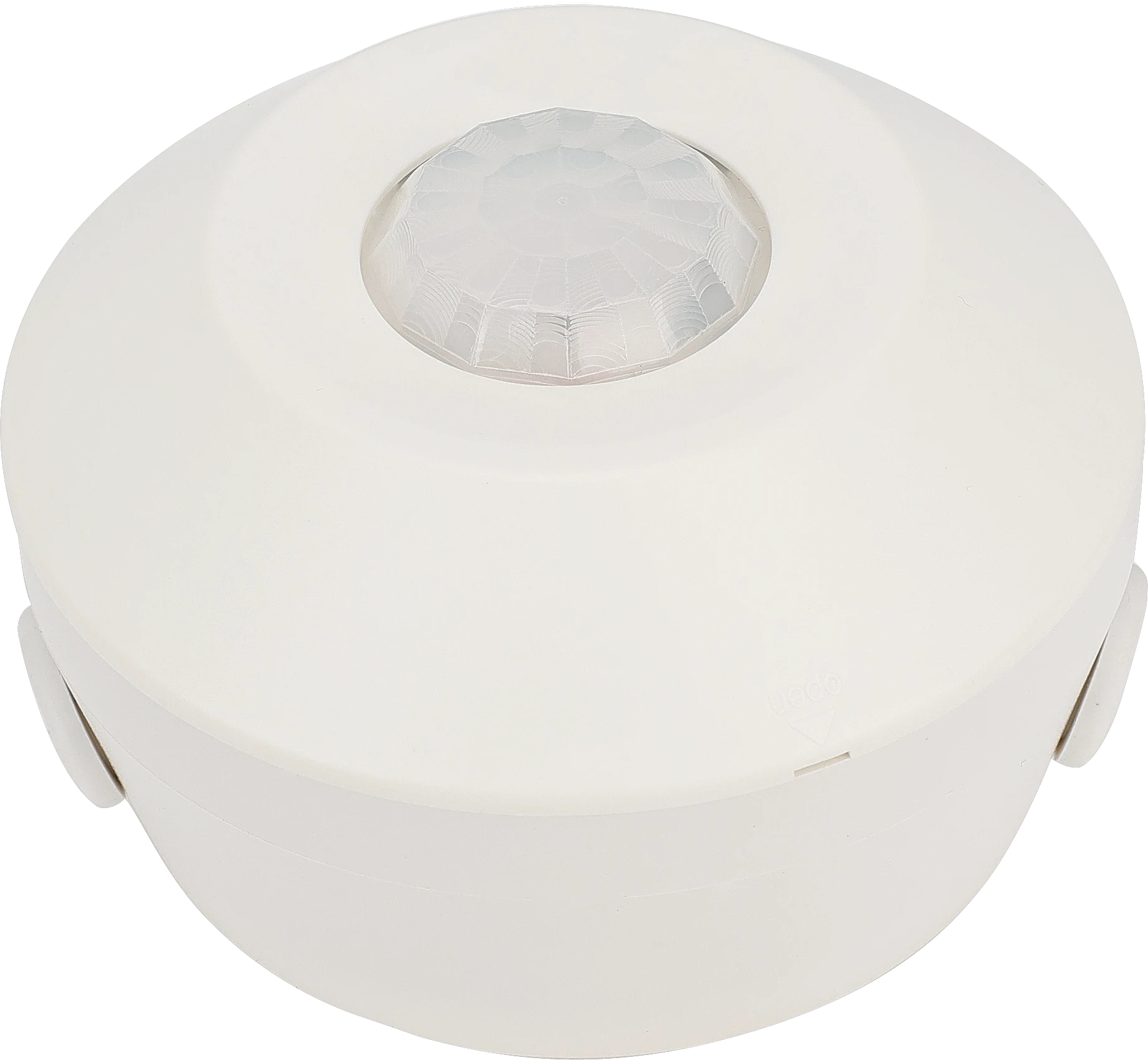

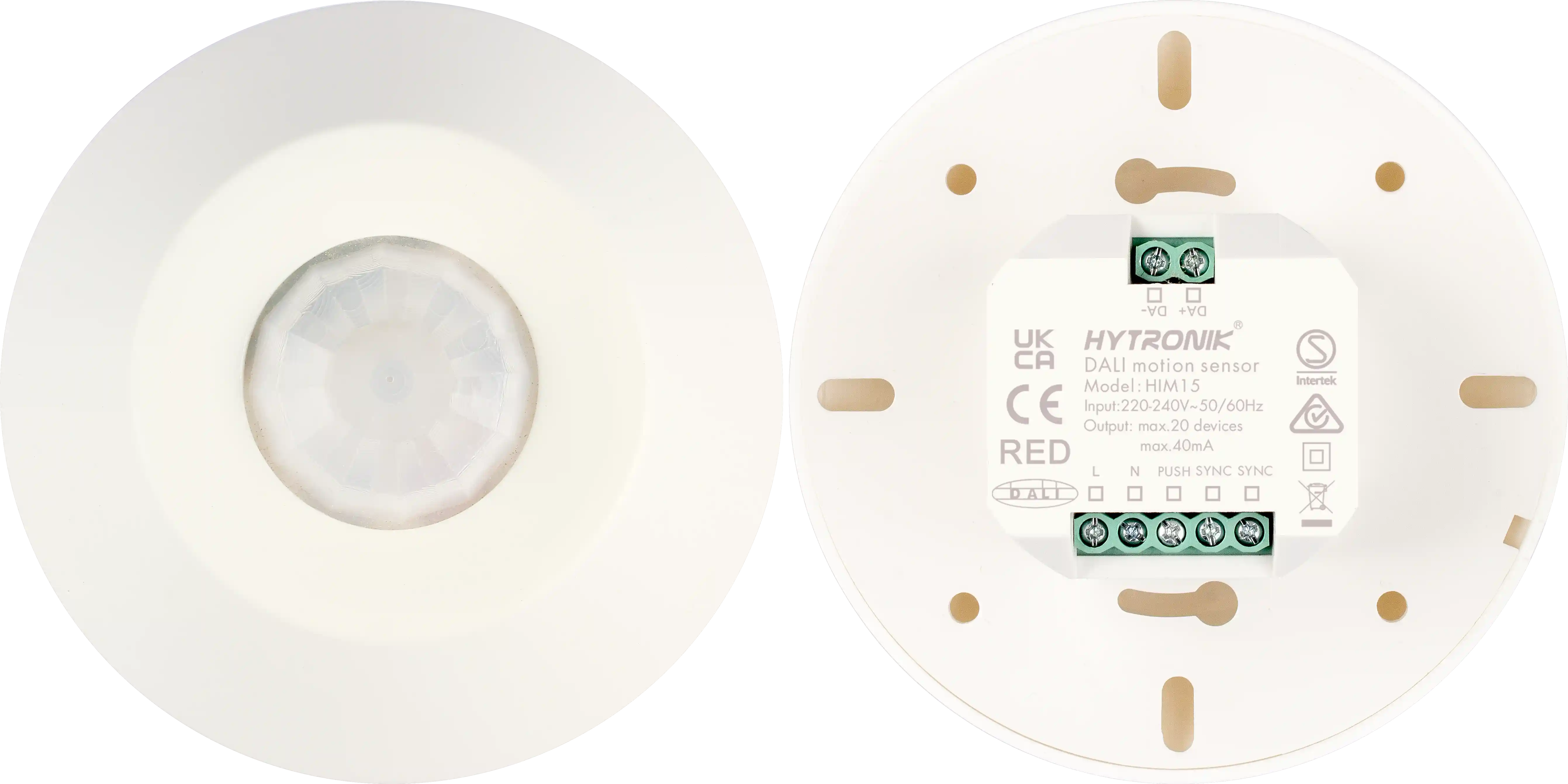

HIM15 is a standalone dual sense motion sensor featuring both HF and PIR technologies. It offers tri-level control for independent DALI systems, providing precise lighting management tailored to varying occupancy needs. Ideal for diverse indoor environments, it enhances energy efficiency and user comfort.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 40.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 38.6000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 55.2000 mm |
| Product length: | 109.0000 mm |
| Product weight: | 191.0000 g |
| Product width: | 109.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him15.pdf
Installation Manual
User manual: installation-manual-him15.pdf
