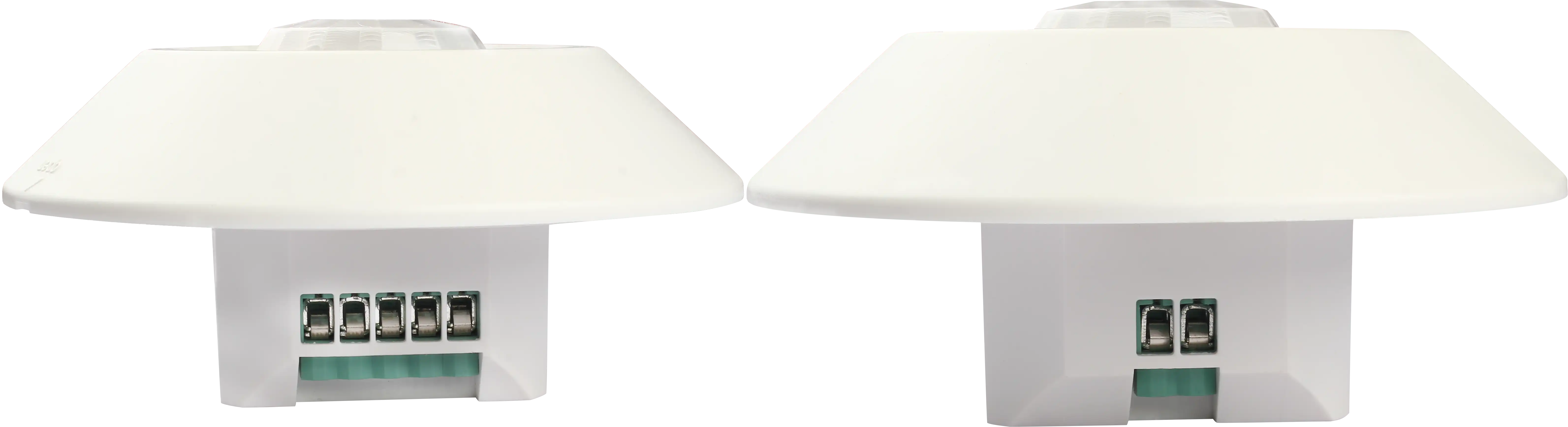

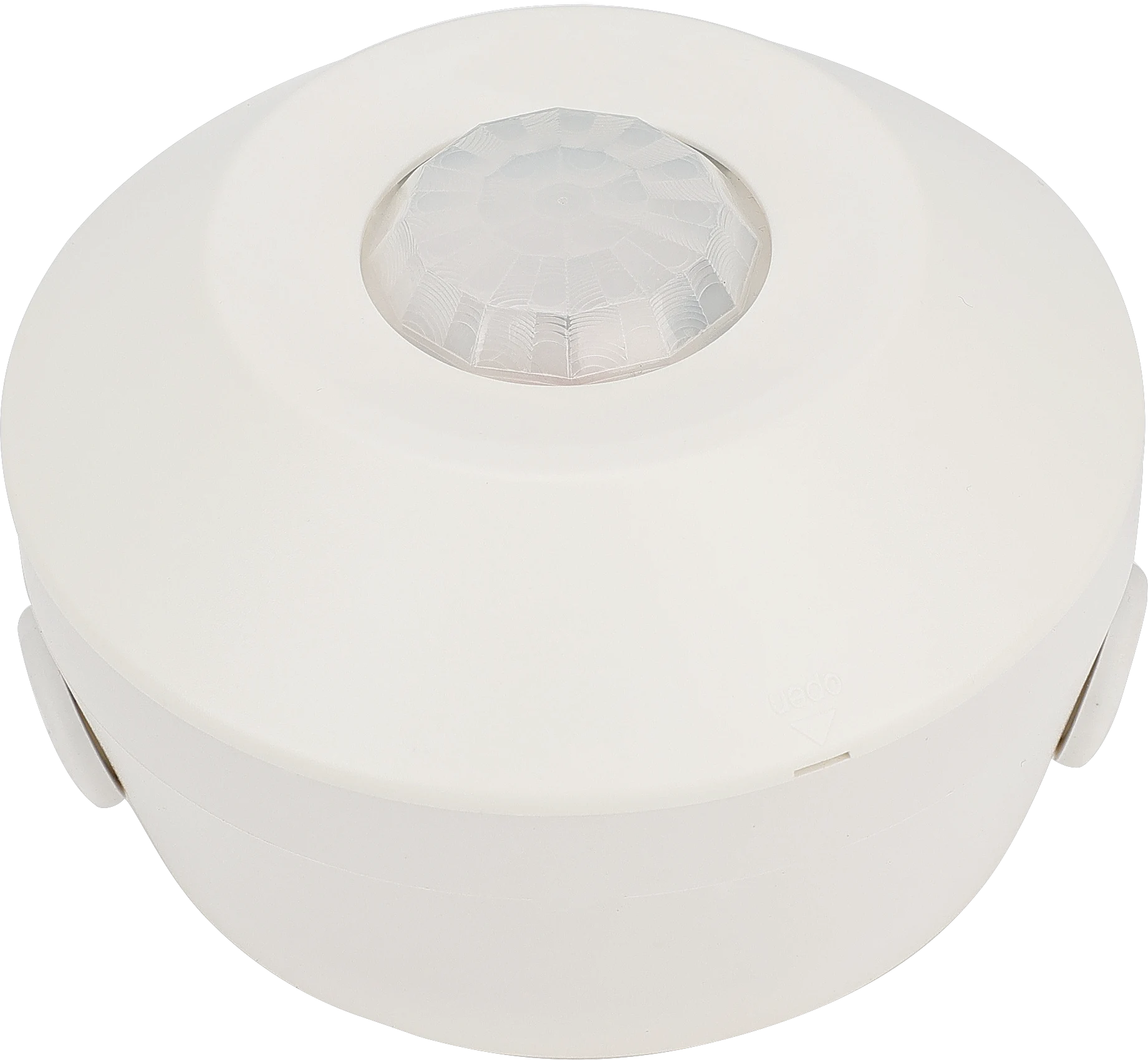

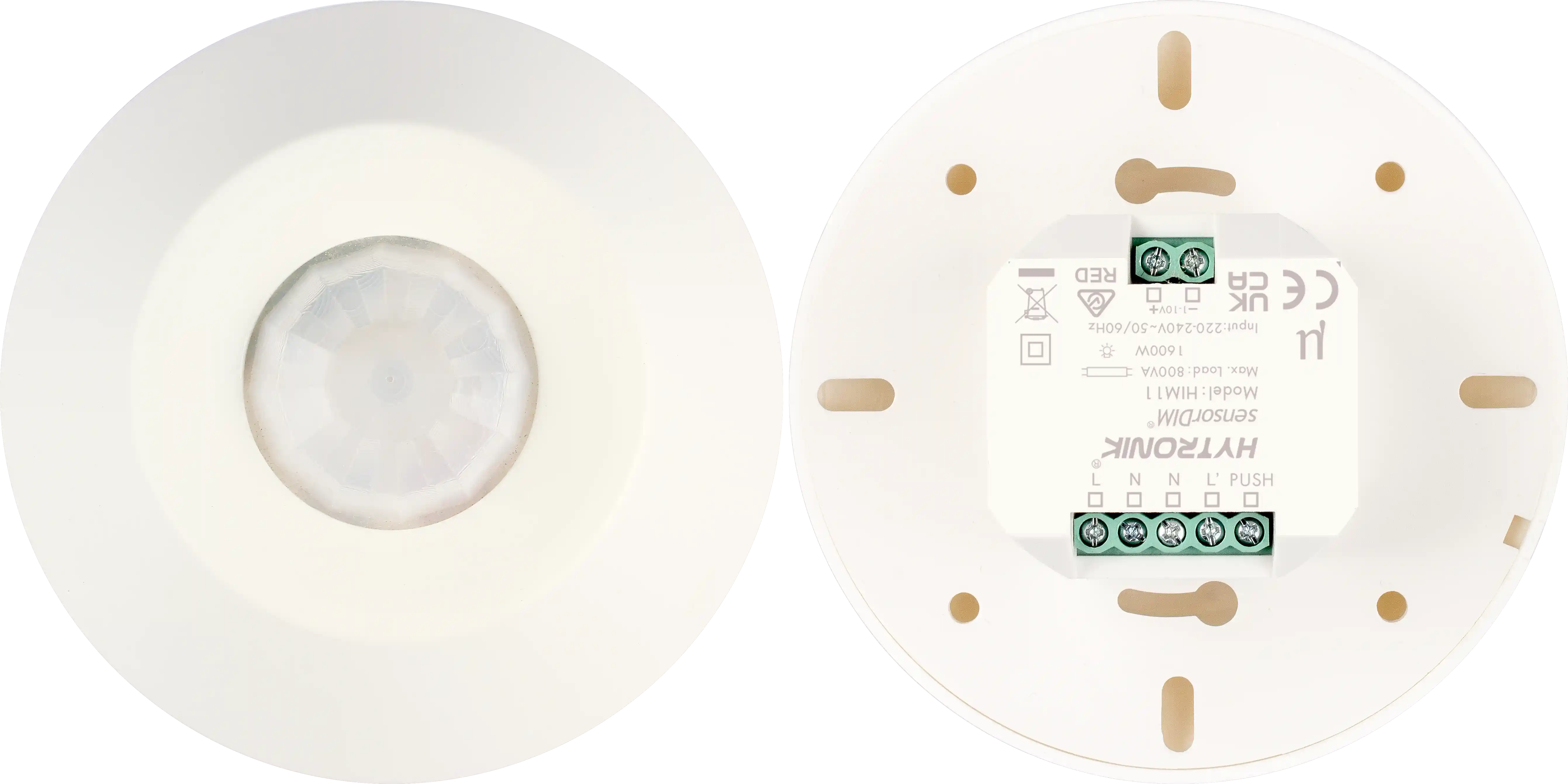

HIM11
PIR + HF Lowbay | 1-10V | Remote Controller
BENEFITS
- Compact: Standard rectangular sdand alone sensor design
- Simple: 1-10V Dimming with Remote Control
- User-Friendly: With one-key commissioning with Remote Control
APPLICATIONS
- Standalone installation for ceiling up to 6m
- Classrooms with blackboards and student zones
- Offices with two zones
Product information "HIM11"
HIM11 is a standalone dual sense motion sensor equipped with both HF and PIR technologies. It offers 1-10V dimming and comes with a remote control for easy adjustments, making it ideal for efficient lighting management.
| Ambient temperature max.: | 55 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 38.6000 mm |
| Operating voltage range: | 120-277 VAC |
| Product height: | 55.2000 mm |
| Product length: | 109.0000 mm |
| Product weight: | 191.0000 g |
| Product width: | 109.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 30 s |
| Zhaga: | No |
Datasheets
Product datasheet: him11.pdf
