HIM049V
HF+PIR Ultra HighBay | ON/OFF/0-10V | IP65/Batten-fit/Bolt-on mount
BENEFITS
- High accuracy: DUAL Sense with HF and PIR technology
- 2 in1: 0-10V dimming + ON/OFF control
- User-Friendly: With one-key commissioning with IR controller

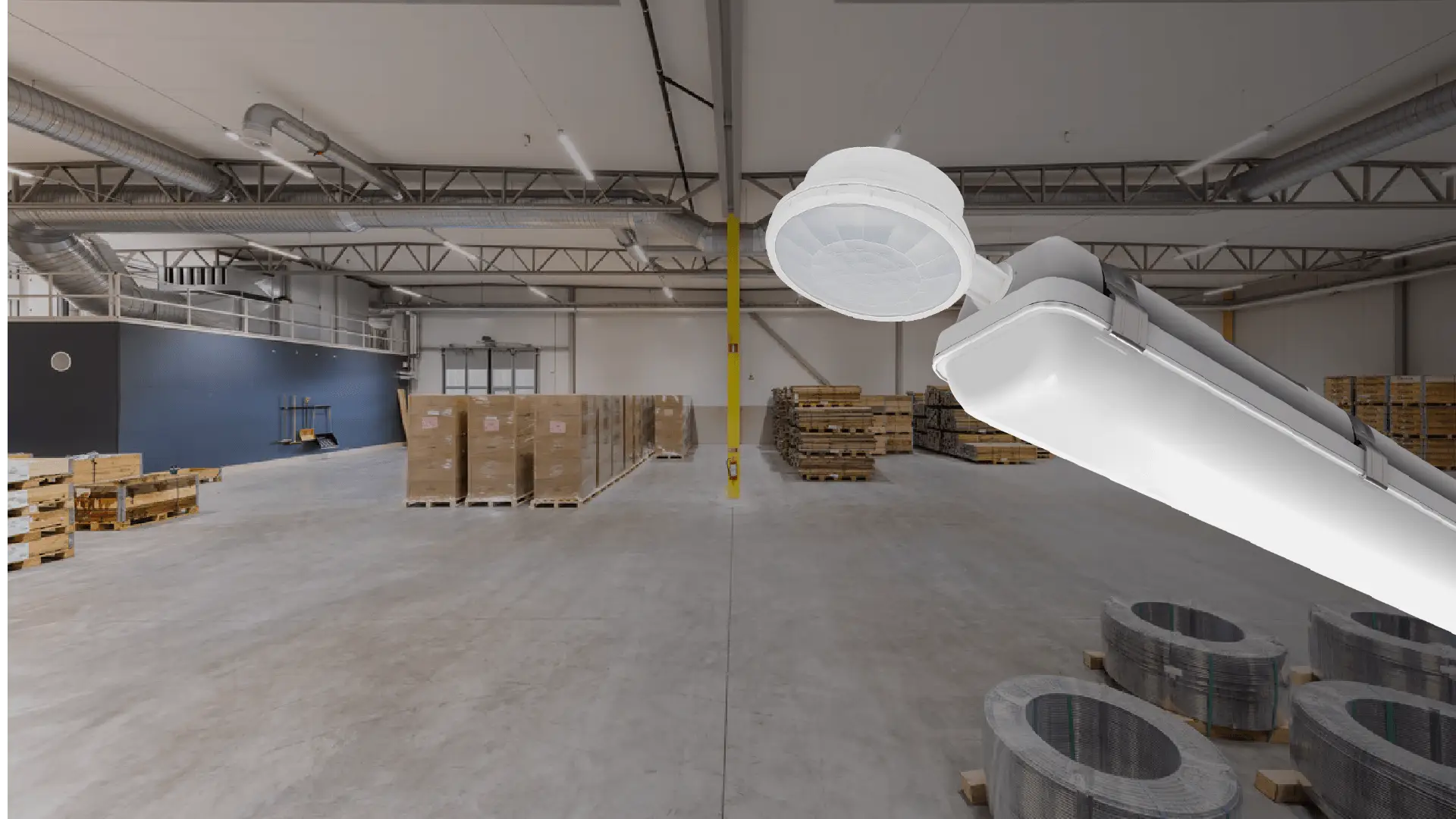

APPLICATIONS
- Batten-fit/Bolt-on mount style
- Industry
- Warehouses
Product information "HIM049V"

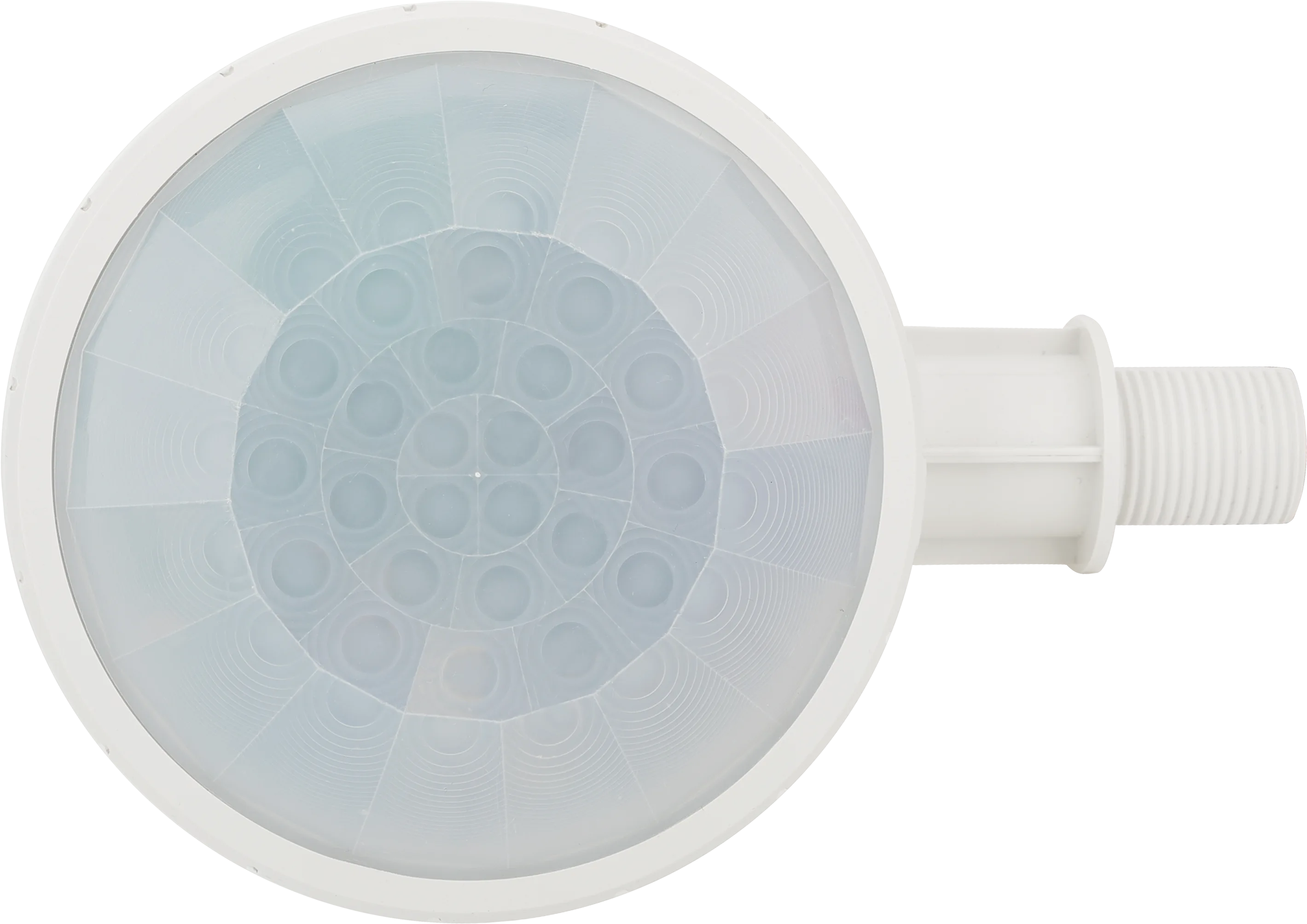

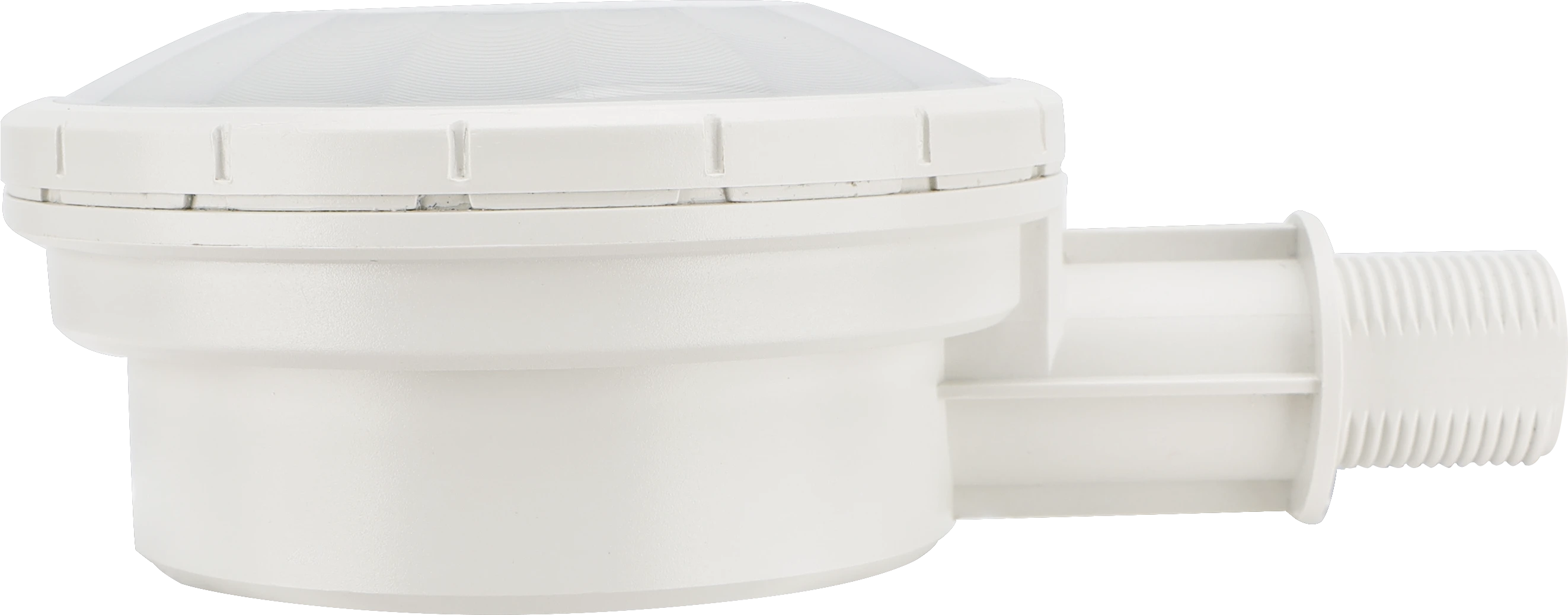

HIM049V is a 0-10V ultra high-bay Dual-senseTM motion sensor (Microwave + PIR) with on/off relay control, designed for batten-style luminaires. It's IP65 rated and perfect for Industry , warehouses, and other commercial/industrial areas.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Detection Methods: | Dual-Sense (MW+PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 28×21 |
| Dimming (Output) Interface: | 0-10V, Relay On/Off |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Batten Mount |
| Load capacitive: | 400.0000 VA |
| Load resistive: | 800.0000 W |
| Maximum Mounting Height: | 21.0000 m |
| Mounting Height: | Ultra High-bay |
| Mounting hole: | 75.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 48.3000 mm |
| Product length: | 138.0000 mm |
| Product weight: | 138.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: him049v.pdf
