HC419VRC/DH
HF Lowbay | Photocell Advance | Setting via Dip-Switch/IR controller
BENEFITS
- Compact: Super compact size - Daylight harvest Sensor
- Flexibale: Synchronization Contro in maximum 10pcs
- Simple: Daylight, detection range and holdtime configuration via Dip-Switch/ IR controller
APPLICATIONS
- For round shape luminaire up to 6m height
- Office / Meeting rooms
- Schools / Classroom
Product information "HC419VRC/DH"

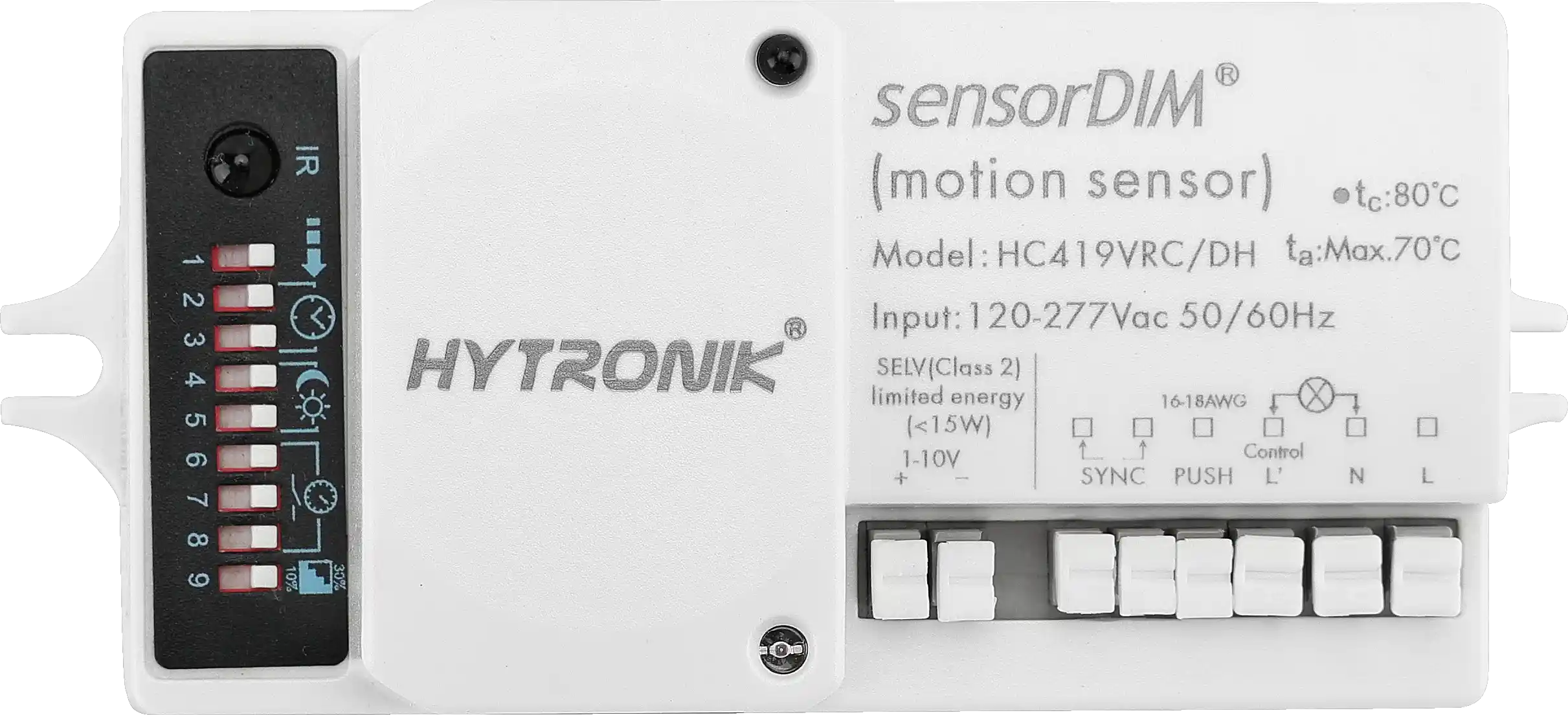

HC419VRC/DH is a built-in HF motion sensor featuring 1-10V dimming control and relay output. It utilizes Photocell Advance™ for daylight sensing. Sensor settings can be configured via DIP-Switches and handset HRC-11. It also supports Switch-Dim (PUSH) operation and includes a Sync terminal for synchronized control.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Load capacitive: | 1000.0000 VA |
| Load resistive: | 1600.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 120-277 VAC |
| Product height: | 28.0000 mm |
| Product length: | 102.0000 mm |
| Product weight: | 70.0000 g |
| Product width: | 45.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hc419vrc-dh.pdf
