HBIR36/H
PIR High bay | Bluetooth DALI with PSU | Trailing-edge
BENEFITS
- Adaptable: Lens and blind variants for different detection ranges
- No extra wiring: PIR sensor with phase-cut control and Bluetooth
- Easy: Motion and Daylight harvest configuration via Koolmesh app
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Retrofit installations with phase-cut luminaires
- Offices, classrooms, healthcare
Product information "HBIR36/H"

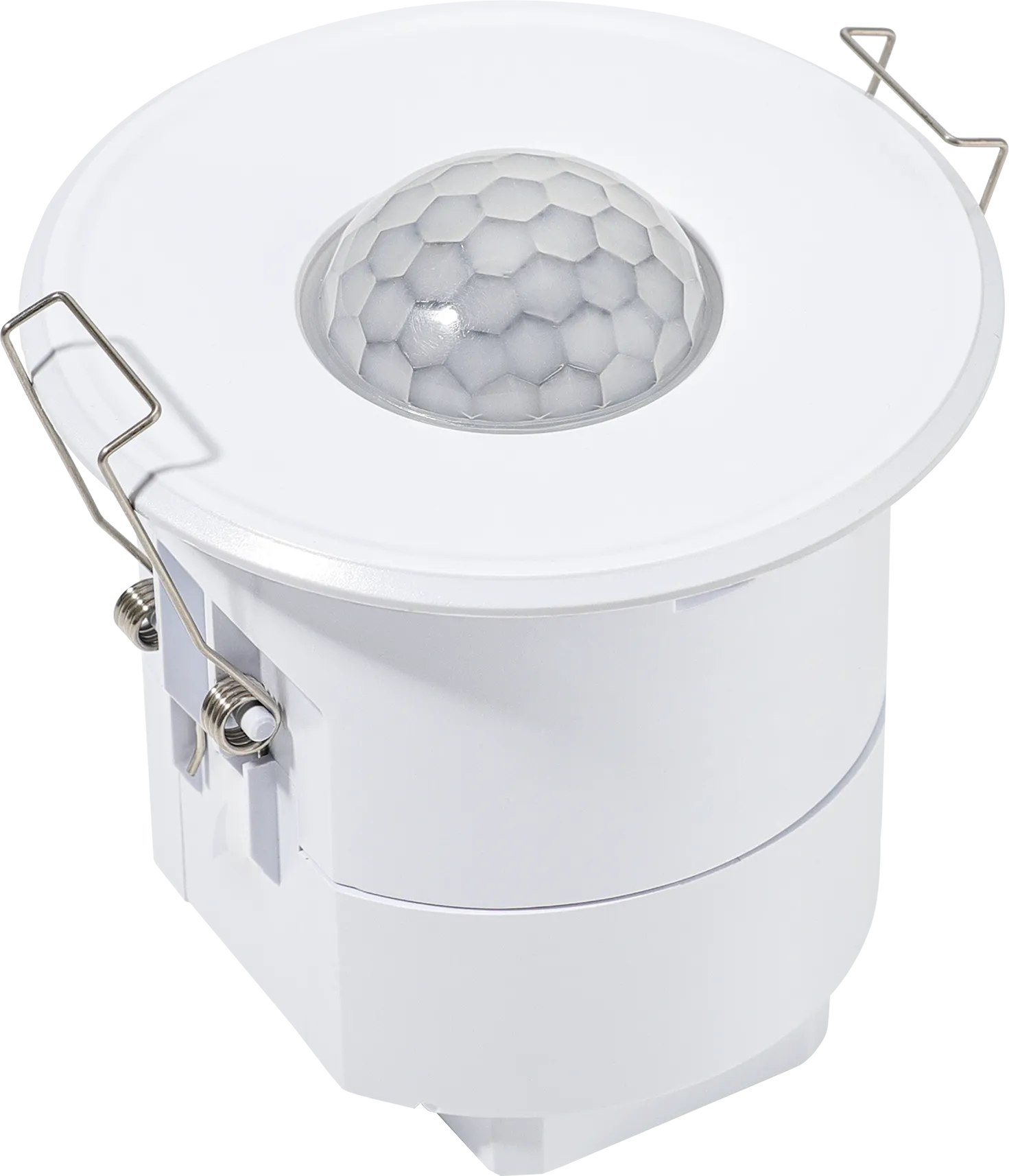

HBIR36 is a Bluetooth PIR motion sensor with 2 x 100VA trailing edge output, ideal for retrofitting traditional lamp installations. It uses Bluetooth wireless mesh networking for easy luminaire communication without additional wiring, making it perfect for hassle-free upgrades in old buildings. Commissioning is simple with the Koolmesh app.
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (DxH): | 24x15 |
| Dimming (Output) Interface: | Trailing edge (Phase control) |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | High-bay |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 66.0000 mm |
| Operating Voltage: | 220-240 VAC 50/60 Hz |
| Product height: | 80.5000 mm |
| Product width: | 78.0000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
