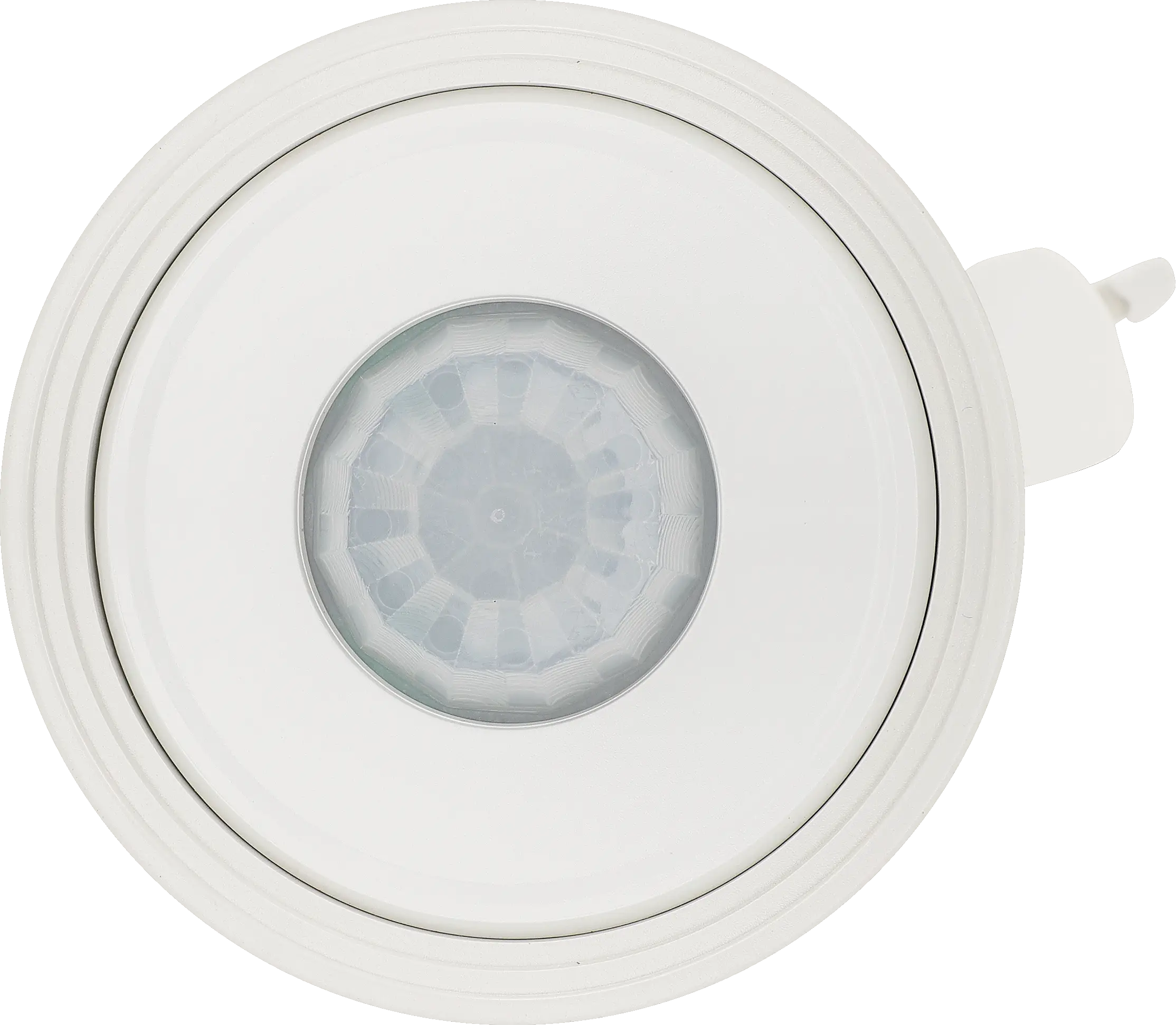

HBIR29/TK
Bluetooth PIR Lowbay | 6 Wires 3 Circuits | Track System | Circadian Rhythm
BENEFITS
- Adjustable: 360 degree rotatable lens angle for detection
- Versatile: Tri-level dimming + Daylight harvest + Circadian Rhythm
- Easy: 3-phase dial phase selection + Wireless Bluetooth 5.0 SIG-Mesh
APPLICATIONS

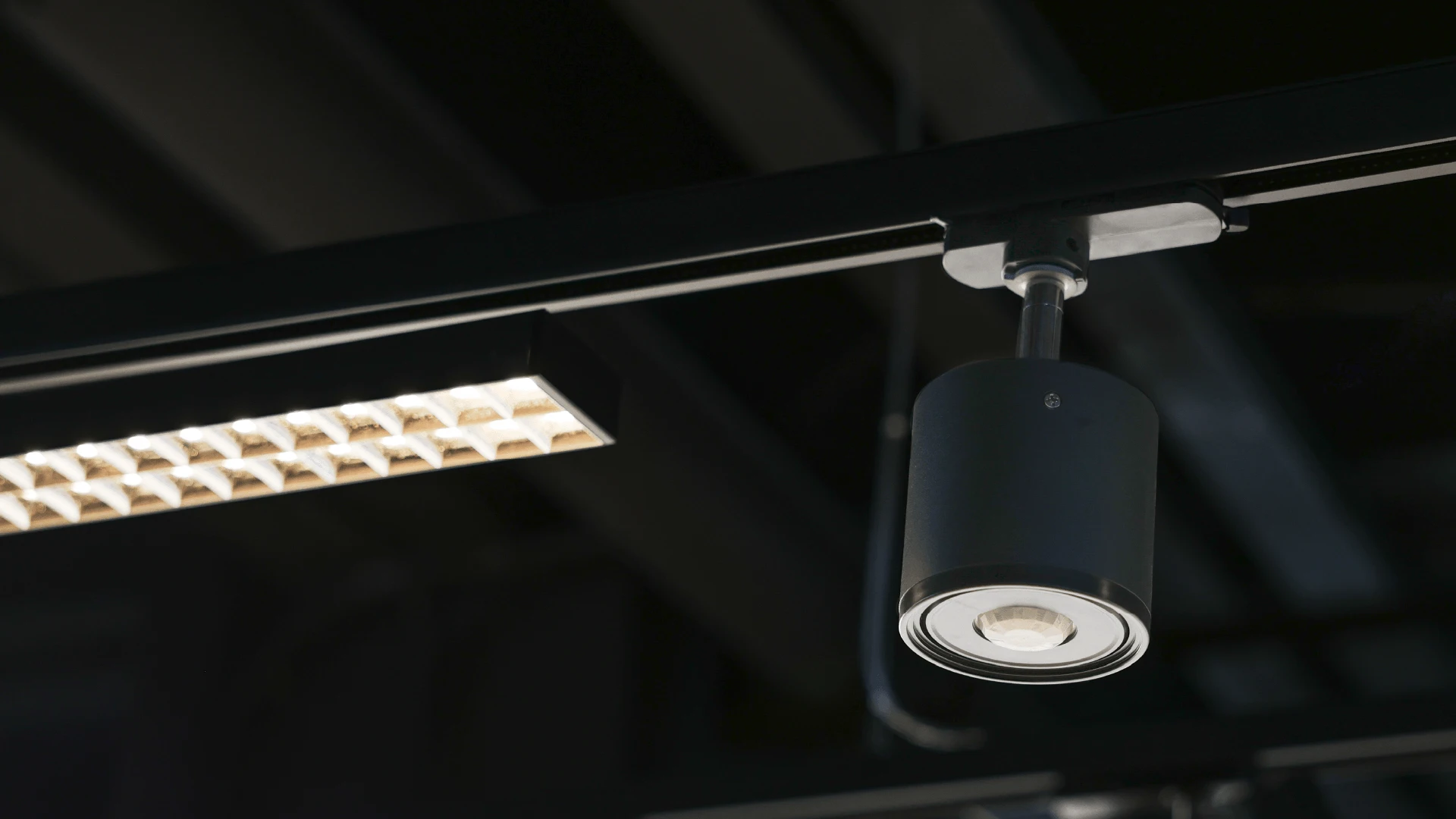

- Track light system
- Offices, Retail stores, Warehouse
- Museums, Galleries
Product information "HBIR29/TK"

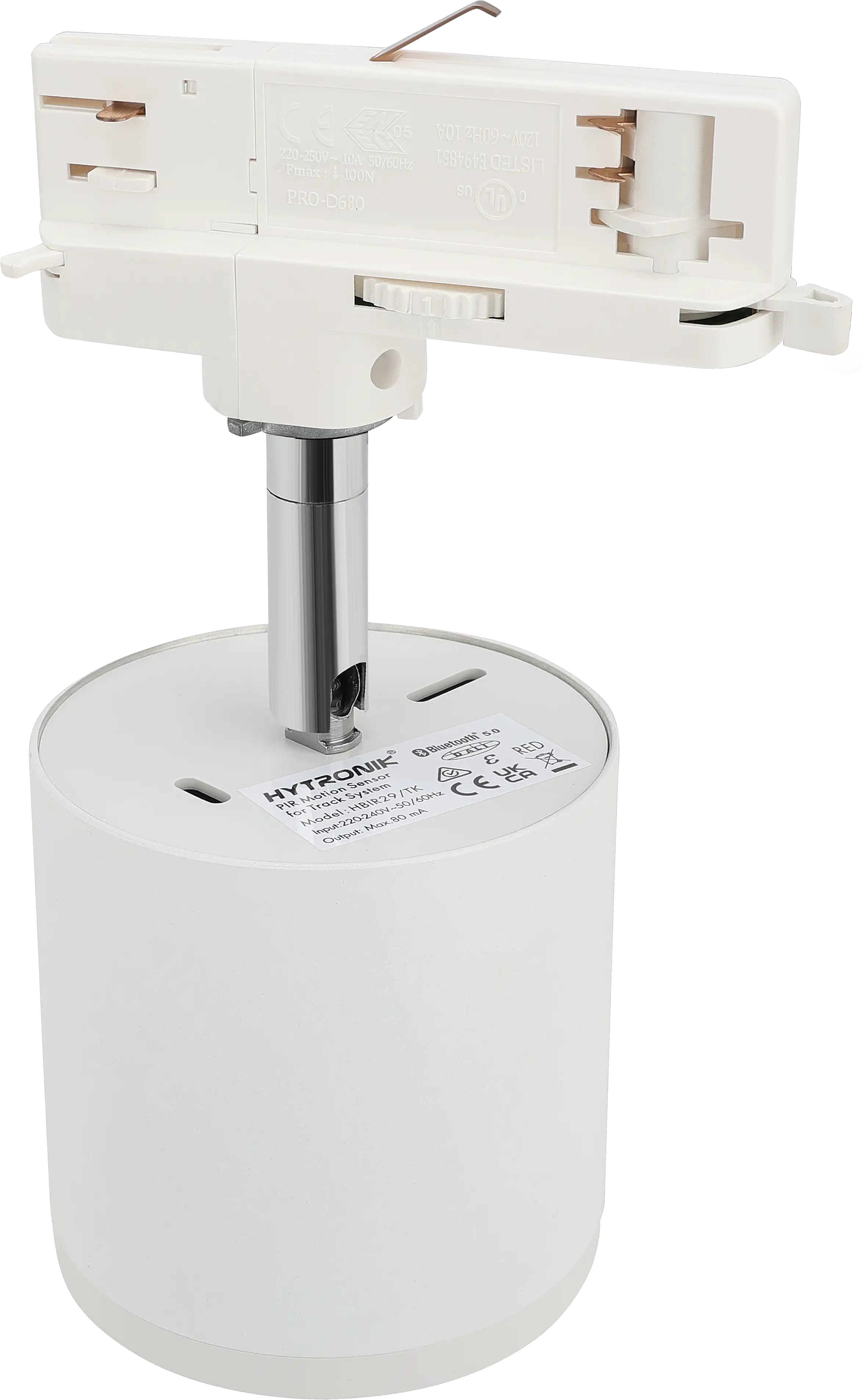

HBIR29/TK is a Bluetooth-enabled PIR motion sensor for track systems, with circadian rhythm and a 3-phase dial and integrated DALI channel output. Easy installation in tracks with a metal surface box, ideal for commercial and domestic downlight lighting.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth Platform: | Nordic nRF52832 |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 250.0000 mA |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Track Light |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 194.0000 mm |
| Product length: | 113.2000 mm |
| Product weight: | 414.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-tk.pdf
