HBIR29/NLC
PIR Lowbay | Bluetooth® NLC & DALI PSU | Ceiling mounting
BENEFITS
- Adaptable: Options of blind inserts and metal surface mount boxes
- Versatile: Bluetooth® NLC motion and Daylight harvest
- NLC certified: Reducing retrofit costs and brings efficient control solutions

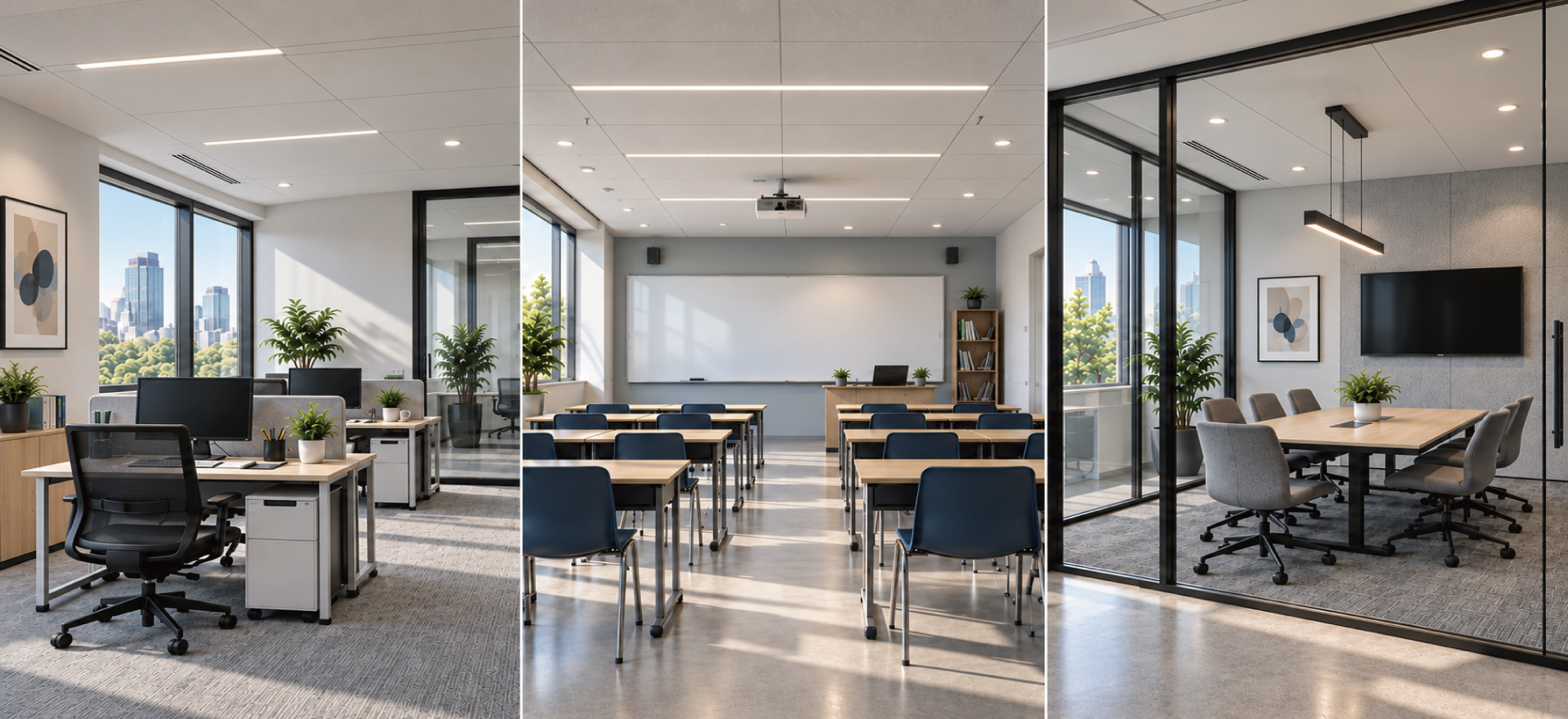

APPLICATIONS
- Ceiling or surface mounting (with accessory)
- Office / Meeting rooms
- Schools / Classroom
Product information "HBIR29/NLC"

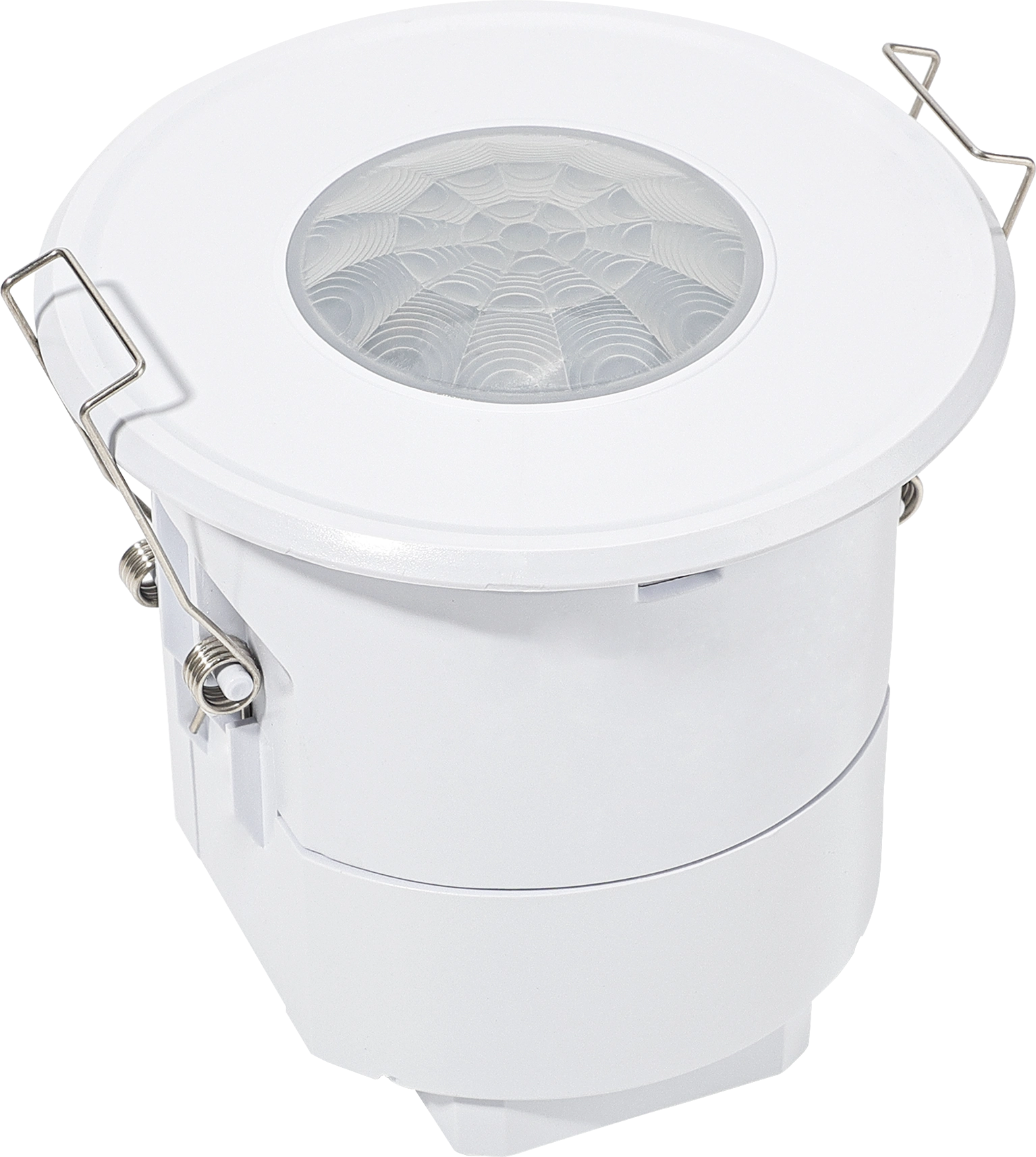

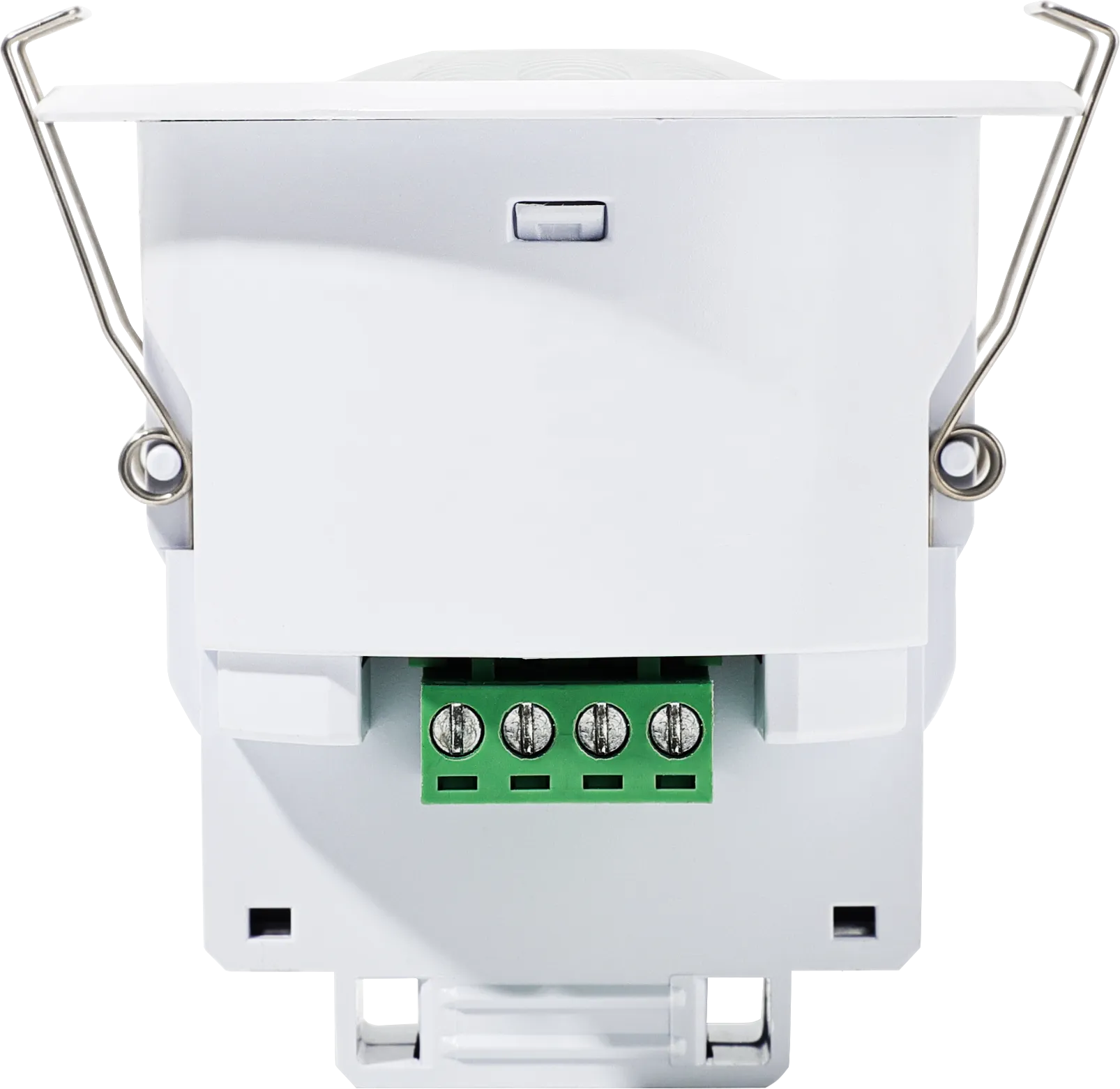

The HBIR29/NLC is a Bluetooth® NLC PIR standalone motion sensor equipped with an 80mA DALI power supply. Perfect for offices, classrooms, healthcare facilities, and commercial spaces, it enables easy commissioning and configuration through the SILVAIR app. Combining Hytronik's exceptional hardware technology with SILVAIR's NLC, it meets the DLC NLC5 certification for seamless integration.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -10 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth system: | Silvair |
| Bluetooth transmit power: | 7 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Standard 2 cables |
| DALI Bus Current Consumption: | 80.0000 mA |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 9x6 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | Yes |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 66.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 75.2000 mm |
| Product length: | 85.0000 mm |
| Product weight: | 82.0000 g |
| Product width: | 78.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Warming-up: | 5 s |
| Zhaga: | No |
Datasheets
Product datasheet: hbir29-nlc.pdf
