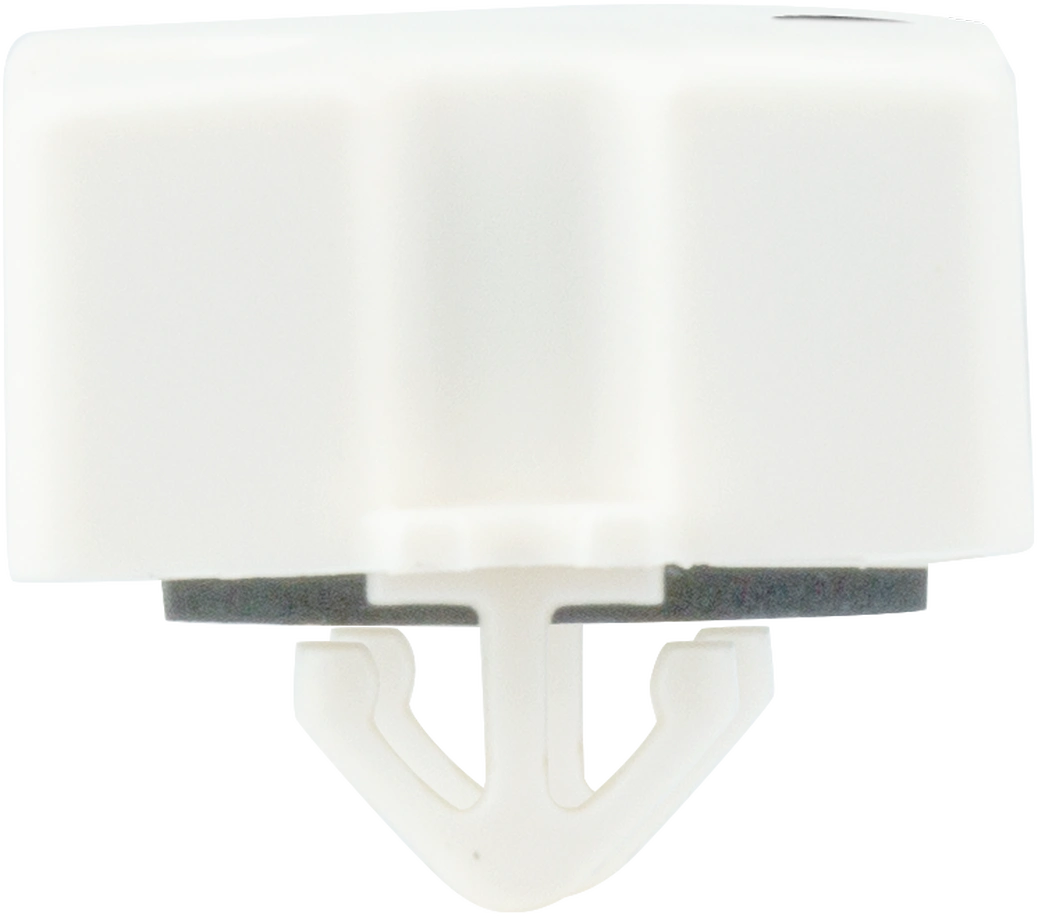

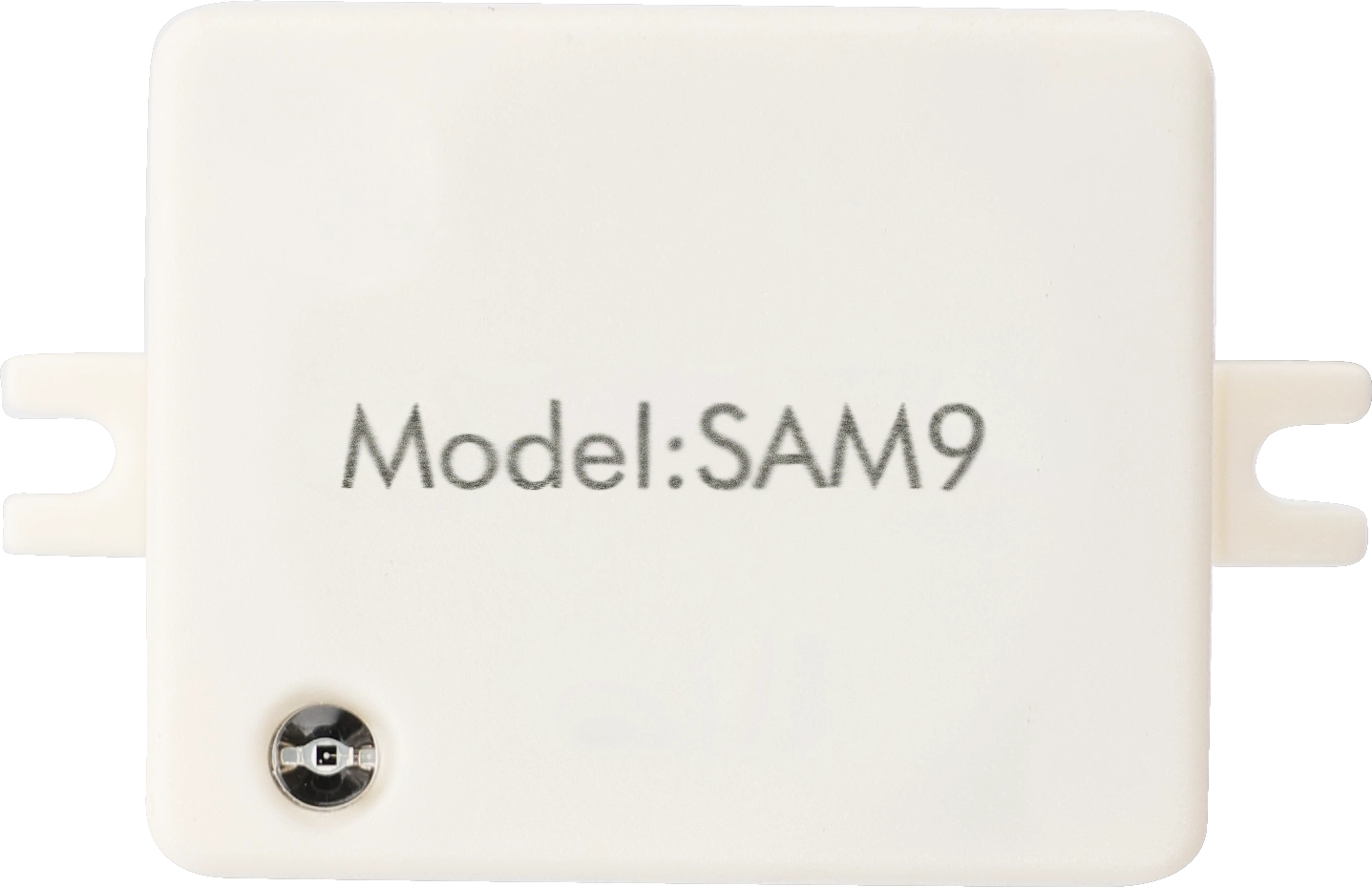

SAM9

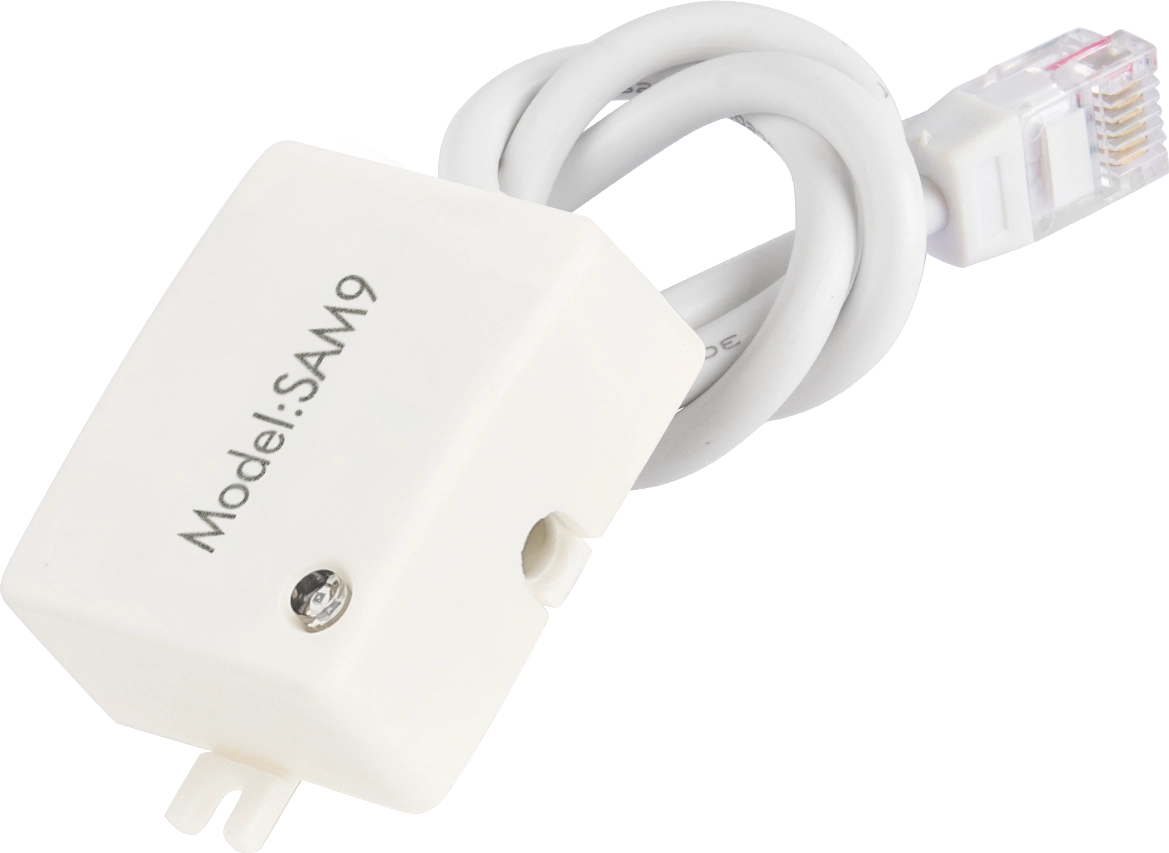

HF Lowdbay | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: With basic compact sensor antenna
- Easy: Integrated with LED Driver

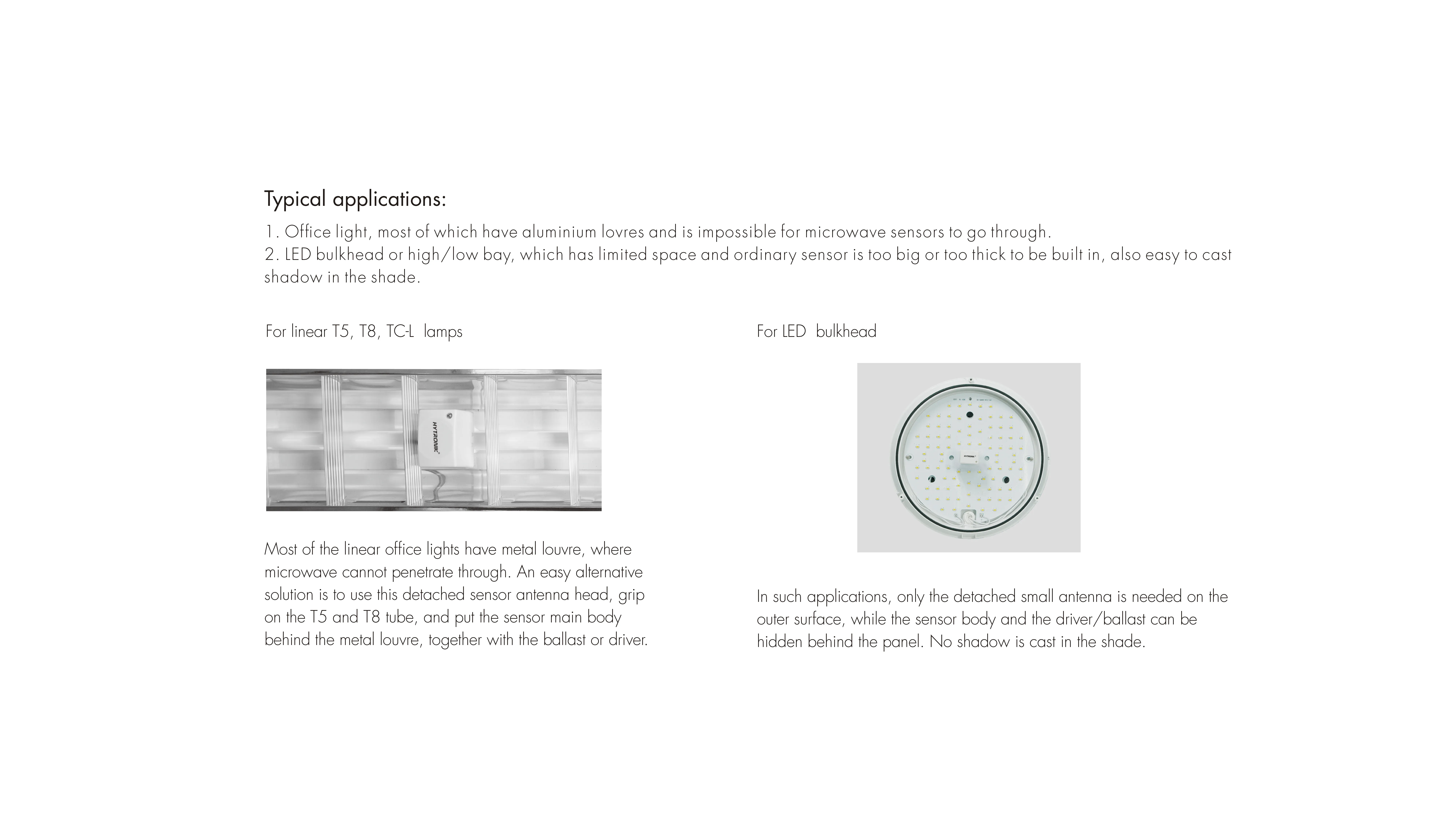

APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM9"
SAM9 is a HF sensor head and compatible with the Tri-level Dimming. It can work with the linear shaped control base such as HC403VRC-KD and HC603VRC-KD. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Connector Type: | RJ12 |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Ordinary Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (DxH): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 5 VDC |
| Product height: | 12.0000 mm |
| Product length: | 30.7000 mm |
| Product weight: | 15.0000 g |
| Product width: | 25.2000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
