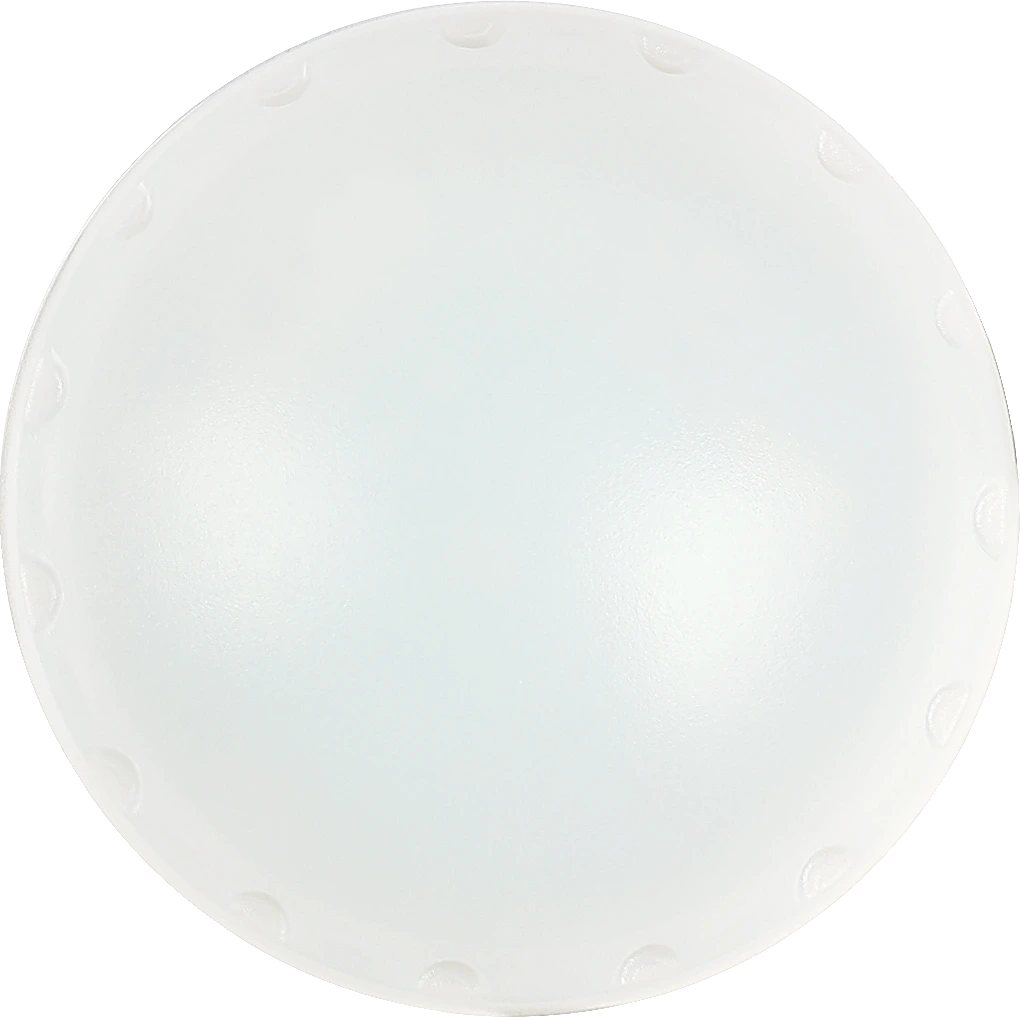

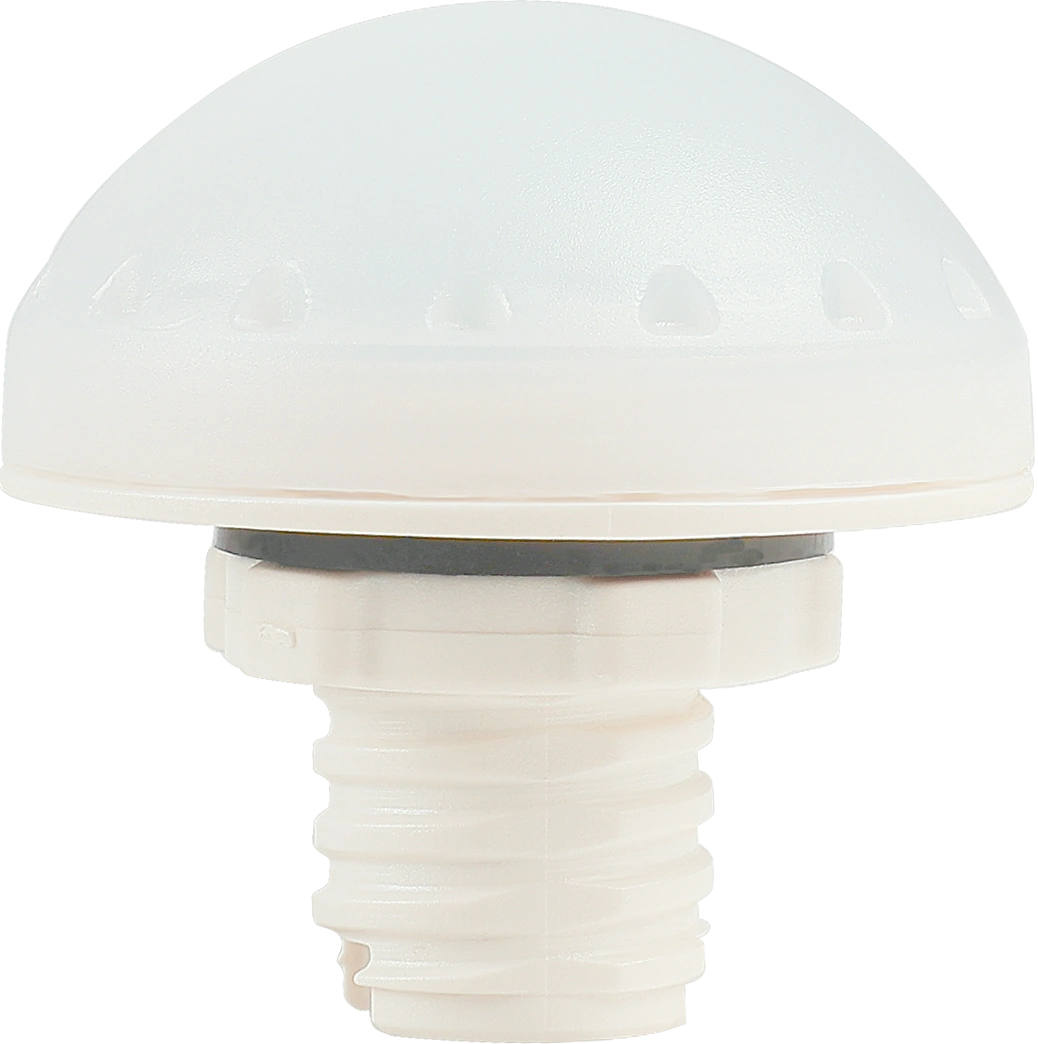

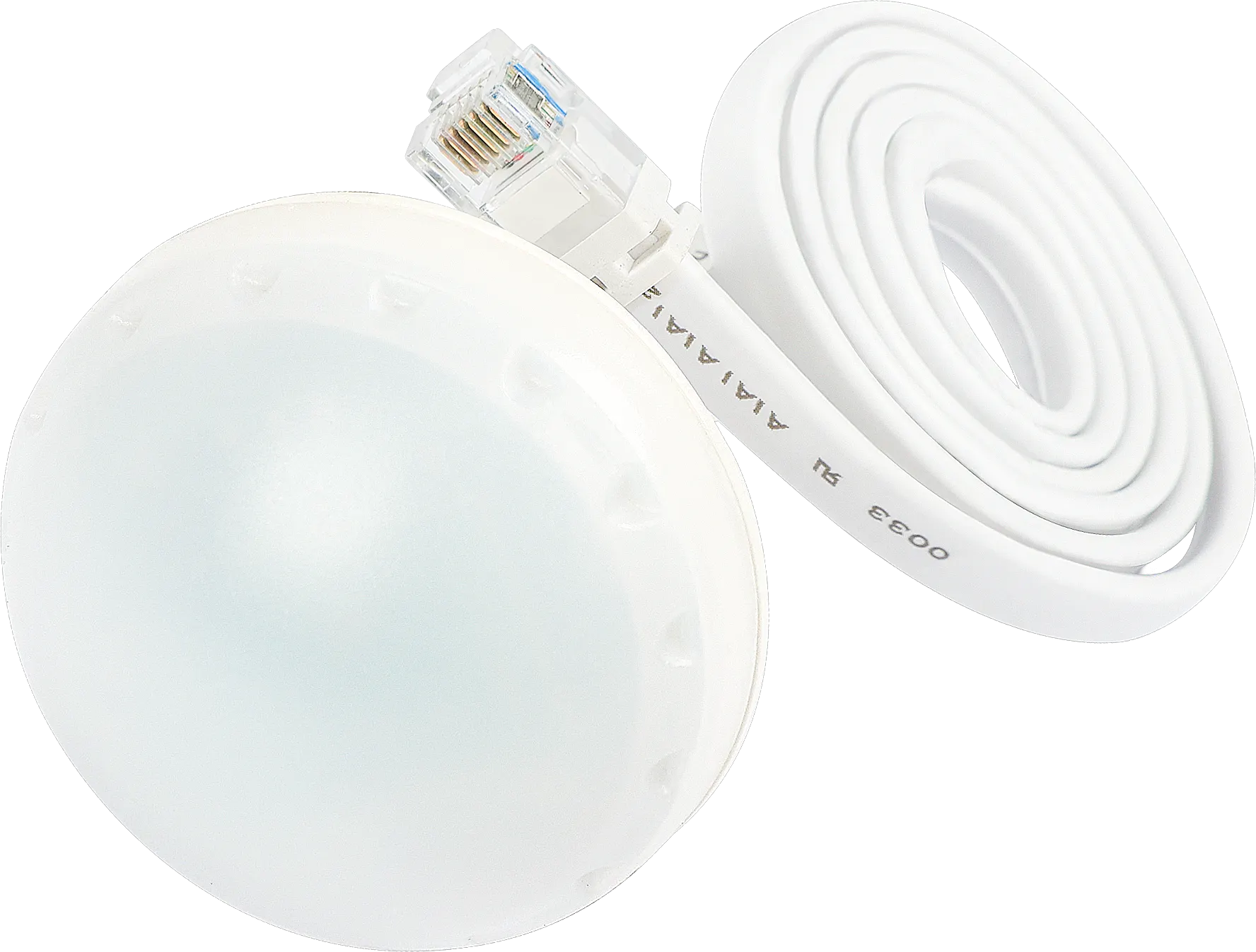

SAM5/IP65
HF Lowdbay IP65 | Tri-level dimming | RJ12 connector to control body
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- Simple: Tri-level dimming control based upon occupancy
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Schools / Classroom
- Office/Commercial Lighting
Product information "SAM5/IP65"
This sensor features microwave (HF) detection and is designed for conduit installation (M16 * 3mm). It includes tri-level dimming, a photodiode (PD), active lux switching capabilities, with a maximum installation height of 6m and a detection range up to Ø = 12m. Sensor settings can be adjusted using the HRC-05 handset, and it boasts an IP65 rating for protection against dust and water ingress.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Conduit screws, Plug & Play Sensor Heads |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Operating voltage range: | 5 VDC |
| Product height: | 40.3000 mm |
| Product length: | 41.0000 mm |
| Product weight: | 47.0000 g |
| Product width: | 41.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
Datasheets
Product datasheet: sam5-ip65.pdf
