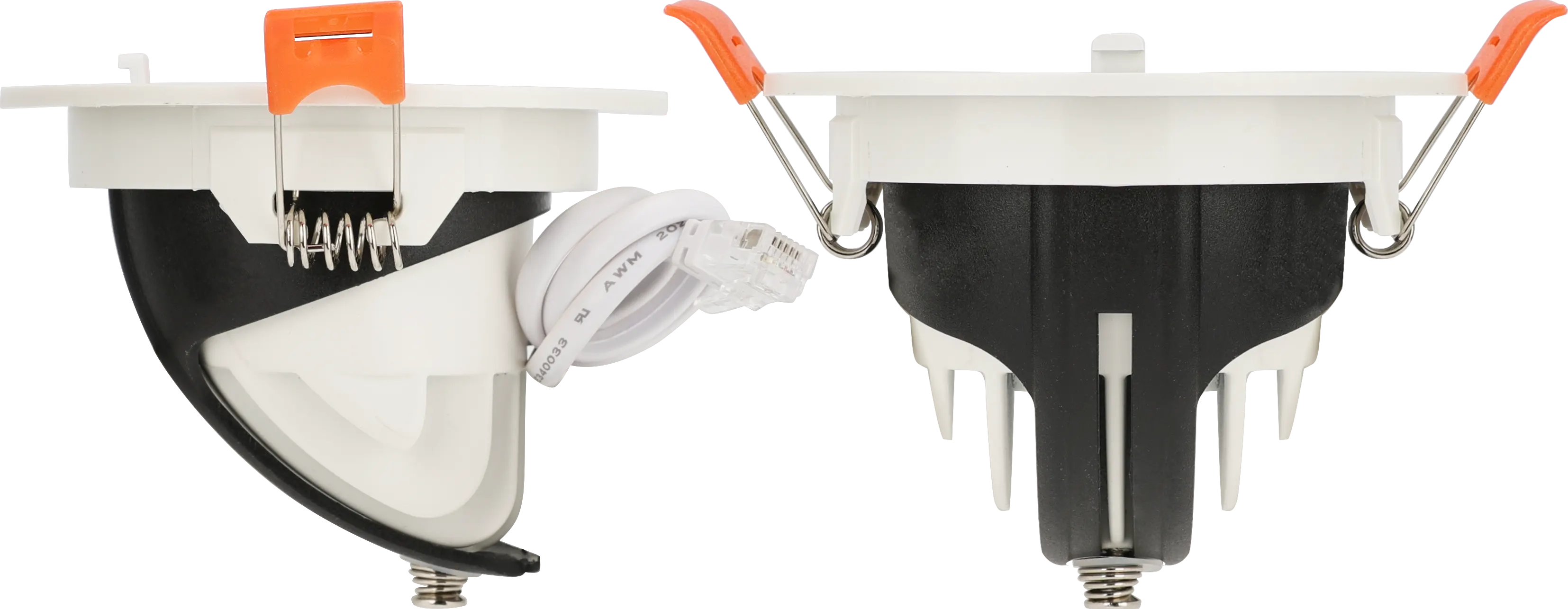

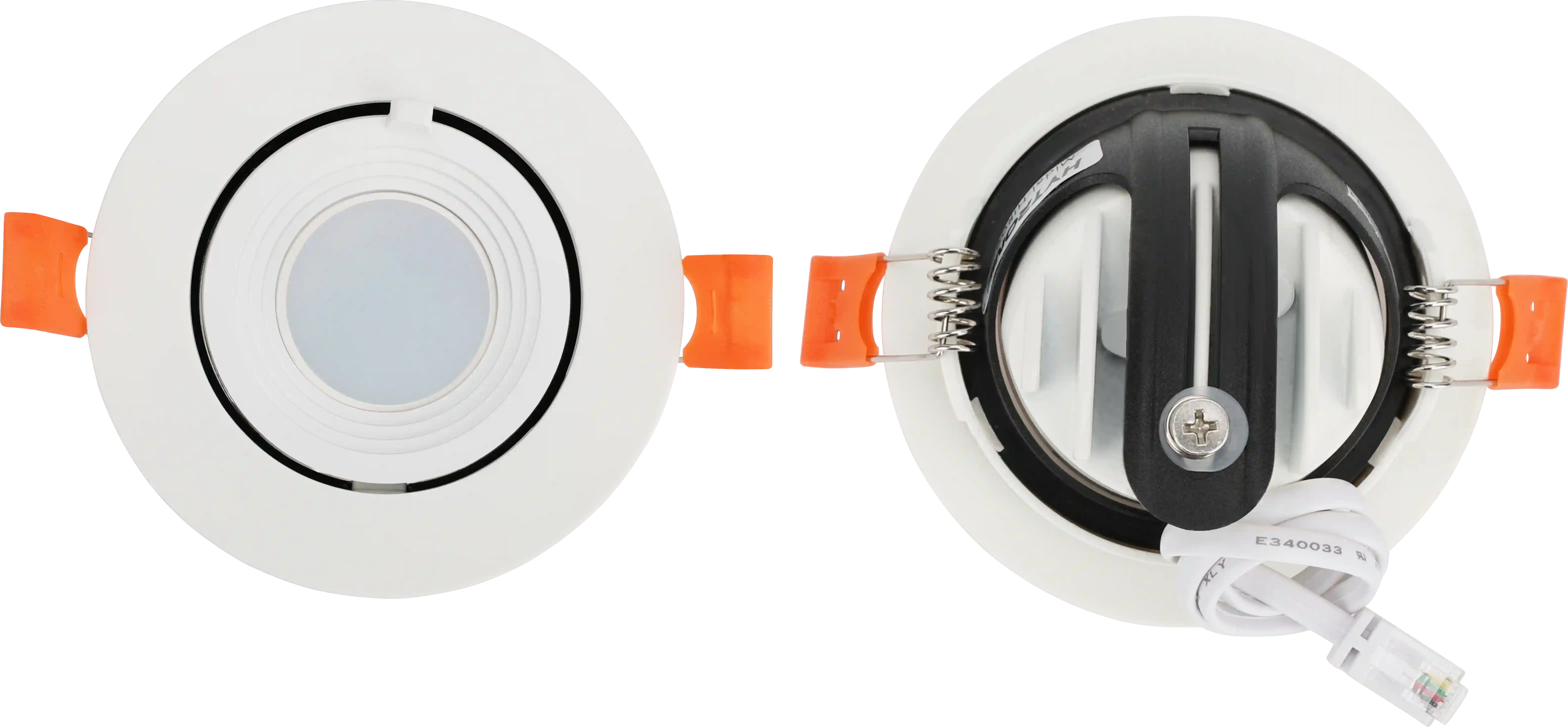

SAM5/AA
HF Lowdbay | Tri-level & Adjustable Angle | RJ12 connector to control body
BENEFITS
- Compact: Flush mount plug&play sensor design
- Simple: Tri-level dimming control based upon occupancy
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Adjustable angle detection
- Corridor, Hallway
- Classrooms, Offices
Product information "SAM5/AA"
SAM22/AA is a PIR sensor head and compatible with the Tri-level Dimming. It can work with the linear shaped control base such as HCD038V and HCD038/P. It offers powerful number of Plug’n’Play feature options to expand the flexibility of luminaires design.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | RJ12 |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 12x6 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Plug & Play Sensor Heads |
| Lens type: | Standard Low-bay |
| Mounting Height: | Low-bay |
| Mounting hole: | 74.0000 mm |
| Operating voltage range: | 5 VDC |
| Product height: | 70.0000 mm |
| Product length: | 90.0000 mm |
| Product weight: | 117.0000 g |
| Product width: | 90.0000 mm |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: sam5-aa.pdf
