SAM15/RC05
HF Highbay | Tri-level & 0-10V | Zhaga Book 18 Standard
BENEFITS
- Compact: Small IP65 Zhaga Book 18 sensor
- 2 in 1: Tri-level dimming + 0-10V output
- Easey: Settings via IR controller
APPLICATIONS

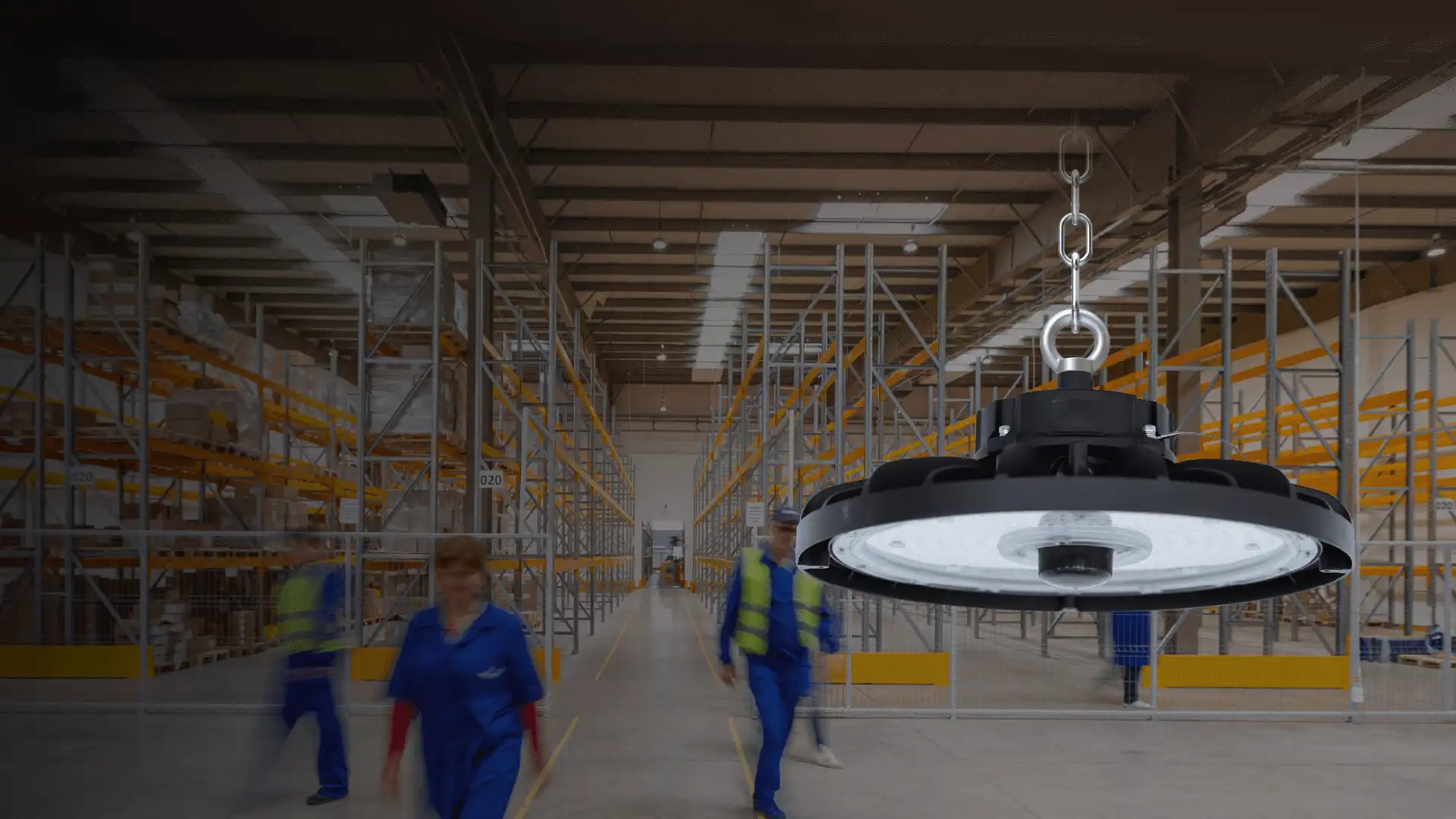

- For highbay luminaire up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "SAM15/RC05"

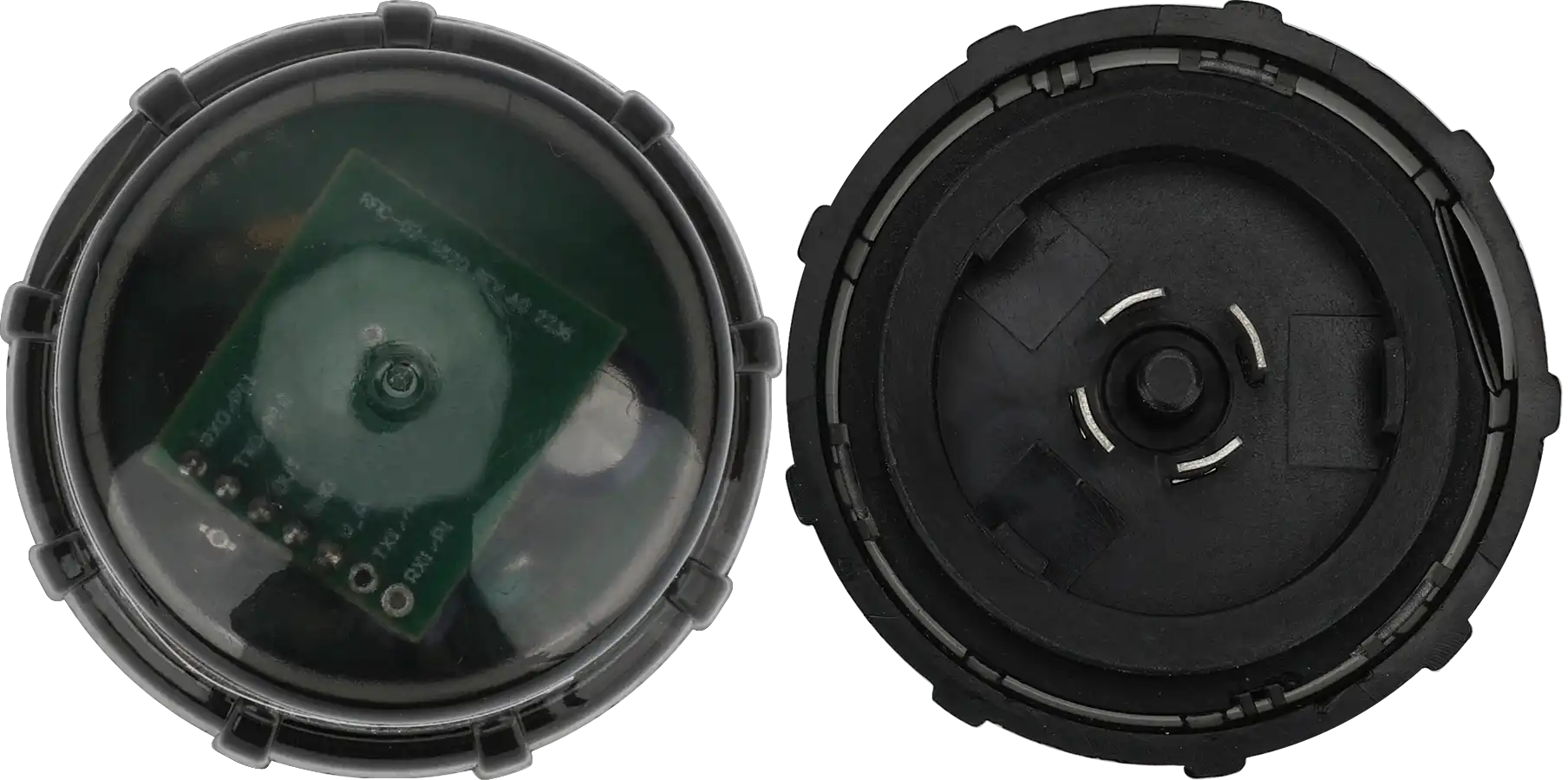

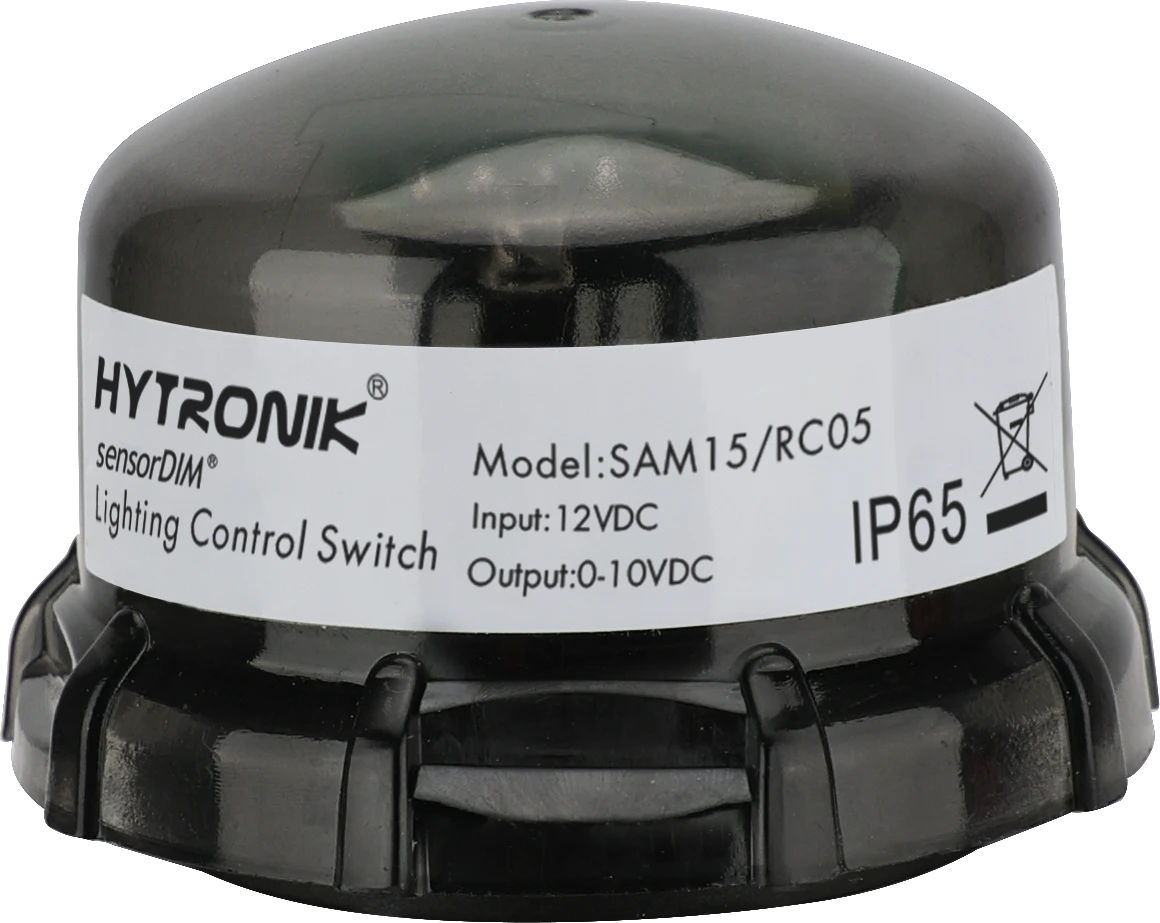

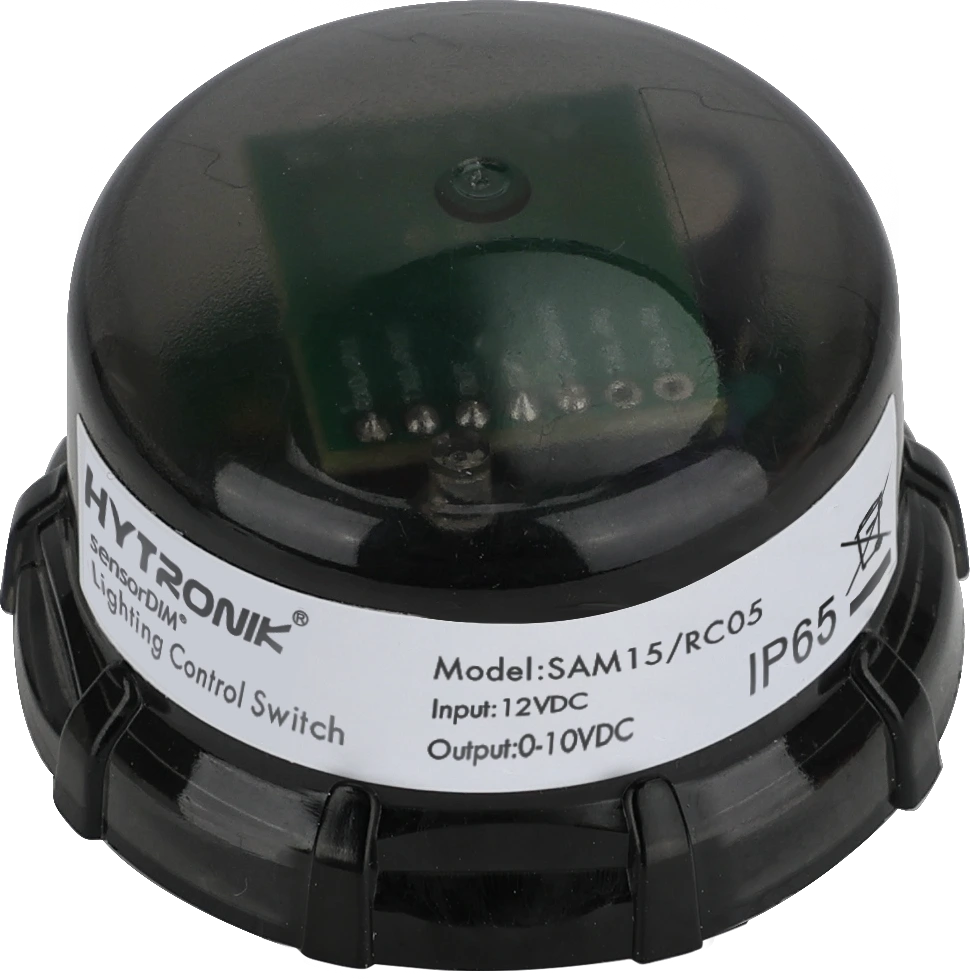

SAM15/RC05 is a 0-10V signal output motion sensor, with Zhaga
connector. It is suitable for high-bay application and all sensor parameters
can be programmed through remote controller HRC-05.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |

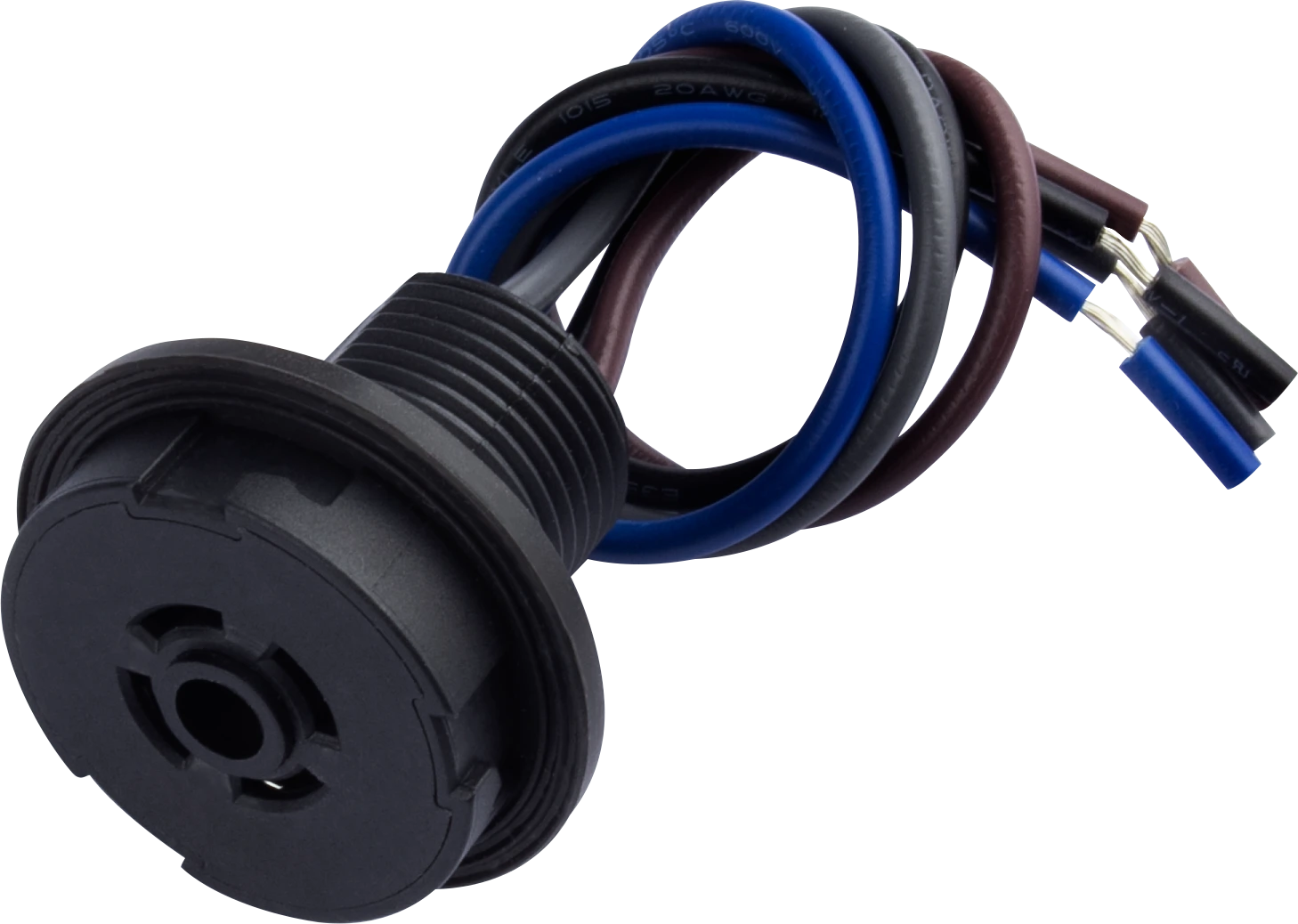

| Connector Type: | Zhaga book 18 |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 20×15 |
| Features: | Tri-level (Corridor Function) |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12DVC |
| Product height: | 56.4000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 33.0000 g |
| Product width: | 50.8000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Warming-up: | 20 s |
| Zhaga: | Yes |
Datasheets
Product datasheet: sam15-rc05.pdf
