SAM15/D2
HF Highbay | DALI-2 D4i | Zhaga Book 18 Standard
BENEFITS
- Compact: Small IP65 Zhaga Book 18 sensor
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: DALI-2 protocol certified as D4i Type B
APPLICATIONS

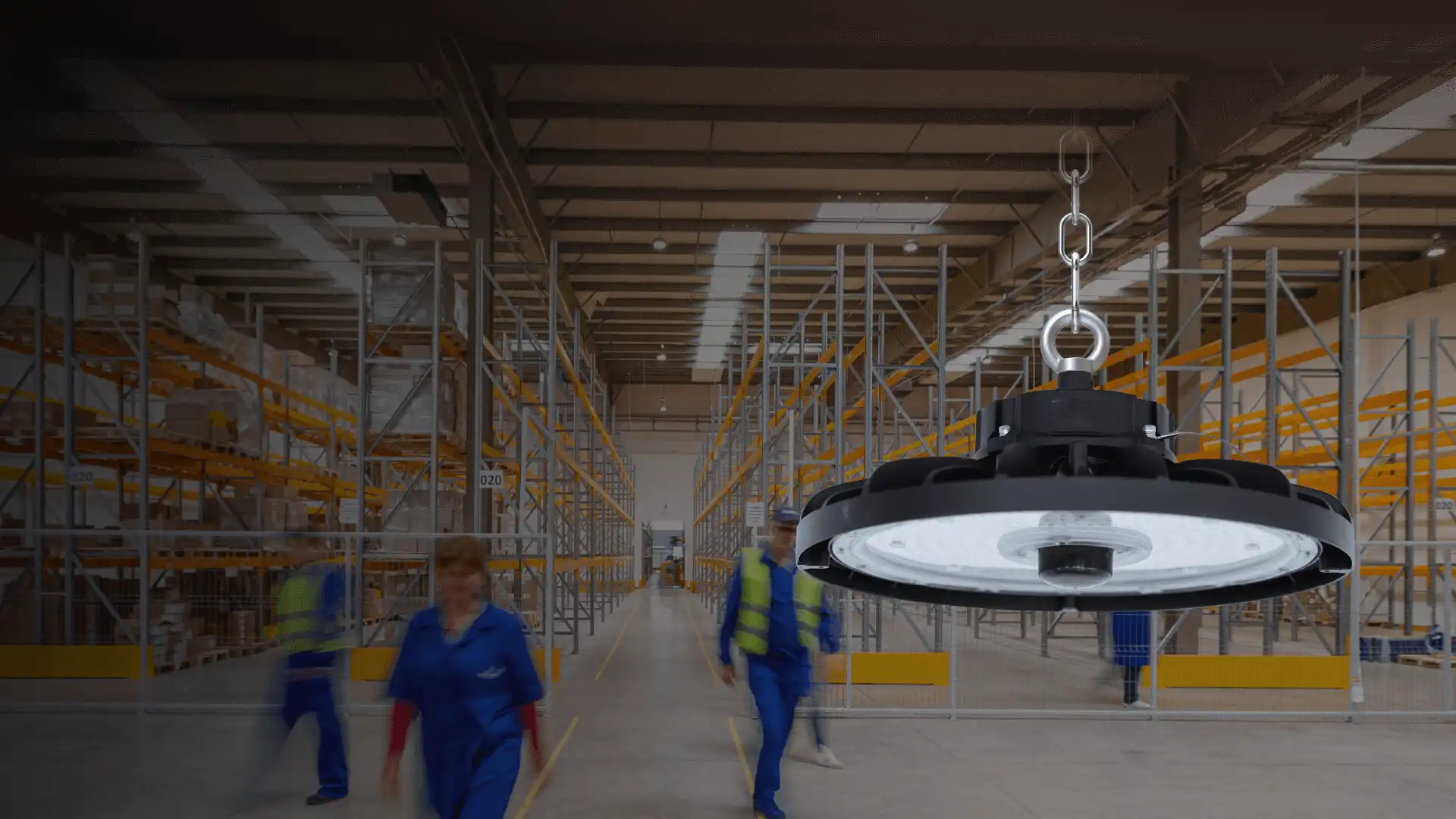

- UFO luminaires up to 15m height
- Warehouse/ Logistic
- Outdoor/Street lights

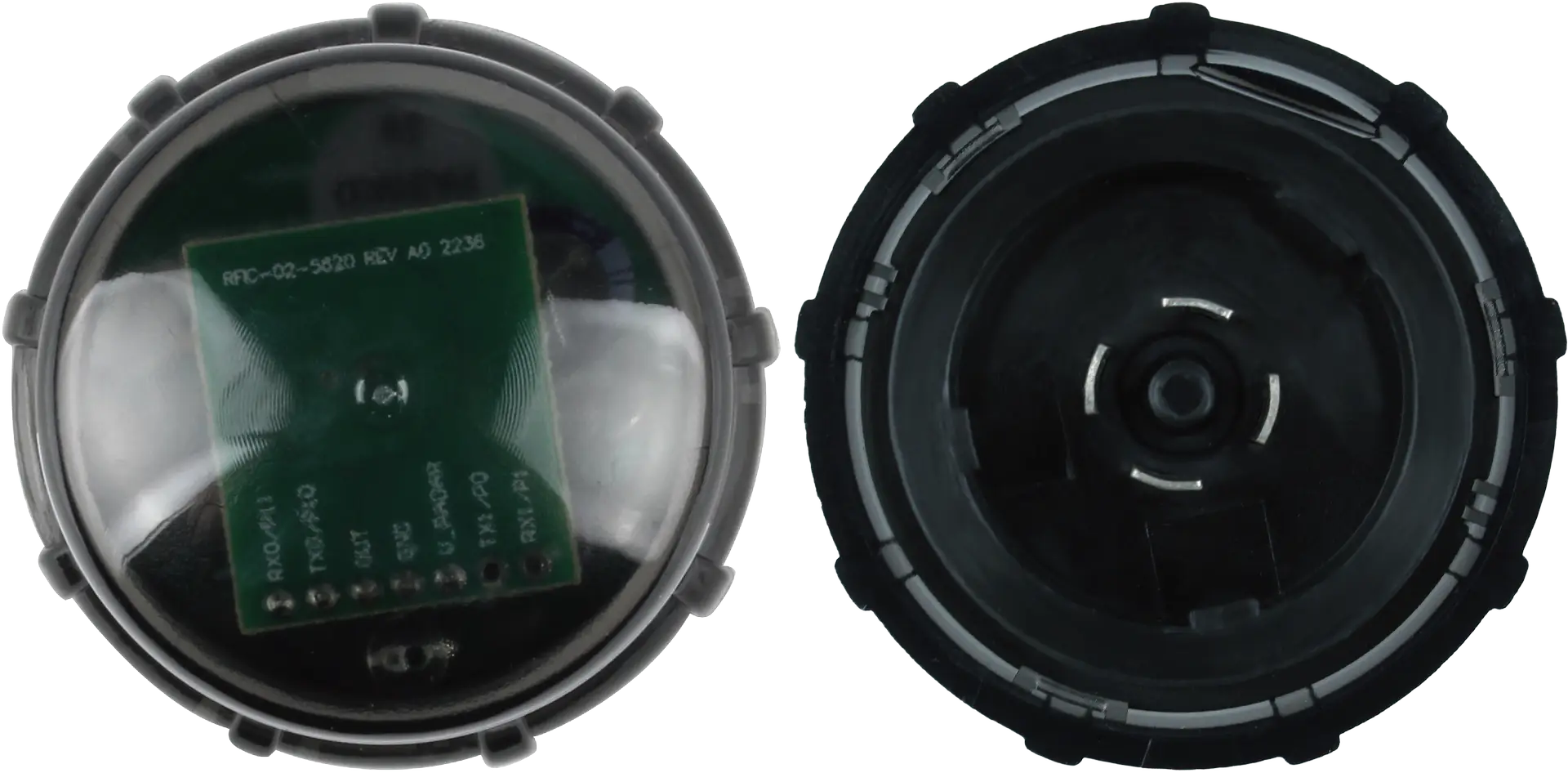

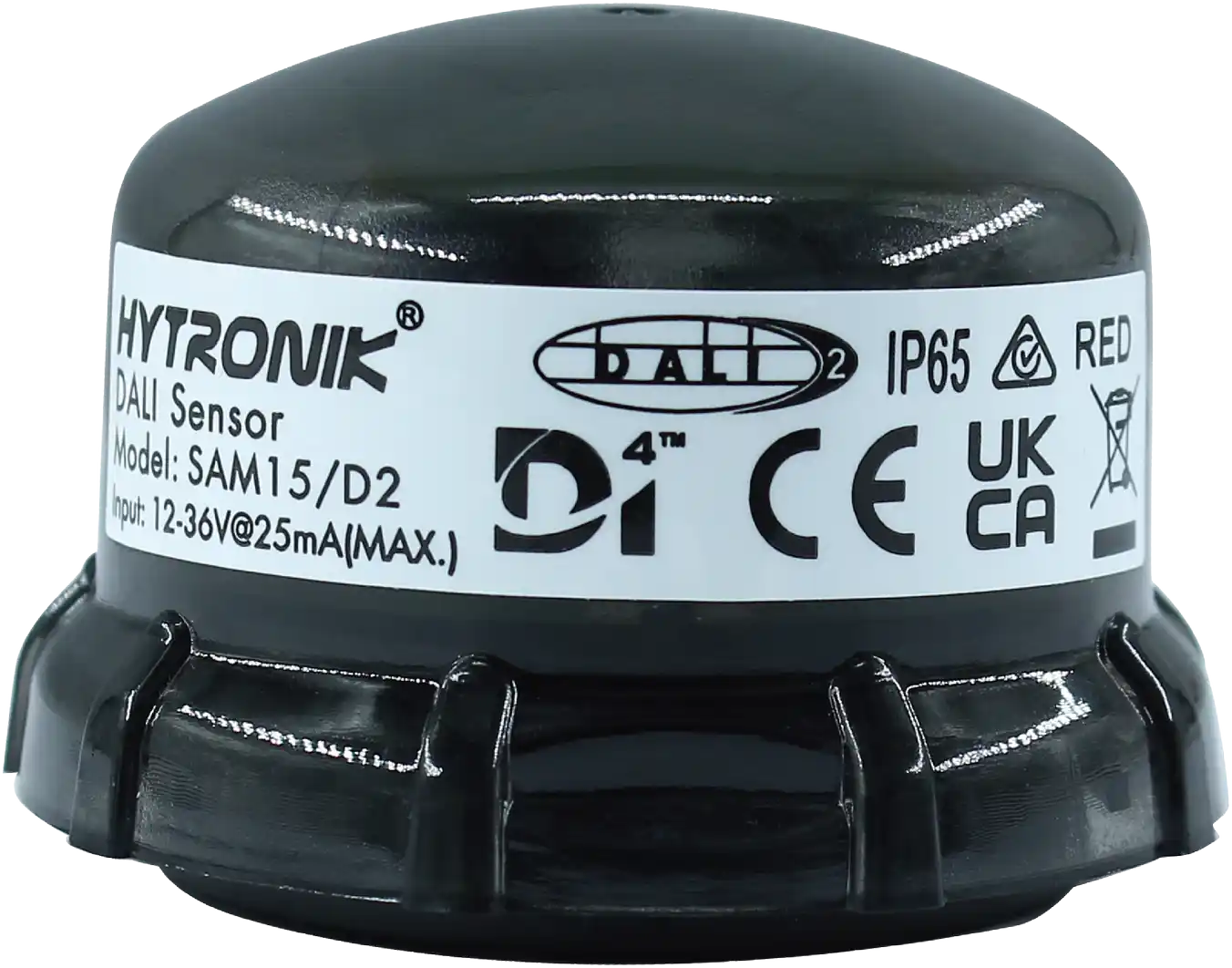

Product information "SAM15/D2"
SAM15/D2 is a high-bay PIR motion sensor with IP65 protection and up to 15m mounting height, ideal for industrial and outdoor applications. It is compatible with Zhaga Book 18 for tool-free installation into various luminaires. The sensor is D4i certified and complies with the IEC 62386 (2014) standard as a DALI-2 input device. It can be powered by the AUX supply from a D4i driver or luminaire, and also supports an external power supply when no D4i DALI driver is available.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Zhaga book 18 |
| DALI-2 D4i type: | Typ B |
| DALI Bus Current Consumption: | 25.0000 mA |
| Daylight Harvest: | No |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 16x15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Maximum Mounting Height: | 15.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 12-36 VDC |
| Product height: | 35.0000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 33.0000 g |
| Product width: | 43.5000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: sam15-d2.pdf
Installation Manual
User manual: installation-manual-sam15-d2.pdf
