Active / Make to Stock
SAM15
DALI HF Highbay | Built-in PSU | Zhaga Book 18 Standard
BENEFITS
- Standardized: Zhaga Book 18 with IP65 for reliable highbay integration
- Integrated: Built-in 30mA DALI PSU simplifying system wiring
- Simple: Remote control enabling fast commissioning
APPLICATIONS

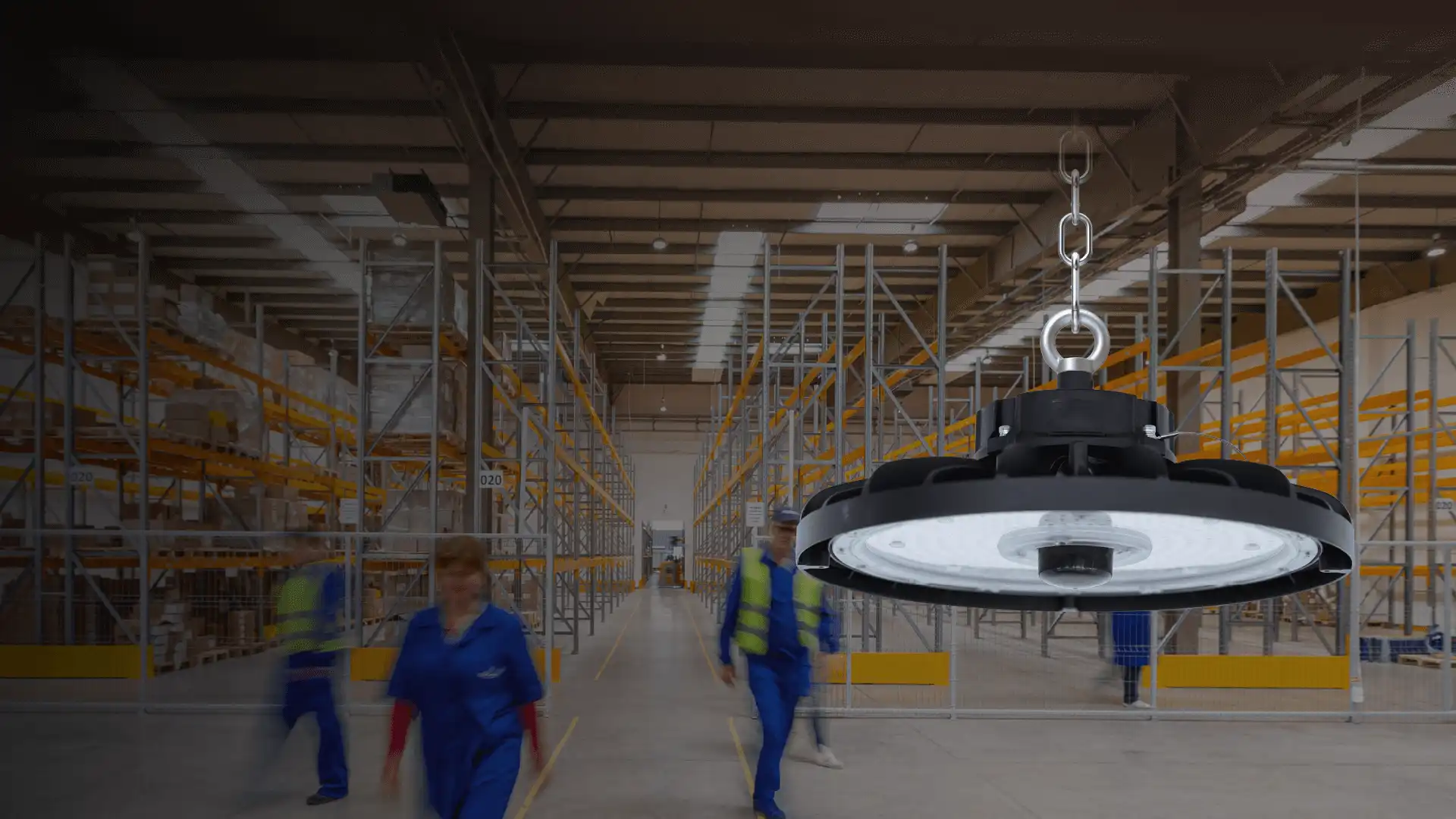

- UFO luminaires with a height of up to 15m
- Warehouse/ Logistic
- Outdoor/Street lights
Product information "SAM15"

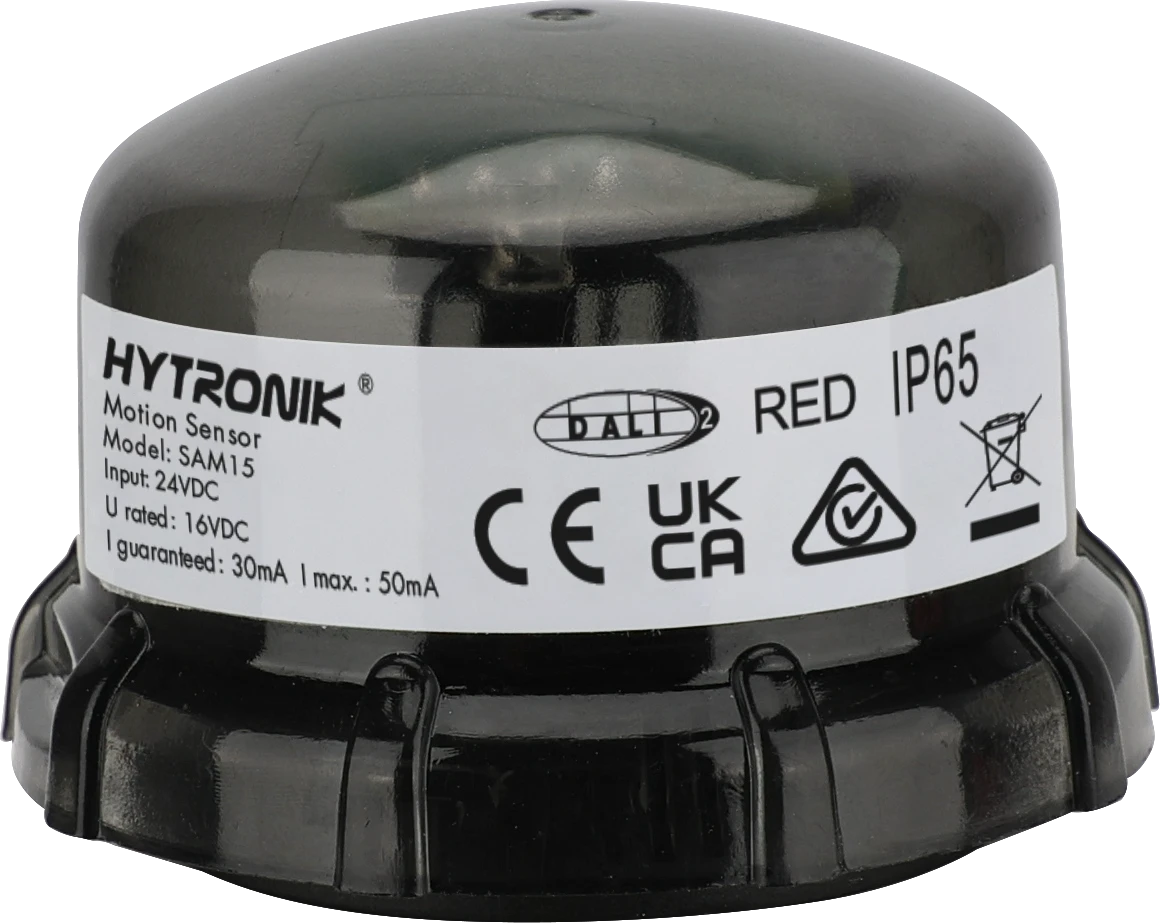

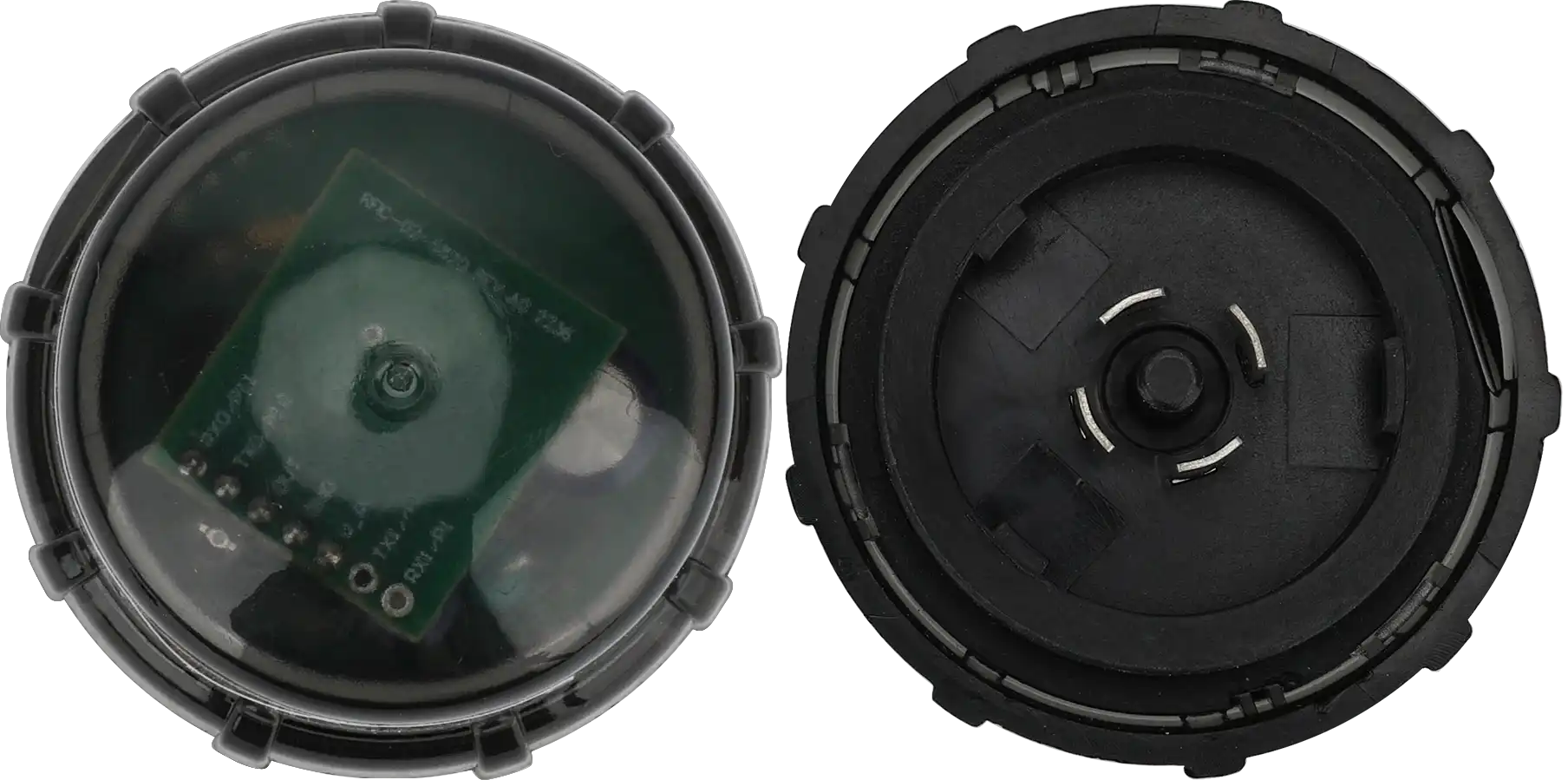

SAM15 is a Zhaga Book 18 compliant high-bay HF motion sensor with integrated 30 mA DALI bus power supply, designed to simplify DALI system deployment for industrial and outdoor lighting applications. Supporting dimming and daylight control, it features dual photocell technology for more accurate daylight sensing. With IP65 protection and a typical mounting height of up to 15 m, it is well suited for demanding high-bay environments. The integrated DALI PSU eliminates the need for an external power supply, reducing installation complexity and system cost. All parameters can be configured easily via remote control for fast commissioning.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Zhaga book 18 |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photocell Advance |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20×15 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Daylight Harvest, Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP65 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | High-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Operating voltage range: | 24VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 35.0000 mm |
| Product length: | 50.8000 mm |
| Product weight: | 33.0000 g |
| Product width: | 50.8000 mm |
| Sensitivity: | 10% /50% / 75% / 100% |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: sam15.pdf
Installation Manual
User manual: installation-manual-sam15.pdf
