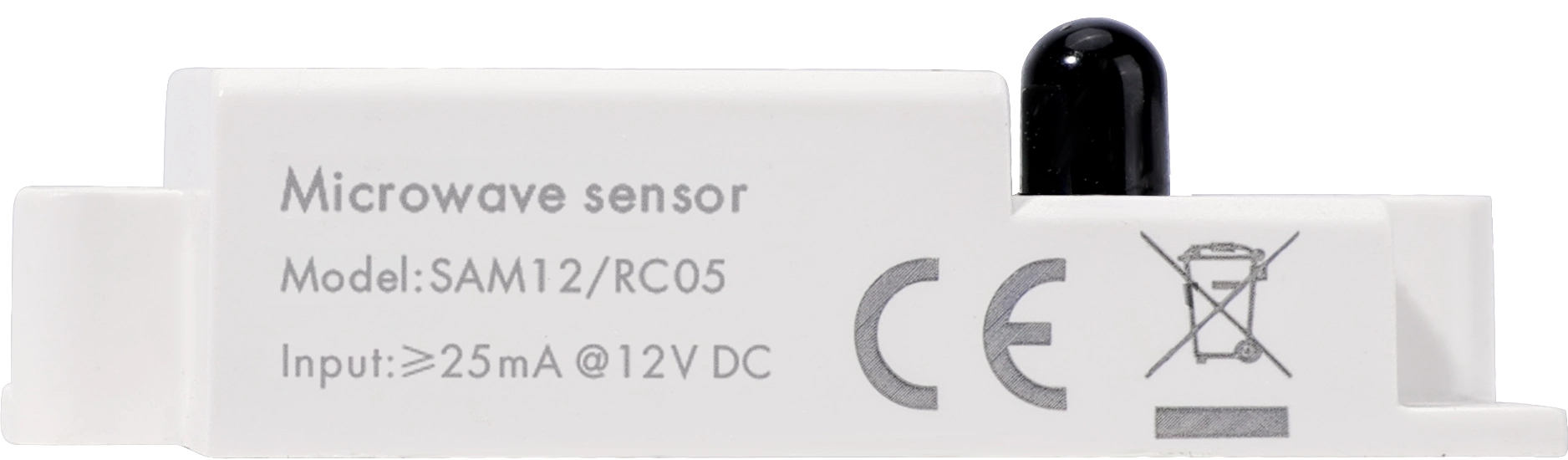

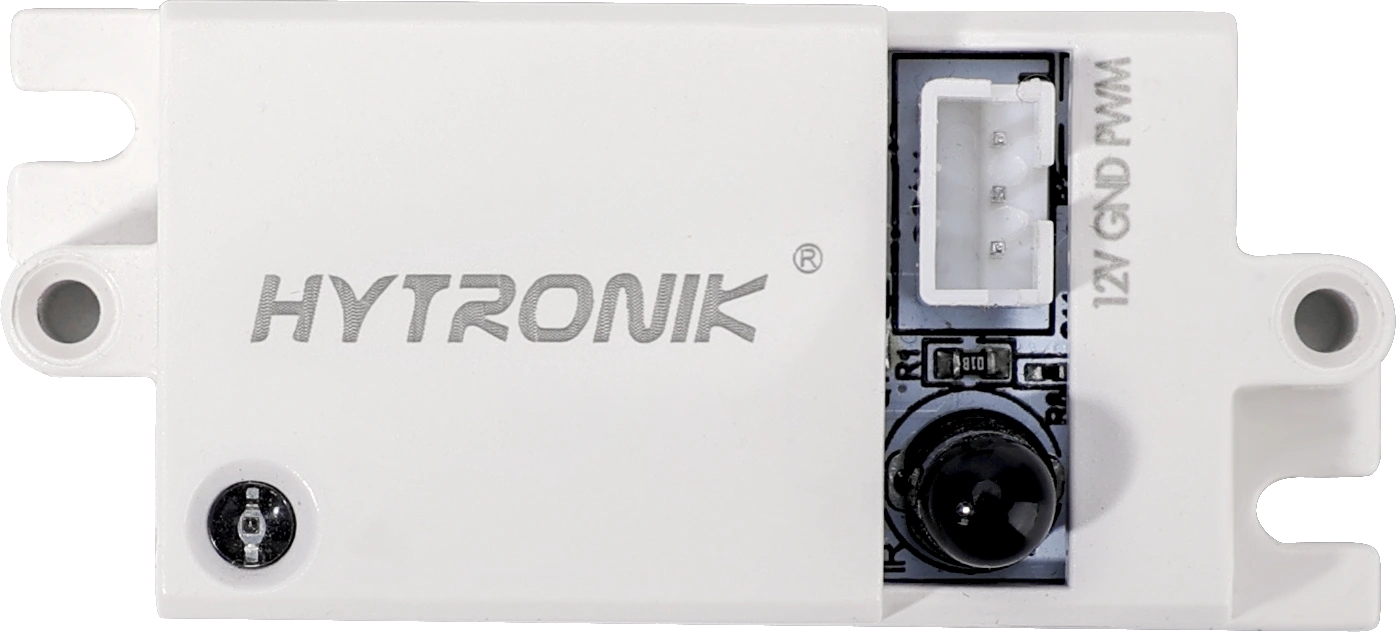

SAM12/RC05
HF Lowdbay VDC | Tri-level dimming/1-10V | IDC Connector to LED Driver
BENEFITS
- Compact: Standard rectangular Plug&Play sensor design
- 3 in 1: 12VDC input + tri-level dimming + 1-10V output
- User-Friendly: With one-key commissioning with IR controller
APPLICATIONS
- Master luminaire with sensor
- Classrooms
- Offices
Product information "SAM12/RC05"
SAM12/RC05 is a sensor head only with 12VDC input and 5V 1kHz
PWM / 1-10V output, it ‘s ready to be integrated into a third-party LED
driver, no control base needed. It is suitable for bulkhead, tri-proof, LED
panel, linear, pendant, high-light.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 30° - 150° |
| Detection range (Diameter): | 10x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 2.5000 mm |
| Operating voltage range: | 12DVC |
| Product height: | 12.5000 mm |
| Product length: | 50.5000 mm |
| Product weight: | 34.0000 g |
| Product width: | 22.5000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | No |
Datasheets
Product datasheet: sam12-rc05.pdf
