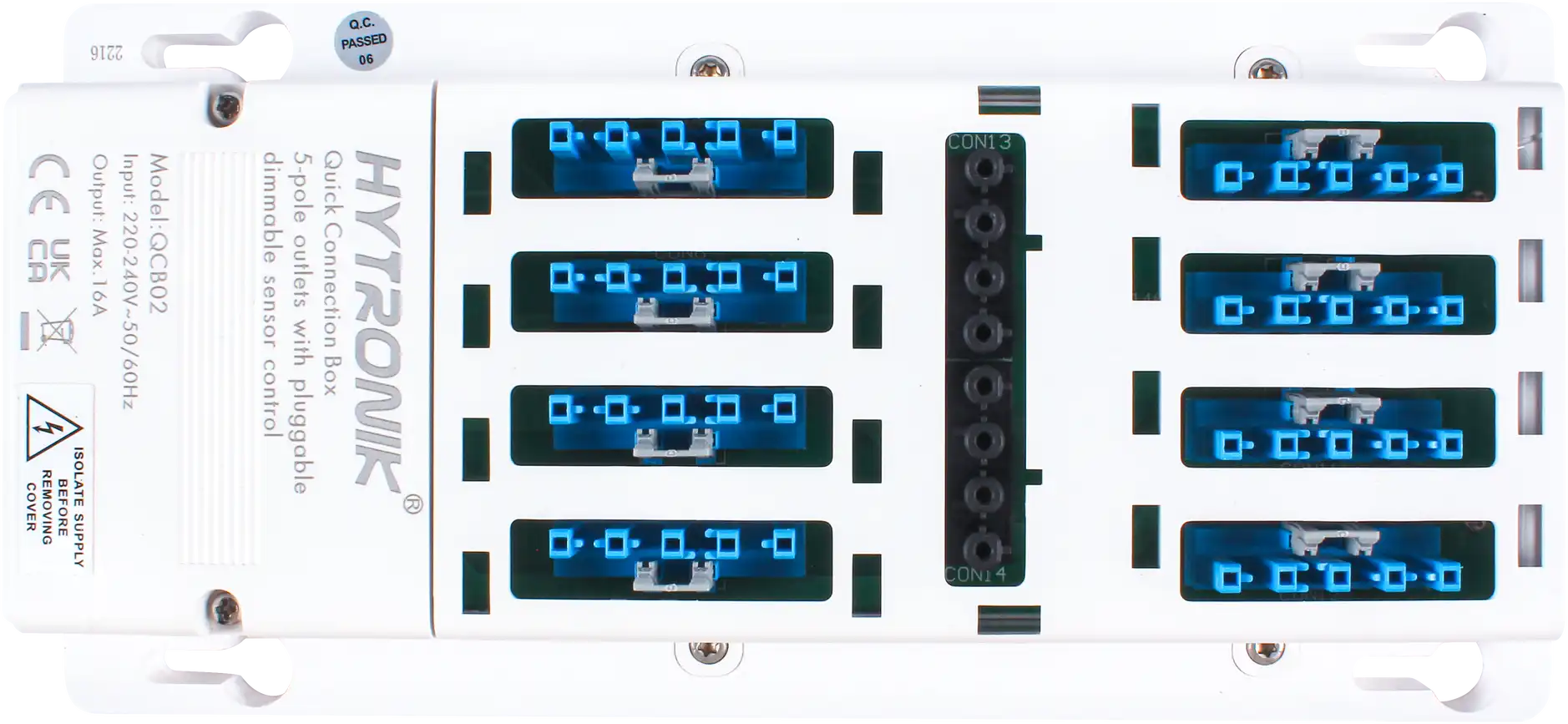

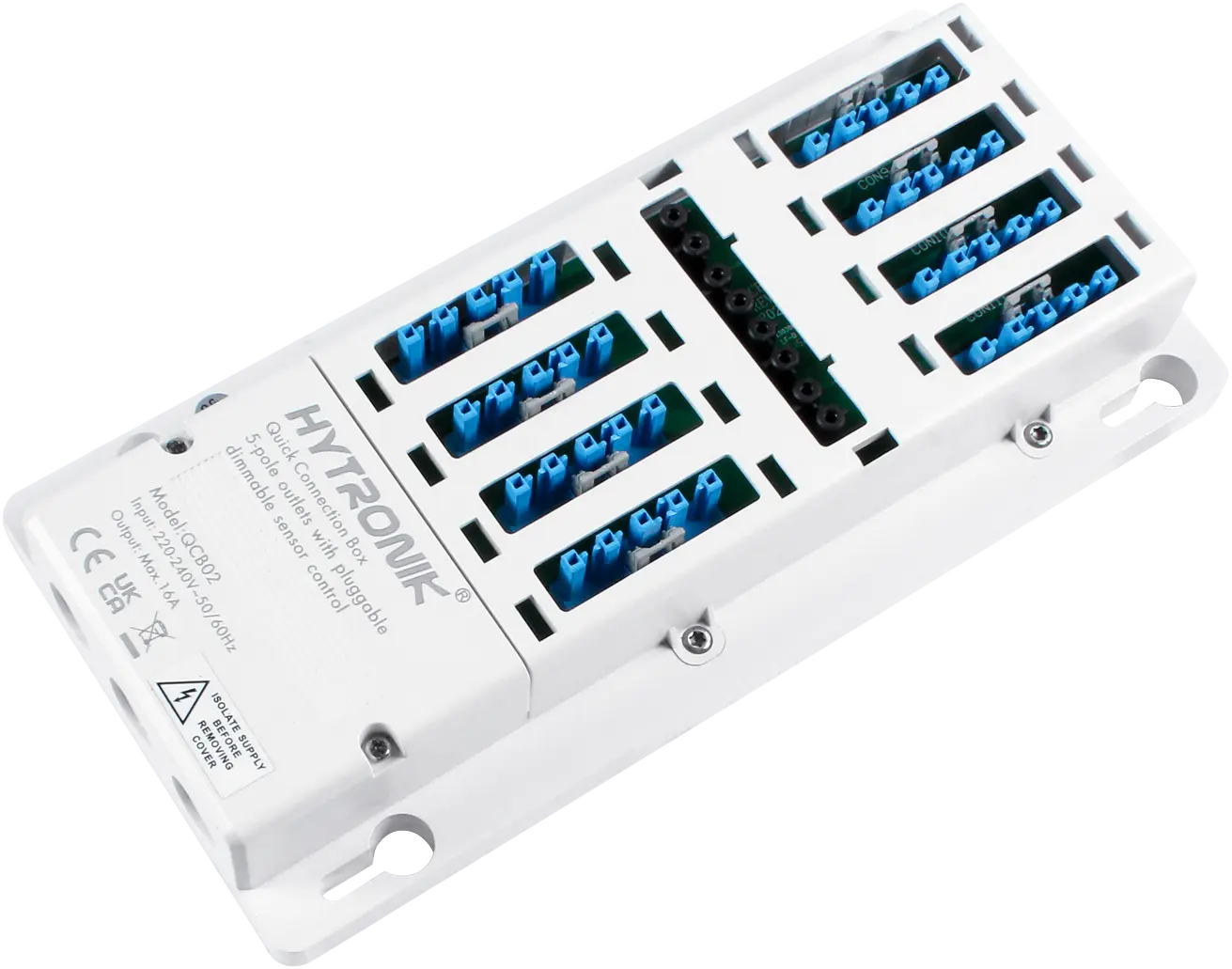

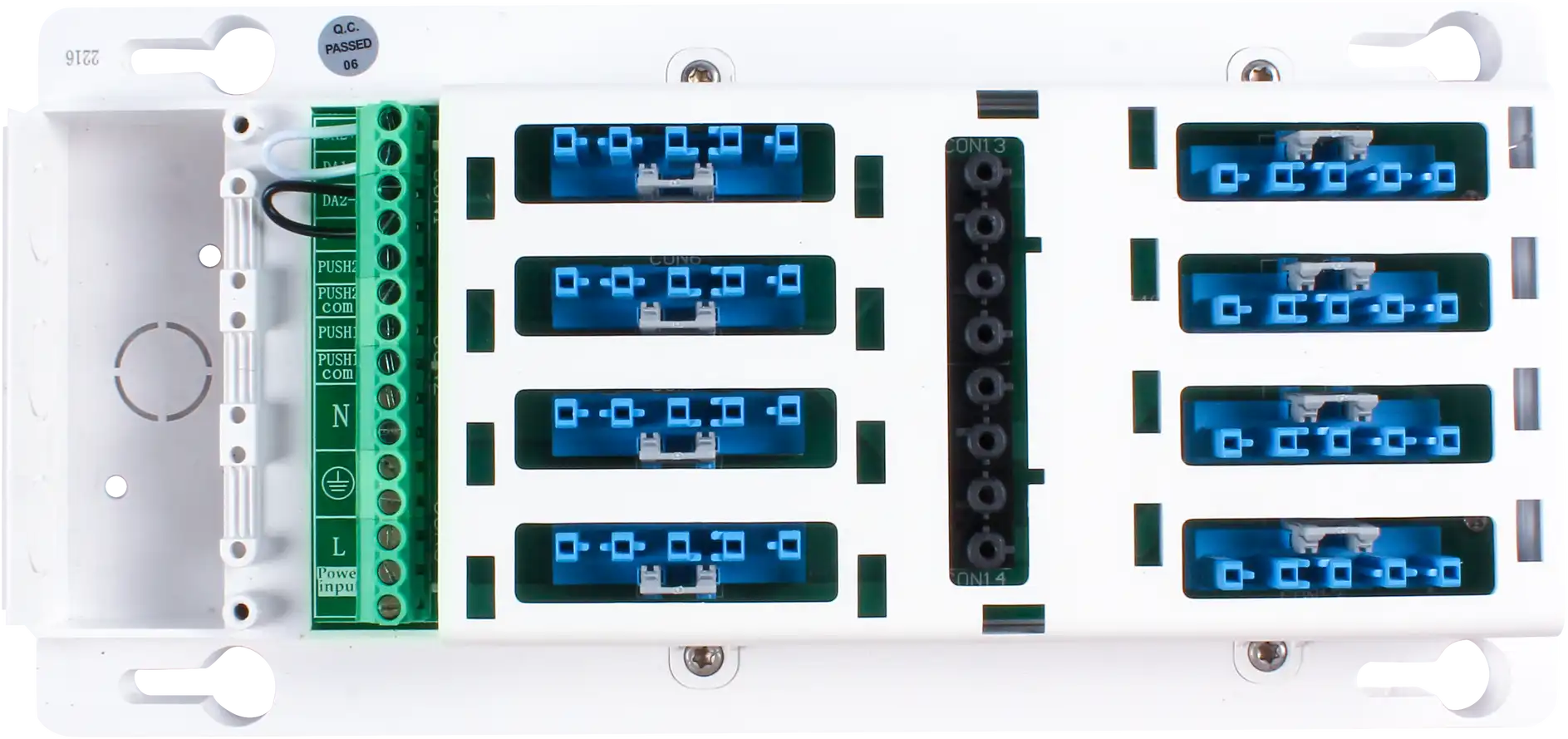

QCB02
Quick Connection Box | DALI/DALI2 | GST Types 5-poles x 8 lum. + 1 sensor
BENEFITS
- Robust: 5-poles terminals with 2 individual channels
- Clean: Reduce wiring labour hours and improve safety
- Efficient: DALI/DALI-2 control for 8 luminaires with 1 sensor
APPLICATIONS
- Remote ceiling wiring
- Classrooms
- Offices
Product information "QCB02"

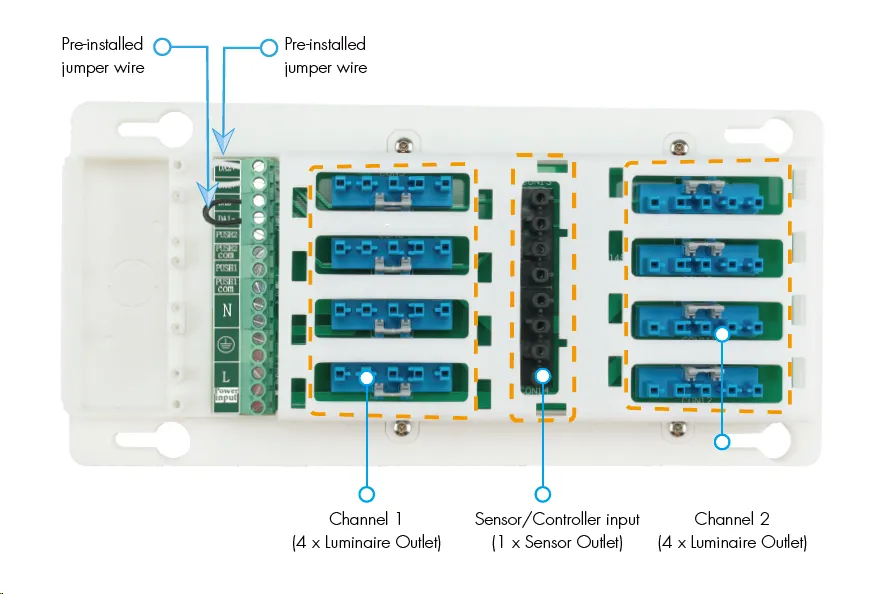

GST type 5-pole terminal base quick connection box for dimming application, with DALI or DALI-2 output, 8 luminaire outlets and 1 sensor outlet. Freely switch between1-channel and 2-channel control. Rating of system 16A, rating of each output 10A.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Category - Modular Wiring Systems: | Dual-Circuit Connection Boxes |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Mounting hole: | 20.0000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Output Voltage: | 220~240VAC 50/60Hz |
| Product Status: | Discontinued / Obsolete |
| Product height: | 45.0000 mm |
| Product length: | 299.5000 mm |
| Product weight: | 620.0000 g |
| Product width: | 143.5000 mm |
| Push Button Input: | 2 |
| Storage temperature max.: | 60 °C |
| Storage temperature min.: | -20 °C |
| Zhaga: | No |
Datasheets
Product datasheet: qcb02.pdf
Login

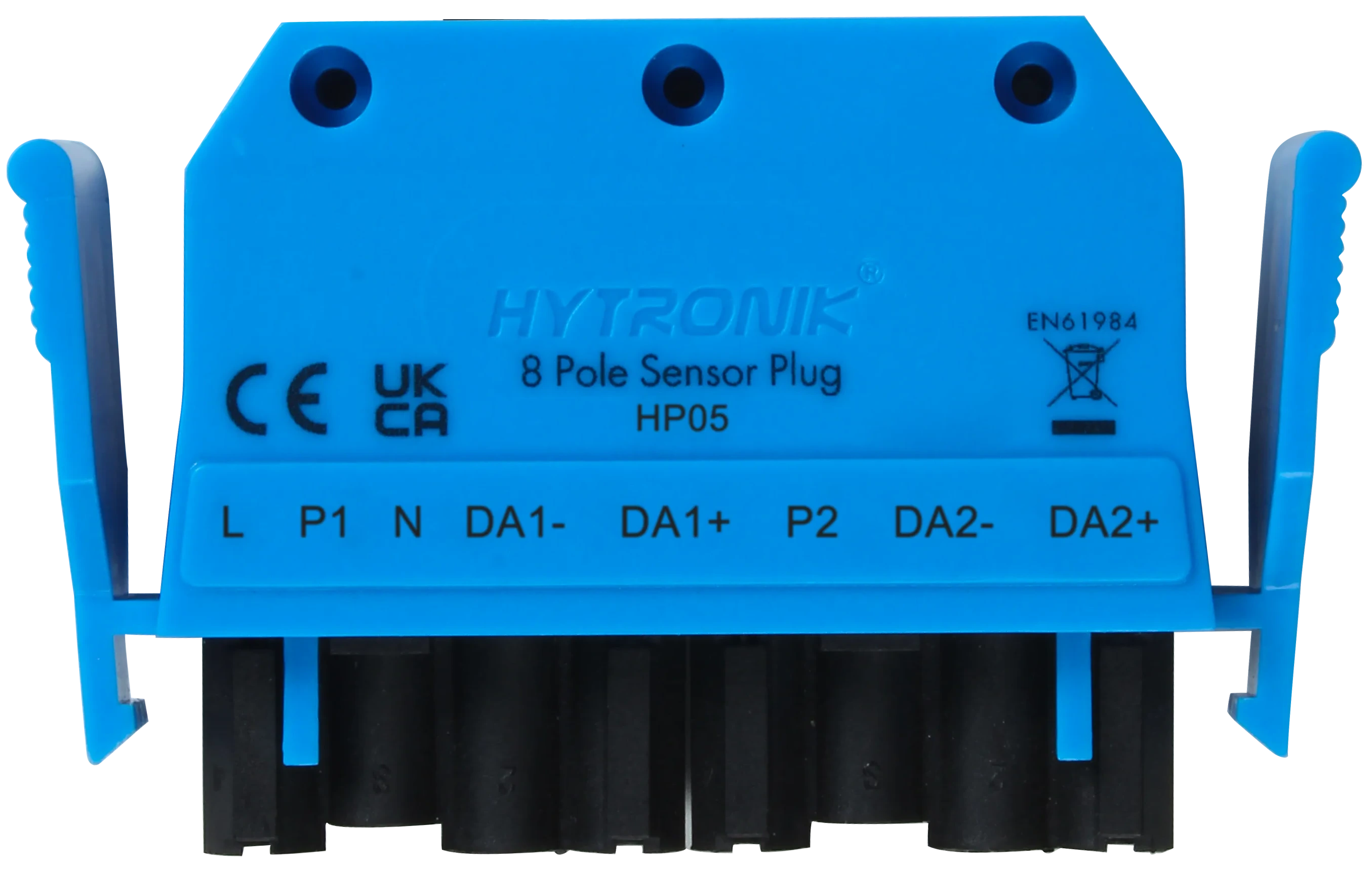

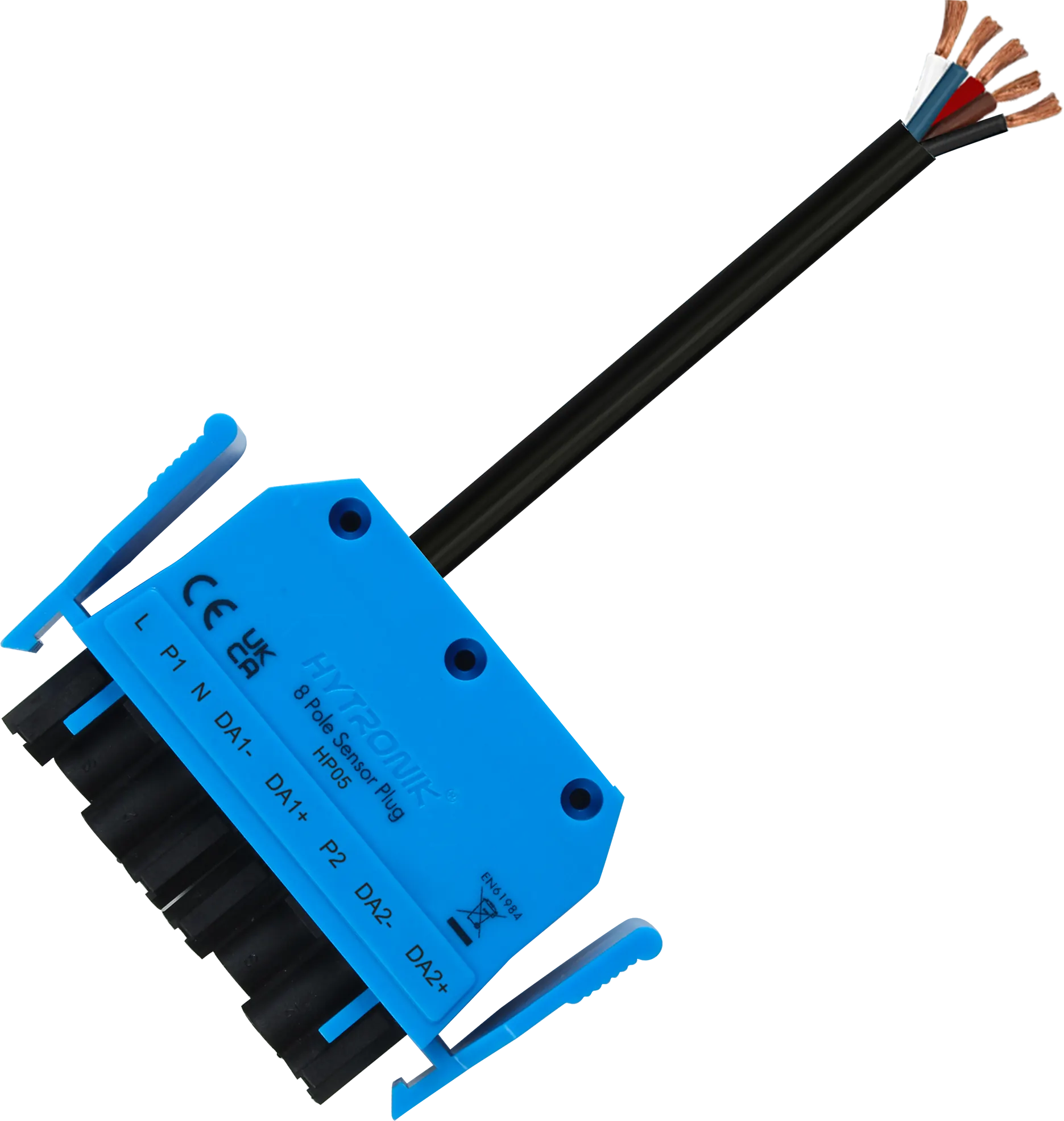

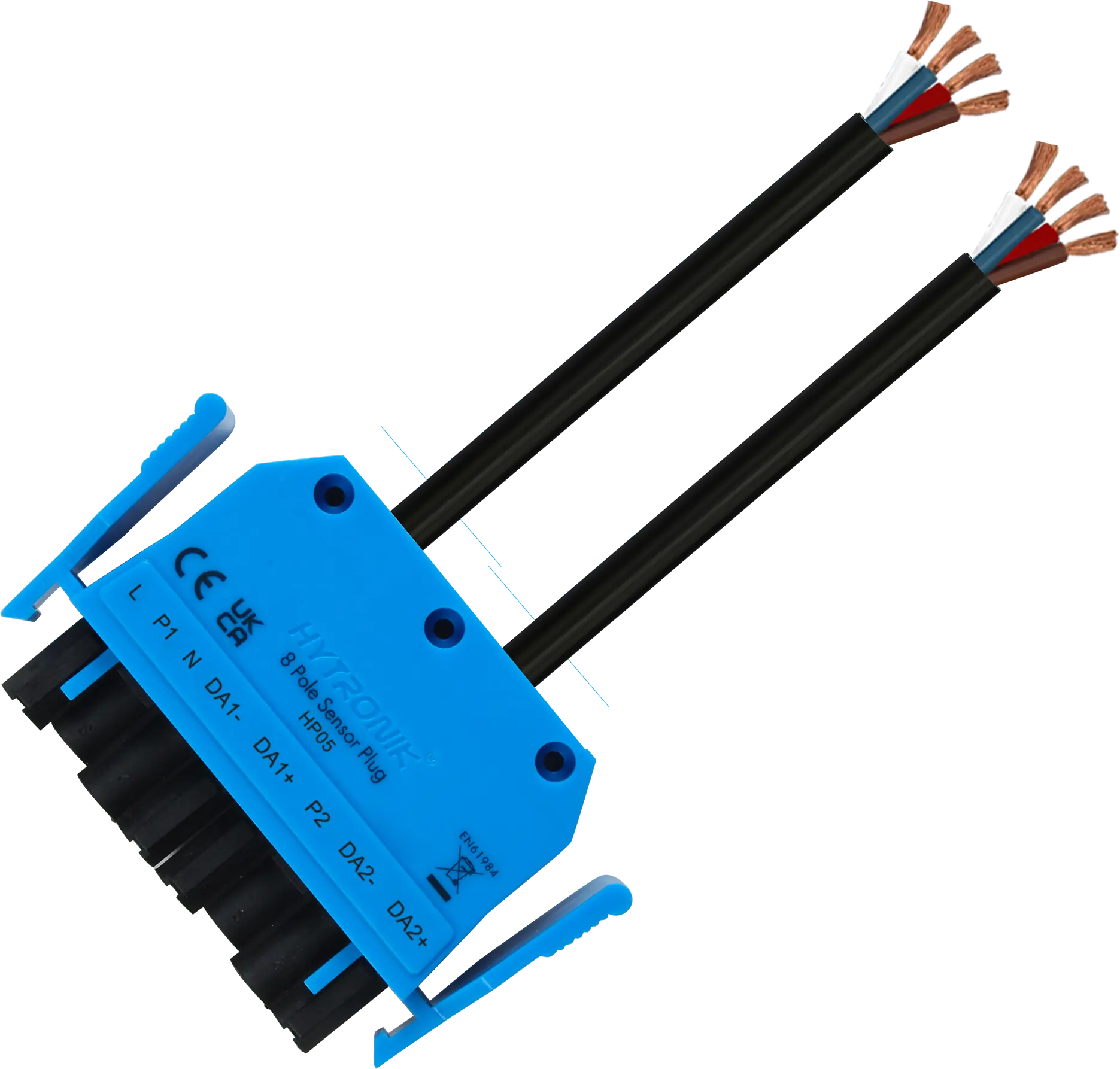

Compatible products (for full functionality)
