HTG01
Real-time Keeper | Bluetooth Repeater Module | Junction box
BENEFITS

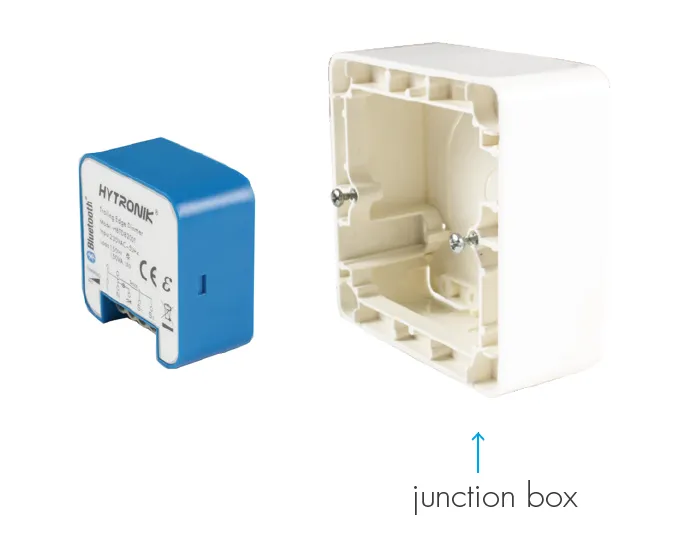

- Tiny: Fits in many mounting boxes
- Versatile: Bluetooth signal extension and real-time chip
- Convinient: Accurate timekeeping for up to 12 weeks during power loss
APPLICATIONS
- Warehouses, manufacturing plants
- Sites with general on/off cycles
- Large areas with "signal dead spots"
Product information "HTG01"
HTG01 is a Bluetooth modules with a real-time chip built in that can keep real time running for up to 12 weeks during power loss, which is very convenient for Bluetooth system/network where there is constant need for power on/off. When a product group mesh network is created, the entire network takes HTG01 as the authoritative time.
| Ambient temperature max.: | 60 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz |
| Bluetooth range: | 10-30m |
| Bluetooth system: | Koolmesh |
| Bluetooth technology: | Nordic nRF52832 |
| Bluetooth transmit power: | 4 dBm |
| Category - System Level Components: | Real-time Keeper/Repeater Module |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Operating Voltage: | 120-277 VAC |
| Product height: | 22.0000 mm |
| Product length: | 46.0000 mm |
| Product width: | 46.0000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
