HMW27/AA
HF Lowbay | Tri-level/DALI with PSU | Adjustable Angle
BENEFITS
- Adjustable: Max.,70 degree angle + 360 degree rotatable for detection
- 2 in 1: 80mA DALI power supply built-in + Tri-level control
- User-Friendly: With one-key commissioning via IR controller
APPLICATIONS
- For wall/surface mount application | White & Black Color options
- Corridor, Hallway
- Classrooms, Offices
Product information "HMW27/AA"

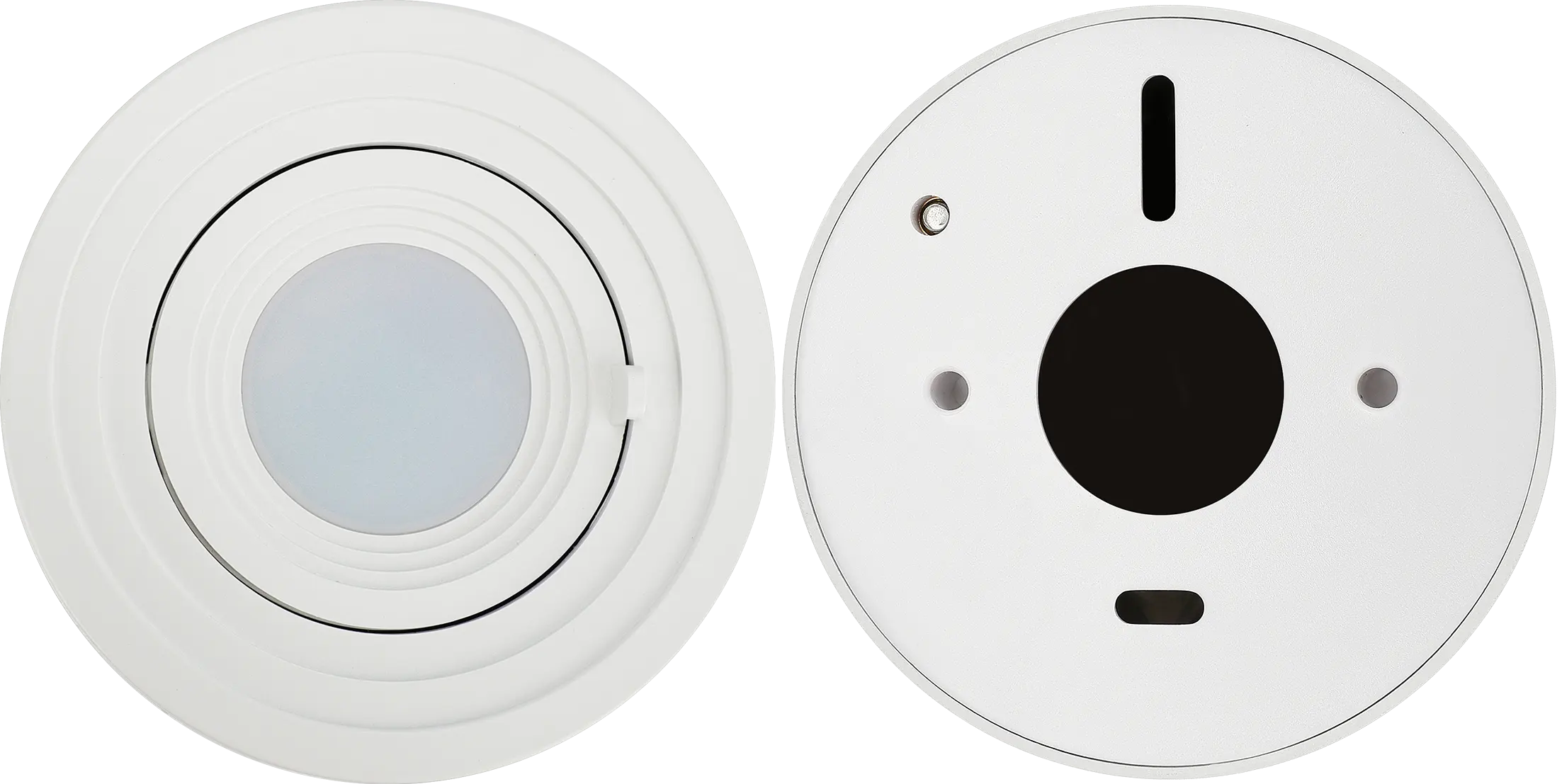

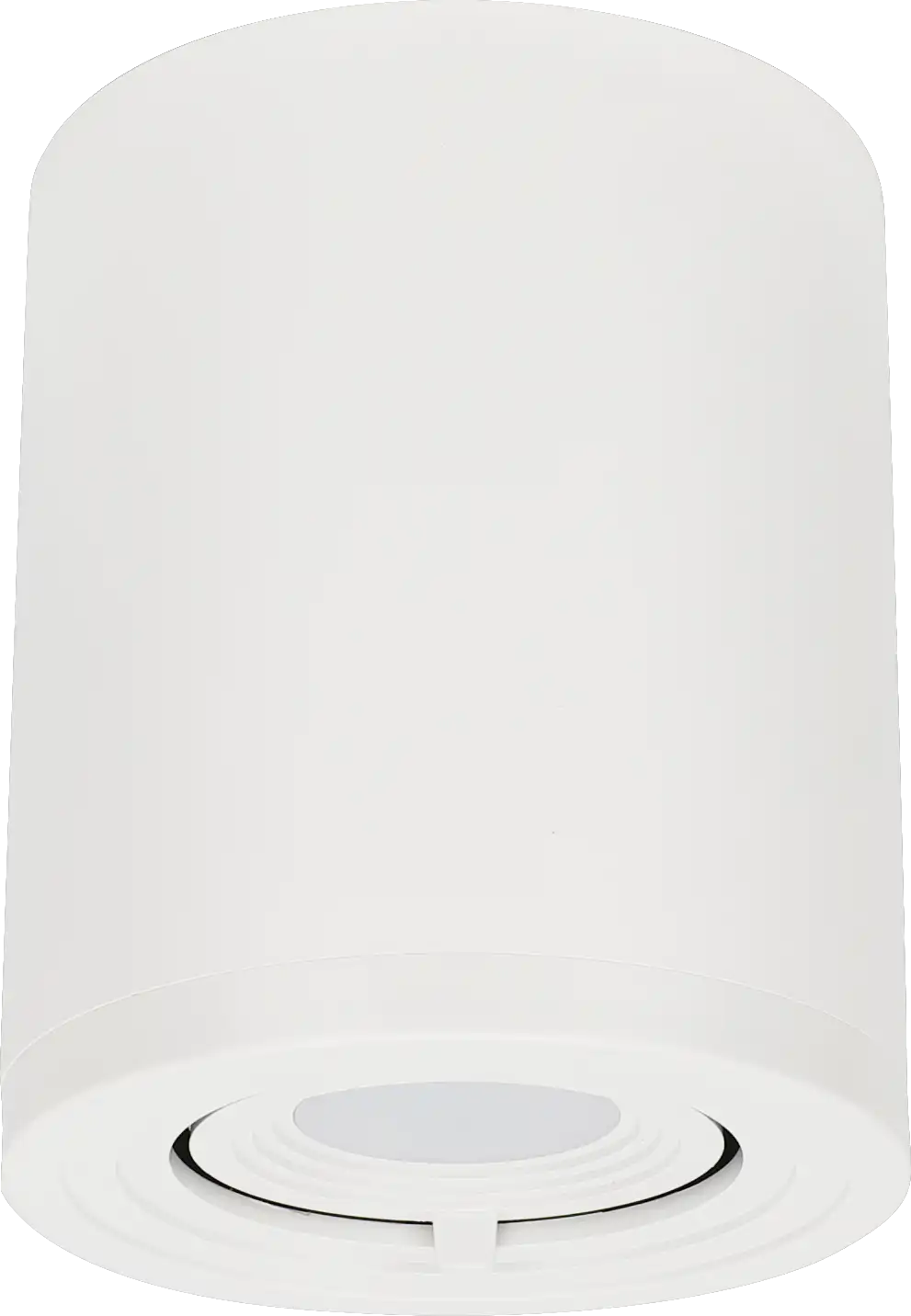

HMW27/AA is a HF standalone motion sensor, with one DALI channel output (80mA DALI power supply built-in). It is designed with a metal surface mount box and the detection angle is adjustable by needs. HMW27/AA is ideal for typical indoor applications such as offices, classrooms, healthcare, and other commercial areas (corridors and
warehouses).
| Ambient temperature max.: | 45 °C |
|---|---|
| Ambient temperature min.: | -15 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Daylight Sensor Option: | Photodiode/Photocell |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 22×2.5 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | Tri-level (Corridor Function) |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 20 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 4.2000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 115.0000 mm |
| Product length: | 94.0000 mm |
| Product weight: | 333.0000 g |
| Product width: | 94.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | Yes |
| Voltage Type: | AC |
| Zhaga: | No |
Datasheets
Product datasheet: hmw27-aa.pdf
