HMW22
HF Lowbay | Daylight Harvest | Ceiling mounting
BENEFITS
- Adaptable: Protection cover for high-voltage terminals
- Simple: Manual Override + Daylight Harvest
- Selectable: Rotatory swith for most common values/via IR controller
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Car parks
- Offices, Industry
Product information "HMW22"

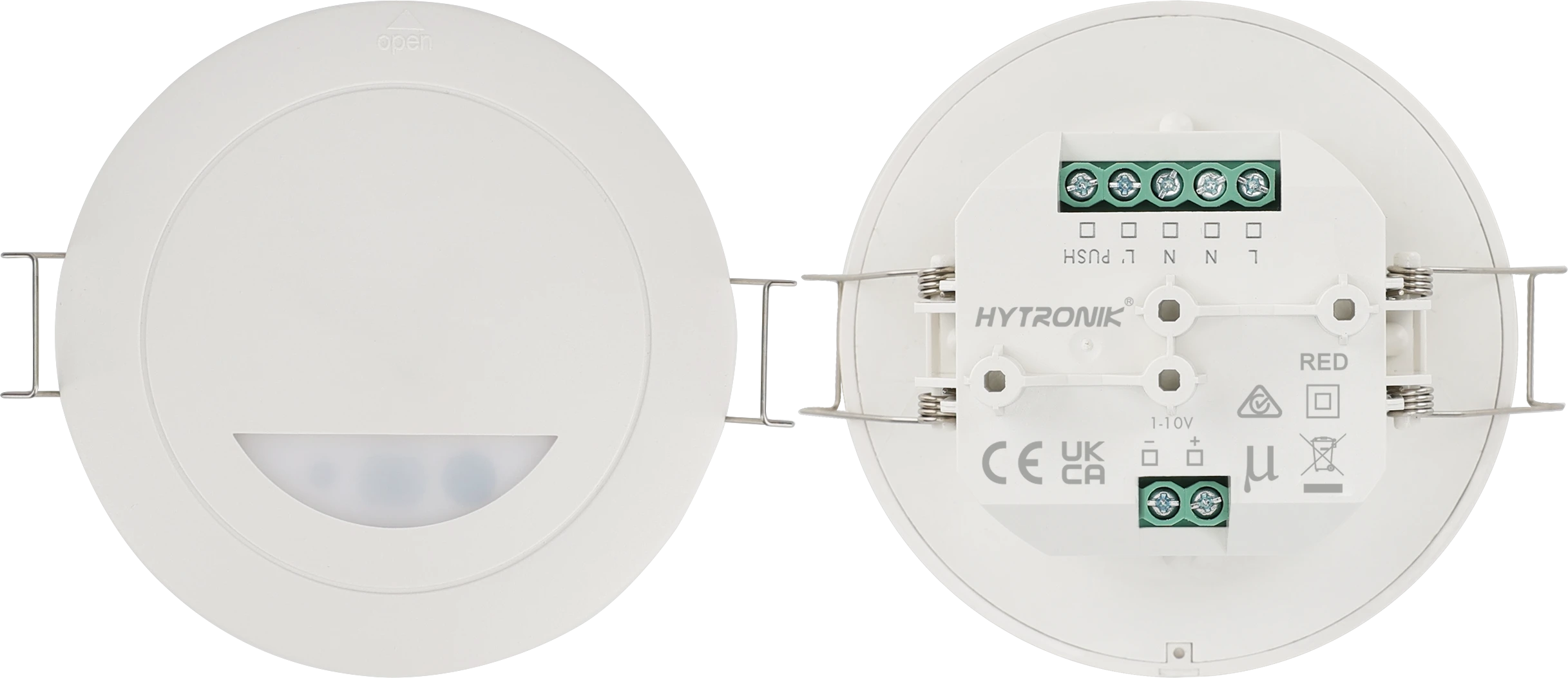

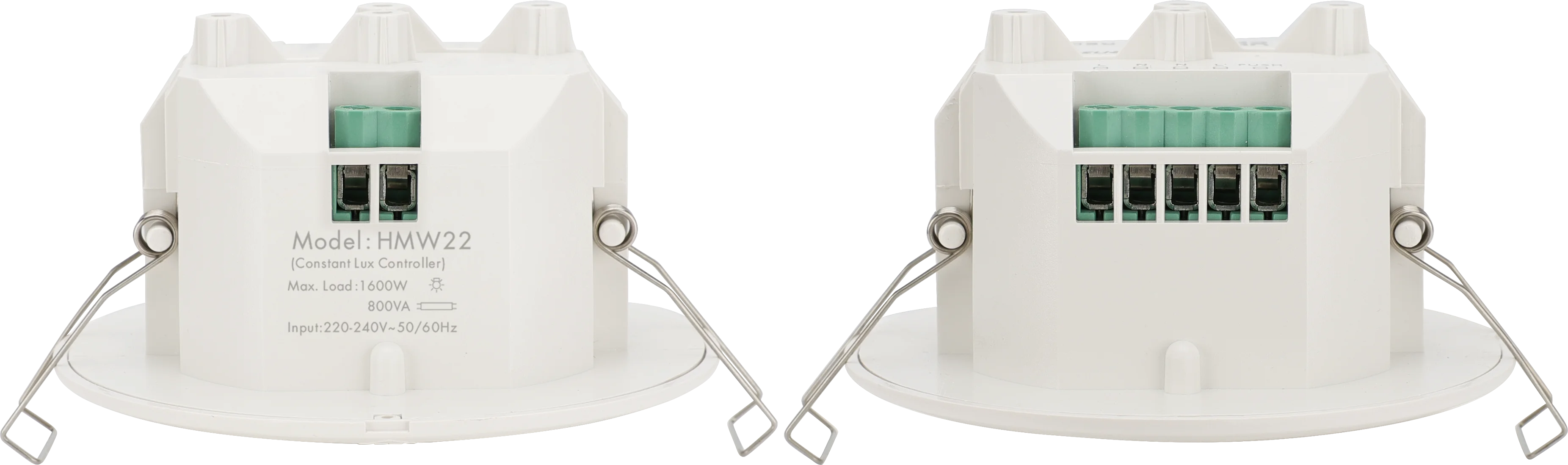

HMW22 is a stand-alone HF motion sensor equipped with daylight harvesting capability, enhanced by remote control for convenient management.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | IR Remote Controller |
| Connector Type: | Standard 2 cables |
| Daylight Harvest: | Yes |
| Detection Methods: | Microwave (MW) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x6 |
| Dimming (Output) Interface: | 1-10V |
| Features: | Daylight Harvest |
| HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Stand-alone |
| Load capacitive: | 800.0000 VA |
| Load resistive: | 1600.0000 W |
| Maximum Mounting Height: | 6.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 64.7000 mm |
| Operating voltage range: | 220-240 VAC 50/60 Hz |
| Product height: | 73.3000 mm |
| Product length: | 85.0000 mm |
| Product weight: | 96.0000 g |
| Product width: | 85.0000 mm |
| Push Button Input: | 1 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | AC |
| Warming-up: | 20 s |
| Zhaga: | No |
Datasheets
Product datasheet: hmw22.pdf
