HMW20
HF Lowbay | ON/OFF | Ceiling mounting
BENEFITS
- Adaptable: Protection cover for high-voltage terminals
- Autonomous: On/off occupancy control for up to 1200W
- Selectable: Rotatory swith for most common values/via IR controller
APPLICATIONS
- Remote ceiling or surface mounting (with accessory)
- Car parks
- Offices, Industry
Product information "HMW20"

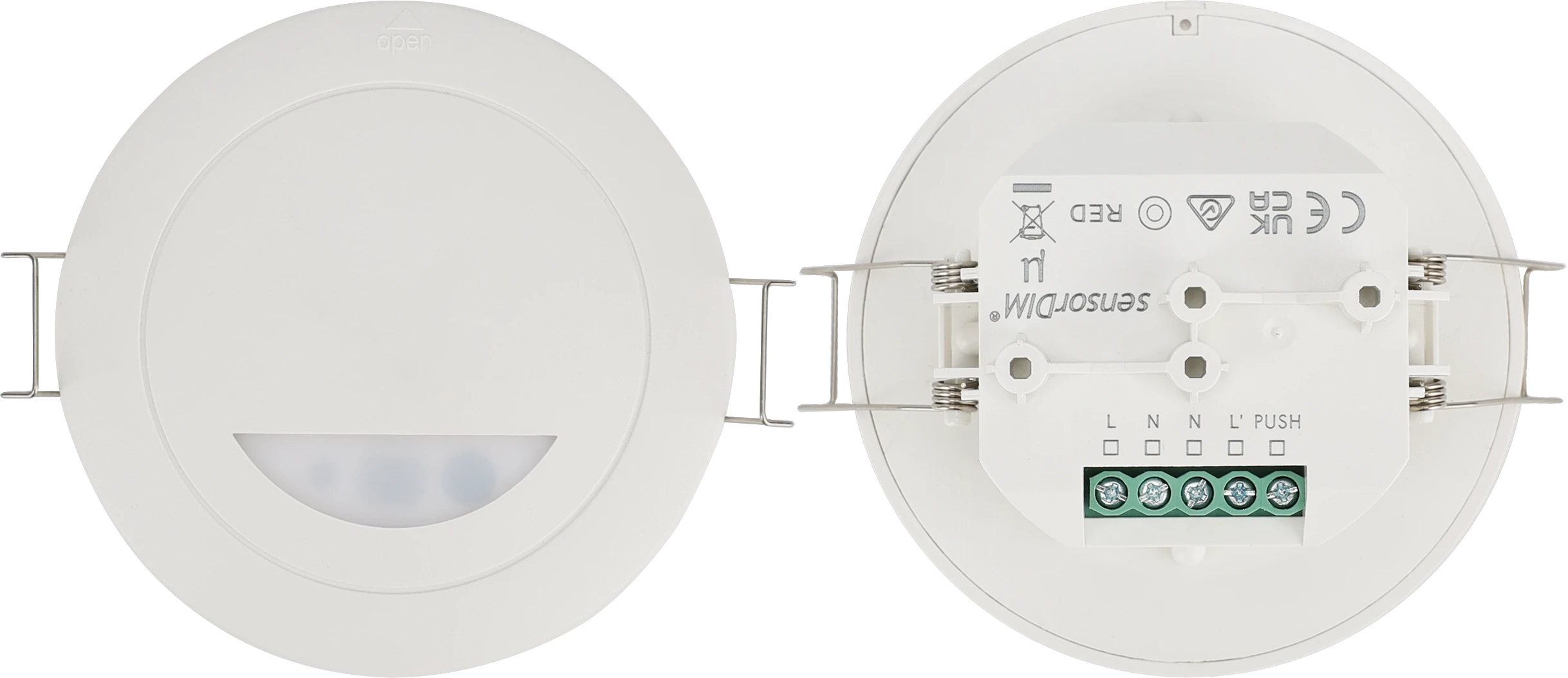

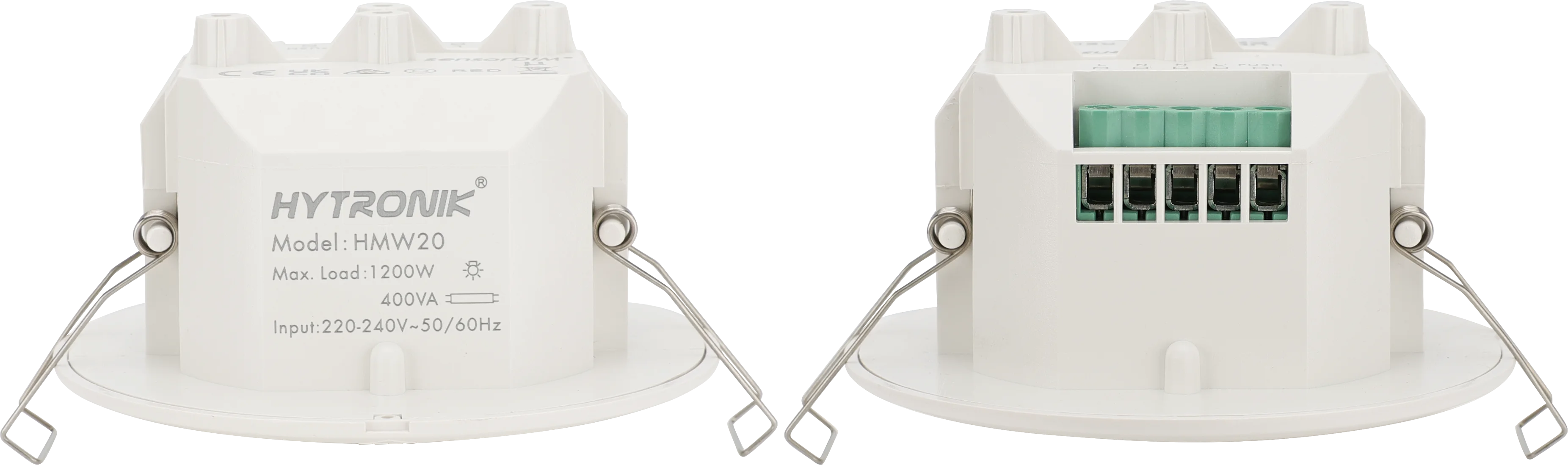

HMW20 is a stand-alone HF motion sensor that provides reliable on/off control. It is equipped with remote control functionality, allowing for convenient and flexible operation adjustments.
Ambient temperature max.: | 50 °C |
---|---|
Ambient temperature min.: | -20 °C |
Commissioning Methods: | IR Remote Controller |
Connector Type: | Standard 2 cables |
Daylight Harvest: | Yes |
Daylight Sensor Option: | Ordinary Photodiode/Photocell |
Detection Methods: | Microwave (MW) |
Detection angle: | 360° |
Detection range (DxH): | 12x6 |
Dimming (Output) Interface: | Relay On/Off |
HF operating frequency (Ghz): | 5.8Ghz+/-75MHz |
Human Centric Lightning (HCL): | No |
Humidity max: | 90 % |
Humidity min: | 10 % |
IP Rate: | IP20 |
Installation Type: | Stand-alone |
Lens type: | Standard Low-bay |
Maximum Mounting Height: | 6.0000 m |
Mounting Height: | Low-bay |
Mounting hole: | 70.0000 mm |
Operating Voltage: | 220-240 VAC 50/60 Hz |
Product height: | 65.0000 mm |
Product width: | 85.0000 mm |
Push Button Input: | 1 |
Storage temperature max.: | 70 °C |
Storage temperature min.: | -40 °C |
Tri-level (Corridor function): | No |
Voltage Type: | AC |
Warming-up: | 20 s |
Zhaga: | No |
