HIR61/TK
DALI-2 PIR Lowbay | DALI Input Device | 6 Wires 3 Circuits
BENEFITS
- Compact: Enabling flexible track installation
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: 3-phase dial for phase selection
APPLICATIONS

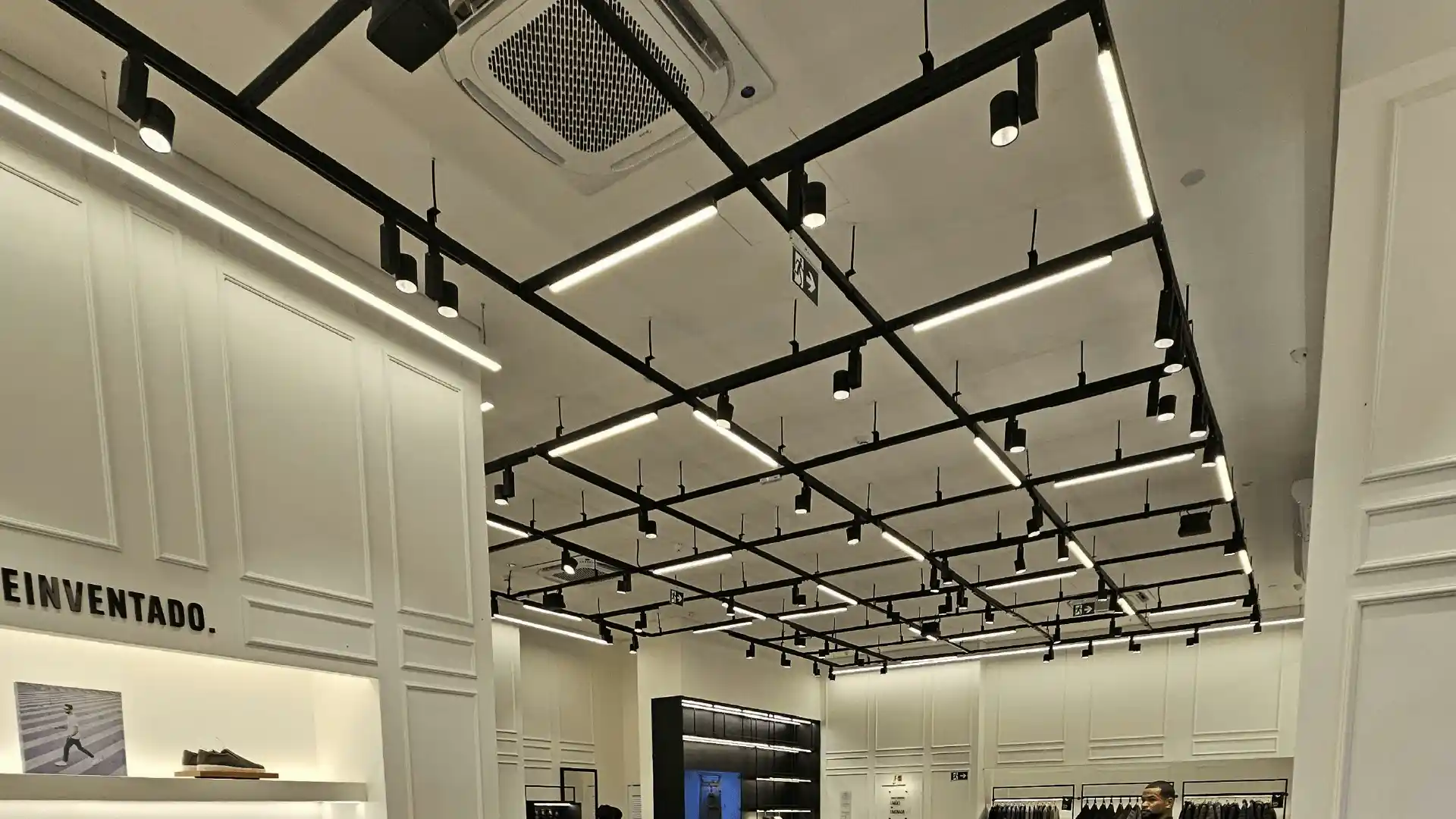

- DALI track light system
- Offices, Retail stores, Warehouse
- Museums, Galleries
Product information "HIR61/TK"

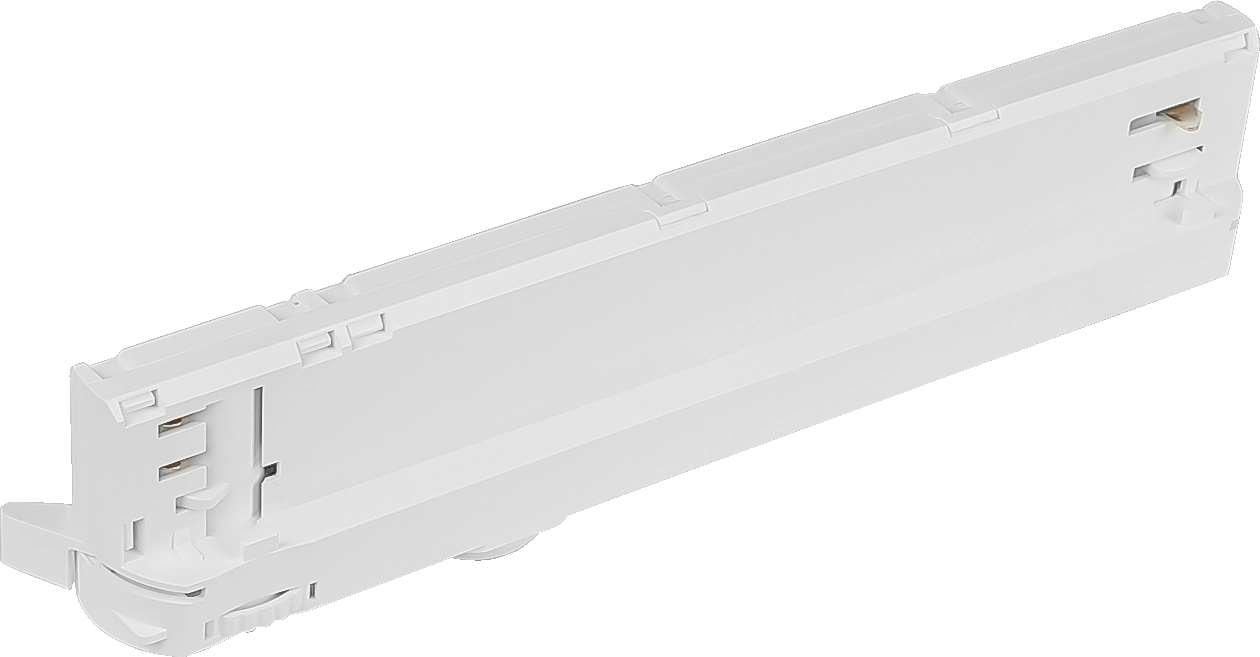

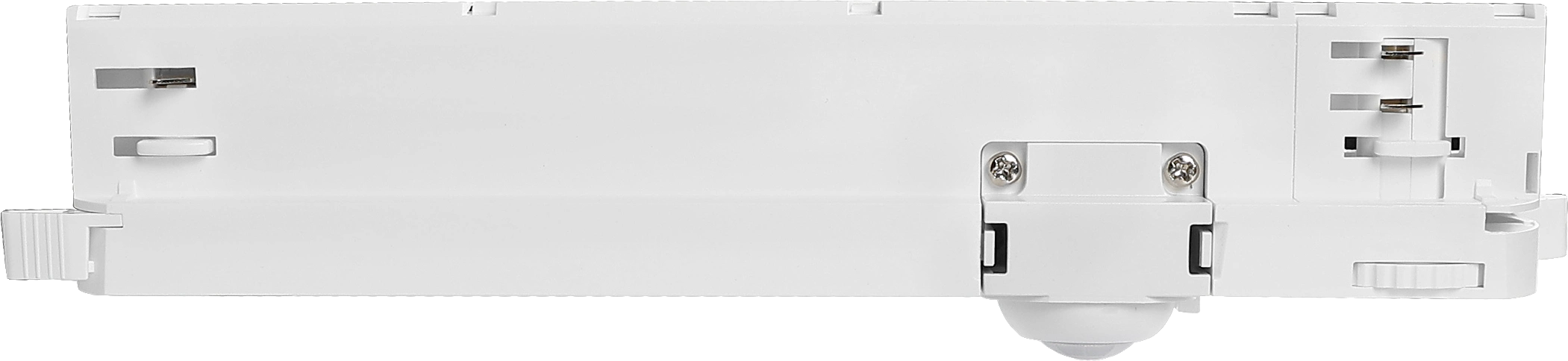

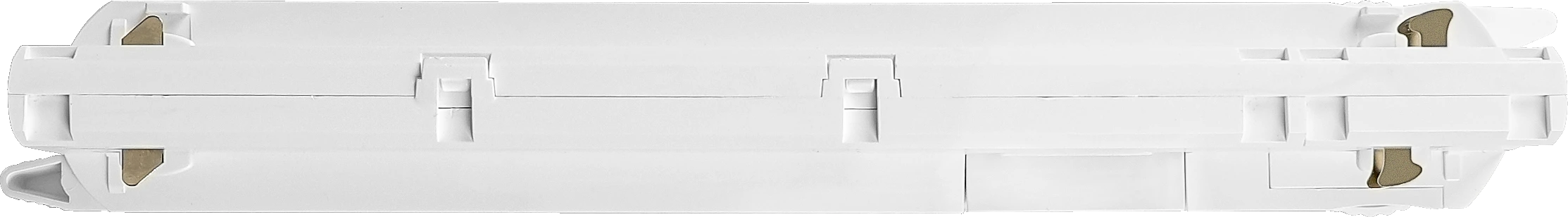

HIR61/TK is a DALI-2 PIR motion sensor for DALI track systems with a 3-phase dial, functioning as a DALI input device. It integrates a DALI-2 module, PIR motion sensor, and daylight sensor, allowing flexible installation without affecting the track luminaire design, suitable for retrofit upgrades and new projects. Installation is simple, requiring only insertion into the track without extra wiring, improving project efficiency and reducing installation complexity.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Standard 2 cables |
| DALI-2 D4i type: | Typ B |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Track Light |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Operating Voltage: | 9.5-22.5 VDC |
| Product height: | 53.0000 mm |
| Product length: | 261.6000 mm |
| Product weight: | 94.0000 g |
| Product width: | 31.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 5 s |
| Zhaga: | No |
Datasheets
Product datasheet: hir61-tk.pdf
