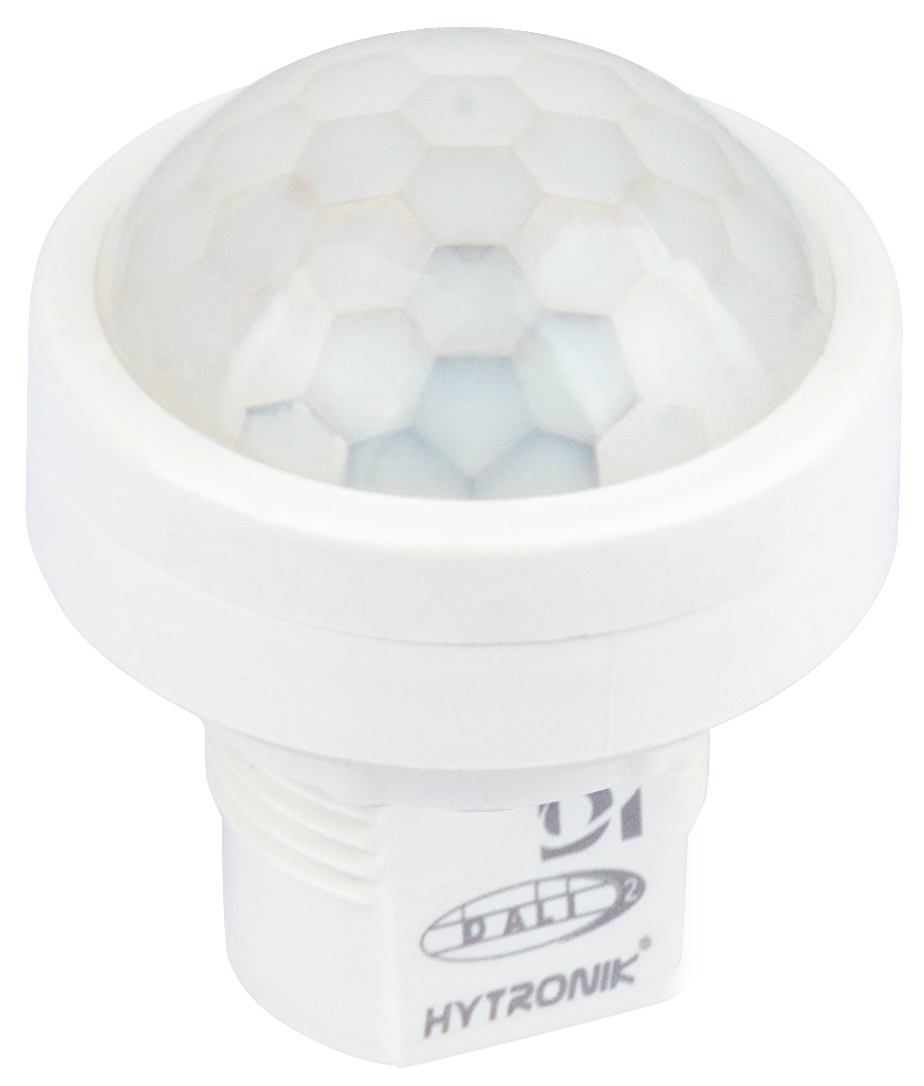

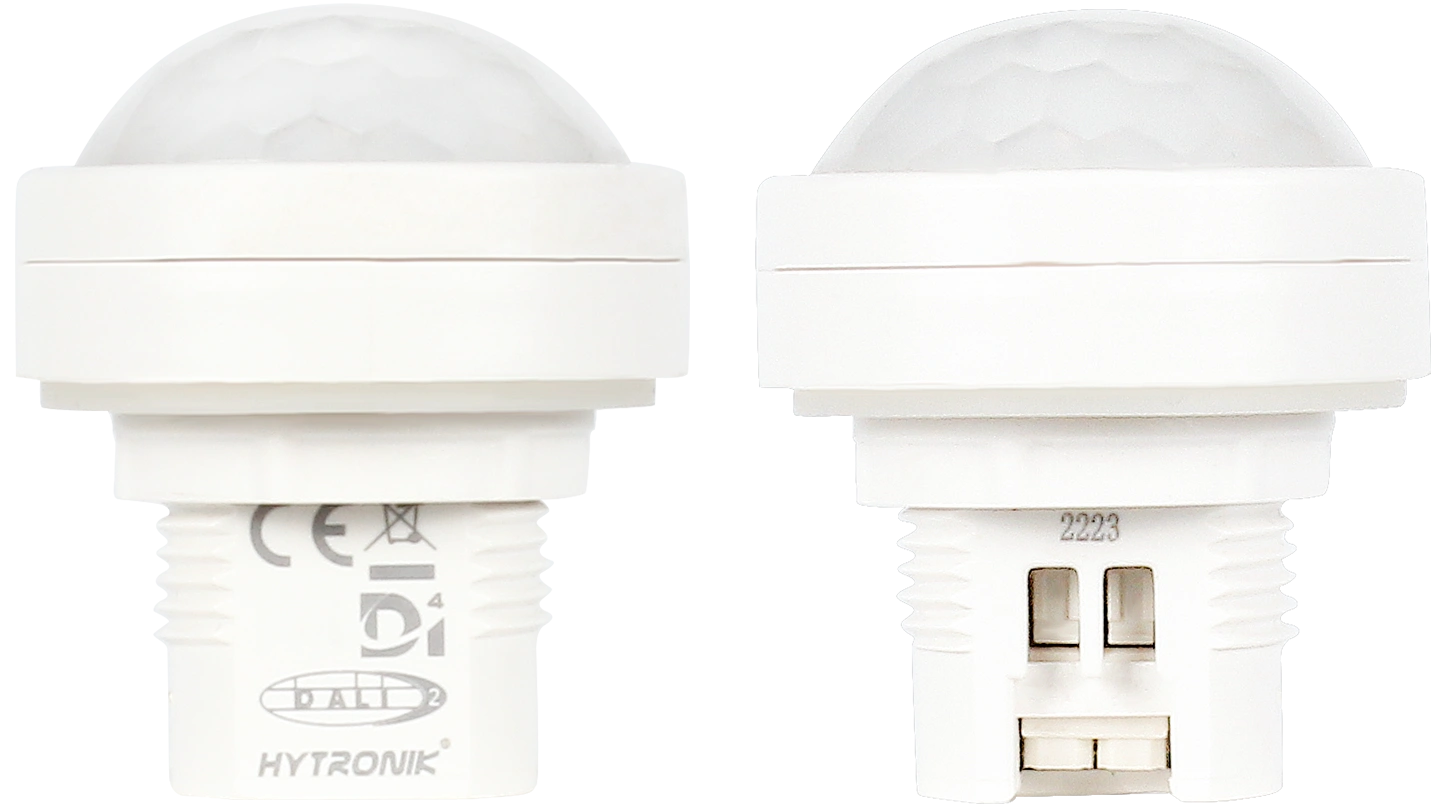

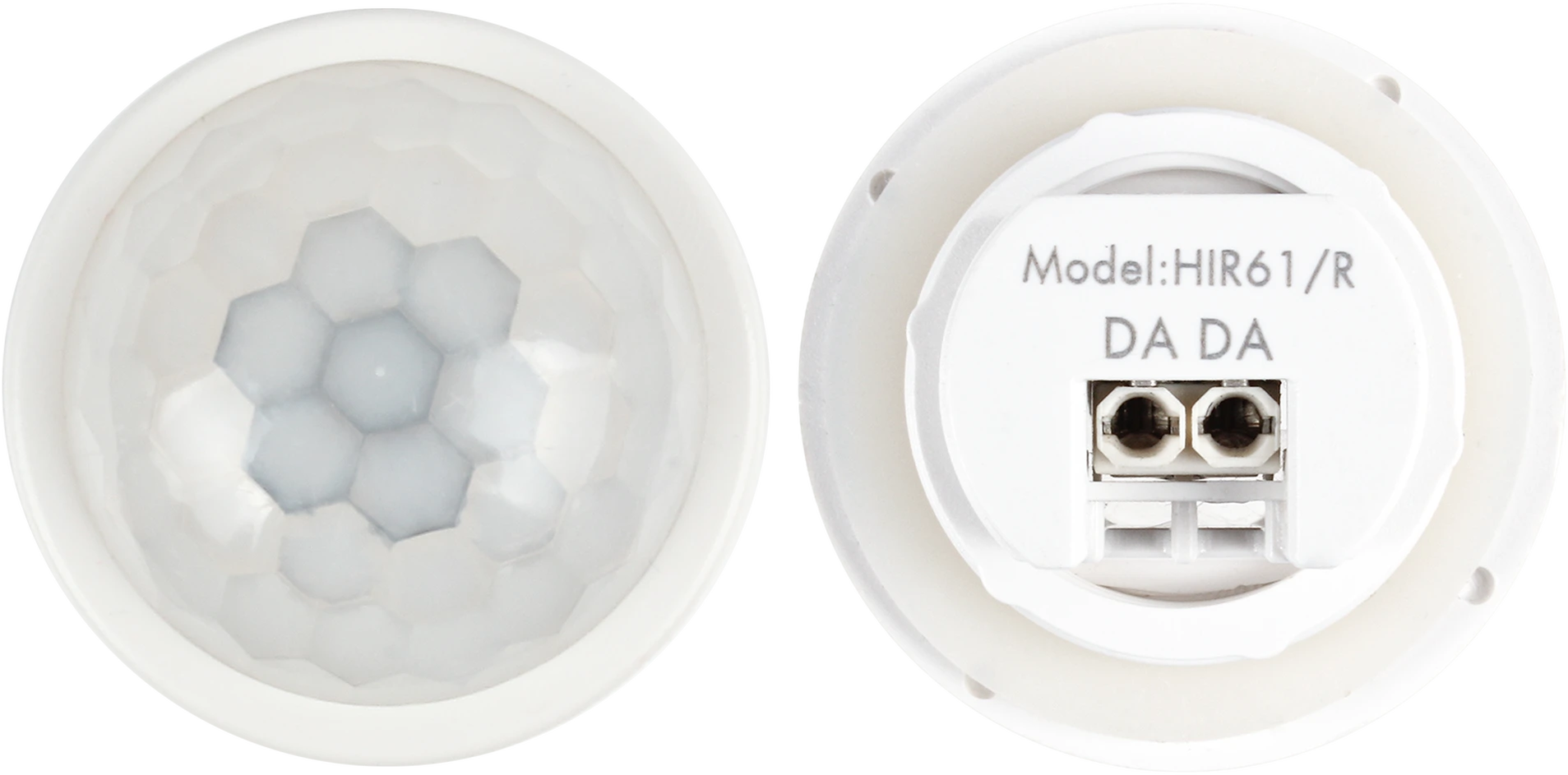

HIR61/R
PIR Midbay | DALI-2 D4i | Zhaga Book 20 Standard
BENEFITS
- Compact: Super small size Zhaga Book 20 sensor
- DALI-2 feature: Occupancy (part 303) Daylight (part 304)
- Standardized: DALI-2 protocol certified as D4i Type B

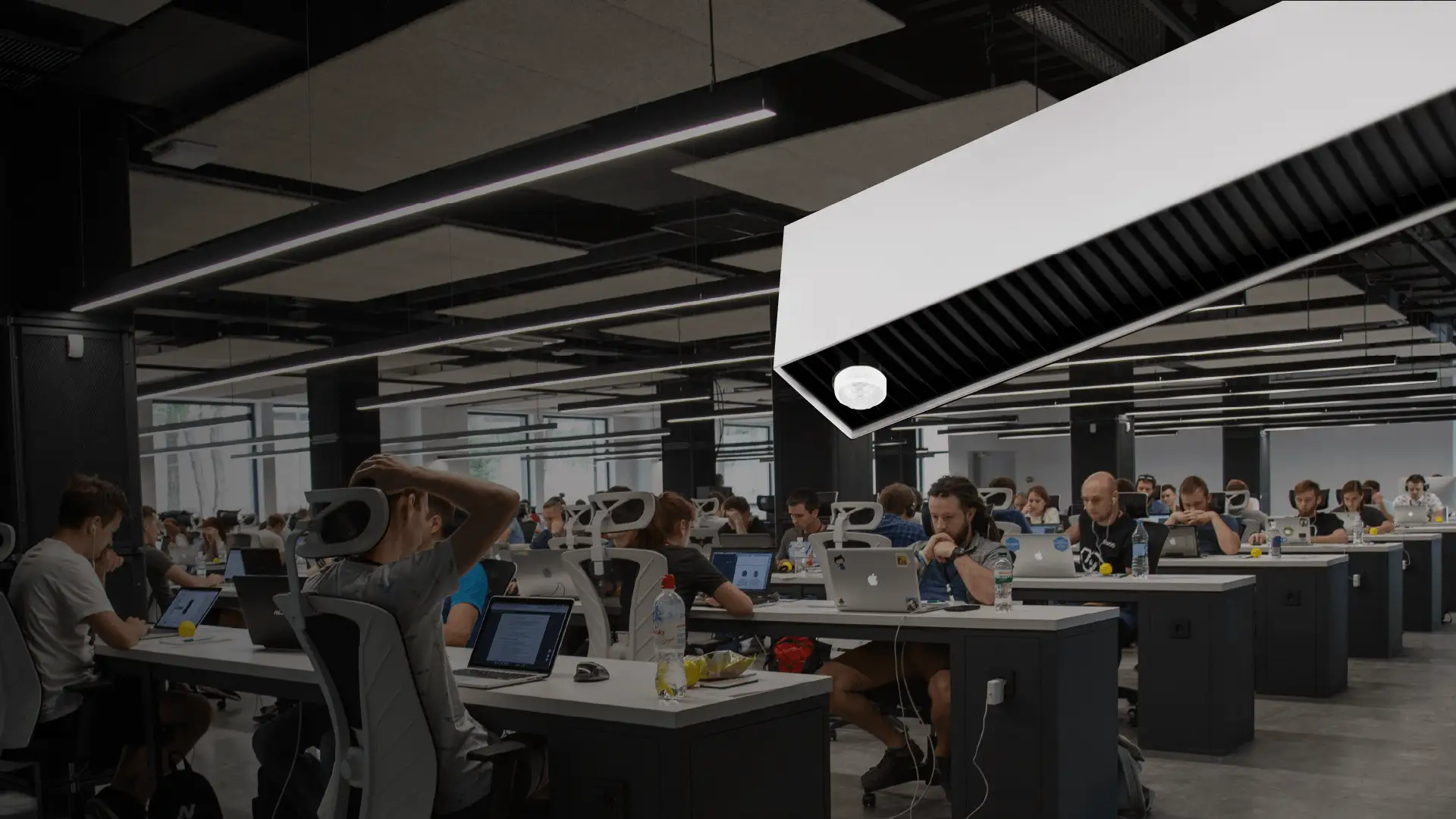

APPLICATIONS
- For linear luminaires up to 8/12m height
- Warehouse/ Logistic
- Production
Product information "HIR61/R"
HIR61/R is a compact DALI-2 PIR motion sensor designed in compliance with the Zhaga Book 20 standard, enabling easy and standardized integration with compatible luminaires. Equipped with a mid-bay lens, it provides a wider detection range for applications requiring broader coverage at medium mounting heights. It integrates a DALI-2 module, PIR motion sensor, and daylight sensor to deliver reliable sensing input for smart lighting control. The ultra-compact design allows seamless luminaire integration while maintaining a clean and flexible fixture design.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Commissioning Methods: | DALI Master/Application Controller |
| Connector Type: | Zhaga book 20 |
| DALI-2 D4i type: | Typ B |
| Daylight Harvest: | No |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 20x12 |
| Dimming (Output) Interface: | DALI/DALI-2 |
| Features: | D4i |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | Reinforced Low-bay |
| Maximum Mounting Height: | 12.0000 m |
| Mounting Height: | Mid & High-bay |
| Mounting hole: | 22.2300 mm |
| Operating Voltage: | 9.5-22.5 VDC |
| Product height: | 43.4000 mm |
| Product length: | 36.7000 mm |
| Product weight: | 22.0000 g |
| Product width: | 21.7000 mm |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Warming-up: | 5 s |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir61-r.pdf
