Active / Make to Stock

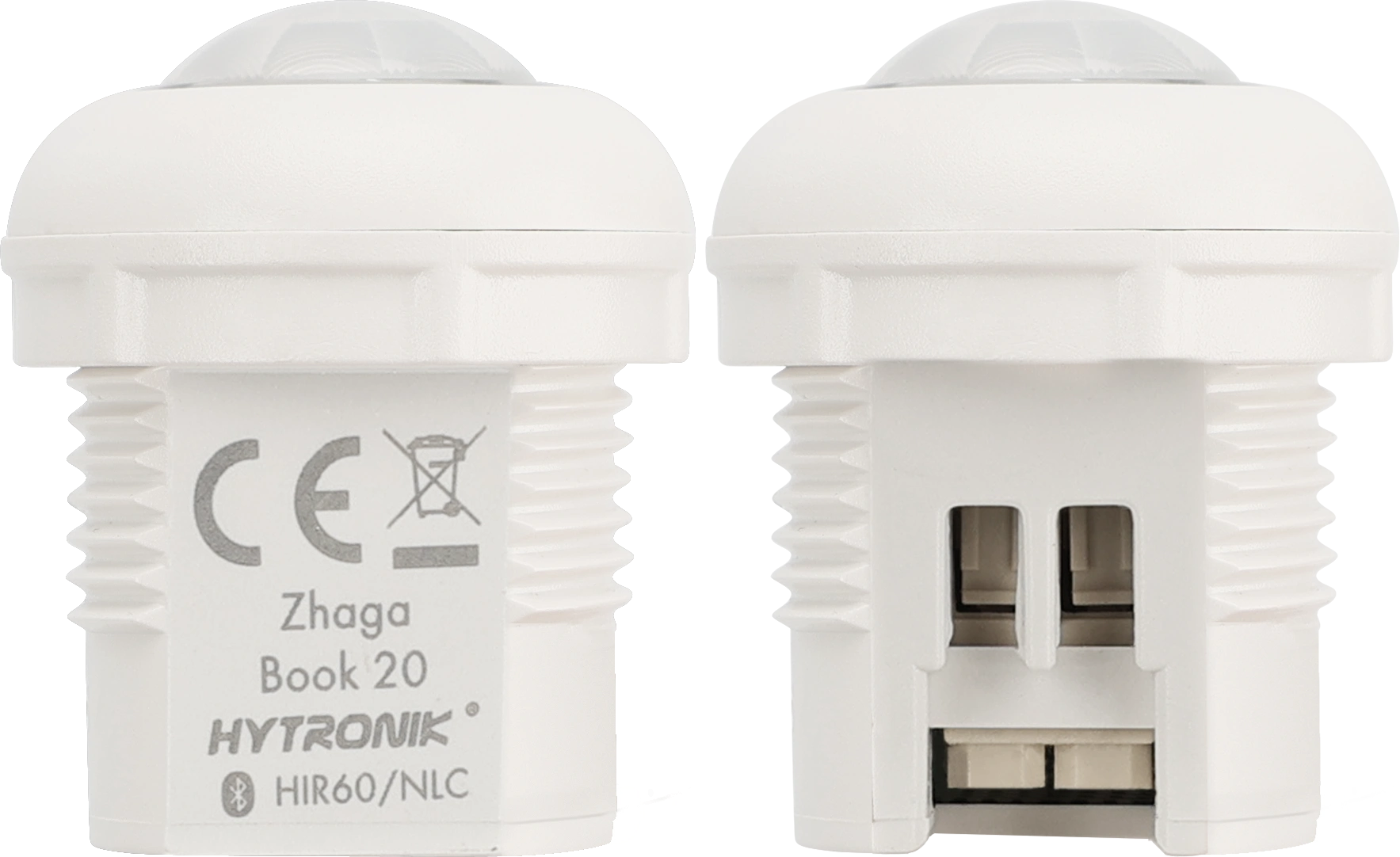

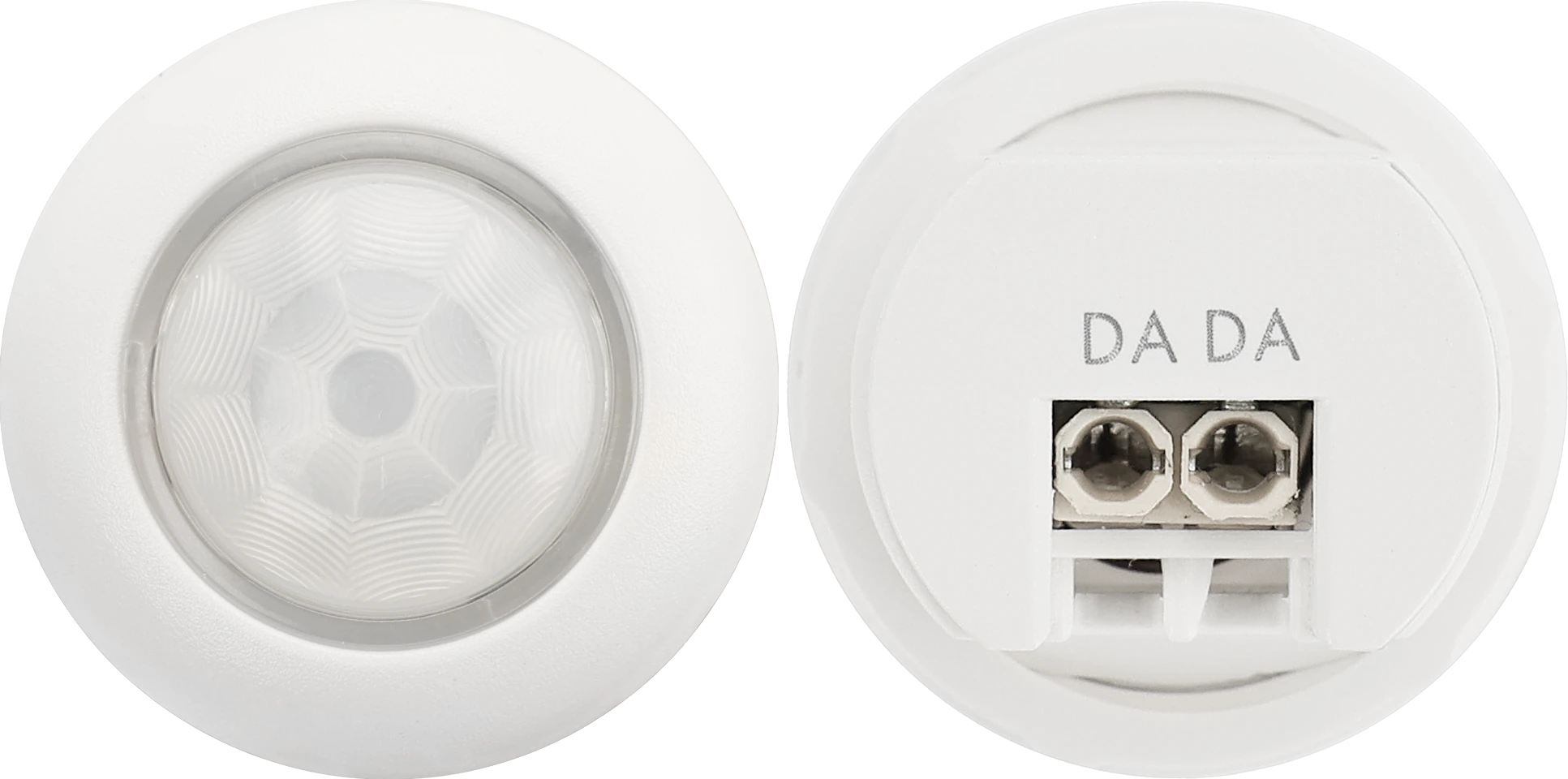

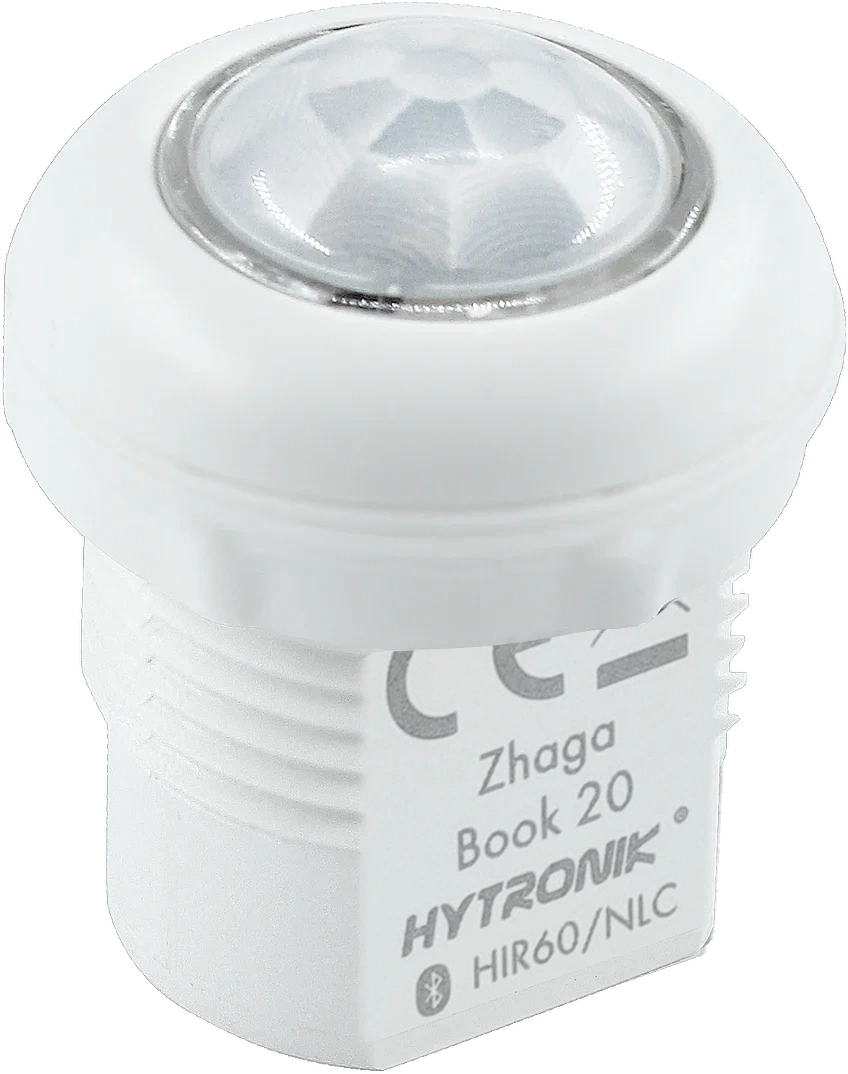

HIR60/NLC
PIR Lowbay | Bluetooth® NLC/ DALI | Zhaga Book 20 Standard
BENEFITS
- Compact: Super small size Zhaga Book 20 sensor
- All-in-one: Occupancy + Bluetooth® NLC
- NLC certified: Reducing retrofit costs and brings efficient control solutions

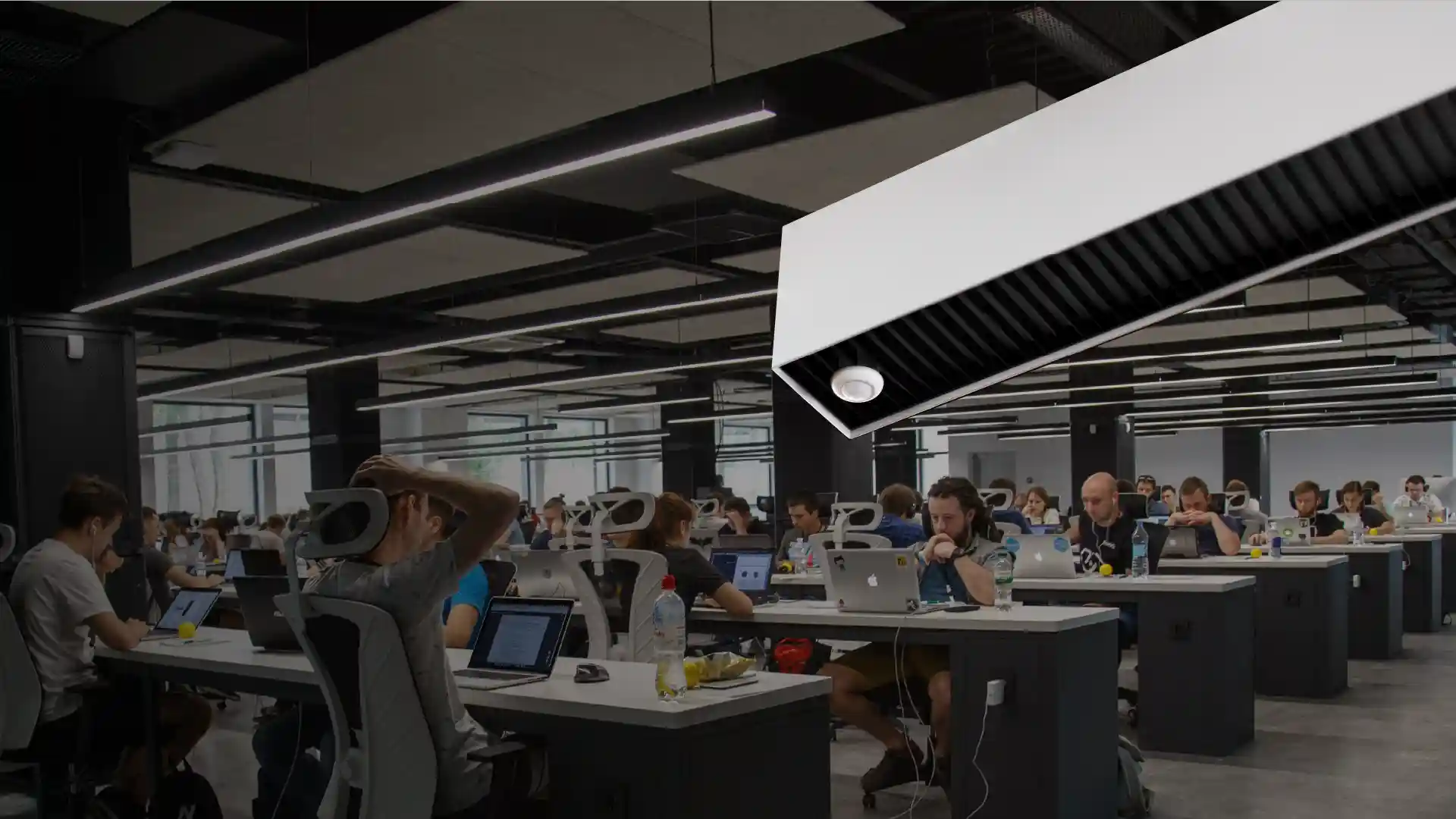

APPLICATIONS
- For linear luminaires with a height of up to 3m
- classroom
- office room
Product information "HIR60/NLC"
This PIR sensor integrates a Silvair module for Zhaga Book 20 luminaire connection. It supports DALI-2 broadcast with built-in power supply, tri-level dimming, and daylight harvesting via a photodiode (PD), it enables easy commissioning and configuration through the SILVAIR app. Combining Hytronik's exceptional hardware technology with SILVAIR's NLC, it meets the DLC NLC5 certification for seamless integration.
| Ambient temperature max.: | 50 °C |
|---|---|
| Ambient temperature min.: | -20 °C |
| Bluetooth frequency: | 2.4 GHz - 2.483 GHz |
| Bluetooth range (Phone to Device) : | 10-30m |
| Bluetooth transmit power: | 4 dBm |
| Commissioning Methods: | App & Web (Bluetooth) |
| Connector Type: | Zhaga book 20 |
| Daylight Harvest: | Yes |
| Detection Methods: | Passive Infrared (PIR) |
| Detection angle: | 360° |
| Detection range (Diameter): | 12x3 |
| Dimming (Output) Interface: | DALI |
| Features: | Daylight Harvest |
| Human Centric Lightning (HCL): | No |
| Humidity max: | 90 % |
| Humidity min: | 10 % |
| IP Rate: | IP20 |
| Installation Type: | Built-in, Zhaga |
| Lens type: | Standard Low-bay |
| Maximum Mounting Height: | 3.0000 m |
| Mounting Height: | Low-bay |
| Mounting hole: | 22.2300 mm |
| Operating voltage range: | 9.5-22.5 VDC |
| Product Status: | Active / Make to Stock |
| Product height: | 31.8000 mm |
| Product length: | 26.0000 mm |
| Product weight: | 9.0000 g |
| Product width: | 26.0000 mm |
| Push Button Input: | 0 |
| Storage temperature max.: | 70 °C |
| Storage temperature min.: | -40 °C |
| Tri-level (Corridor function): | No |
| Voltage Type: | DC |
| Zhaga: | Yes |
Datasheets
Product datasheet: hir60-nlc.pdf
